TT-QCM Torque Wrench Tester

Made in USA

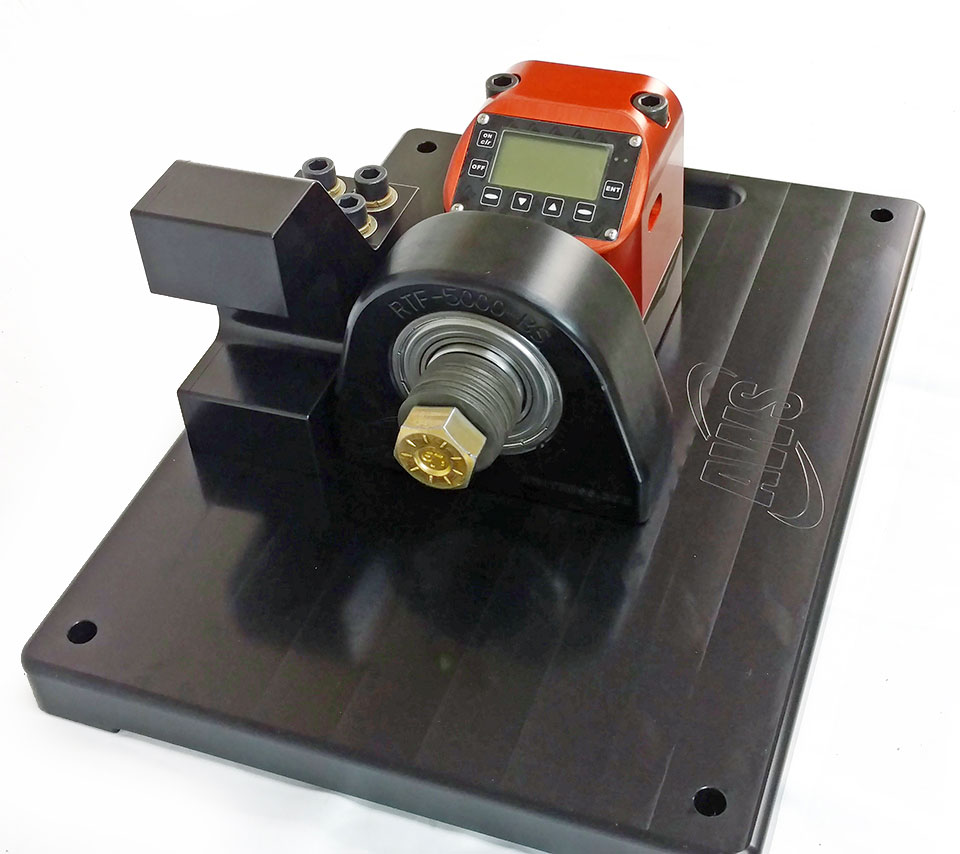

TT-QCM Benchtop Torque Tool Tester
Click images to enlarge.
The TT-QCM Torque Tester is designed for verification and calibration of a wide range of torque wrenches and torque tools. It's bench top design is perfect for testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic.

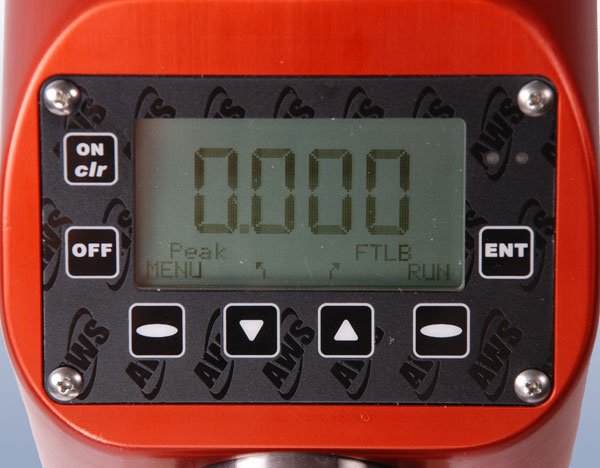

A large LCD display with easy to navigate menu allows for quick setup. Storage memory allows 999 data points to be saved to the unit for review, or transmitted to a local printer or PC via the standard RS232 interface. High and low limits are easily set, and a panel mounted LED provides visual notification to the user when torque reaches these limits. Systems include dedicated internal transducers in vertical or horizontal configurations, it can be switched by the operator after purchase.

Features

  • ±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional
  • 3 modes of operation: Track, Peak and 1st Peak
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • NiMH rechargeable batteries provide 8-10 hours continuous use
  • Includes NIST-Traceable Calibration Certificate
  • 999 Reading Data Memory
  • 2 Year Warranty

Torque Ranges

Model Range Drive Size Run-Down
Fixture
TT-QCMIO-50
5 - 50 ozf-in
0.312 - 3.125 lbf-in
0.026 - 0.26 lbf-ft
360 - 3600 gf-cm
0.36 - 3.6 kgf-cm
0.003 - 0.036 kgf-m
3.53 - 35.3 N-cm
0.035 - 0.353 N-m
1/4" Included
TT-QCMIO-100
10 - 100 ozf-in
0.625 - 6.25 lbf-in
0.052 - 0.52 lbf-ft
720 - 7200 gf-cm
0.72 - 7.2 kgf-cm
0.007 - 0.072 kgf-m
7.061 - 70.61 N-cm
0.07 - 0.706 N-m
1/4" Included
TT-QCMIO-200
20 - 200 ozf-in
1.25 - 12.5 lbf-in
0.104 - 1.041 lbf-ft
N/A
1.44 - 14.4 kgf-cm
0.014 - 0.144 kgf-m
14.12 - 141.2 N-cm
0.141 - 1.412 N-m
1/4" Included
TT-QCMI-10
16 - 160 ozf-in
1 - 10 lbf-in
0.083 - 0.833 lbf-ft
N/A
1.152 - 11.52 kgf-cm
0.011 - 0.115 kgf-m
11.29 - 112.9 N-cm
0.112 - 1.129 N-m
1/4" Included
TT-QCMI-25
40 - 400 ozf-in
2.5 - 25 lbf-in
0.208 - 2.083 lbf-ft
N/A
2.88 - 28.8 kgf-cm
0.028 - 0.288 kgf-m
28.24 - 282.4 N-cm
0.282 - 2.824 N-m
1/4" Included
TT-QCMI-50
80 - 800 ozf-in
5 - 50 lbf-in
0.416 - 4.166 lbf-ft
N/A
5.76 - 57.6 kgf-cm
0.057 - 0.576 kgf-m
56.49 - 564.9 N-cm
0.564 - 5.649 N-m
1/4" Included
TT-QCMI-100
160 - 1600 ozf-in
10 - 100 lbf-in
0.833 - 8.333 lbf-ft
N/A
11.52 - 115.2 kgf-cm
0.115 - 1.152 kgf-m
112.9 - 1129 N-cm
1.129 - 11.29 N-m
1/4" Included
TT-QCMI-150
240 - 2400 ozf-in
15 - 150 lbf-in
1.25 - 12.5 lbf-ft
N/A
17.28 - 172.8 kgf-cm
0.172 - 1.728 kgf-m
169.4 - 1694 N-cm
1.694 - 16.94 N-m
1/4" Included
TT-QCMI-250
400 - 4000 ozf-in
25 - 250 lbf-in
2.083 - 20.83 lbf-ft
N/A
28.8 - 288 kgf-cm
0.288 - 2.88 kgf-m
282.4 - 2824 N-cm
2.824 - 28.24 N-m
3/8" Included
TT-QCMI-500
800 - 8000 ozf-in
50 - 500 lbf-in
4.166 - 41.66 lbf-ft
N/A
57.6 - 576 kgf-cm
0.576 - 5.76 kgf-m
564.9 - 5649 N-cm
5.649 - 56.49 N-m
3/8" Included
TT-QCMI-750
N/A
75 - 750 lbf-in
6.25 - 62.5 lbf-ft
N/A
86.4 - 864 kgf-cm
0.864 - 8.64 kgf-m
847.3 - 8473 N-cm
8.473 - 84.73 N-m
3/8" Included
TT-QCMI-1000
N/A
100 - 1000 lbf-in
8.333 - 83.33 lbf-ft
N/A
115.2 - 1152 kgf-cm
1.152 - 11.52 kgf-m
N/A
11.29 - 112.9 N-m
3/8" Included
TT-QCMF-100
N/A
120 - 1200 lbf-in
10 - 100 lbf-ft
N/A
138.2 - 1382 kgf-cm
1.382 - 13.82 kgf-m
N/A
13.55 - 135.5 N-m
1/2" Optional
TT-QCMF-150
N/A
180 - 1800 lbf-in
15 - 150 lbf-ft
N/A
207.3 - 2073 kgf-cm
2.073 - 20.73 kgf-m
N/A
20.33 - 203.3 N-m
1/2" Optional
TT-QCMF-250
N/A
300 - 3000 lbf-in
25 - 250 lbf-ft
N/A
345.6 - 3456 kgf-cm
3.456 - 34.56 kgf-m
N/A
33.89 - 338.9 N-m
1/2" Optional
TT-QCMF-500
N/A
600 - 6000 lbf-in
50 - 500 lbf-ft
N/A
691.2 - 6912 kgf-cm
6.912 - 69.12 kgf-m
N/A
67.79 - 677.9 N-m
3/4" Optional
TT-QCMF-600
N/A
720 - 7200 lbf-in
60 - 600 lbf-ft
N/A
829.5 - 8295 kgf-cm
8.295 - 82.95 kgf-m
N/A
81.34 - 813.4 N-m
3/4" Optional
TT-QCMF-750
N/A
900 - 9000 lbf-in
75 - 750 lbf-ft
N/A
N/A
10.36 - 103.6 kgf-m
N/A
101.6 - 1016 N-m
3/4" Optional
TT-QCMF-1000
N/A
N/A
100 - 1000 lbf-ft
N/A
N/A
13.82 - 138.2 kgf-m
N/A
135.5 - 1355 N-m
1" Optional
TT-QCMF-2000
N/A
N/A
200 - 2000 lbf-ft
N/A
N/A
27.65 - 276.5 kgf-m
N/A
271.1 - 2711 N-m
1" Optional

Related Products

AWS-1025 Mechanical Torque Loader
Click image for more info
Torque Wrench Loader AWS-1000 Series
- Rugged Machined Aluminum Construction
- Heavy-duty precision gear box for easy load application
TWT-410 Torque Loader
Click image for more info
Torque Wrench Loader
- The flexible design of the TWT-410 is easy to use and is suitable for various torque wrench lengths and brands
Click image for more info
Waterproof Carrying Case
- Injection molded using an advanced patented light-weight high-strength plastic.
run-down-fixture
Click image for more info
Run Down Fixture - Joint Simulators for Torque Testers
- Threaded bolt and nut body for simulating bolted joint. On Standard, HD and HE models bolt is standard and easily replaceable from multiple sources
torque arm for torque sensor calibration
Click image for more info
Torque Arms, Calibration Arms, Torque Wheels, Calibration Wheel
Torque Driver Adapters
Click image for more info
Torque Drive Adapters
- Custom drives available, inquire

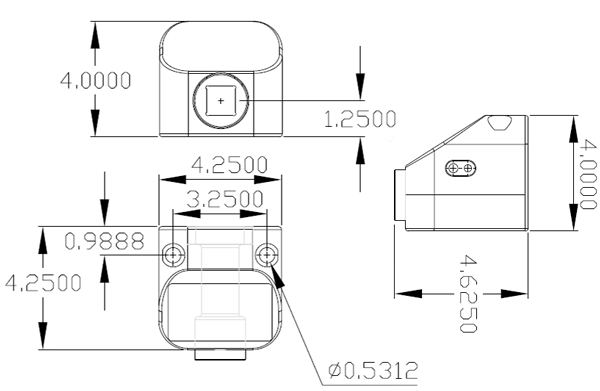

Dimensions

TT-QCM Torque Tester dimensions

Specifications

Calibrated Range10-100% Full Scale, bi-directional
Accuracy±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional
Resolution4 Active Digits
Overload Protection200% Full Scale bi-directional
Operating ModesTrack, Peak, 1st Peak
FilteringSelectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Data OutputRS-232
Memory999 Readings
Alarm LimitsPanel Mounted LED for Visual Alarm Limits
PowerInternal NiMH battery, AC Adapter / Charger (included)
WeightAproximately 3lbs depending on transducer
Operating Temp32 - 120 °F (0-50 °C)
Warranty2 Years
Calibration CertificateIncludes NIST Traceable calibration certificate with data
Standard AccesoriesJoint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional AccessoriesJoint Simulators for 1/2", 3/4" & 1" Transducers

Downloads

Buy Now

Check the items you would like to purchase then click "Buy Now"
  Item Description Price
Digital Torque Tester, 50 Oz-in / 35 N-cm, 1/4" Sq. Dr.
$1,995.00
Digital Torque Tester, 100 Oz-in / 70 N-cm, 1/4" Sq. Dr.
$1,995.00
Digital Torque Tester, 10 Lb-in / 113 N-cm, 1/4" Sq. Dr.
$1,995.00
Digital Torque Tester, 200 Oz-in / 140 N-cm, 1/4" Sq. Dr.
$1,995.00
Digital Torque Tester, 25 Lb-in / 282 N-cm, 1/4" Sq. Dr.
$1,995.00
Digital Torque Tester, 50 Lb-in / 5.6 Nm, 1/4" Sq. Dr.
$1,995.00
Digital Torque Tester, 100 Lb-in / 11 Nm, 1/4" Sq. Dr.
$1,995.00
Digital Torque Tester, 150 Lb-in / 17 Nm, 1/4" Sq. Dr.
$1,995.00
Digital Torque Tester, 250 Lb-in / 28 Nm, 3/8" Sq. Dr.
$1,995.00
Digital Torque Tester, 500 Lb-in / 56 Nm, 3/8" Sq. Dr.
$1,995.00
Digital Torque Tester, 750 Lb-in / 85 Nm, 3/8" Sq. Dr.
$1,995.00
Digital Torque Tester, 1000 Lb-in / 113 Nm, 3/8" Sq. Dr.
$1,995.00
Digital Torque Tester, 100 Lb-ft / 135 Nm, 1/2" Sq. Dr.
$2,195.00
Digital Torque Tester, 150 Lb-ft / 200 Nm, 1/2" Sq. Dr.
$2,195.00
Digital Torque Tester, 250 Lb-ft / 340 Nm, 1/2" Sq. Dr.
$2,195.00
Digital Torque Tester, 500 Lb-ft / 677 Nm, 3/4" Sq. Dr.
$2,195.00
Digital Torque Tester, 600 Lb-ft / 813 Nm, 3/4" Sq. Dr.
$2,195.00
Digital Torque Tester, 750 Lb-ft / 1016 Nm, 3/4" Sq. Dr.
$2,195.00
Digital Torque Tester, 1000 Lb-ft / 1355 Nm, 1" Sq. Dr.
$2,195.00
Digital Torque Tester, 2000 Lb-ft / 2711 Nm, 1" Sq. Dr.
$2,195.00
Accessories
ER
Extended Range, increases certified range to 5-100% (instead of 10-100%)
$100.00
UPG-25
Upgrade Accuracy from ±0.5% to ±0.25%
$100.00
ISO-17025-UPG
Upgrade from NIST traceable cert to ISO-17025 Certificate (higher for models over 250 lb-ft, inquire)
$275.00
TT-QCM-CC
Waterproof Carrying Case for TT-QCM
$125.00
TT-SOFT
Data Transfer Software for TT Series, Includes USB Output Cable
$125.00
AWS-1000-TS
90 Degree Mounting Bracket for TT-QCM, allows vertical testing
$275.00
