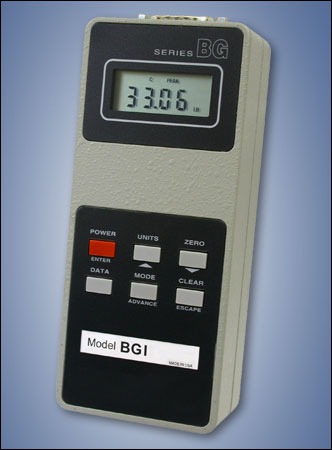

BGI Remote Sensor Force / Torque Gauge

Click images to enlarge.
The BGI has been replaced by the Series 5i. Please click here to view the new model

The BGI Force / Torque Gauge is a unique product that is designed for working with interchangeable remote force and torque sensors. These sensors cover a variety of force measurement and torque measurement applications and are available in a broad range of capacities. No calibration or setup is required - simply plug and play.

Features

  • Fully interchangeable force and torque BGI force/torque sensors with "personality" modules
  • Unlimited number of sensors possible due to unique design
  • Programmable default configuration for each sensor
  • Selectable units of measurement
  • RS-232, Mitutoyo and analog outputs
  • Push-button calibration
  • Averaging mode for average readings over time
  • GCL - Gauge Control Language for full computer control
  • External trigger for data capture and switch testing
  • Programmable dual set points with outputs
  • General purpose I/O for external device control
  • Programmable auto-shutoff
  • Battery or AC operation
  • Peak reading memory
  • MESUR™ Lite data acquisition software is included (Requires optional Serial Cable)

Related Products

Click image for more info
SS
TENSION and COMPRESSION force sensor
- Member of the BGI family of interchangeable sensors
- Measures tensile and compressive forces
Click image for more info
SSM
Tension & Compression Force Sensor
- Member of the BGI family of interchangeable sensors
- Measures tensile and compressive forces
Click image for more info
SBC
Compression Force Sensor
- for compressive loads of up to 10,000 lbs
Click image for more info
SJR
Miniature S-Beam Force Sensor
- Member of the BGI family of interchangeable sensors
- Measures tensile and compressive forces
Click image for more info
STB
Cap Torque Sensor
- Rugged aluminum housing
- Spill proof construction
Click image for more info
Torque Sensor for Tool Calibration
- May be used for torque tool calibration or as a component of a torque testing system
Click image for more info
STE
Wrench Extension Torque Transducer
- Stainless steel and aluminum construction
Click image for more info
STJ
Universal Torque Sensor
- Measures bi-directional torque
Click image for more info
STH
Universal Torque Sensor
- Outstanding overload protection
Click image for more info
STW
Torque Wrench
- Ideal for checking torque on bolts and other fasteners
Click image for more info
Table Top Stand For 3i, 5i, 7i
Click image for more info
Mitutoyo SPC statistical processor/printer
Click image for more info
MESURgauge / MESURgauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, and ESM1500 motorized test stands, coordinating motion control and data collection with just one click

Complete Kit

The BGI is supplied in a cushioned carrying case with AC adapter and rechargeable battery.

Specifications

Accuracy± 0.1% of full scale ±1 digit + sensor's accuracy
Sampling Rate65 readings/sec
Battery life8 hours per charge
Weight0.9 lbs (0.4 kg)
Warranty3 years
