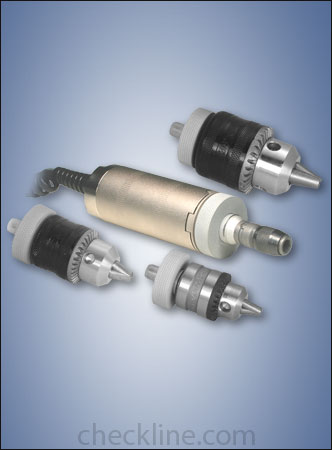

STH Universal Torque Sensor

Click images to enlarge.
A great solution for general bi-directional torque testing applications requiring different sample sizes. Three interchangeable chuck capacities and bit holder are available. The STH has superb overload protection and is available in capacities from 10 oz-in to 100 lb-in.

Features

  • Member of the BGI family of interchangeable sensors
  • Outstanding overload protection
  • "Personality module" holds all calibration and configuration data
  • Interchangeable chucks (order separately)
  • 3 Year Warranty

Force Ranges

ModelCapacityResolution
STH-10Z10 oz-in
7 kg-mm
7 N-cm
0.01 oz-in
0.005 kg-mm
0.005 N-cm
STH-20Z20 oz-in
14 kg-mm
14 N-cm
0.02 oz-in
0.01 kg-mm
0.01 N-cm
STH-50Z50 oz-in
36 kg-mm
35 N-cm
0.05 oz-in
0.05 kg-mm
0.05 N-cm
STH-1212 lb-in
140 kg-mm
135 N-cm
0.01 lb-in
0.1 kg-mm
0.1 N-cm
STH-5050 lb-in
580 kg-mm
570.0 N-cm
0.05 lb-in
0.5 kg-mm
0.5 N-cm
STH-100100 lb-in
1150 kg-mm
1150 N-cm
0.1 lb-in
1 kg-mm
1 N-cm

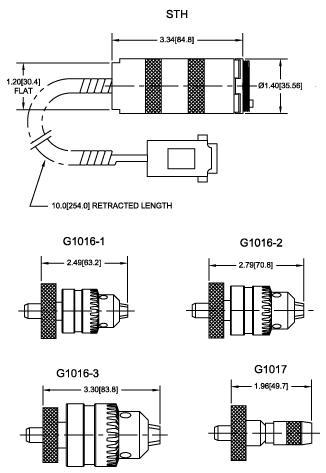

Dimensions

Chuck Min / Max Opening
G1016-1 G1016-2 G1016-3 G1017
0.028" - 0.25" 0.062" - 0.375" 0.078" - 0.5" Bit holder for STH, 1/4" hex

Related Products

Click image for more info
BGI
Remote Sensor Force / Torque Gauge
- Fully interchangeable force and torque BGI force/torque sensors with "personality" modules
- Unlimited number of sensors possible due to unique design
- RS-232, Mitutoyo and analog outputs

Specifications

Accuracy±0.20% of full scale ±1 digit + BGI
WeightFrom 1.4 lbs (0.6 kg)
Warranty3 years

Downloads

Buy Now

Item Description Price
STH-10Z Universal Torque Sensor - Chuck Sold Separately
$795.00
STH-20Z Universal Torque Sensor - Chuck Sold Separately
$795.00
STH-50Z Universal Torque Sensor - Chuck Sold Separately
$795.00
STH-12 Universal Torque Sensor - Chuck Sold Separately
$745.00
STH-50 Universal Torque Sensor - Chuck Sold Separately
$745.00
STH-100 Universal Torque Sensor - Chuck Sold Separately
$745.00
Accessories
Jacobs chuck for R51, 0.028” - 0.25” dia.
$165.00
Jacobs chuck for R51, 0.062” - 0.375” dia.
$170.00
Jacobs chuck for R51, 0.078” - 0.5” dia.
$175.00
Bit holder for R51, 1/4” hex
$175.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
