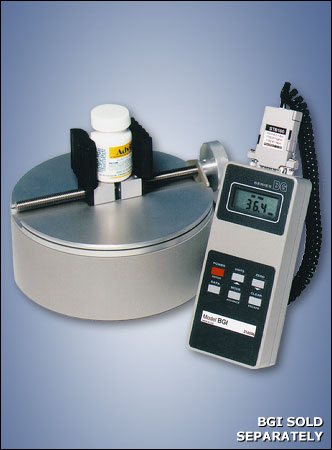

STB Cap Torque Sensor

Click images to enlarge.
The STB has been replaced by the R53. Please click here to view the new model

Ideal for testing torque on bottle caps, closures, valves, fasteners, and other items in sizes ranging between 0.56 - 5.7 in [14 - 148 mm] in diameter. DESIGNED TO WORK WITH BGI REMOTE SENSOR FORCE GAUGE

BGI sold seperately.

Features

  • Rugged aluminum housing
  • Spill proof construction
  • Reversible jaws for round or rectangular containers
  • NIST-traceable certificate of calibration included
  • 3 Year Warranty

Force Ranges

ModelCapacityResolution
STB-10Z10 oz-in
7 kg-mm
7 N-cm
0.01 oz-in
0.005 kg-mm
0.005 N-cm
STB-20Z20 oz-in
14 kg-mm
14 N-cm
0.02 oz-in
0.01 kg-mm
0.01 N-cm
STB-50Z50 oz-in
36 kg-mm
35 N-cm
0.05 oz-in
0.05 kg-mm
0.05 N-cm
STB-1212 lb-in
140 kg-mm
135 N-cm
0.01 lb-in
0.1 kg-mm
0.1 N-cm
STB-5050 lb-in
580 kg-mm
570.0 N-cm
0.05 lb-in
0.5 kg-mm
0.5 N-cm
STB-100100 lb-in
1150 kg-mm
1150 N-cm
0.1 lb-in
1 kg-mm
1 N-cm

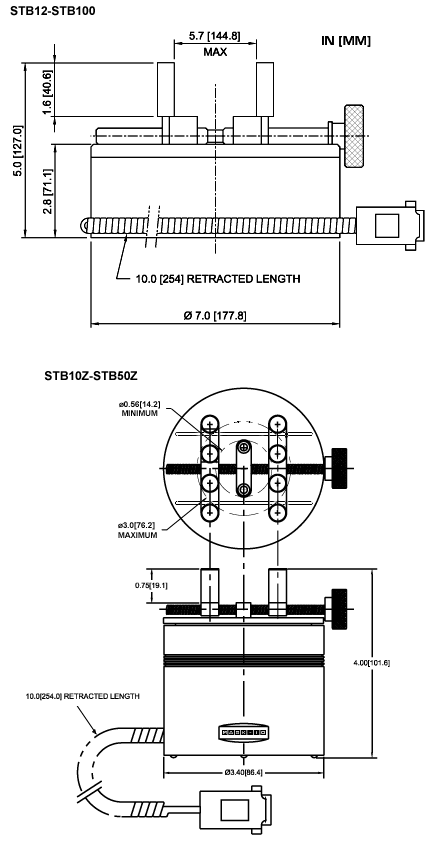

Dimensions

Specifications

Accuracy± 0.7% of full scale ±1 digit + BGI
WeightSTB-10Z-STB-50Z - 2.2 lbs (1.0 kg)
STB-12-STB-100 - 5.4 lbs (2.5 kg)
Warranty3 years

Related Products

Click image for more info
BGI
Remote Sensor Force / Torque Gauge
- Fully interchangeable force and torque BGI force/torque sensors with "personality" modules
- Unlimited number of sensors possible due to unique design
- RS-232, Mitutoyo and analog outputs

Downloads

Buy Now

Item Description Price
STB-10Z Cap Torque Sensor
$1,480.00
STB-20Z Cap Torque Sensor
$1,480.00
STB-50Z Cap Torque Sensor
$1,480.00
STB-12 Cap Torque Sensor
$1,480.00
STB-50 Cap Torque Sensor
$1,480.00
STB-100 Cap Torque Sensor
$1,480.00
Accessories
BGI - NO LONGER AVAILABLE
$0.00
Table Top Stand For 3i, 5i, 7i - AC1008
$150.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
