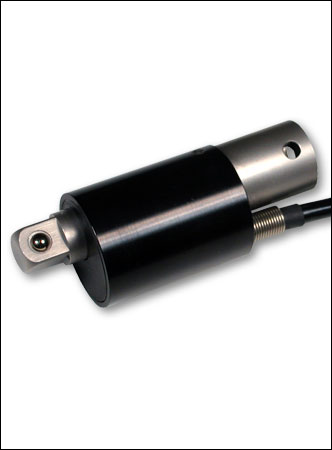

STE Wrench Extension Torque Transducer

Click images to enlarge.
The STE has been replaced by the R54. Please click here to view the new model

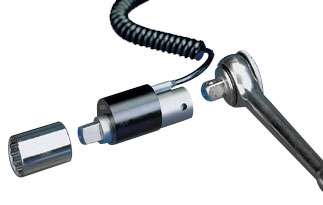

Convert any wrench to a torque tool with this sensor, or use it as a component of a torque testing system.

DESIGNED TO WORK WITH BGI REMOTE SENSOR FORCE GAUGE

Features

  • Member of the BGI family of interchangeable sensors
  • Stainless steel and aluminum construction
  • "Personality module" holds all calibration and configuration data
  • NIST-traceable certificate of calibration included

Related Products

Click image for more info
BGI
Remote Sensor Force / Torque Gauge
- Fully interchangeable force and torque BGI force/torque sensors with "personality" modules
- Unlimited number of sensors possible due to unique design
- RS-232, Mitutoyo and analog outputs

Force Ranges

ModelCapacityResolutionDrive Size
STE2020 lb-in
230 kgF-mm
220 N-cm
0.02 lb-in
0.2 kgF-mm
0.2 N-cm
1/4" Sq. Dr.
STE5050 lb-in
580 kgF-mm
570 N-cm
0.05 lb-in
0.5 kgF-mm
0.5 N-cm
1/4" Sq. Dr.
STE100100 lb-in
1150 kgF-mm
1150 N-cm
0.1 lb-in
1 kgF-mm
1 N-cm
1/4" Sq. Dr.
STE200200 lb-in
2300 kgF-mm
2200 N-cm
0.2 lb-in
2 kgF-mm
2 N-cm
3/8" Sq. Dr.
STE400400 lb-in
4600 kgF-mm
4500 N-cm
0.5 lb-in
5 kgF-mm
5 N-cm
3/8" Sq. Dr.
STE10001000 lb-in
11500 kgF-mm
11000 N-cm
1 lb-in
10 kgF-mm
10 N-cm
1/2" Sq. Dr.
STE50005000 lb-in
55 kgF-m
550 N-m
5 lb-in
0.05 kgF-m
0.5 N-m
3/4" Sq. Dr.

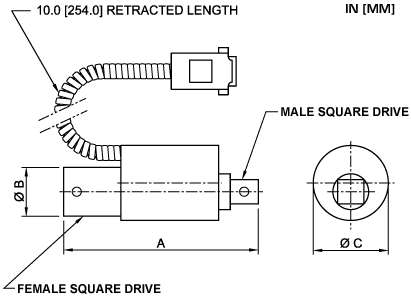

Dimensions

Model A ⌀B ⌀C Drive Size
STE20
STE50
STE100
1.88 [47.8] 0.56 [14.2] 1.00 [25.4] 1/4"
STE200
STE400
3.00 [76.2] 0.73 [18.5] 1.12 [28.6] 3/8"
STE1000 3.50 [88.9] 0.98 [24.9] 1.25 [31.8] 1/2"
STE5000 5.00 [127.0] 1.48 [37.6] 2.0 [50.8] 3/4"

Specifications

Accuracy±0.6% of full scale ±1 digit + BGI
Warranty3 years

Downloads

Buy Now

Item Description Price
STE20 Torque Transducer
$1,195.00
STE50 Torque Transducer
$1,195.00
STE100 Torque Transducer
$1,195.00
STE200 Torque Transducer
$1,195.00
STE400 Torque Transducer
$1,195.00
STE1000 Torque Transducer
$1,195.00
STE5000 Torque Transducer
$1,195.00
Accessories
AC1010
Mounting kit for STE 200-400, table top
$90.00
AC1016
Mounting kit, STE200/400 to TST-Series stands
$60.00
