SC-PM Display Unit

SC-PM Tension Display Unit
Click images to enlarge.

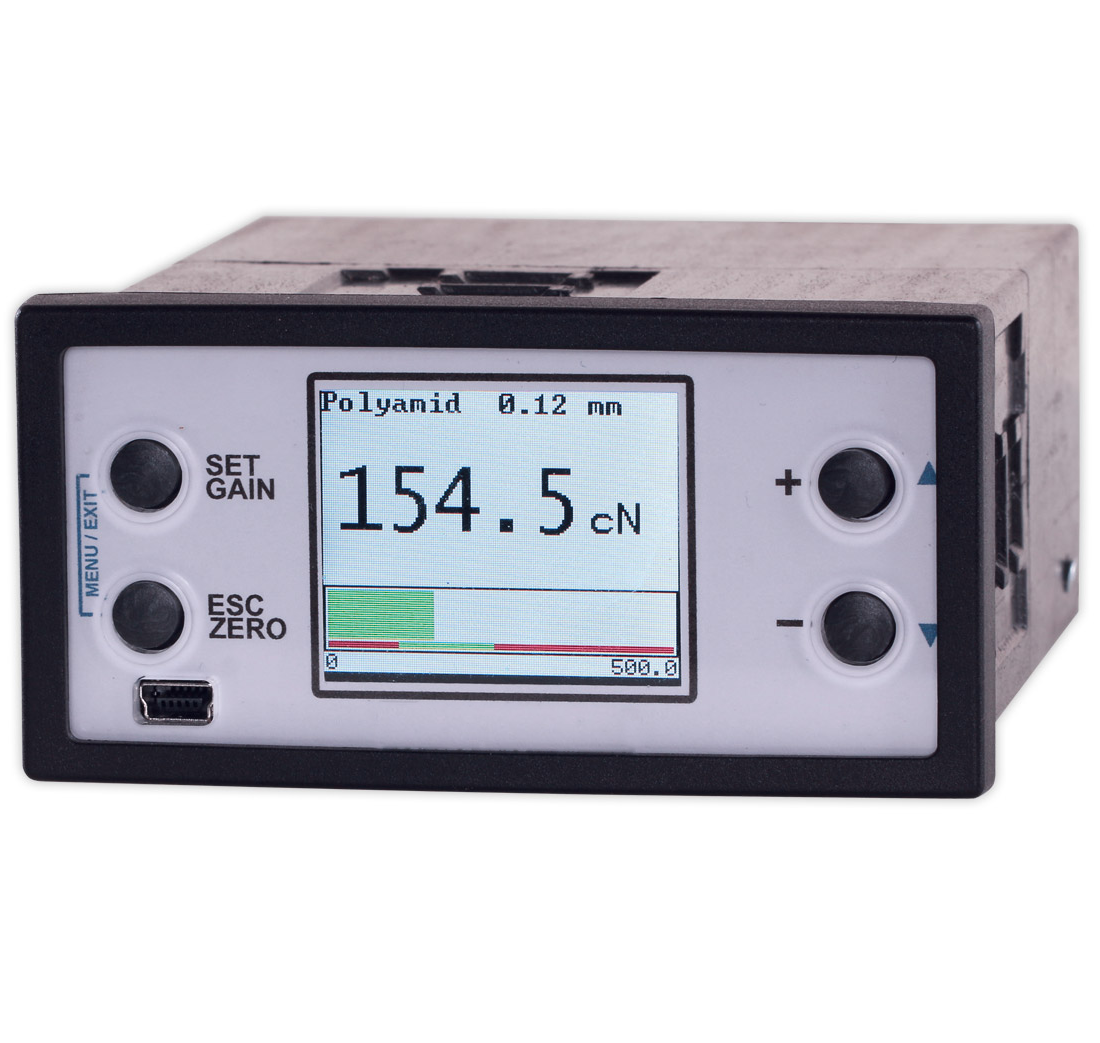

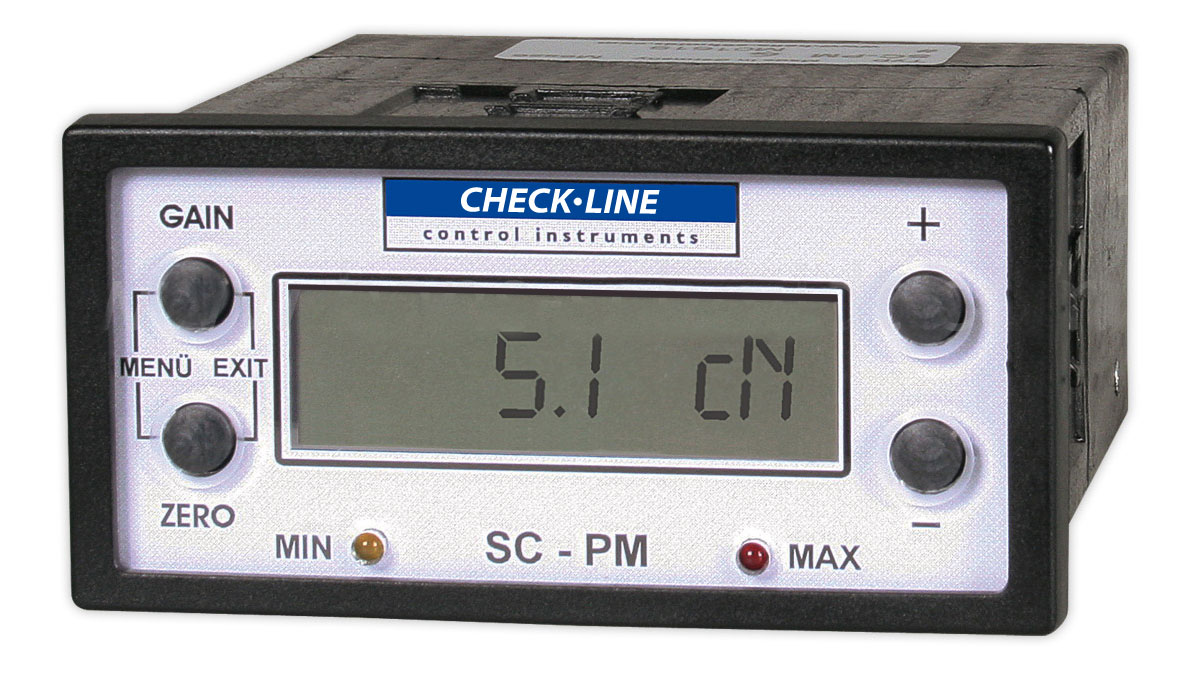

Panel mount digital tension indicator (1/8 Din Cutout) with analog output and user-set MIN and MAX alarm limits. RS-232 output is optional. Can be used with all 3-roller tension sensors TE, TF, TSW, TS2 and other sensors that provide an analog output signal 0 - 1V DC.

3 different calibrations for customer supplied material can be saved at this display unit

Available with RS232 or RS422 output for direct connection to PC

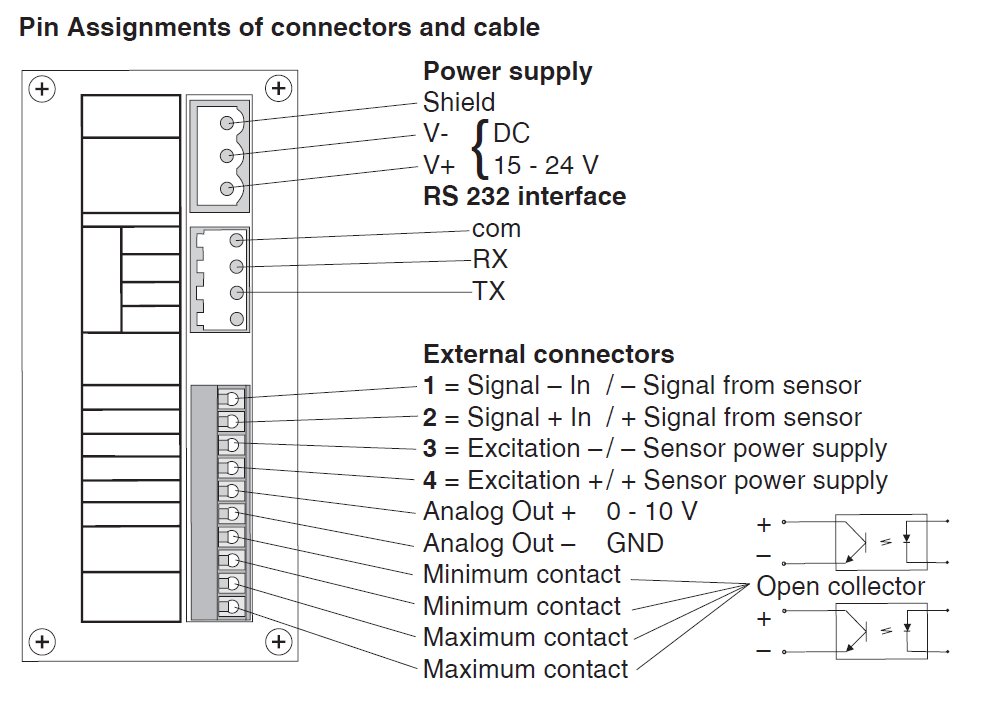

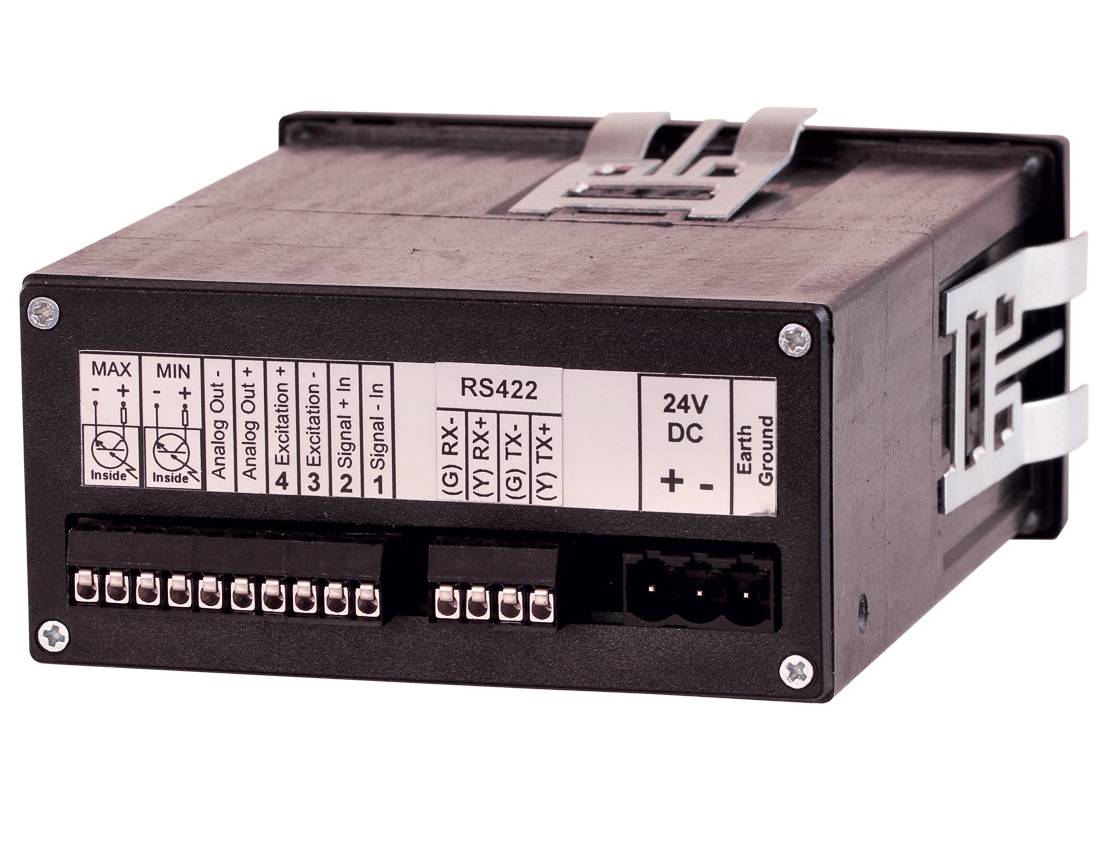

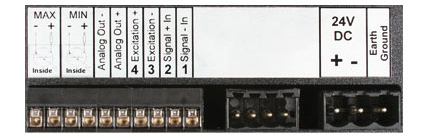

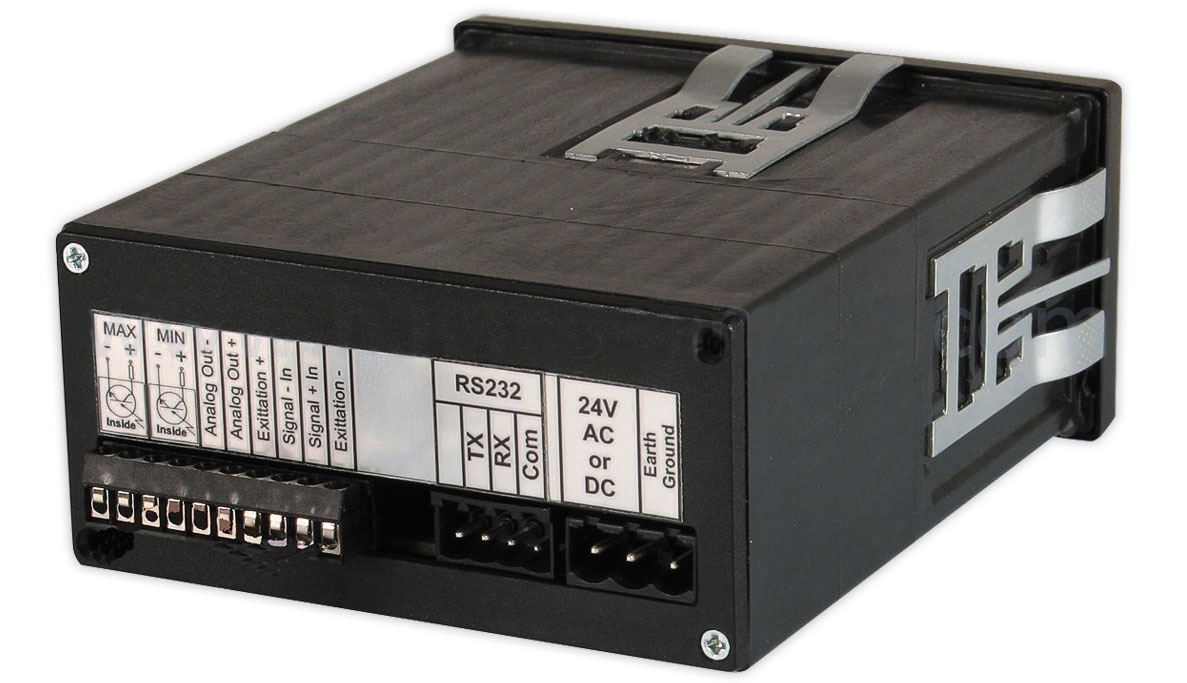

Rear Panel of Indicator: Terminal strip for power supply, output signals (RS 232, 0 - 10 V DC, Open Collector)

Features

  • Connection of series TE, TF, TSW, TS2 and other with analog output 0 - 1 V DC, optionally series without integrated amplifier
  • User set limits (Min and Max alarms) with LED and Open Collector output for external signal unit
  • Adjustable damping to reduce tension fluctuates
  • Panel mounted digital display

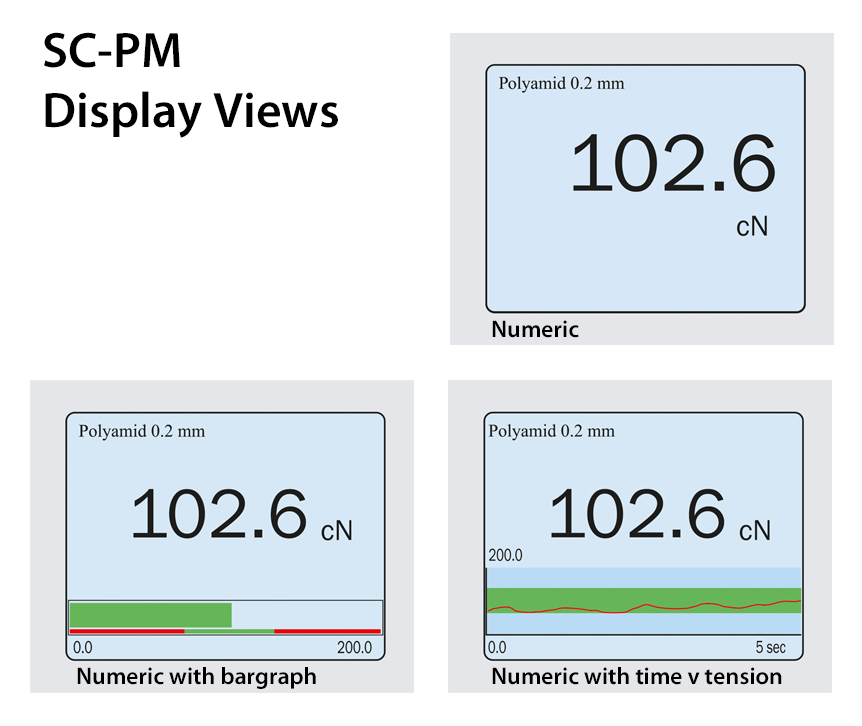

  • Display unit with Dotmatrix LCD display, 12 mm high with backlight
  • Interfaces:
    Analog: 0 - 10 V DC (standard)
    Digital (optional): RS 232 or RS 422
    Current (optional "-MA"): 4 - 20 mA (instead of 0 - 10 V DC output)
  • Can store up to three (3) separate calibrations for 3 different materials
  • CE certified
  • Scale to desired engineering units of grams, Kg, cN, daN
  • Operates from 15-24V DC power. 100-240V AC-DC Wall Plug Adapter optionally available (p/n AC-SC-PM)

Output Signal

Name Output Signal
Standard
analog 0 - 10 V DC
open collector
Code A3
4 - 20 mA instead of 0 - 10 V DC
open collector
Code 232
digital RS-232
analog 0 - 10 V DC
open collector
Up to 100 readings can be transfered per second
Code 422
digital RS-422
analog 0 - 10 V DC
open collector
Up to 100 readings can be transfered per second
Click picture for more information

Specifications

Digital displayDotmatrix LCD, 12 mm high with backlight
Measuring UnitscN, daN, g, kg or lb, user- selectable depending on range
Selectable Damping9 adjustable settings (electronic damping, moving averaging)
Output signalanalog: 0 - 10 V DC /R (Last) ≥ 5 kΩ
digital (option): RS 232 or RS 422 (19200, 8, N, 1), 100 measurings/s
current (option "-MA"): 4 - 20 mA instead of 0 - 10 V DC
Input signal0 - 1 V DC, option mV
Alarm limitsProgrammable MIN/MAX limits with LED
Alarm outputOpen Collector max. 30 V DC, 10 mA
AdjustmentStorage for 3 different materials (standard adjustment + 2 customer supplied materials)
Power RequiredSC-PM: 15 - 24 V DC, 100 mA (Regulated)
AC-SC-PM: 100-240V AC, using optional AC/DC Adapter (plugs into AC wall outlet)
Temperature range10 - 45° C
Air humidity85 % RH, max.
HousingPlastics
Dimensions115 x 95 x 48 mm (LxWxH), mounting cut out 92 x 44 mm
Weight, net (gross)Approx. 300 g (Approx. 1000 g)
