TE-22 Low Inertia Tension Sensor For Fragile Filaments

Made in Germany
TE-22 Low Inertia Tension Sensor
Click images to enlarge.
5 Tension Ranges
0-50 g up to 0-1000 g
TE-xx-22-PL (with Delrin Plastic Rollers)
TE-xx-22-AL (with Hardcoated Aluminum Rollers)

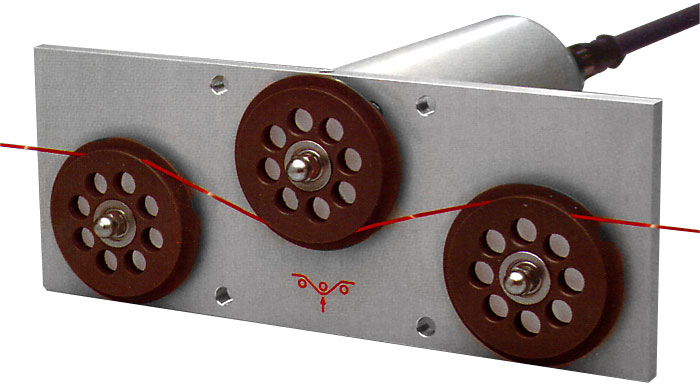

Lightweight 32mm diameter rollers minimize the deflection of the material path for fragile filaments or very low tension applications.

A built-in amplifier conditions the strain gauge signal, providing a 0–1 VDC output, minimizing the chance for signal interference.

Other important features include user-accessible calibration adjustment pots and gold-plated contacts on the connector.

Plastic Delrin rollers can be supplied instead of the standard Hardcaoted Aluminum rollers when extra low weight is needed or when the material dictates an alternative roller material.


  • Lightweight 32mm diameter rollers are offered in Delrin Plastic (specify TE-xx-22-PL) or Harcoated Aluminum (specify TE-xx-22-AL)
  • Precision strain gauge sensing for highest accuracy and repeatability
  • Frequency response of 100 Hz
  • 0-1 V DC output, proportional to tension (0-10 V DC optional)
  • Surface mount electronics provide long-term reliability
  • Optional 10ft. connecting cable, TE-CABLE-CN is recommended

Tension Ranges

TE-50-220-50 g
TE-100-220-100 g
TE-200-220-200 g
TE-500-220-500 g
TE-1K-220-1000 g
Note: Please specify Hardcoated Aluminum (AL) or Delrin Plastic (PL) Rollers.


Related Products

SC-PM Tension Sensor Indicator
Click image for more info
Tension Indicator with Color Display
- User set limits (Min and Max alarms) with Visual Indicator in LCD with Open Collector output for external signal
- Adjustable damping to reduce tension fluctuates
- Storage for 4 different material calibrations (standard + 3 customer supplied materials)
SC4-PM Panel mount digital display unit
Click image for more info
Panel mount digital display unit
- Panel mount display unit (1/4 DIN IEC 61554 cutout – 91.5 x 91.5 mm)
- Suitable for connecting a maximum of 4 sensors (different ranges are possible) with analog output 0 – 1 V DC or optional series without integrated amplifier (output mV/V)
SCD-1 Tension Indicator
Click image for more info
Display Unit
Click image for more info
Data Transfer & Analysis Program
- Data can be viewed and analyzed in TensionInspect or transferred to Excel
- Selectable sample rates up to 200 Hz and scalable trend graph "x" and "y" axis


Accuracy± 1.5% FS or better
Sensor Excitation+12 ... 24 V DC, max. 50 mA regulated
Middle Roller Deflection0.5 mm (maximum)
Sensor Output0-1 V DC (standard)
0-10 V DC (optional)
proportional to tension
Frequency Response30Hz (custom frequency response up to 300 Hz available as an option)
Overload Protection150% FS
Housing MaterialAluminum

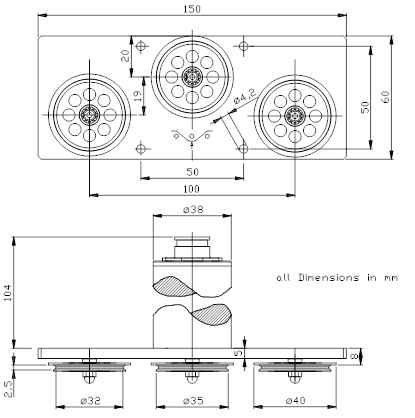

Spacing of Outer RollersSee Dimensional Drawing
Roller Diameter (Root)32 mm
Roller MaterialPlastic (standard)
Aluminum (optional)
Maximum Linear Speed4000 m/min
Operating Temperature40 to 105° F (5-40° C)
