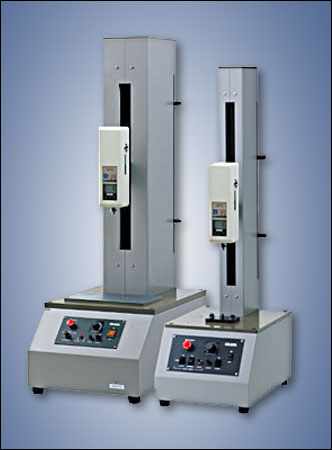

MV-500 - MV-1100 High Capacity Motorized Vertical Test Stands

Click images to enlarge.
Capacity:
MV-500:
500 lbs
MV-1100: 1100 lbs

These motorized test stands offer consistent and reliable testing. The combination of ball screw system and state of the art brushless motor provides extremely smooth and powerful operation over the entire speed range. It features dual speed mode: fixed speed (presettable) and adjustable speed. They accept any of the standard range force gauges. Quick return and Emergency Stop features are also included.

Basic Models
Basic Models have top and bottom travel limits that can be adjusted for a precise range of movement. Set the travel limits, flip the direction switch up to move the cross head up to the top travel limit at the selected speed. Flip the direction switch down to send the cross head down to the bottom travel limit. The speed is set by a Speed Adjust knob. Quick Return and Emergency Stop features are also included.

Auto Cycle Models
Auto cycle models have top and bottom travel limits that can be adjusted for a precise range of movement. Speed Adjust, Quick Return and Emergency Stop features are also included. These stands have three function modes.

Manual Mode: While the Direction switch is held up, the head moves up. Holding the switch down moves the cross head down. When the switch is released the head stops. This mode is ideal for positioning.

Single Cycle Mode: When the Direction switch is pushed up, the cross head moves up at the desired speed, and when it reaches the top travel limit, it automatically goes back and stops at the bottom travel limit, completing one cycle. Pushing the switch down runs the cycle in reverse.

Auto Cycle Mode: This mode is similar to Single Cycle mode, except that the cross head travels up and down repeating the cycle until either the Power or Emergency switches is turned off. This mode is ideal for applications such as fatigue testing.

*FORCE GAUGE NOT INCLUDED
Designed to work with the DPSH & Z2S-DPU force gauges.

Features

  • One stand for both compression (push) and tension (pull) tests
  • Combination of ball screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
  • Stroke: 16"
  • Test speed mode: fixed (presettable) or adjustable Return speed: fixed max. or adjustable
  • Auto cycle feature
  • Optional dynamic and static distance meter available

Related Products

Click image for more info
Lexan Safety Shield
- Helps protect personnel from injury by containing debris during testing
Click image for more info
High Capacity Digital Force Gauge
- lb, kg, and Newton units are push-button selectable
- RS-232C, Digimatic and analog outputs
Click image for more info

Speed Configurations

Model MV-500 MV-1100
Standard Speed .3~9.5"/min .4~4"/min
Optional High Speed .5~15.7"/min .8~8"/min
Optional Low Speed .2~4.7"/min .2~2"/min

Specifications

CapacityMV-500: 500 lbs
MV-1100: 1100 lbs
Stroke16"
Travel RateRefer to Speed Configurations above>
DimensionsRefer to Downloads below for PDF drawings
Compatible GaugesDS2, Z2, ZP, ZPH and DPSH
Warranty2 years
*NoteOptional Distance Meter Max Sampling Rate Output - 2 Samples Per Second
