Z2S-DPU Remote Sensor Digital Force Gauge - DISCONTINUED

Click images to enlarge.
The Z2S-DPU has been replaced by the new and improved ZT-DPU. Please click here to view the new model

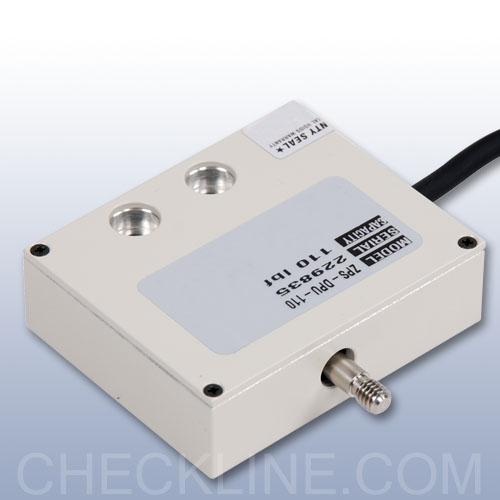

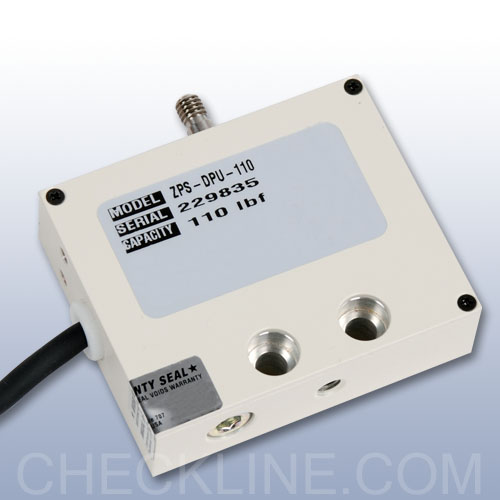

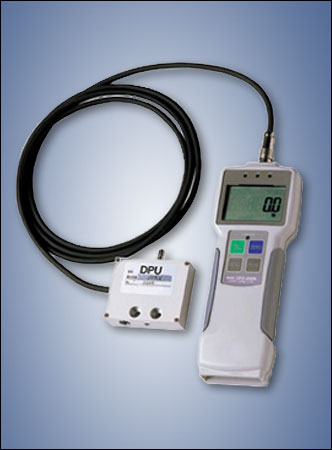

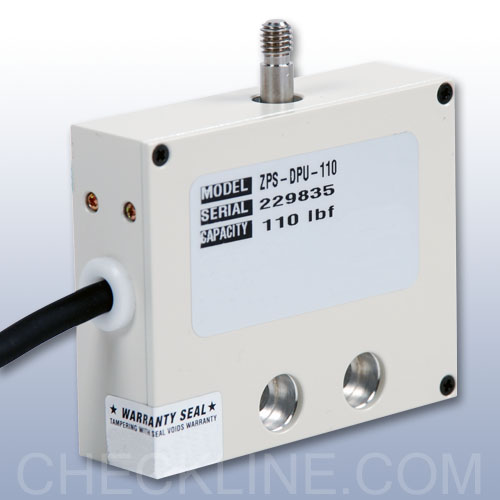

The Z2S-DPU are high performance digital force gauges that feature a separate sensor that is ideal for confined spaces or difficult to reach measurements. All standard sensors are good for both compression and tension. A standard six foot cable connects the gauge to the sensor.

The Z2S-DPU unit offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 1,000 values in memory, which can be displayed or transmitted using the serial, or optional USB output port. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf, or Newtons.

Features

  • Programmable high/low setpoints with color-coded LED indicators and output signal for quick go/no go testing
  • RS-232C, Digimatic and Analog outputs
  • 1,000 Data memory for computer download
  • lbf, kgf, and N units are push button selectable
  • Real time and peak mode (selectable)
  • Overload alarm and output signal
  • Low battery indicator
  • Reversible display
  • Overload capacity 200% of F.S. (push/pull)
  • Runs on internal NI-MH batteries or AC adapter
  • External switch display hold and clear
  • Z2S-DPU model provides data output in RS-232 format
  • ZPS-DPU model provides data output in USB format
  • To order ZPS-DPU model in BUY NOW section, select option USB-OUT
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • 2 Year Warranty

Force Ranges

ModelCapacityResolution
Z2S-DPU-0.47.00 oz
200 g
2 N
0.001 oz
0.1 g
0.001 N
Z2S-DPU-118 oz
500 g
5 N
0.01 oz
0.1 g
0.001 N
Z2S-DPU-44.4 lb
2 Kg
20 N
0.001 lb
0.001 Kg
0.01 N
Z2S-DPU-1111 lb
5 Kg
50 N
0.01 lb
0.001 kg
0.01 N
Z2S-DPU-4444 lb
20 Kg
200 N
0.01 lb
0.01 Kg
0.1 N
Z2S-DPU-110110 lb
50 Kg
500 N
0.1 lb
0.01 kg
0.1 N
Z2S-DPU-220220 lb
100 Kg
1000 N
0.1 lb
0.1 Kg
1 N
Z2S-DPU-440440 lb
200 Kg
2000 N
0.1 lb
0.1 Kg
1 N
Z2S-DPU-11001100 lb
500 Kg
5000 N
1 lb
0.1 Kg
1 N
Z2S-DPU-22002200 lb
1000 Kg
10 KN
1 lb
1 Kg
0.01 KN
Z2S-DPU-44004400 lb
2000 Kg
20 KN
1 lb
1 Kg
0.01 KN
All Ranges Are Available for Z2S (RS232 Output) or ZPS (USB Output)

Related Products

SW-1 Software for force and torque
Click image for more info
Data Acquisition Software for Force Gauges & Torque Gauges
- Full SPC and graphing capabilities
- Automates your data collection
- Provides a running log of all measurements along with a chart of the data as well as statistical information
Click image for more info
Force Data Analysis Software
- Process 1,000 data/second not just the peak
- Zoom in to examine important details
- Generate statistics for all or part of the graph
Click image for more info
Digital Force Gauge with Remote Compression Sensor - DISCONTINUED
Click image for more info
MESURgauge / MESURgauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, ESM750,ESM750S, ESM1500, and ESM1500S motorized test stands, coordinating motion control and data collection with just one click

Complete Kit

The Z2S-DPU Includes 6' cable, AC adapter/charger and carrying case

Specifications

Accuracy:± 0.2% Full scale ± 1 digit
Selectable unitsPounds, Kilograms or Newtons
Display:4 digit, 12 mm high
Overload capacity:200% of F.S.
(Overload indicator flashes beyond 108% of F.S.)
Zero adjustment (Tare)10% Full scale
A/D Converter:14 bit
Output signal:RS 232 C (8, 1, N, 2400),
analog ± 1 V DC,
Mitutoyo Digimatic
USB - Optional
Temperature range:32° to 100°F (0° to 40°C)
Air humidity:85% RH, max.
Low battery indicator:Display flashes when battery is low
Power supply:Rechargeable NiCd battery pack
and/or 230 AC Adapter
Housing dimension:215 x 65 x 51 mm (L x W x H)
Weight, net (gross)approx. 430 g (1300 g)
Warranty2 Years
