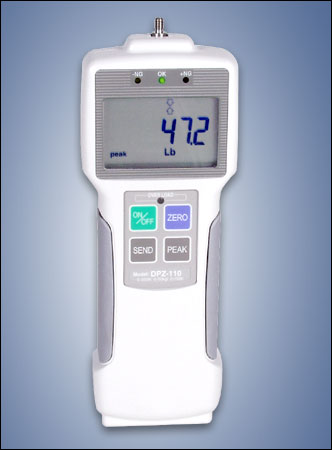

Z2 Digital Force Gauge

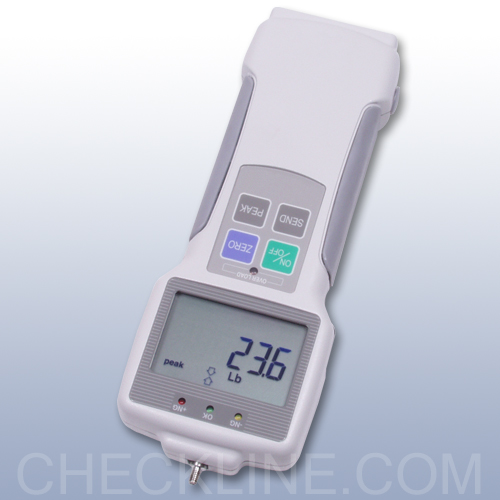

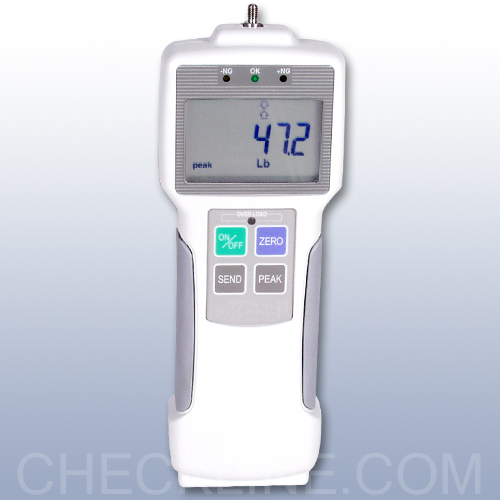

Click images to enlarge.

The Z2 has been replaced by the ZT Series, click here to go to the ZT Series Webpage.

7 Ranges up to 220lbs
Measures Push / Pull Force


The new Check-Line model Z2 is a high performance, digital force gauge which offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 1000 values in memory, which can be transmitted using the Digimatic or serial output ports. Use the real time mode to display load transients, or the peak mode to capture the peak force achieved during a test. Selectable measuring units of lbf, kgf, or Newtons.

Connect a Z2 force gauge with an MX Series test stand and enable force controlled testing. Force control can automatically stop testing when the force value reaches the high setpoint programmed on the Z2 force gauge, or maintain the force between the Z2 High and Low setpoints. Force control is ideal for fatigue or non-destructive testing.

Features

  • Ergonomically-designed, rugged die-cast aluminum housing
  • "Zero Set" to zero the gauge in all operating positions (Tare)
  • Operates on rechargeable NiCd batteries or AC adapter
  • Overload protection 200 % full scale
  • For hand-held use or mounting on test stands
  • Display can be reversed for inverted use: e.g. on teststands

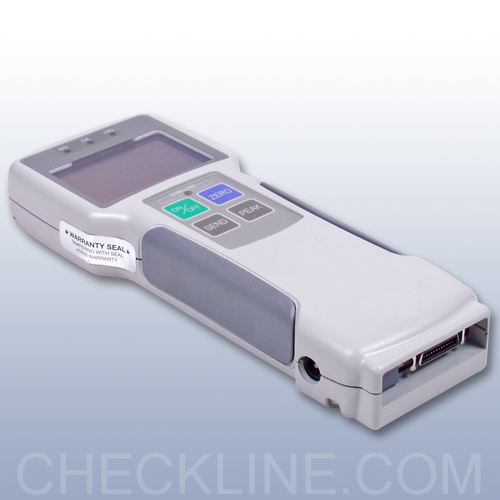

  • Output signals (RS 232 C, analog and Mitutoyo Digimatic)
  • Quick display update rate of 20 times/s
  • User selectable units: N, kgf (gf) and lb (oz)
  • Easy to use
  • Selectable Modes
    Real Time (to display load transients)
    Peak Modes (to capture the peak force achieved during a test)
  • Supplied with NIST Calibration certificate
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
  • 2 Year Warranty

Force Ranges

ModelCapacityResolution
Z2-0.47.00 oz
200 g
2 N
0.01 oz
0.1 g
0.001 N
Z2-118 oz
500 g
5 N
0.01 oz
0.1 g
0.001 N
Z2-44.4 lb
2 Kg
20 N
0.001 lb
0.001 Kg
0.01 N
Z2-1111 lb
5 Kg
50 N
0.01 lb
0.001 kg
0.01 N
Z2-4444 lb
20 Kg
200 N
0.01 lb
0.01 Kg
0.1 N
Z2-110110 lb
50 Kg
500 N
0.1 lb
0.01 kg
0.1 N
Z2-220220 lb
100 Kg
1000 N
0.1 lb
0.1 Kg
0.1 N

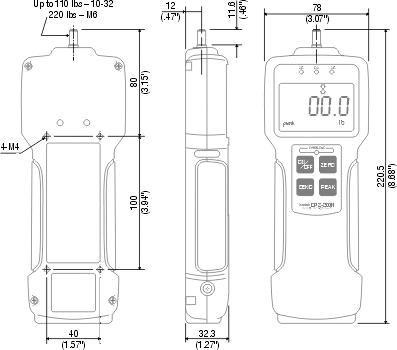

Dimensions

Standard Attachments

Special Attachments

Related Products

SW-1 Software for force and torque
Click image for more info
Data Acquisition Software for Force Gauges & Torque Gauges
- Full SPC and graphing capabilities
- Automates your data collection
- Provides a running log of all measurements along with a chart of the data as well as statistical information
Imada HV-110 Test Stand
Click image for more info
Manual Hand-Wheel Force Test Stand
- Hand wheel design provides a high degree of precise control
- Optional digital distance meter
Click image for more info
Motorized Vertical Test Stand
- Force Controlled operation with ZTA force gauges
- Jog, Single Cycle, Continuous Cycle, Force Control
Click image for more info
MESURgauge / MESURgauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, and ESM1500 motorized test stands, coordinating motion control and data collection with just one click

Complete Kit

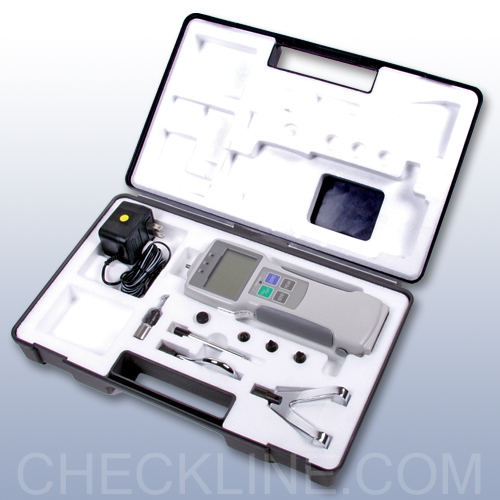

All Z2 gauges are sold as complete kits that include the gauge, hard plastic carrying case, AC adapter/charger, and attachments (flat head, conical, chisel, notched, small hook, large hook, Y-fork, and extension rod). Built-in NiCad rechargeable batteries.

Specifications

Displacement:0.2 mm
Accuracy:± 0.2% Full scale ± 1 digit
Selectable unitsN, Kgf (gf), lb (oz)
Display:4 digit, 12 mm high
Overload capacity:200% Full scale,
display flashes beyond 105% full scale
Zero adjustment (Tare)10% Full scale
A/D Converter:14 bit
Output signal:RS 232 C (8, 1, N, 2400),
analog ± 1 V DC,
Mitutoyo Digimatic
Displacement at full scale capacity0.10 mm
Temperature range:32° to 100°F (0° to 40°C)
Air humidity:85% RH, max.
Low battery indicator:Display flashes when battery is low
Power supply:Rechargeable NiCd battery pack
and/or 230 AC Adapter
Housing dimension:215 x 65 x 51 mm (L x W x H)
Weight, net (gross)approx. 430 g (1300 g)
Warranty2 Years
