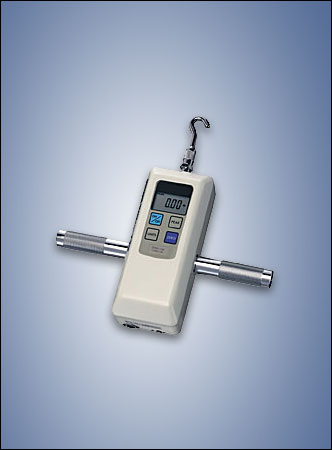

DPSH High Capacity Digital Force Gauge

Click images to enlarge.
The DPSH is no longer available. We recommend the ZPH as a replacement, click for more info

2 Ranges up to 1100lbs

The DPSH digital force gauges represent the latest technology in an affordable, feature packed instrument. The rugged metal housing is durable enough to withstand harsh industrial environments. The easy to read display tells you at a glance the unit of force measurement (lb, kg, or Newtons), tension or compression, if you are in Peak Mode, and whether the built-in NiCad batteries are low. The standard outputs (RS-232C, Digimatic, and ±1VDC analog) allow you to capture data for permanent record. Choose the range or ranges that best suit your needs.

Features

  • lb, kg, and Newton units are push-button selectable
  • Real time and peak mode (selectable)
  • RS-232C, Digimatic and analog outputs
  • DPSH-440 available with standard or reverse display
  • Overload alarm, low battery display indicator
  • Outstanding display update of 20 times/second
  • Runs on internal NiCad batteries or AC adapter
  • Overload capacity 200% F.S.
  • 2 Year Warranty

Force Ranges

ModelCapacityResolution
DPSH-440441.0 lb
200 Kg
2000 N
0.1 lb
0.1 Kg
1 N
DPSH-1100R1102 lb
500 Kg
5000 N
1 lb
0.1 Kg
1 N
Note:
The DPS-440 is available with a reverse display for use on vertical test stands (Part # DPSH-440R) The DPS-1100R is only available with a reverse display.

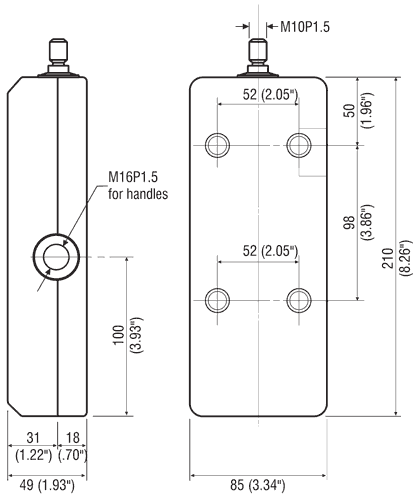

Dimensions

Related Products

Click image for more info
High Capacity Motorized Vertical Test Stands
- One stand for both compression (push) and tension (pull) tests
- Combination of ball screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
Click image for more info
Click image for more info
MESURgauge / MESURgauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, ESM750,ESM750S, ESM1500, and ESM1500S motorized test stands, coordinating motion control and data collection with just one click

Complete Kit

The DPSH is sold as a complete in kit with gauge, hard plastic carrying case, screw-in handles, hook, chisel head, notched head, flat head, cone tip measuring adapters, extension rod, and AC adapter/charger. All DPSH gauges can be run on the internal NiCad batteries or the AC adapter/charger.

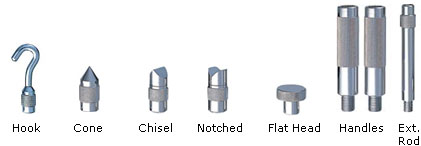

Standard Attachments

Special Attachments

Specifications

Accuracy:± 0.2% F.S. ± 1 LSD
Selectable unitsPounds, Kilograms or Newtons
Overload capacity:200% Full scale,
display flashes beyond 110% full scale
Display Update20 times/second
PowerRechargeable NiCad battery pack or AC adapter
Low battery indicatorDisplay flashes when battery is low
OutputsRS-232, Mitutoyo Digimatic and ± 2 VDC analog output
Temperature Limits32° to 100°F (0° to 40°C)
Weight3 lbs
Warranty2 Years
