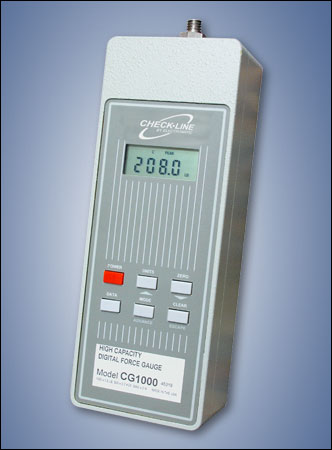

CG High Capacity Digital Force Gauge

Click images to enlarge.
No longer available, replaced by M5-1000, click for more info

The Series CG High Capacity Digital Force Gauge is ideal for heavy duty spring testing, destructive testing, and other force measurement applications requiring up to 1,000 lb of tensile or compressive force. These force gauges include all the advanced features of the Series BG, and are housed in ultra-rugged reversible aluminum housings for years of use in laboratory or factory environments. Use the CG with a TSF Test Stand to create a complete spring testing solution.


  • RS-232, Mitutoyo and analog outputs
  • Automatic timed output on RS-232
  • Averaging mode for average readings over time
  • GCL-Gauge Control Language for full computer control
  • Dual set points with outputs
  • External trigger for contact or switch testing and data capture
  • Peak memory for tensile and compressive forces
  • General purpose I/O for external device control
  • Programmable analog and digital filters
  • Selectable units of measurement
  • Battery or AC operation
  • 3 Year Warranty

Force Ranges

CG-500500 lb
250 Kg
2500 N
0.2 lb
0.1 Kg
1 N
CG-10001000 lb
500 Kg
5000 N
0.5 lb
0.2 Kg
2 N

Related Products

Click image for more info
High Capacity Test Stand
- Precision Acme screw and nut
TSF Force Test Stand
Click image for more info
High Capacity Test Stand
- Smooth hand wheel operation
- Available in vertical and horizontal orientations.
Click image for more info
MESURgauge / MESURgauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, ESM750,ESM750S, ESM1500, and ESM1500S motorized test stands, coordinating motion control and data collection with just one click
Click image for more info
Mitutoyo SPC statistical processor/printer

Complete Kit

Series CG force gauges are supplied as a complete kit in a cushioned carrying case with AC adapter/charger, user's manual, NIST-traceable certificate of calibration, and attachments (chisel, cone, V-groove, hook, flat, extension rod, and thread adapter).

Special Attachments


Accuracy± 0.2% of full scale ±1 digit
Sampling rate65 readings/sec
Overload Protection150%
Battery life8-10 hours per charge
Weight1.8 lbs (0.8 kg)
Warranty3 year
