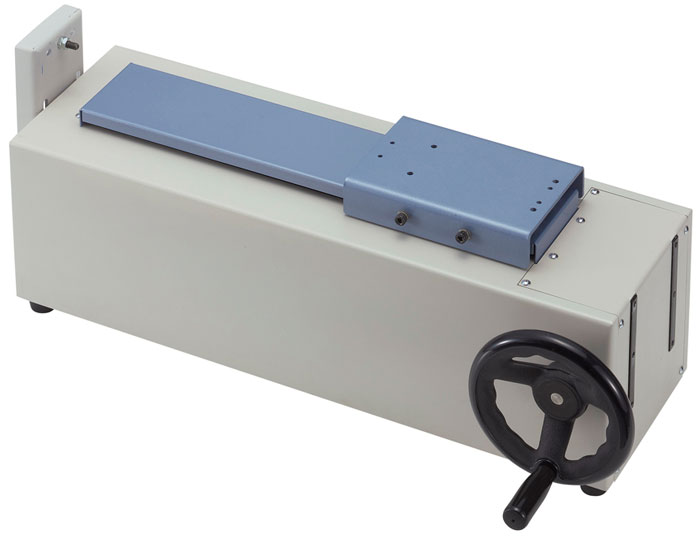

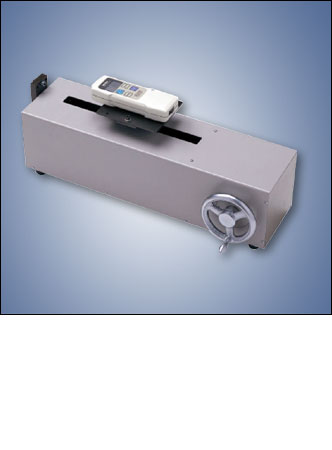

SH-220 Horizontal Hand Wheel Test Stand

Click images to enlarge.
The SH-220 horizontal test stand is ideal for doing peel tests and other force measurements where a horizontal test stand is required. With all of the advantages of the hand wheel design (relatively consistent speed, precise gauge positioning, bi-directional movement) in a low-profile horizontal package, the SH-220 accepts many of the standard range force gauges and special attachments.

Designed to work with the DS2 & Z2 force gauges.


  • Hand wheel provides relatively consistent speed for repeatable tests
  • Gauge remains in place when hand wheel is released
  • Continuous stroke 11.8"


Capacity220 lbs
Stroke11.8" (300 mm)
Travel Rate1.2mm/rev of hand wheel
DimensionsDownload PDF
Compatible GaugesZ2, ZP and DS2
Warranty2 years

Related Products

DST Digital Force Gauge
Click image for more info
Digital Force Gauge
- Backlit LCD display with user-friendly menus
- 30,000/sec sampling rate
- USB and RS-232C output
zts / zta force gauge
Click image for more info
Digital Force Gauge with high speed data output, up to 2000hz
- 30,000 data/sec ultra-high sampling rate; Processes and transmits 2,000 data/sec.


Buy Now

Item Description Price
Horizontal wheel-operated test stand, 220 lb / 100 kg Capacity
Horizontal wheel-operated test stand, 220 lb / 100 kg Capacity - With Distance Meter
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
