HV-Series Manual Hand-Wheel Force Test Stand

Made in Japan

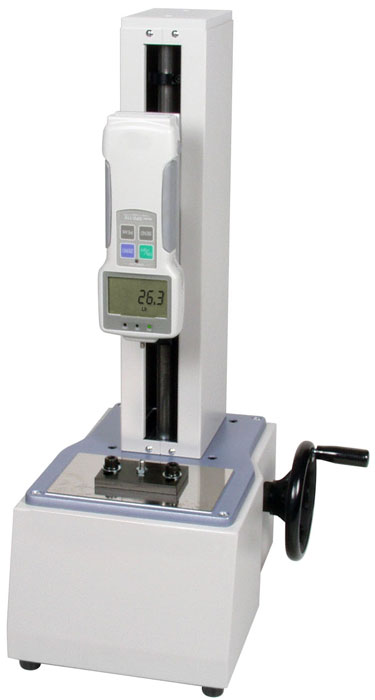

Imada HV-110 Test Stand
Click images to enlarge.
HV-110 - Standard Model (110 Lb Capacity)
HV-110-S - with Distance Meter
HV-110-L - Extened Clearance, 16.5"
HV-220 - Standard Model (220 Lb Capacity)
HV-220-S - with Distance Meter

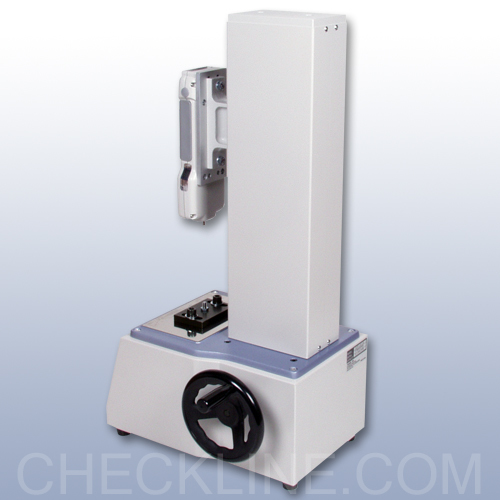

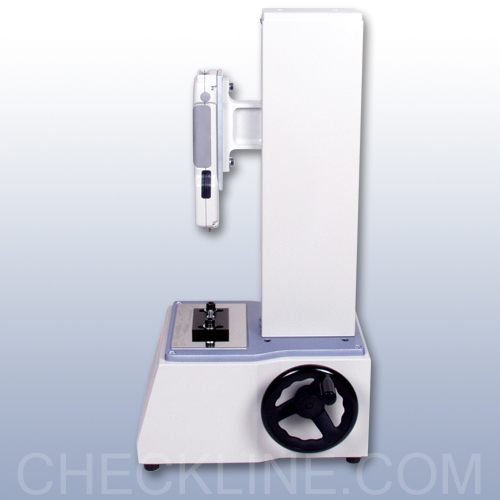

The HV series vertical hand-wheel-operated force measurement test stands feature a compact design with several ranges, up to 750 lbf capacity. The hand wheel offers precise movement that is ideal for force measurement that requires relatively consistent speed and maximum gauge control. The rack and pinion design allows the force gauge to remain stationary when the wheel is released. The HV series is very easy to use. Each rotation of the wheel will move the carriage of the test stand ~2mm.

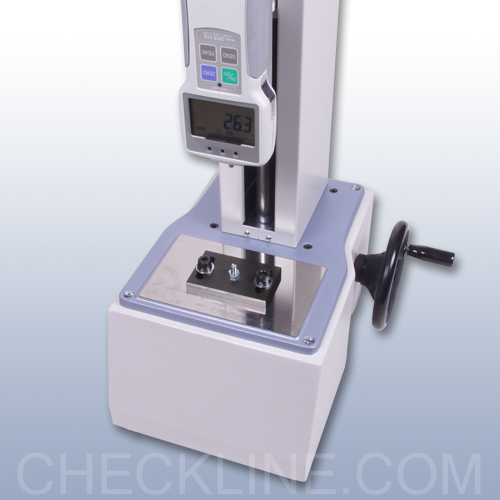

For details on the stroke and clearance click on the specifications tab. Add a standard mounting plate at the base, to attach a variety of gripping fixtures.

The HV series test stands can accommodate any of the standard range Imada force gauges. The 750 lbf capacity stand accommodates high capacity Imada force gauges. AP-002 Adapter Plate is available to mount most other force gauges to Imada test stands.

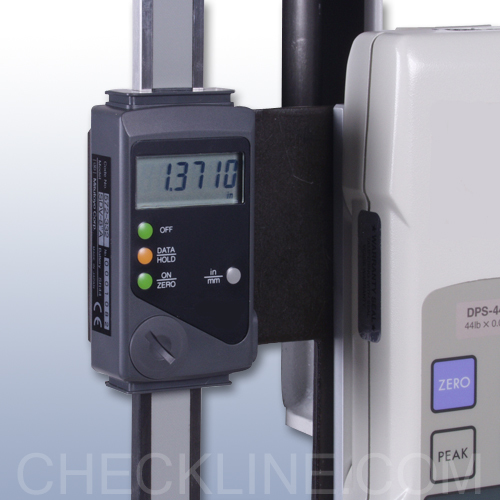

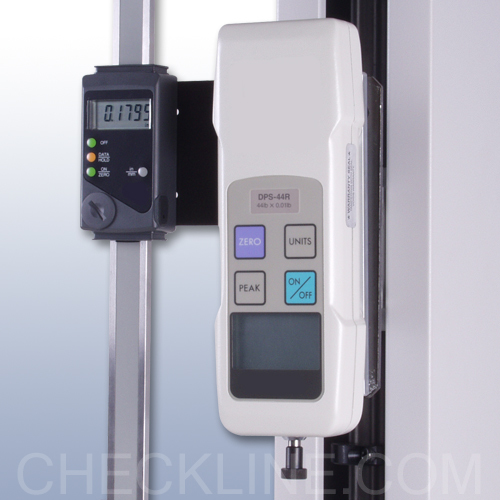

An optional digital distance meter is available on all models (add -S to the model number). Long column variations are available for HV-110 & HV-220 (add -L to the model number).

Software is available to collect force and distance data from the force gauge and distance meter (force vs. distance).
Designed to work with the DS2 & ZT force gauges.

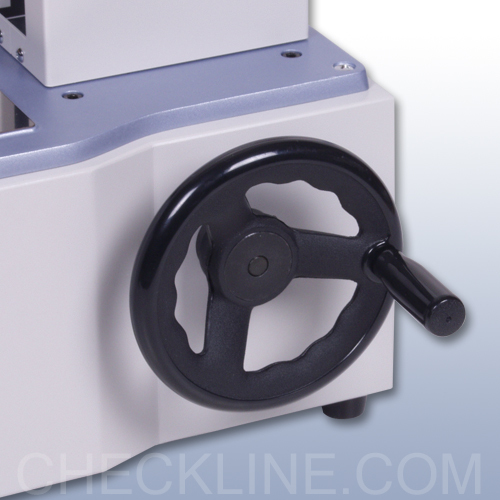

  • Hand wheel design provides a high degree of precise control
  • Gauge remains in place when hand wheel is released
  • One stand for both compression (push) and tension (pull) tests
  • Optional digital distance meter
  • Standard Models feature a maximum clearance of 9 inches (228 mm)
  • Extened Clearance models feature a maximum clearance of 16.5 inches (419 mm), Option Code "-L"
  • 5" extension plate, optional
  • Force Gauge and accessories sold separately.
  • 675 lbf capacity
  • 2-Year Warranty

Related Products

DST Digital Force Gauge
Click image for more info
Digital Force Gauge
- Backlit LCD display with user-friendly menus
- 30,000/sec sampling rate
- USB and RS-232C output
Click image for more info
Motorized Vertical Test Stand
- Force Controlled operation with ZTA force gauges
- Jog, Single Cycle, Continuous Cycle, Force Control
zts / zta force gauge
Click image for more info
Digital Force Gauge with high speed data output, up to 2000hz
- 30,000 data/sec ultra-high sampling rate; Processes and transmits 2,000 data/sec.



Capacity110lbs (50kg, 500N)
StrokeHV-110 - 9" (228mm)
HV-110L - 16.8" (426mm)
Travel Rate0.8" (2 mm) per revolution of hand wheel

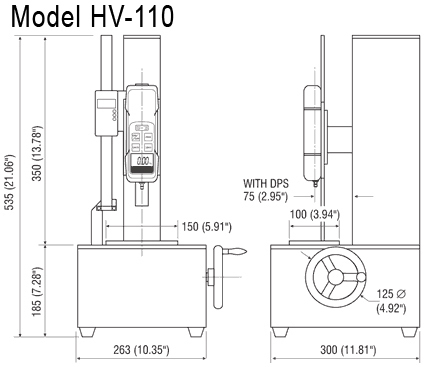

DimensionsRefer to dimensions above
WeightApprox 25 lbs (10 Kg)
Compatible Force GaugesZ2, ZP and DS2
Warranty2 years
Distance Meter Resolution.01mm / .0005"
*NoteOptional Distance Meter Max Sampling Rate Output - 2 Samples Per Second


Buy Now

Item Description Price
Manual Hand-Wheel Test Stand, 110 lb / 50 Kg / 500N
Manual Hand-Wheel Test Stand With Distance Meter, 110 lb / 50 Kg / 500N
Manual Hand-Wheel Test Stand with Extended Travel, 110 lb / 50 Kg / 500N
Replaced by HV-300
Manual Hand-Wheel Test Stand With Distance Meter, 220 lb / 100 Kg / 1000N
5 inch extension plate
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
