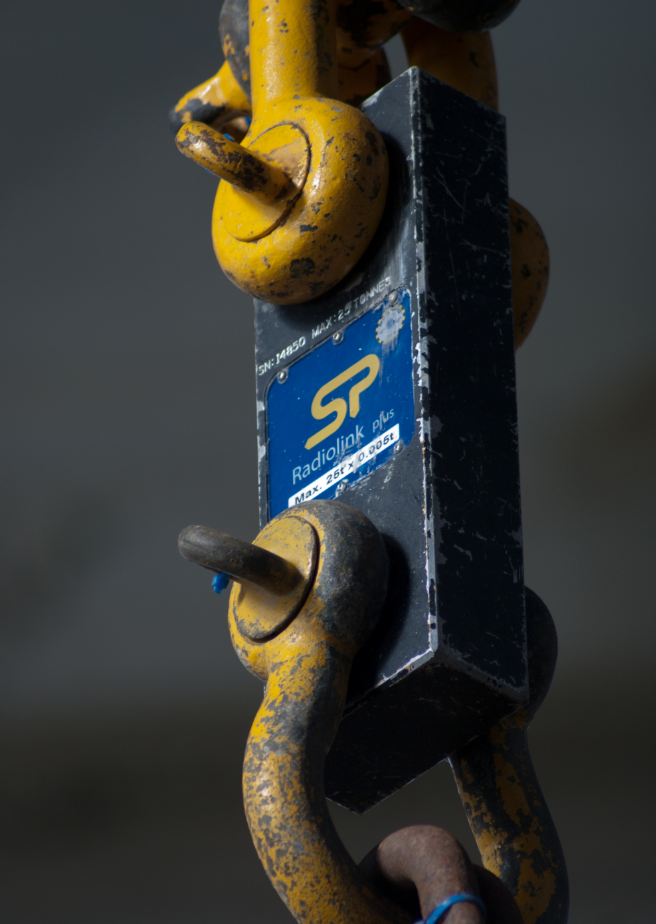

Radiolink-Plus Wireless Dynamometer Tension Loadcell - RLP

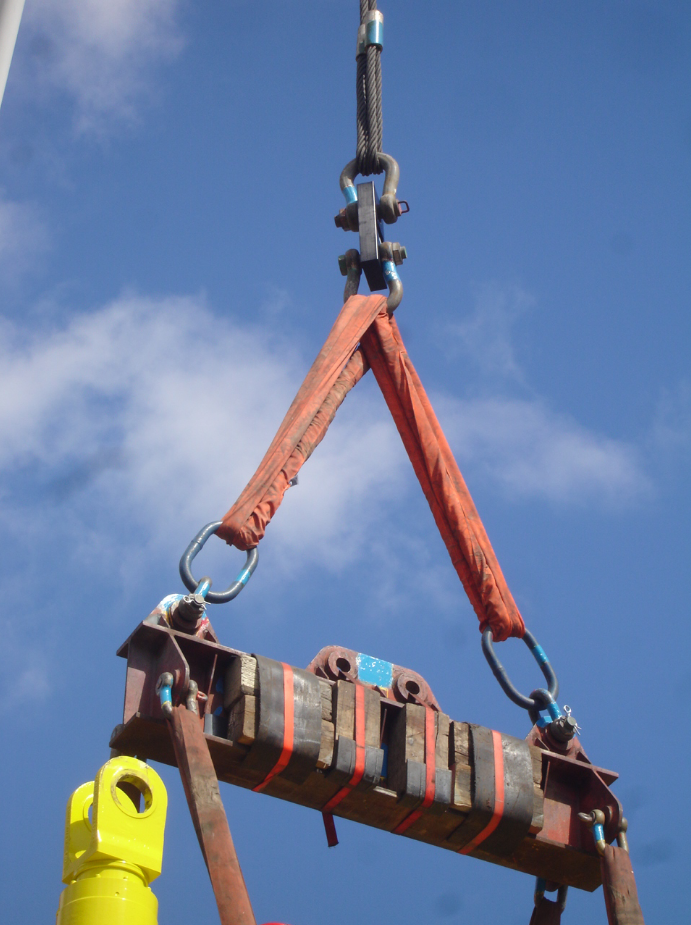

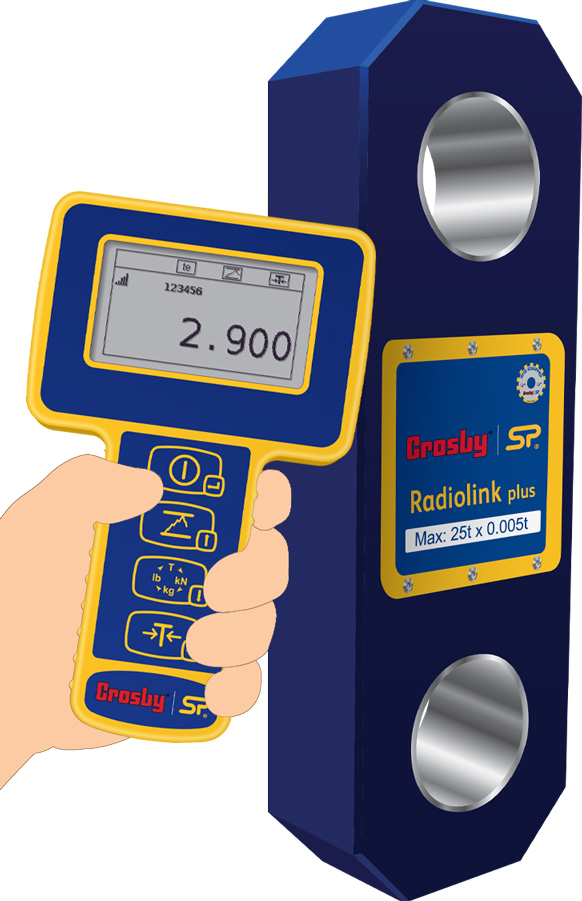

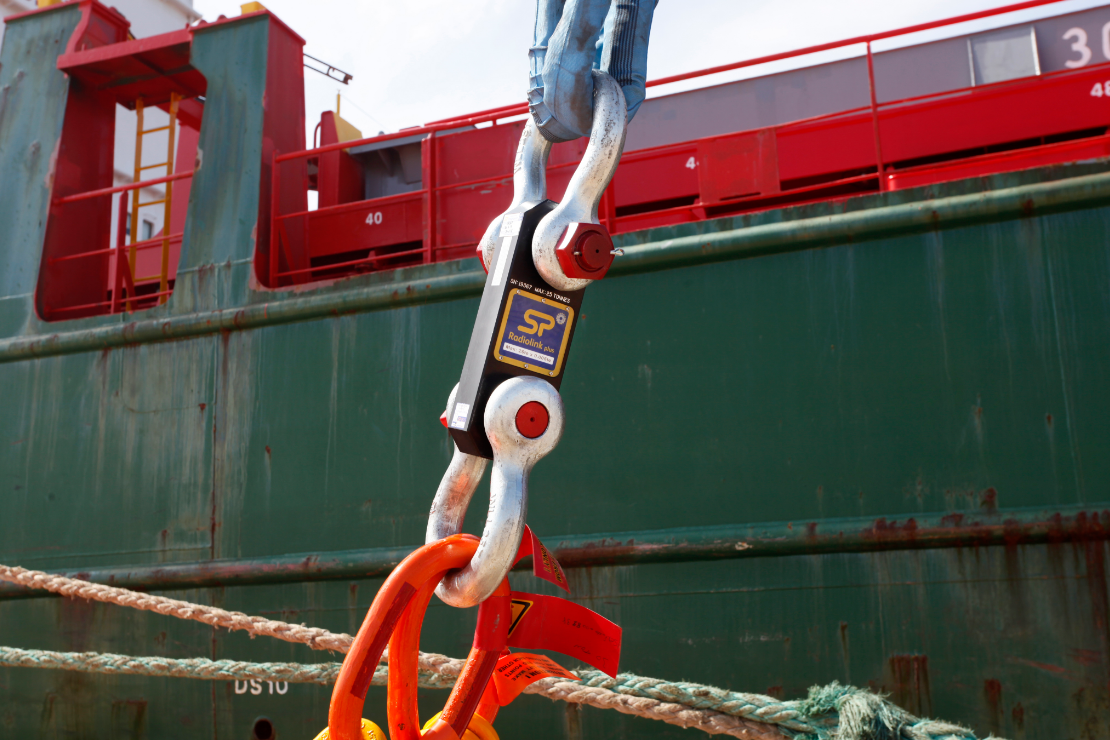

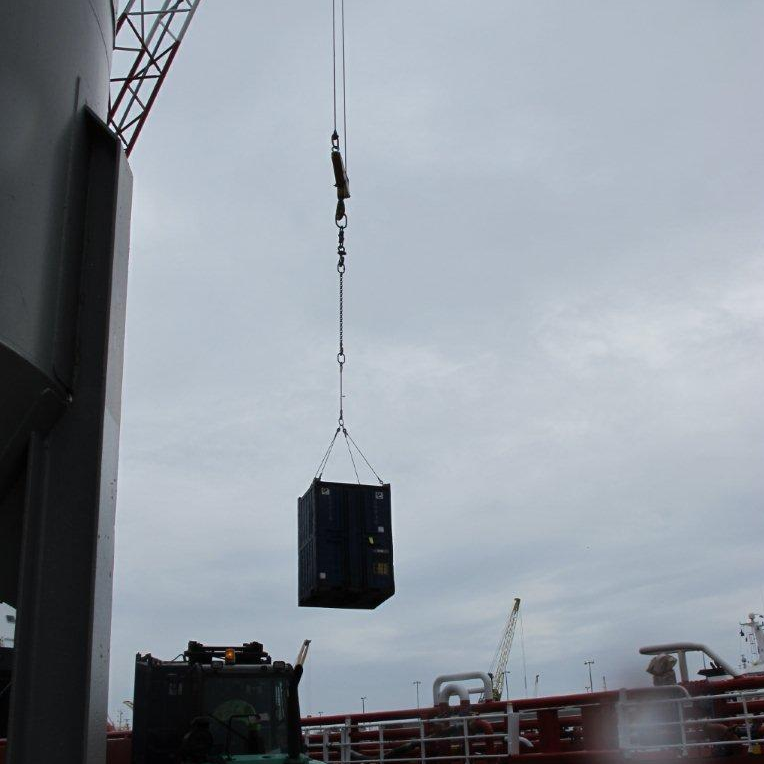

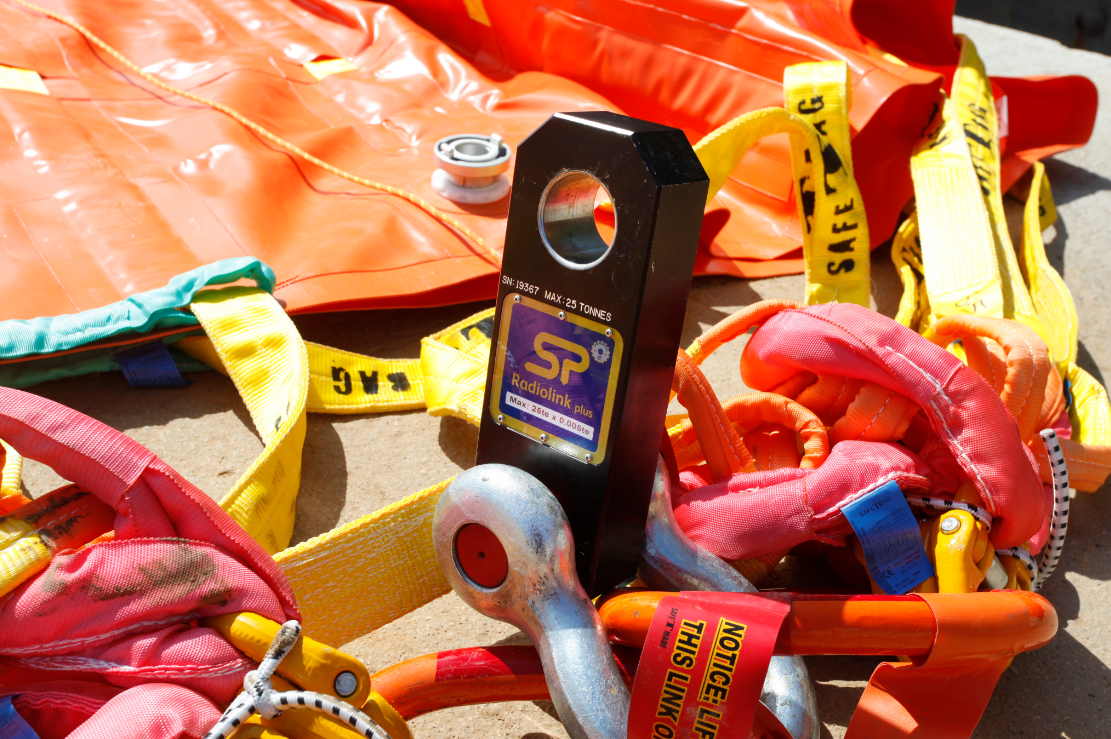

The Radiolink Plus wireless dynamometer is designed for weighing and dynamic load monitoring in a wide range of applications. All Radiolink Plus Dynamometers are supplied with the battery-powered SW-HHP Handheld Display. It is constructed of high-quality aircraft grade aluminum and features an advanced internal design structure. The design not only provides an unrivaled strength to weight ratio but also allows the use of a separate internal sealed enclosure providing the load cell's electronic components with IP67 environmental protection even with the battery cover plate missing, making this industry leading dynamometer even more suitable for use in the harshest environments.

Featuring industry leading wireless technology and range, the versatile Radiolink plus has an update rate of 3Hz and can be easily configured to run at industry leading speeds of up to 200Hz. Data is transmitted wirelessly utilizing the latest in IEEE 802.15.4 (2.4 GHz) technology providing safe, high integrity, error free transmission of both static weight and dynamic load to a wireless handheld controller.

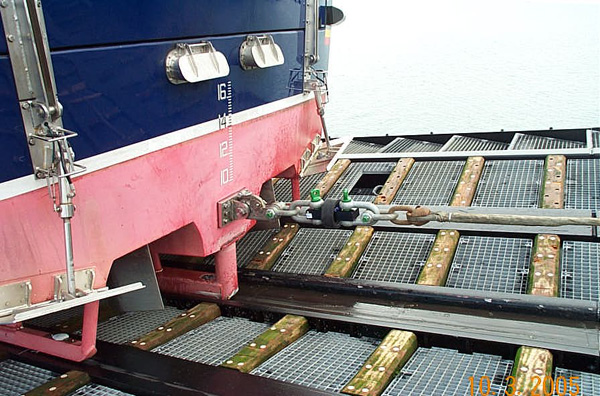

Designed for measurement of both Static and Dynamic Loads the Radiolink Plus can also be used in combination with our range of high speed wireless data logging software allowing for simultaneous control, display and real time data logging of up to 100 Straightpoint telemetry Load Cells. A .csv file format is used for data logging and opens in MS Excel allowing easy visual presentation of the logged data and simple test certificate generation.

The Radiolink Plus utilizes easily sourced AA alkaline batteries. Advanced circuitry extends battery life and the use of easily sourced alkaline batteries eliminates issues associated with rechargeable battery pack charging, failure and replacement.

A full array of wireless accessories are also available including signal boosters, LED wireless scoreboards and base stations with analogue (4-20mA, 0-10v, 0-5v) or digital (RS232/485, Modbus RTU, and ASCII serial communications protocol) outputs.

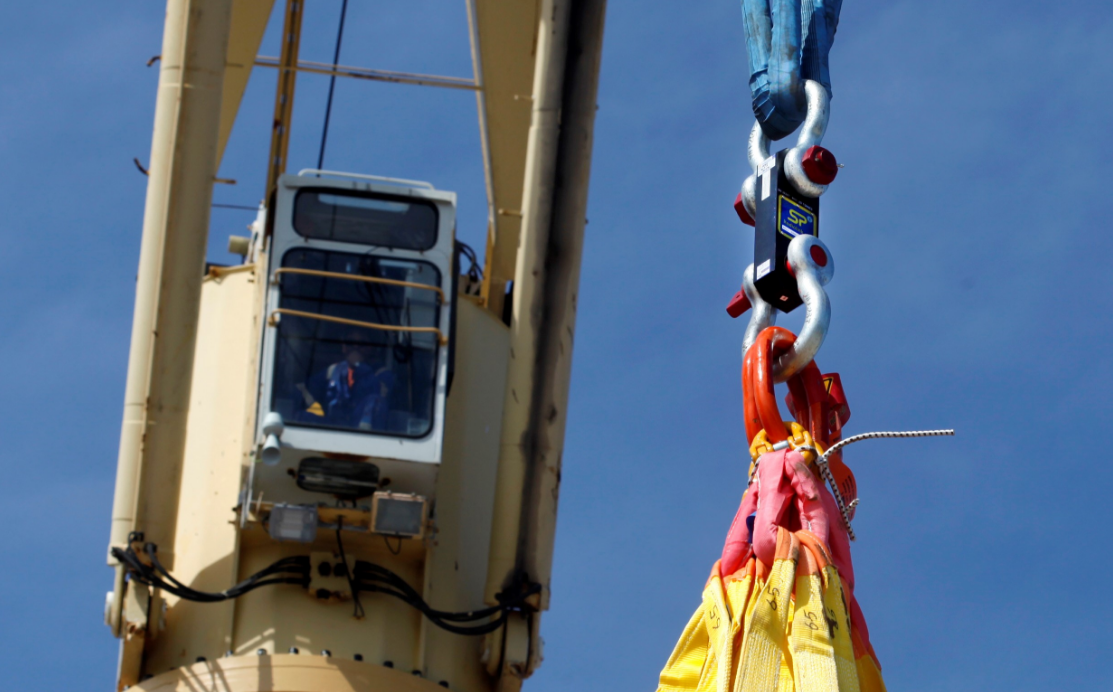

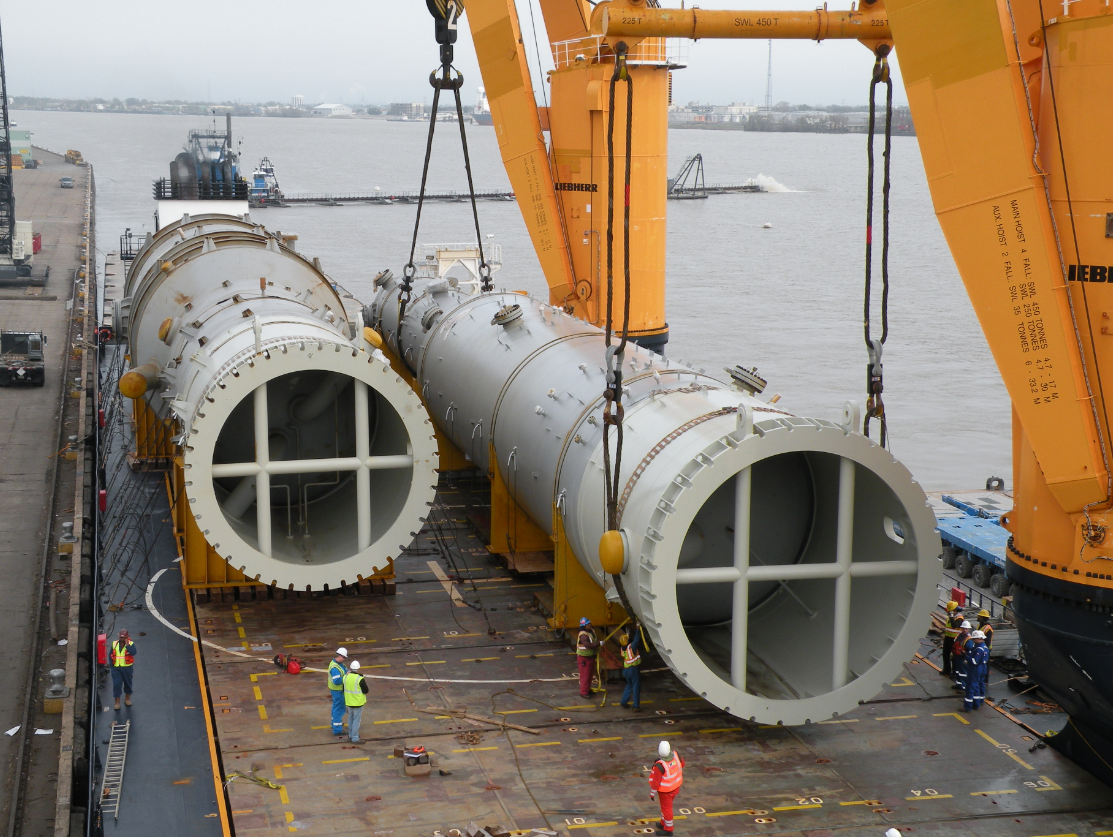

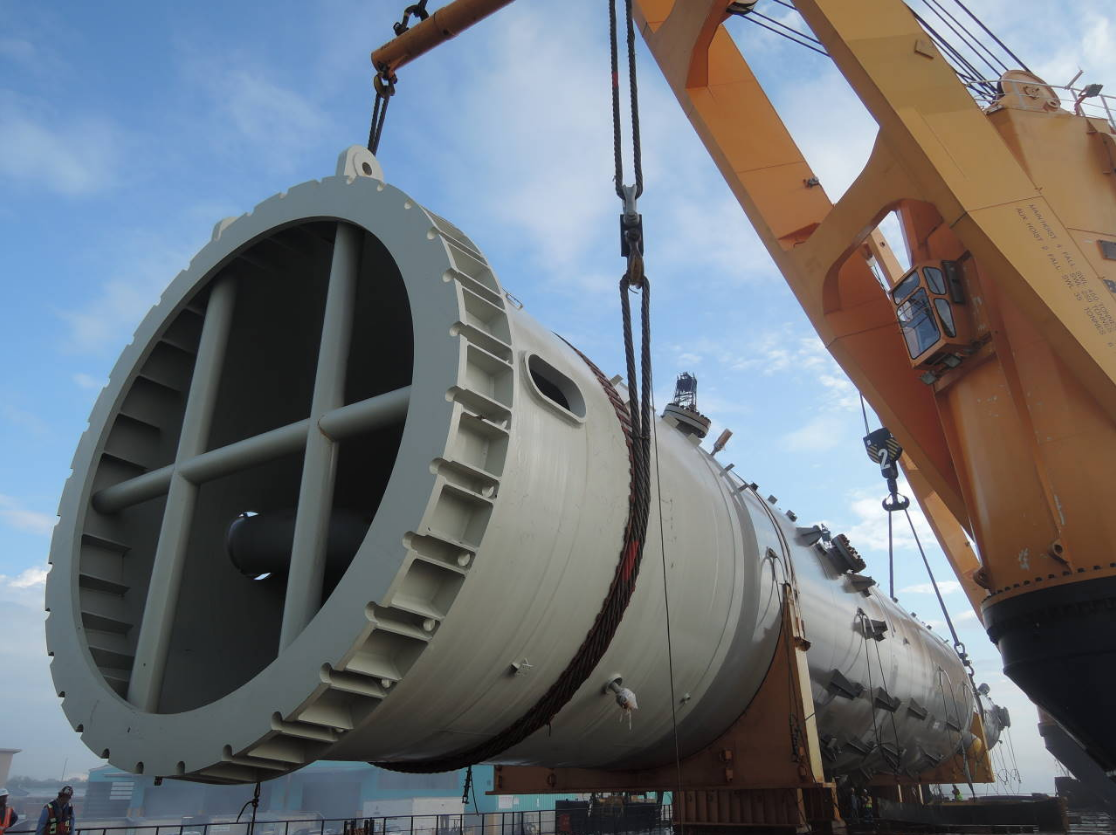

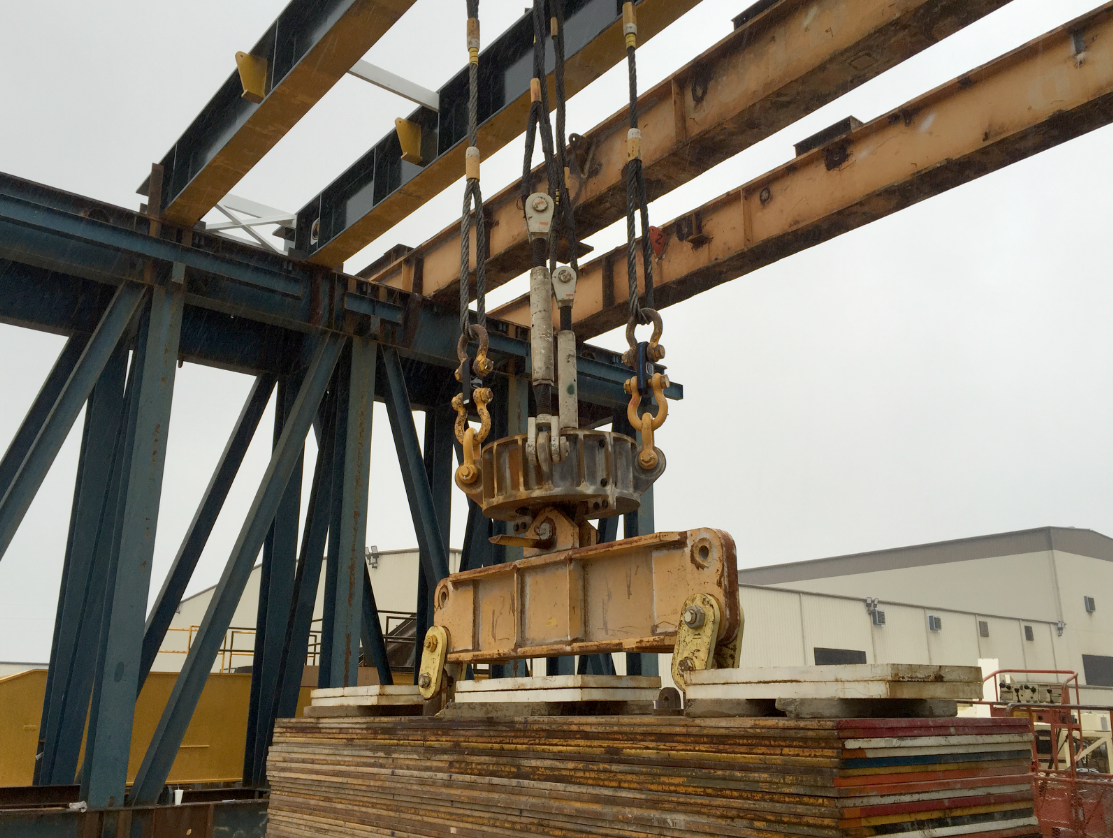

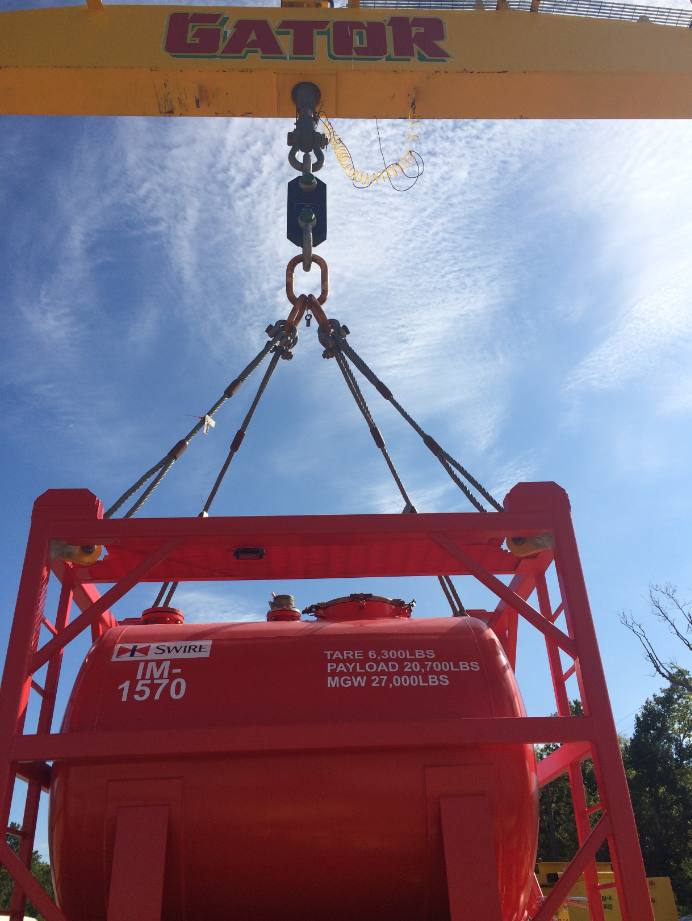

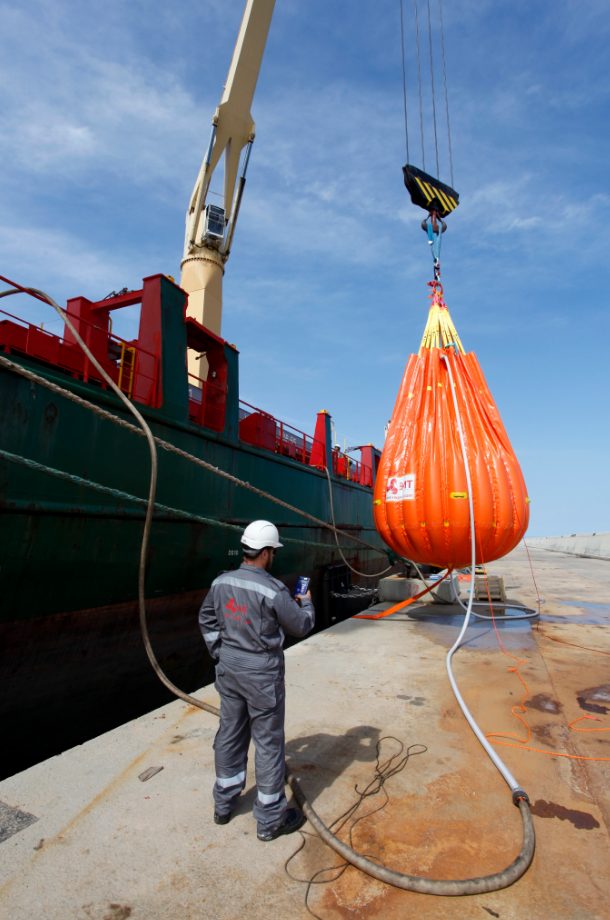

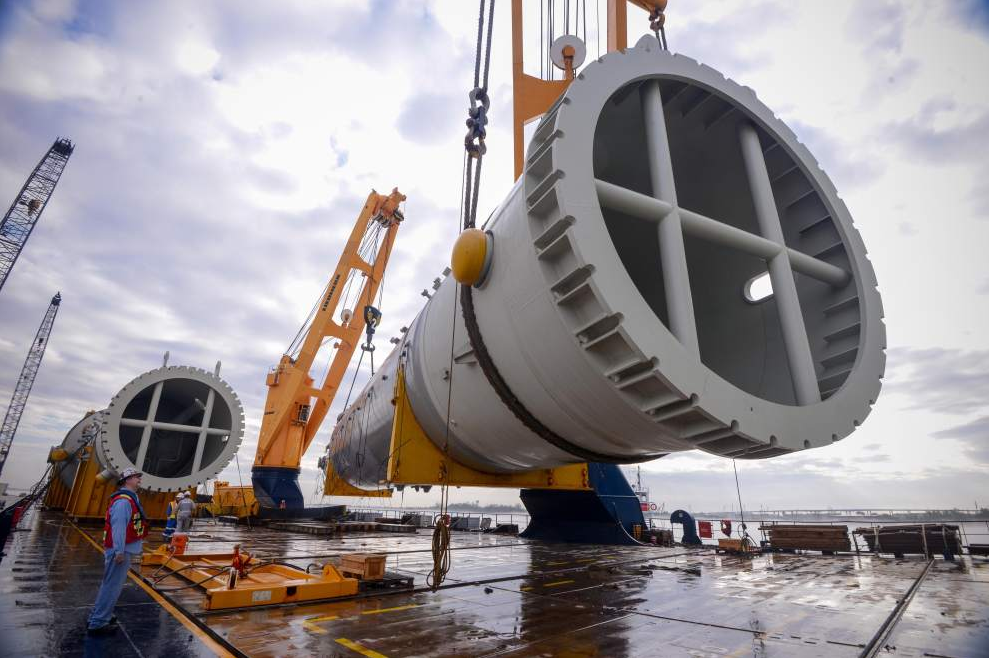

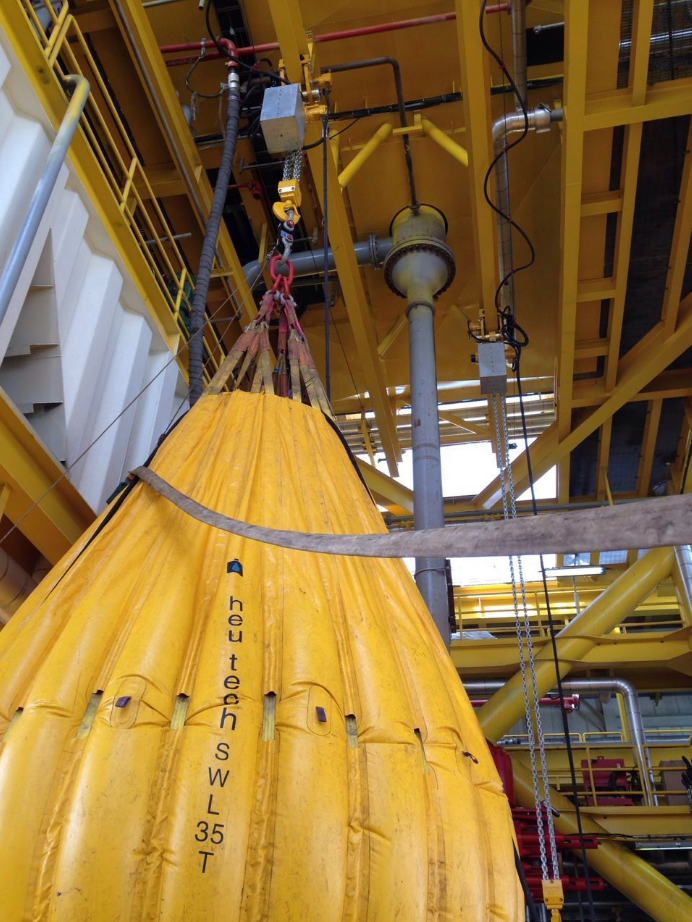

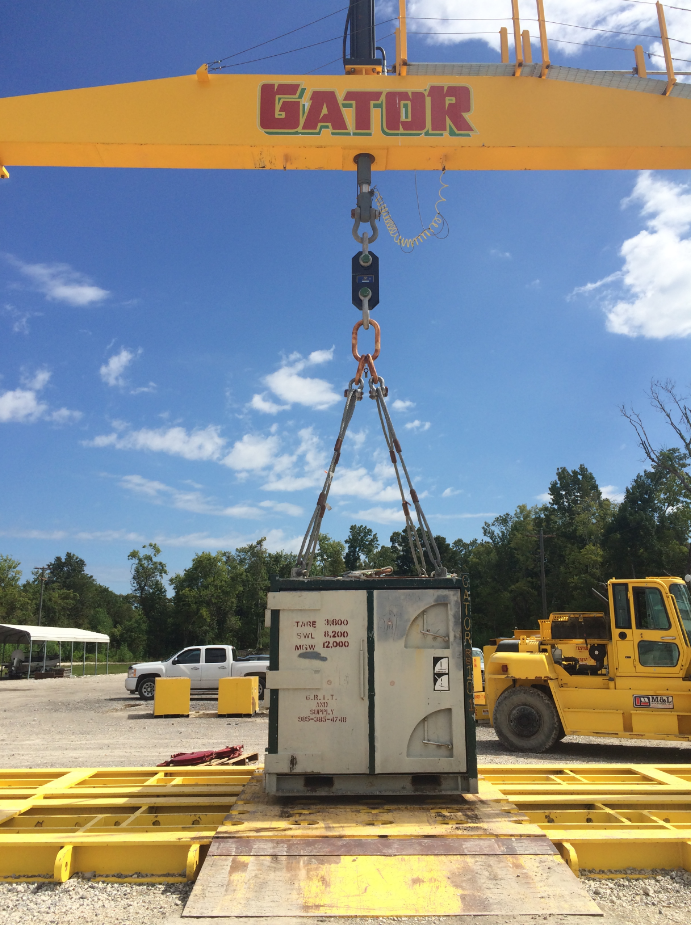

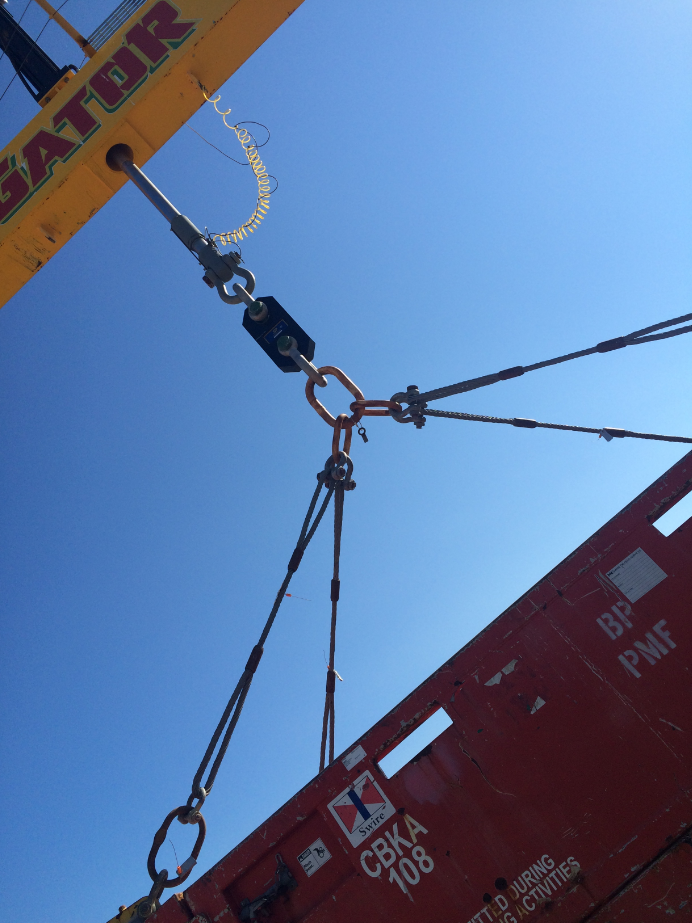

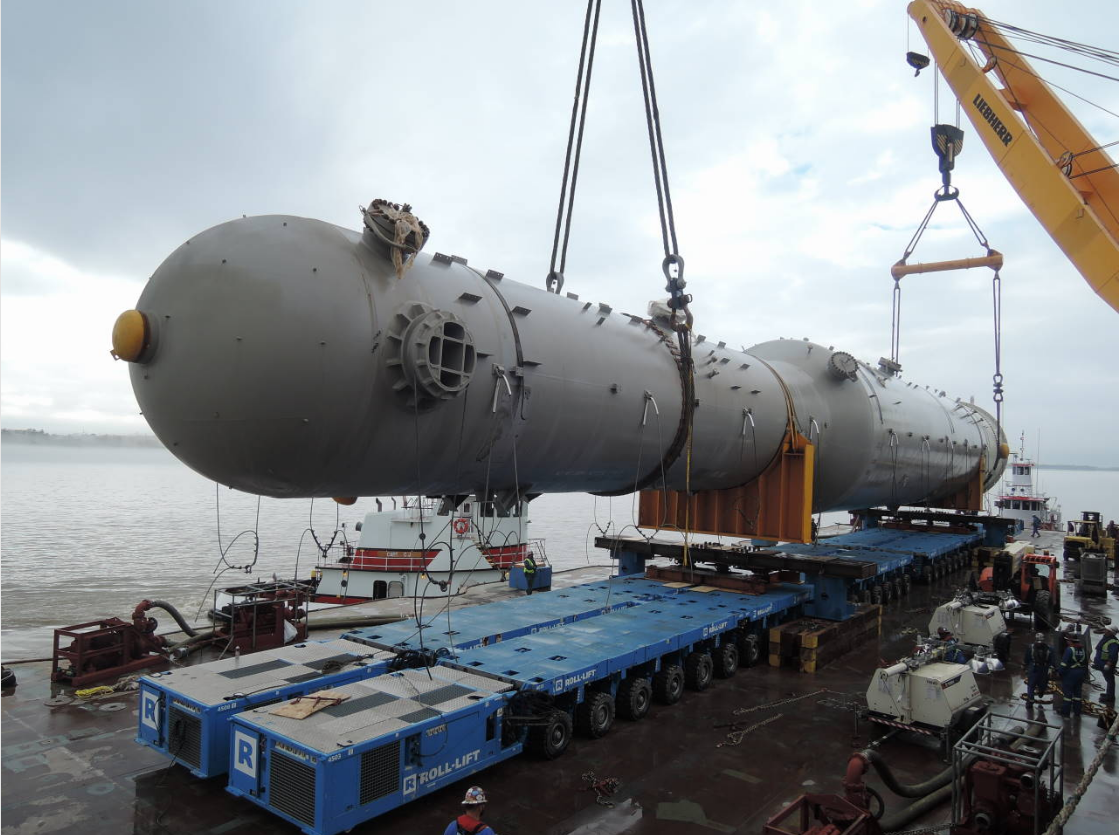

The Radiolink plus is the number one choice for weighing and dynamic load monitoring in critical lift planning and execution.

Features

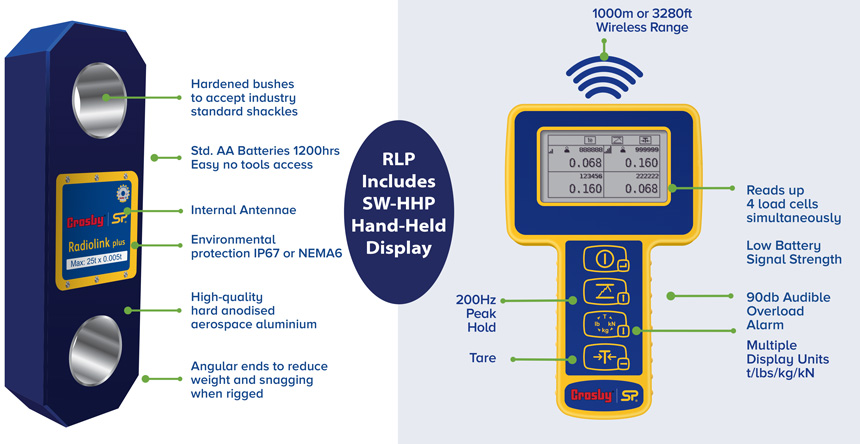

  • All Radiolink Plus Dynamometers are supplied with the battery-powered SW-HHP Handheld Display
  • User-selectable units (Lbs, Kg, kN, Tonne) with highest resolution
  • 2.4 GHz Wireless with Industry Leading Range (700 meters / 2300 feet)
  • All Radiolink Plus Dynamometers are Environmentally Sealed, IP67 / NEMA 6 Rated (Waterproof)
  • SW-HHP Hand-Held Display has protection rating of IP65 / NEMA 4 (Waterproof)
  • SW-HHP Hand-Held Display features user-set 90db audible overload alarm with user-reset overload counter
  • SW-HHP Hand-Held Display includes remote On/Off, peak hold and pre-set tare functions
  • Wall or Cab Mount Bracket optionally available for SW-HHP (p/n SU3282)
  • Internal Antenna
  • Long Battery Life - Remote Display 60 Hrs / Loadcell 1200 Hrs continuous use
  • Complete Design of load cell has been validated by Finite Element Analysis
  • All models are supplied with a Traceable Calibration Certificate
  • "-WS" models are supplied with two (2) shackles, refer to BUY NOW Section at bottom of page
  • Warranty 1-Year (FREE Extension to 2-Year Warranty with Product Registration)

Models / Measuring Ranges

ModelCapacityResolutionWeightSafety
Factor
Load Pin
Diameter
Overall Height
RLP1TU2000 lb
1000 kg
1 lb
0.5 kg
3.1 lb
1.4 kg
12:13/4 In
19 mm
8.03"
204 mm
RLP2T5U5500 lb
2.5 te
2 lb
0.001 te
3.1 lb
1.4 kg
5:13/4 In
19 mm
8.03"
204 mm
RLP5TU11000 lb
5 te
2 lb
0.001 te
4.4 lb
2 kg
5:11 In
25 mm
9.80"
249 mm
RLP12TU26000 lb
12 te
5 lb
0.002 te
7.1 lb
3.2 Kg
5:11-3/8 In
35 mm
12.01"
305 mm
RLP25TU55000 lb
25 te
10 lb
0.005 te
11 lb
5 kg
5:12 In
51 mm
13.39"
340 mm
RLP35TU77000 lb
35 te
10 lb
0.005 te
19 lb
8.6 kg
5:12-1/4 In
57 mm
15.47"
393 mm
RLP50TU110000 lb
50 te
20 lb
0.01 te
25.3 lb
11.5 kg
5:12-1/4 In
57 mm
16.69"
424 mm
RLP75TU165000 lb
75 te
20 lb
0.01 te
35.3 lb
16 kg
5:12-3/4 In
70 mm
18.50"
470 mm
RLP100TU220000 lb
100 te
100 lb
0.05 te
75 lb
34 kg
5:13-1/4 In
83 mm
23.94"
608 mm
RLP150TU330000 lb
150 te
100 lb
0.05 te
101.4 lb
46 kg
4:13-3/4 In
95 mm
26.38"
670 mm
RLP200TU440000 lb
200 te
200 lb
0.1 te
158.7 lb
72 kg
5:14-3/4 In
121 mm
27.56"
700 mm
RLP250TU550000 lb
250 te
200 lb
0.1 te
158.7 lb
72 kg
4:15 In
127 mm
27.56"
700 mm
RLP300TU660000 lb
300 te
200 lb
0.1 te
260 lb
118 kg
5:16 In
152 mm
31.73"
806 mm

Related Products

Click image for more info
ATEX / Ex IECEx Wireless Dynamometer Tension Loadcell
- ATEX Certified approved for use in hazardous zones 2, 1 and 0
Digital Dynamometer
Click image for more info
Digital Dynamometer Tension Loadcell
SW-A01i Wireless Base Station with Analogue Output
Click image for more info
Wireless Base Station with Analogue Output
SW-OAM Wireless Overload Alarm Module
Click image for more info
Wireless Overload Alarm Module
SW-SB Wireless Signal Booster Repeater Module
Click image for more info
Wireless Signal Booster Repeater Module
SW-SD Wireless Scoreboard Slave Display
Click image for more info
Wireless Scoreboard Slave Display
SW-MWLC Multiple Wireless Load Cell Controller Software
Click image for more info
Multiple Wireless Load Cell Controller Software
- Display and logs data up to 100 Straightpoint wireless load cells

Specifications

Accuracy+/- 0.3% of Applied Load
Wireless Range2300 feet (700 meters)
Radio Frequency2.4GHz
Data Transmission Rate3Hz up to 200Hz can be ordered for dynamic load monitorning applications
Battery TypeRemote Display 2 x AA / Loadcell 4 x AA
Battery LifeRemote Display 60 Hrs / Loadcell 1200 Hrs (continuous use)
Display Type6 digit 0.9 inch LCD (22mm)
Operating Temp14°F to 122°F (-10°C to +50°C)
Housing Protection SensorIP67 / NEMA 6 (Waterproof)
Housing Protection DisplayIP65 / NEMA 4 (Waterproof)
Warranty1-Year (FREE Extension to 2-Years with Product Registration)

Complete Kit

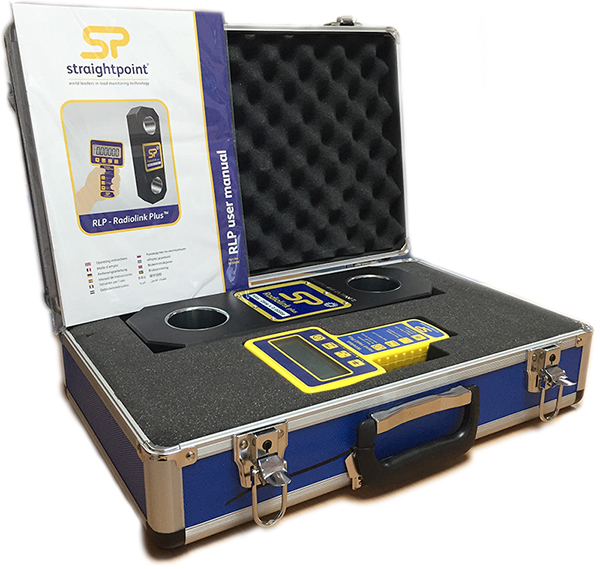

The RadioLink Plus is supplied as a complete kit including the dynamometer, wireless display, 4x AA batteries, RFID tag, calibration certificate, and instruction manual. Models up to 35T/77,000lbs are supplied in foam fitted carrying cases. Larger capacities are supplied in an approved shipping crate.

Shackles are not included. Inquire if required.

Radiolink Plus Wireless Dynamometer complete kit

Downloads

Buy Now

Check the items you would like to purchase then click "Buy Now"
  Item Description Price
Wireless Dynamometer with Remote Display, 2000 lb / 1000 kg - without shackles
$3,339.00
Wireless Dynamometer with Remote Display, 2000 lb / 1000 kg - with shackles
$3,419.00
Wireless Dynamometer with Remote Display, 5500 lb / 2.5te - without shackles
$3,513.00
Wireless Dynamometer with Remote Display, 5500 lb / 2.5te - with shackles
$3,593.00
Wireless Dynamometer with Remote Display, 11000 lb / 5te - without shackles
$3,785.00
Wireless Dynamometer with Remote Display, 11000 lb / 5te - with shackles
$3,945.00
Wireless Dynamometer with Remote Display, 26000 lb / 12te - without shackles
$4,379.00
Wireless Dynamometer with Remote Display, 26000 lb / 12te - with shackles
$4,759.00
Wireless Dynamometer with Remote Display, 55000 lb / 25te - without shackles
$4,658.00
Wireless Dynamometer with Remote Display, 55000 lb / 25te - with shackles
$5,670.00
Wireless Dynamometer with Remote Display, 77000 lb / 35te - without shackles
$5,388.00
Wireless Dynamometer with Remote Display, 77000 lb / 35te - with shackles
$7,689.00
Wireless Dynamometer with Remote Display, 110000 lb / 50te - without shackles
$6,026.00
Wireless Dynamometer with Remote Display, 110000 lb / 50te - with shackles
$8,327.00
Wireless Dynamometer with Remote Display, 165000 lb / 75te - without shackles
$10,346.00
Wireless Dynamometer with Remote Display, 165000 lb / 75te - with shackles
$14,216.00
Wireless Dynamometer with Remote Display, 220000 lb / 100te - without shackles
$13,496.00
Wireless Dynamometer with Remote Display, 220000 lb / 100te - with shackles
$19,532.00
Wireless Dynamometer with Remote Display, 330000 lb / 150te - without shackles
$17,006.00
Wireless Dynamometer with Remote Display, 330000 lb / 150te - with shackles
$31,353.00
Wireless Dynamometer with Remote Display, 440000 lb / 200te - without shackles
$21,596.00
Wireless Dynamometer with Remote Display, 440000 lb / 200te - with shackles
$37,436.00
Wireless Dynamometer with Remote Display, 550000 lb / 250te - without shackles
$24,746.00
Wireless Dynamometer with Remote Display, 550000 lb / 250te - with shackles
$43,353.00
Wireless Dynamometer with Remote Display, 660000 lb / 300te - without shackles
$30,596.00
Wireless Dynamometer with Remote Display, 660000 lb / 300te - with shackles
$53,583.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
