The SW-SB wireless base station module is powered via a 9-32V DC external power source and easily pairs to any Straightpoint wireless device e.g. load cell, accessories, and software solutions within range, providing analog & digital outputs.

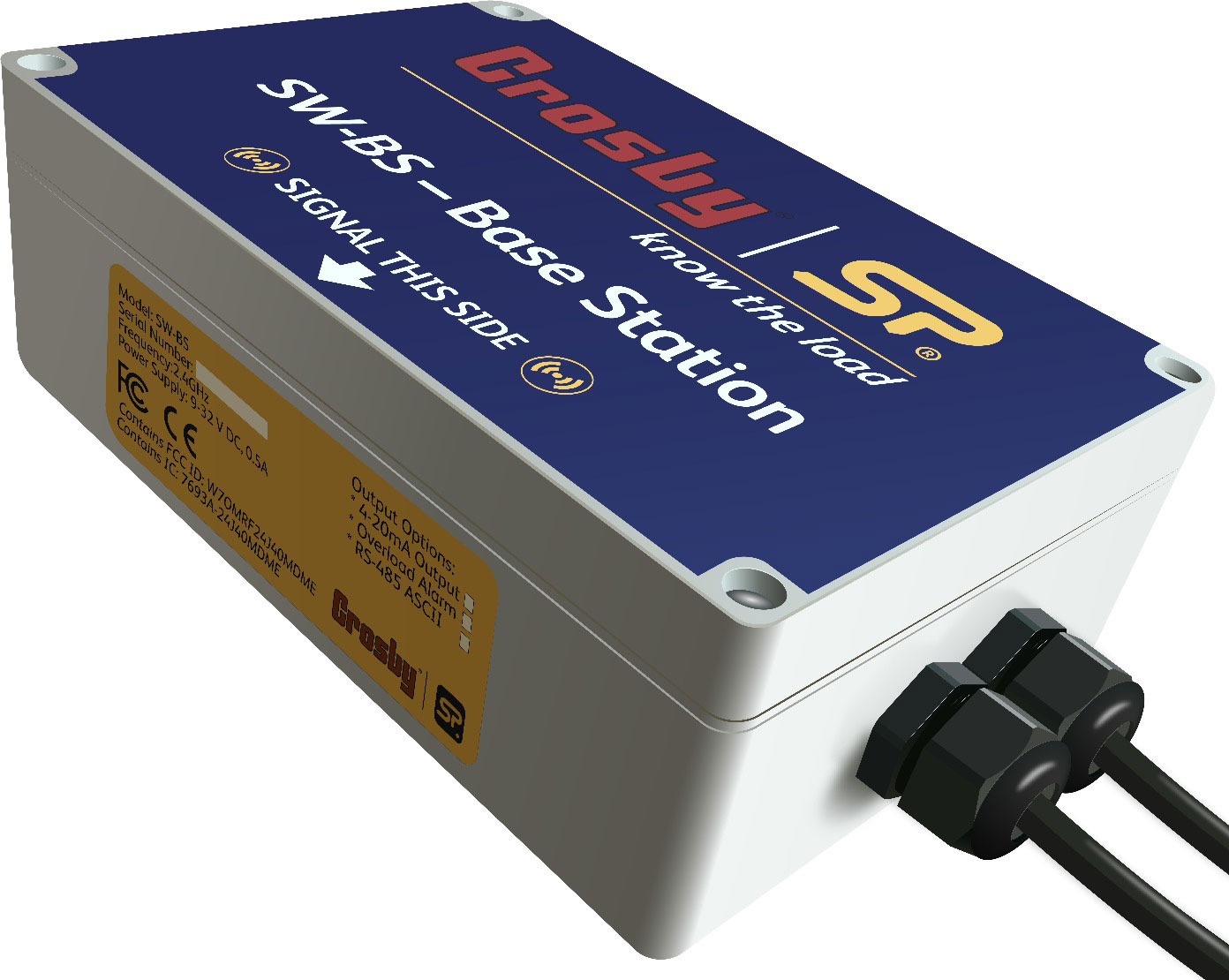

The SW-BS, Straightpoint base station, provides a configurable analog or digital output for any single or multiple (up to a maximum of four)Straightpoint wireless load cells.
The SW-BS is ideal for integration with PLC, SCADA, DAQ, or another compatible third-party system. The device can be configured to provide any of the following outputs as per configuration:
4-20mA
Relay setpoint
RS485 ASCII
Optional CANbus 2.0A & 2.0B
The load data from the wireless loadcell can then be seamlessly fed into an external controller installed on a crane, vehicle or other machinery requiring feedback for close loop or real time control and monitoring.
- 4-20mA analog or RS485 / CANbus digital output for integration into existing systems
- 2 onboard relay setpoints to allow external switching
- Powered b External Power Source (9-32V DC)
- IP65 / NEMA 4 Enclosure
- 800 m / 2652 ft Range
| SW-BS Wireless Base Station Specifications | |
|---|---|
| Crosby p/n | 2789314 |
| Required power supply | 9 to 32V DC |
| Output options | Current 4-20mA, 2 relay outputs, RS485 ASCII (configurable) |
| Radio frequency | 2.4GHz (licence free) |
| Wireless Range | 800 m or 2652 ft |
| Maximum no. of load cells | wireless load cells |
| Operating temperature range | -10°C to +50°C or 14°F to 122°F |
| IP rating | IP65 or NEMA4X |
| Dimensions | 180mm (7”) x 120mm (4.72”) x 60mm (2.36”) |
| Current output specification | 4-20mA (2 wire), Resolution 4096/12 |
| Relay specification | Two (2), SPST (relay 1 NO, relay 2 NC) 5A at 250V AC, 5A at 30V DC |
| RS485 specification | ASCII |
| CANbus specification | CAN2.0A and CAN2.0B supported |
