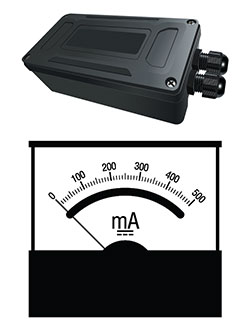

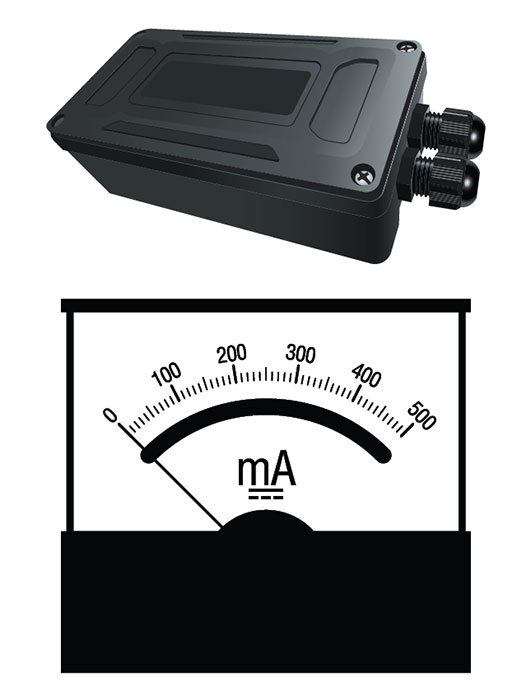

SW-AO1i Wireless Base Station with Analogue Output

SW-A01i Wireless Base Station with Analogue Output
Click images to enlarge.

The SW-AO1i provides a configurable analogue output for any single Straightpoint wireless load cell and is ideal for integration to a PC, PLC or other data acquisition system. Housed in a IP65/NEMA4X enclosure, the output can be selected from pre-calibrated voltage and current ranges of 0-5vdc, +-5vdc, 0-10vdc, +-10vdc, 0-20mA, 4-20mA.

Features

  • Full optional of analog outputs including; 0-5vdc, +-5vdc, 0-10vdc, +-10vdc, 0-20mA, 4-20mA
  • Output can be changed in the field to suit different devices
  • Wireless connection to load cell
  • Fully configurable
  • Wide range for power supply input
  • IP65/NEMA 4 Enclosure
  • Requires power supply of 9 - 36vdc (@ 150mA)

Global Specifications Parameter

Minimum
Typical
Maximum
Units
Licence
-
Licence exempt
-
-
Modulation method
-
MS (QPSK)
-
-
Radio type
-
Transceiver (2 way)
-
-
Data rate
-
250
-
k bits/sec
Radio frequency
2.4000
-
2.4835
GHz
Power
-
1
-
mw
Range
-
-
700 (2300)
Meters (feet)
Channels (DSSS)
-
16
-
-
