Series-5 Advanced Digital Force Gauge - Model M5

Made in USA

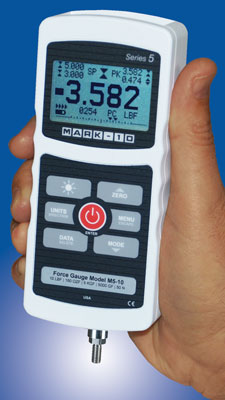

M5 Digital Force Gauge
Click images to enlarge.
Measures Tension & Compression Force (Push / Pull)
Ranges up to 2,000 lbs

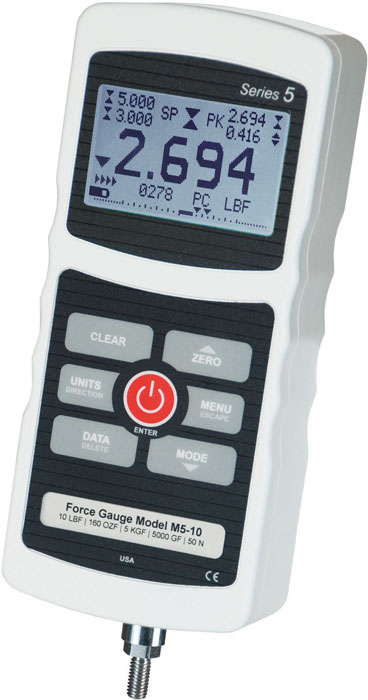

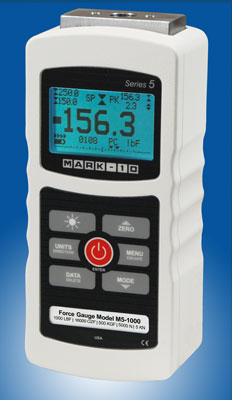

Series 5 advanced digital force gauges are designed for tension and compression force testing in quality control, manufacturing, and R&D areas. A range of capacities from 0.12 lb to 2000 lb (0.5 N to 10,000 N) is available to address numerous applications in the medical device, pharmaceutical, packaging, consumer products, automotive, aerospace, and other industries.

The force gauges feature an industry-leading peak sampling rate of 7,000 Hz, producing accurate results even for quick-action tests. Accuracy is ±0.1% of full scale, and resolution is 1/5000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauge's many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 1000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

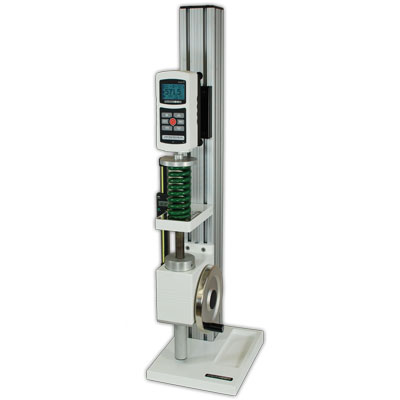

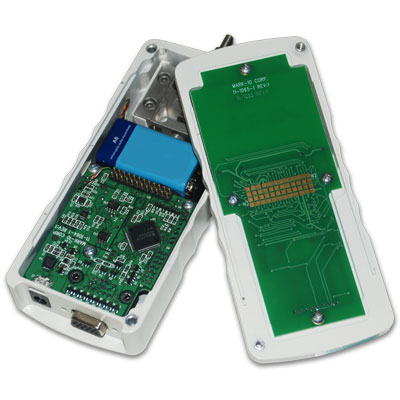

The Series 5's averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate. An ergonomic aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. The housing may be reversed in order for the load cell shaft to be oriented up or down, while the display and buttons remain upright.

Features

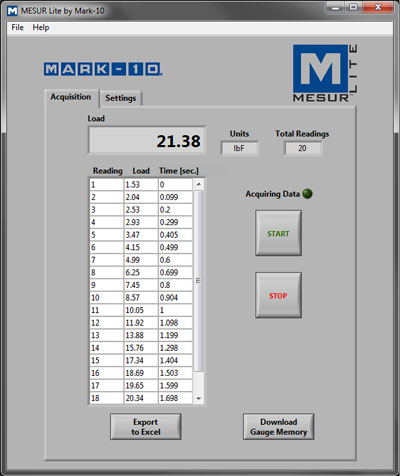

  • Now including MESUR Lite basic data acquisition software!
  • High-speed 7,000 Hz peak sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Programmable set points with pass/fail audible and visual indicators
  • Large backlit graphic display
  • 1,000-point data memory with statistics and outputs

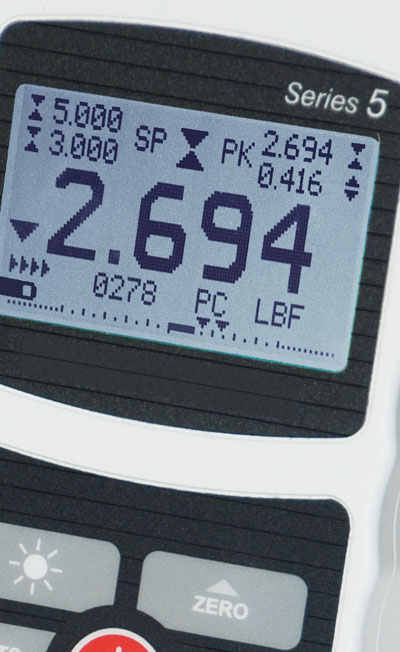

  • Live load bar graph with set point markers
  • Password protection, configurable for individual keys and calibration
  • Peak readings always displayed
  • Configurable audio alarms and key tones
  • Aluminum construction
  • Includes 10 pt NIST Traceable Calibration Certificate

Force Ranges - capacity/resolution

Dimensions

M5 force gauge dimensions
Thread Specs Thread
M5-012 - M5-100 #10-32
M5-200 - M5-500 5/16-18
M5-1000- M5-2000 1/2-20F

Included Accessories

M5-012 -M5-20 M5-50 -M5-100 M5-200 - M5-500 M5-1000 - M5-2000
Extension Rods G1024 G1024 G1031 G1031
Cone G1026 G1026 G1033 G1033
Chisel G1025 G1025 G1032 G1032
V-Groove G1027 G1027 G1034 G1034
Flat G1029 G1029 G1036 G1036
Hook G1028 G1038 G1035 G1042
Coupling - G1039 G1037 -
Thread Adapter - - - G1041

Special Attachments

Related Products

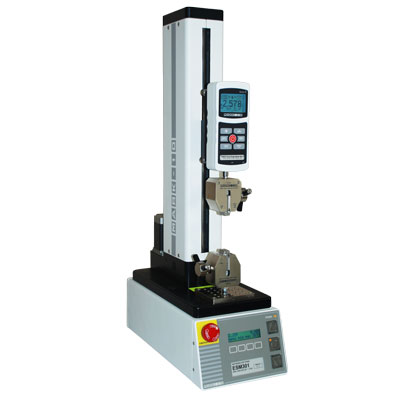

ESM303 Motorized Test Stand
Click image for more info
High Performance Motorized Test Stand, 300lb Capacity
- Adjustable Travel Speed, Standard - 0.5 - 13 in/min (13 - 330 mm/min), Optional - 0.02 - 45 in/min (0.5 - 1,100 mm/min)
- USB output of force vs. time or force vs. travel (with optional travel measurement)
ES30 test stand
Click image for more info
Precision Hand Wheel Test Stand
- 200lb Capacity
- Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting
- Removable base plate with 25 #10-32 threaded holes for fixture mounting
Click image for more info

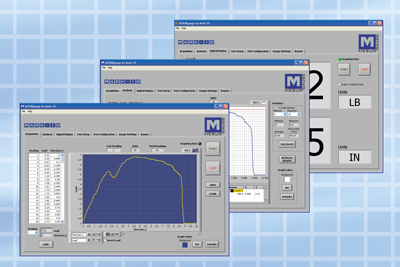

MESUR gauge / MESUR gauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, and ESM1500 motorized test stands, coordinating motion control and data collection with just one click

Complete Kit

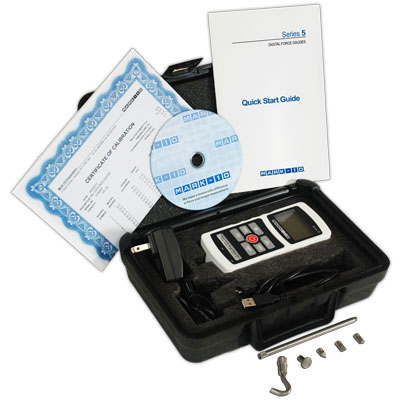

Series 5 force gauges are supplied in a cushioned carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.
Series 5 gauges include a carrying case, set of implements, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide), and NIST-traceable certificate of c

Specifications

Sampling Rate7,000 Hz
Accuracy±0.1% of Full Scale
PowerAC or rechargeable battery (NiMH). Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage.
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement UnitslbF,ozF,gF,kgF,N,kN,mN (depending on model)

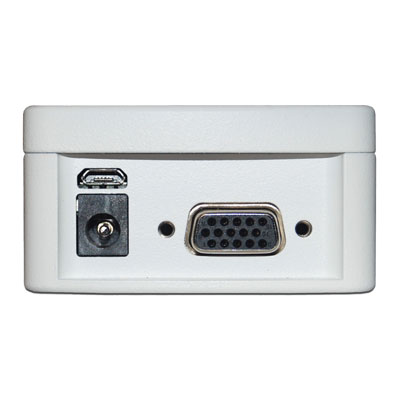

OutputsUSB / RS-232: Fully configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatibile devices.
Analog: ±1V DC, ±0.25% of full scale at capacity.
General Purpose: Three open drain outputs, one input.
Set Points: Three open drain lines.
Configurable settingsDigital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe Overload150% of full scale (display shows "OVLD" at 110% and above)
Operating Temperature Range40 - 100°F, max. 96% humidity, non-condensating
Weight(gauge only)M5-012 - M5-100: 1.0 lb [0.45 kg]
M5-200 - M5-500: 1.2 lb [0.54 kg]
M5-1000 - M5-2000: 1.8 lb [0.82 kg]
Included AccessoriesCarrying case, chisel, cone, V-groove, hook, flat, extension rod, AC adapter, battery, USB cable with driver, MESURgauge DEMO software, NIST-traceable certificate of calibration with data
Warrany3 years

Downloads

Buy Now

Check the items you would like to purchase then click "Buy Now"
  Item Description Price
Advanced Digital Force Gauge, 2oz / 50g / 0.5N Capacity
$1,225.00
Advanced Digital Force Gauge, 0.25 lbs / 100 g / 1 N Capacity
$1,225.00
Advanced Digital Force Gauge, 0.5lb / 250g / 2.5 N Capacity
$1,225.00
Advanced Digital Force Gauge, 2lb / 1 Kg / 10 N Capacity
$1,075.00
Advanced Digital Force Gauge, 5lbs / 2.5 kg / 25 N Capacity
$1,075.00
Advanced Digital Force Gauge, 10 lbs / 5kg / 50 N Capacity
$1,075.00
Advanced Digital Force Gauge, 20 lb / 10 Kg / 100N Capacity
$1,075.00
Advanced Digital Force Gauge, 50lbs / 25Kg / 250N Capacity
$1,075.00
M5-50-RF
REFURBISHED - M5-50 Advanced Digital Force Gauge, 50 lb Capacity
$675.00
Advanced Digital Force Gauge, 100lbs / 50Kg / 500NCapacity
$1,075.00
Advanced Digital Force Gauge, 200lbs / 100 kg / 1000 N Capacity
$1,225.00
Advanced Digital Force Gauge, 300lbs / 150 kg / 1500 N Capacity
$1,225.00
Advanced Digital Force Gauge, 500lbs / 250Kg / 2500N Capacity
$1,225.00
Advanced Digital Force Gauge, 1000lbs / 500Kg / 5000N Capacity
$1,475.00
Advanced Digital Force Gauge, 1500lbs / 750Kg / 7500N Capacity
$1,475.00
Advanced Digital Force Gauge, 2000lbs / 1000Kg / 10 kN Capacity
$1,475.00
Accessories
Double handle grip for for Series 4/5/7
$120.00
09-1163
Serial Output Cable DB9
$75.00
08-1026
Spare rechargeable battery
$20.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
