AC1073 Inline Adapters for Force Gauges

Made in USA
AC1073 Inline Adapters for Force Gauges
Click images to enlarge.
These adapters allow a force gauge to be used in inline pull testing or weighing applications. A 5/16-18 threaded hole at each end is axially aligned with the load cell shaft in the force gauge, for mounting hooks or other attachments. Three adapters are offered, accommodating Mark-10 force gauges with capacities up to 500 lbF (2.5 kN).

Complete Kit

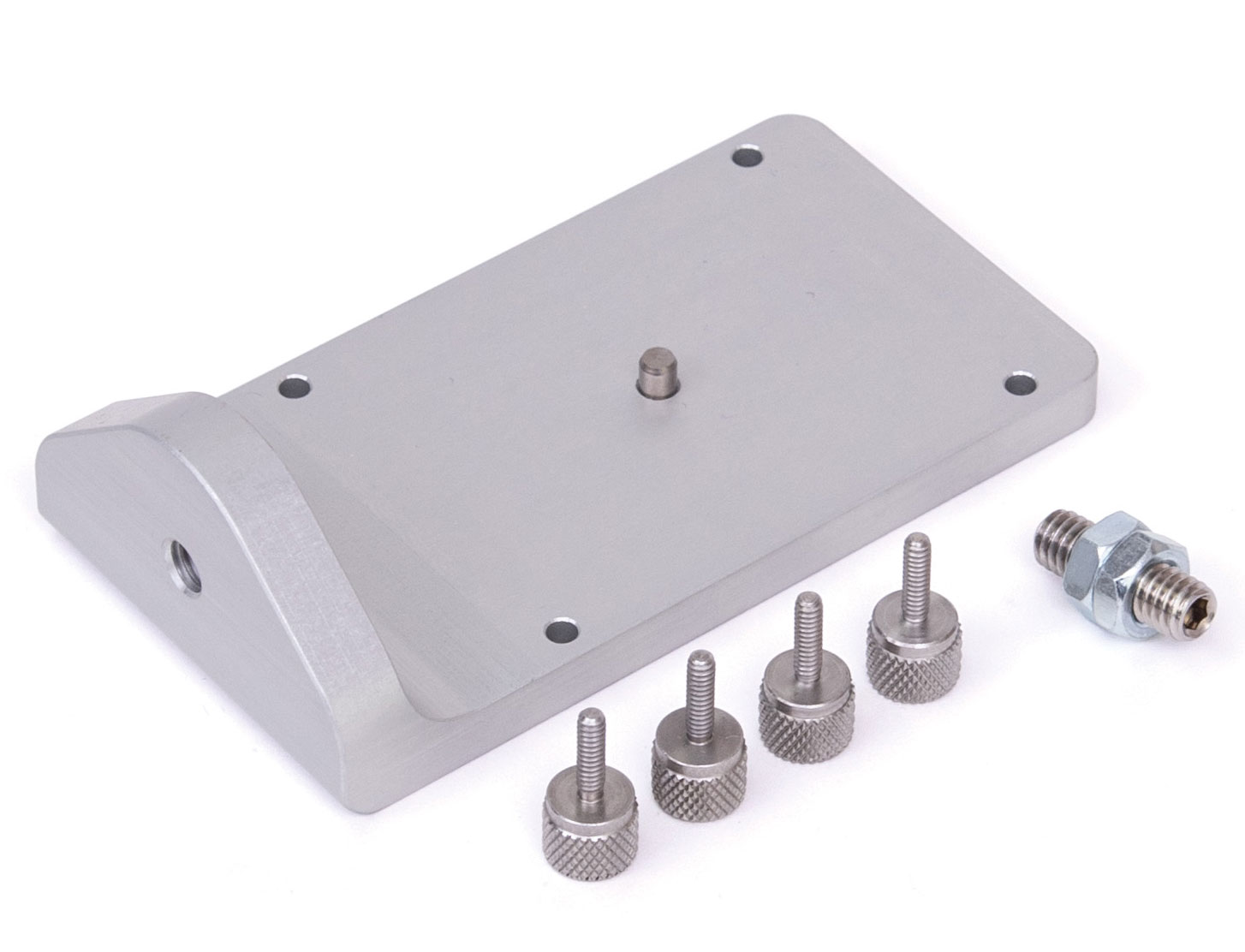

The inline adapters are shipped with the following accessories (AC1073-3 is shown on the right):

(4) Thumb screw for force gauge
(1) 5/16-18 male/male stud with jam nuts

Dimensions

AC1073 Inline Adapters for Force Gauges Dimensional Drawing
Model A B C D E F G H
AC1073-1 1.47 in
(38.1 mm)
0.74 in
(18.8 mm)
4.67 in
(118.6 mm)
4.27 in
(24.1 mm)
3.27 in
(83.1 mm)
1.87 in
(47.5 mm)
0.47 in
(12.0 mm)
0.65 in
(16.5 mm)
AC1073-2 1.47 in
(38.1 mm)
0.74 in
(18.8 mm)
8.31 in
(211.1 mm)
7.91 in
(38.1 mm)
4.97 in
(126.3 mm)
2.72 in
(69.1 mm)
0.47 in
(12.0 mm)
0.65 in
(16.5 mm)
AC1073-3 1.85 in
(47.0 mm)
1.12 in
(28.4 mm)
6.46 in
(25.4 mm)
6.06 in
(154.0 mm)
4.97 in
(126.3 mm)
2.72 in
(69.1 mm)
0.47 in
(12.0 mm)
1.03 in
(26.2 mm)
