CAP-TA Cap Torque Tester

Click images to enlarge.

The CAP-TA has been replaced by the CAP-TT01, click here to go to the CAP-TT01.

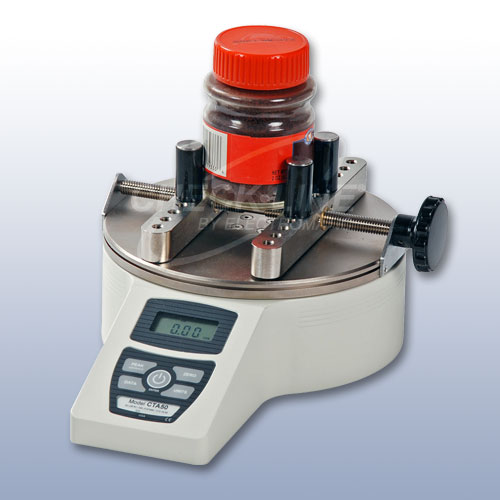

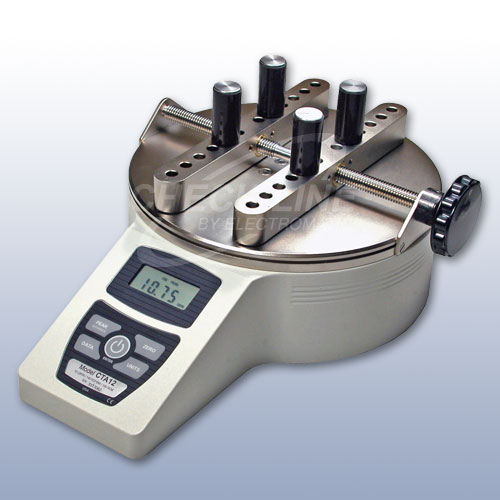

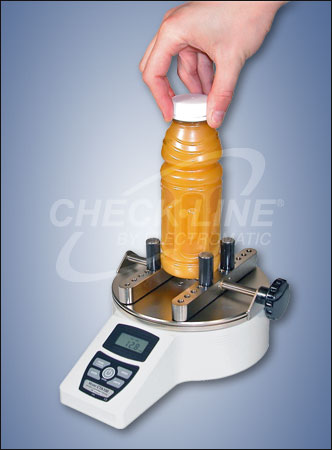

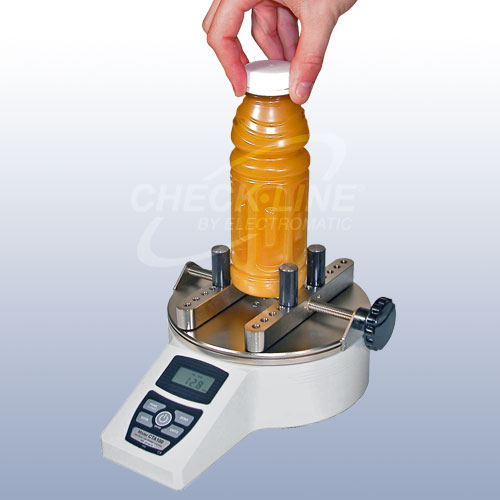

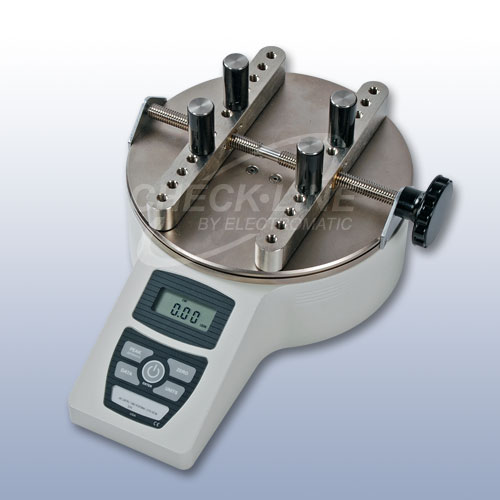

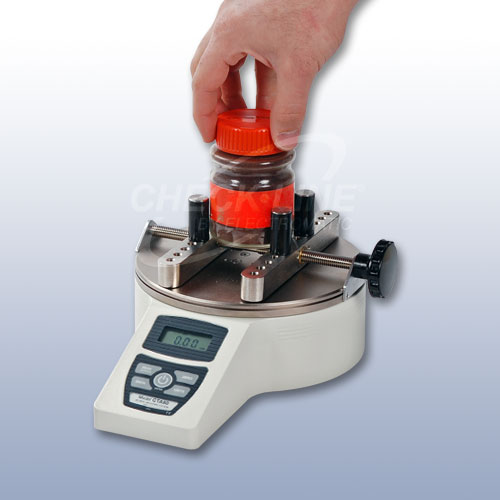

The CAP-TA Cap Torque Testers is a simple, accurate, and economical solution for manual cap torque testing. Ideal for lab or production use for closure manufacturers, bottlers, food and beverage companies, and others. The cap torque tester captures peak readings for application and removal torques.

Data output via RS-232 and Mitutoyo enable reporting and analysis of test data via PC or other data collector. Adjustable posts effectively grip a broad range of container shapes and sizes, while a set of flat rubber-edged jaws are available for unique profiles. Innovative mechanical overload protection provides peace of mind.

The CAP-TA cap torque tester features an aluminum housing, rugged construction and close attention to engineering you'd expect.

Features

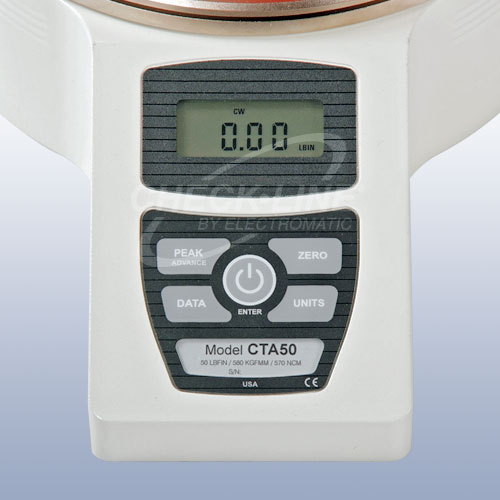

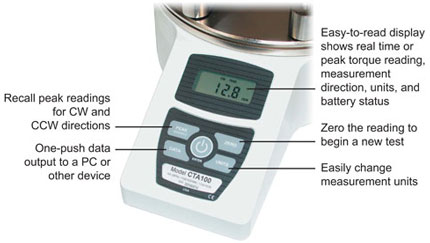

  • Measures in real time or peak torque modes
  • Data output via RS-232 and Mitutoyo
  • Selectable units of measurement
  • Accepts samples up to 7.5" (189.4 mm) dia.

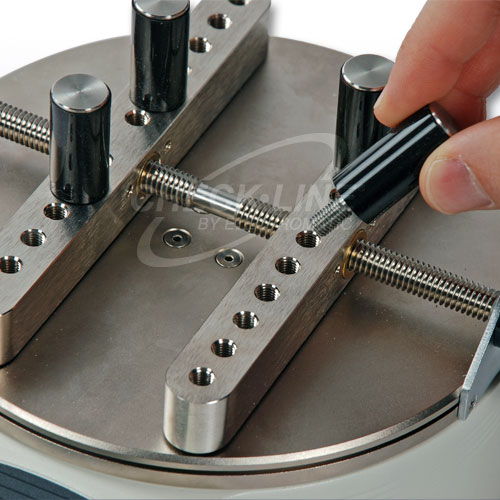

  • Movable threaded sample gripping posts
  • Captures peak readings for application and removal torques
  • 3 torque capacities available
  • Operates on a 9V battery or AC adapter
  • 3 Year Warranty
  • MESUR™ Lite data acquisition software is included (Requires optional Serial Cable)
  • Supplier with NIST-Traceable Calibration Certificate

Force Ranges

ModelCapacityResolution
CAP-TA-1212 lb-in
140 kg-mm
135 N-cm
0.01 lb-in
0.1 kg-mm
0.1 N-cm
CAP-TA-5050 lb-in
580 kg-mm
570 N-cm
0.05 lb-in
0.5 kg-mm
0.5 N-cm
CAP-TA-100100 lb-in
1150 kg-mm
1150 N-cm
0.1 lb-in
1 kg-mm
1 N-cm

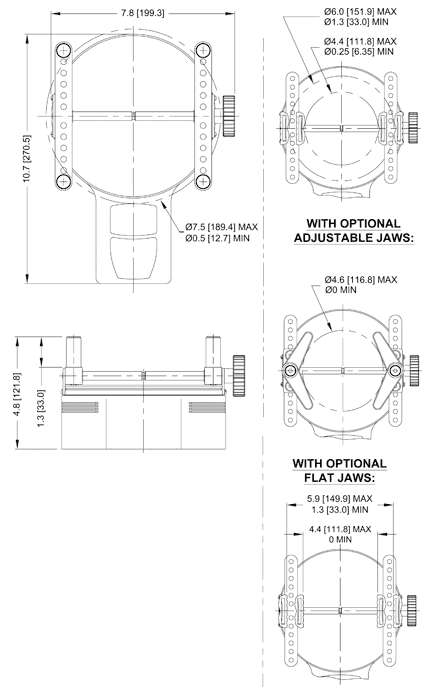

Dimensions

Related Products

ac1036 cap torque calibration fixture
Click image for more info
Calibration Kit for CAP-TT01
Click image for more info
Mitutoyo SPC statistical processor/printer
Click image for more info
MESURgauge / MESURgauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, ESM750,ESM750S, ESM1500, and ESM1500S motorized test stands, coordinating motion control and data collection with just one click

Specifications

Accuracy±0.5% of full scale ±1 digit
Safe overload150% of capacity
Weight6.5 lbs (2.9 kg)
Warranty3 years

Downloads

Buy Now

Item Description Price
Accessories
Calibration kit for CAP-TT01, CAP-T, and CAP-TA torque testers (weights not included)
$660.25

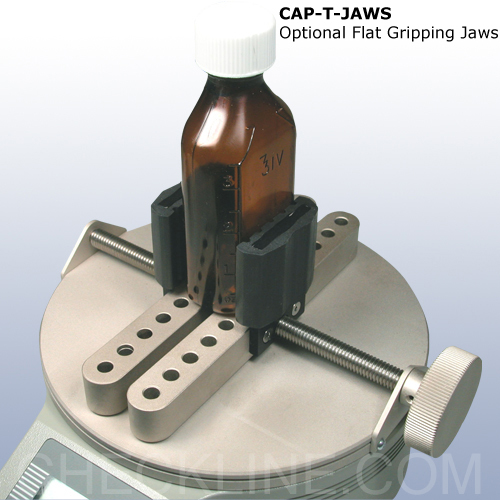

CAP-TA-JAWS
Flat gripping jaws, pair
$75.00
CAP-TA-CC
Carrying case for CAP-TA
$195.00
CT003

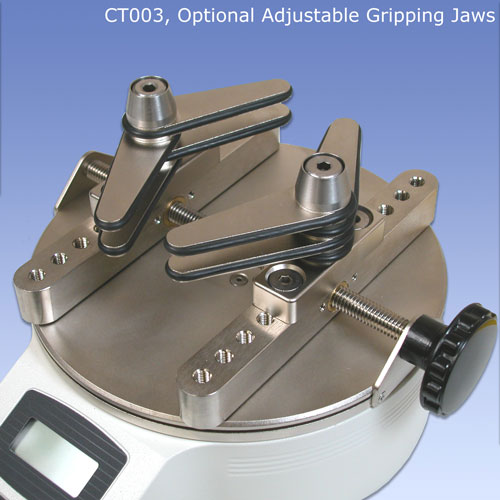

Set of Adjustable jaws for CAP-TT01
$356.25
MESUR gauge Load & Travel Analysis Software
$530.00
09-1048A
Cable, RS-232 9-Pin
$80.00
RSU100
Communication adapter, RS-232 to USB
$135.00
CAP-TA-PEGS
Set of 4 Spare / Replacement Pegs
$150.00
Mitutoyo SPC statistical processor/printer - Requires 09-1164
$595.00
09-1047
Cable, Mitutoyo SPC
$80.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
