CAP-TT01 Cap Torque Tester

Made in USA
CAP-TT01 cap torque tester
Click images to enlarge.
6 Ranges up to 250 lb-in / 28 N-m
For Containers up to 7.5" / 190 mm Diameter

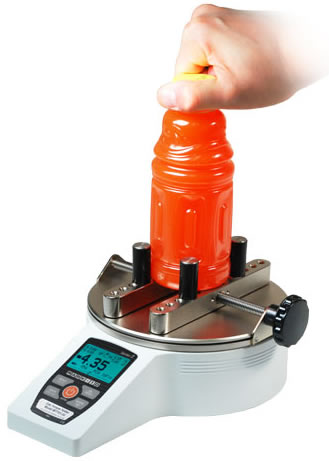

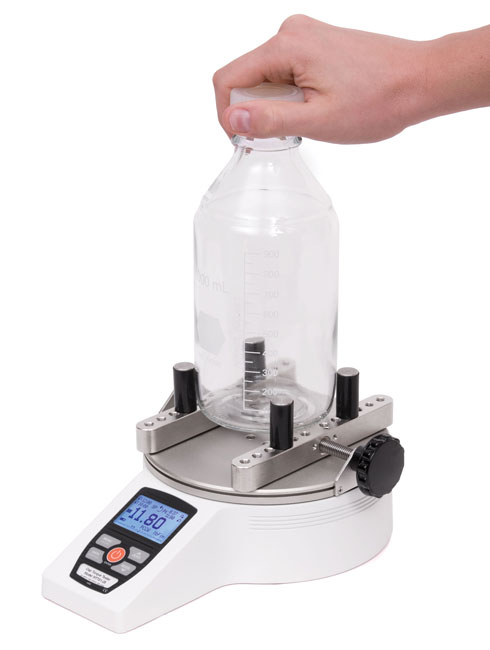

The CheckLine CAP-TT01 cap torque tester accurately measures application and removal torque of bottle caps up to 250 lb-in (28 Nm). The CAP-TT01 is supplied with adjustable pegs to effectively grip a wide range of container shapes and sizes, while optional flat and adjustable jaws are available to secure unique profiles. A rugged aluminum housing, and simple, operation allow for use in production, lab an field environments.

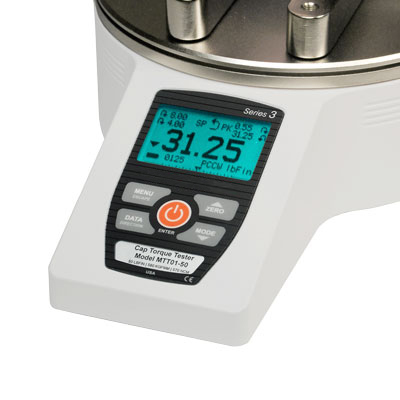

Accuracy of ±0.3% and a sampling rate of 7,000 Hz ensure reliable and consistent test results. The CAP-TT01 can display torque in Oz-in, Lb-in, Kg-cm, N-m and N-cm units.

The CAP-TT01 includes productivity-enhancing features, including USB, RS-232, analog outputs, automatic data output and zeroing, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.

CAP-TT01 testers include MESUR Lite data acquisition software. MESUR Lite collects continuous or single point data. Data stored in the CAP-TT01's memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

CAP-TT01 Cap Torque Tester Video

Features

  • Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes
  • Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
  • Password protection prevents unauthorized changes
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • 5 selectable units of measure including Oz-in, Lb-in, Kg-cm, N-m and N-cm

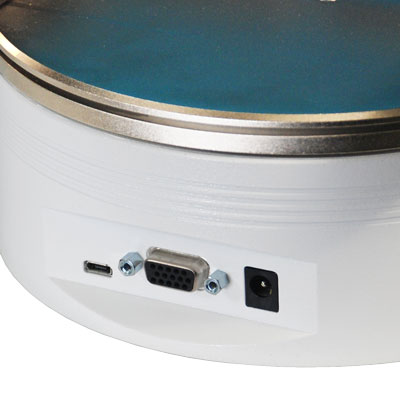

  • USB, RS-232, Mitutoyo, and analog outputs
  • 1,000-point data memory with statistics and outputs
  • Programmable set point indicators and outputs for pass/ fail determination
  • Configurable audio alarms and key tones
  • MESUR™ Lite data collection software included
  • Measures container diameters from 0.5" to 7.5" (12.7-190 mm)
  • Includes NIST Traceable Calibration Cert. A long form cert with data is optionally available.
  • First & second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures

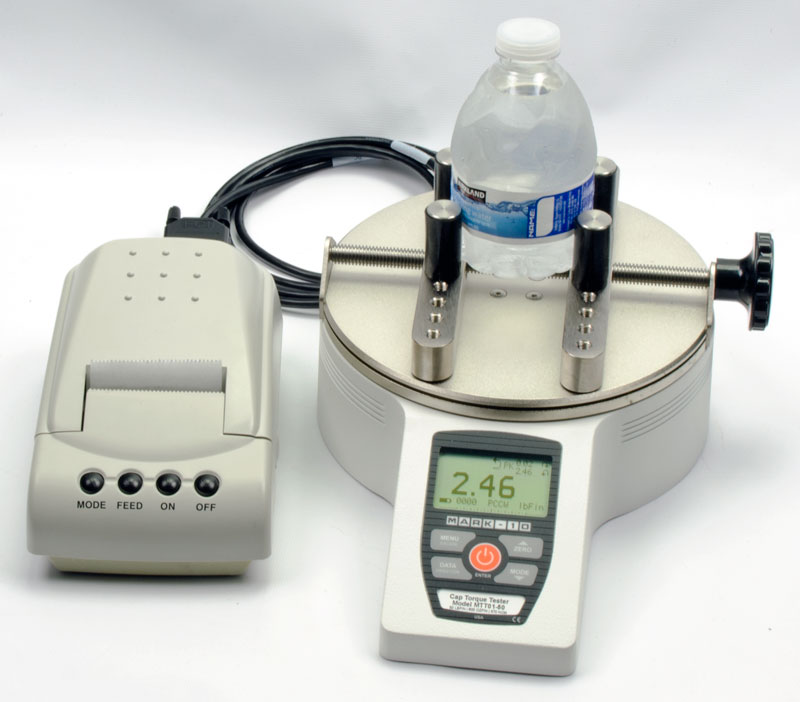

CAP-TT01 with Optional Printer

Torque Ranges

Model ozFin lbFin kgFcm Ncm Nm
CAP-TT01-12 192
0.1
12
0.005
14
0.01
135
0.1
1.35
0.001
CAP-TT01-25 400
0.2
25
0.01
28
0.02
290
0.2
2.9
0.002
CAP-TT01-50 800
0.5
50
0.02
58
0.05
570
0.5
5.7
0.005
CAP-TT01-100 1600
1
100
0.05
116
0.1
1150
0.5
11.5
0.005
CAP-TT01-150 NA 150
0.05
173
0.2
1695
1
17
0.01
CAP-TT01-250 NA 100
0.05
288
0.5
2824
2
28
0.05

Typical Torque Values (LB-IN)

Cap dia.
in mm
Phenolic/ Urea
Cap On Glass
Phenolic/Urea
Cap on Plastic
PP/PE Cap
on Glass
PP/PE Cap
on Plastic
Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque
15 8 4 6 3 12 7 8 4
18 9 5 7 4 13 8 9 5
20 10 5 8 4 15 9 10 5
22 11 6 9 5 17 10 11 6
24 12 6 10 5 18 11 12 6
28 14 7 12 6 21 12 14 7
33 18 9 15 7 24 14 17 8
38 20 10 17 7 29 17 19 9
43 22 11 18 9 33 20 22 11
48 24 14 20 10 26 22 24 12
58 28 14 24 12 44 26 29 14
70 35 18 28 14 52 32 35 17
89 45 22 36 18 65 40 45 22
100 50 25 40 20 75 38 50 25

Specifications

Accuracy±0.3% of Full Scale
Sampling rate7,000 Hz
PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement unitsoz-in, lb-in, kg-cm, N-m, N-cm
OutputsUSB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1V DC, ±0.25% of full scale at capacity.
General
Configurable SettingsDigital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe overload150% of full scale (display shows "OVER" at 110% and above)
Weight8.4 lb (3.8 kg)
Included itemsUniversal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.
Warranty3 years (see individual statement for further details)
Container Diameter0.5" to 7.5" (12.7-190 mm)

Dimensions

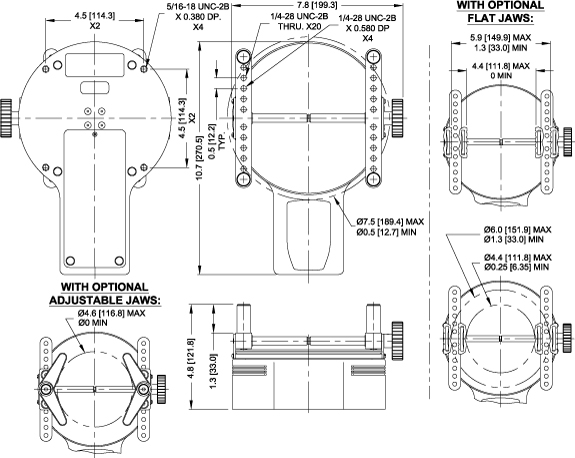

CAP-TT01 dimensions

Related Products

Click image for more info
Calibration Kit for CAP-TT01
CAP-TT03 Hand Cap Torque Tester
Click image for more info
Hand-held Cap Torque Meter - MTT03C
- For cap diameters of 0.65 - 1.55 in (16.5 - 39.0 mm)
- High-speed 2,000 Hz sampling rate
Click image for more info
MESUR gauge / MESUR gauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, and ESM1500 motorized test stands, coordinating motion control and data collection with just one click
TNP Cap Torque Tester
Click image for more info
Digital Cap Torque Tester
- ±0.5% F.S. Accuracy
- USB interface including FREE Digitorq Software
DTXS Cap Torque Tester
Click image for more info
Digital Cap Torque Tester
- Test cap loosening (CCW) and tightening (CW) torque
- 1000 data point memory capacity
P-190 Printer
Click image for more info
Impact Dot Printer

Downloads

Buy Now

Check the items you would like to purchase then click "Buy Now"
  Item Description Price
Cap Torque Tester 12 lb-in / 135 N-cm Capacity, MTT01-12
$1,345.00
Cap Torque Tester 25 lb-in / 290 N-cm Capacity, MTT01-25
$1,345.00
Cap Torque Tester 50 lb-in / 570 N-cm Capacity, MTT01-50
$1,345.00
Cap Torque Tester 100 lb-in / 11.5 Nm Capacity, MTT01-100
$1,345.00
Cap Torque Tester 150 lb-in / 12.5 lb-ft / 17 N-m Capacity
$2,595.00
Cap Torque Tester 250 lb-in / 20 lb-ft / 28 N-m Capacity
$2,595.00
Accessories
Battery-Powered Portable Serial RS-232 Impact Printer supplied with AC-Adapter - Requires 09-1163 Cable
$350.00
09-1163
Serial Output Cable DB9
$75.00
CT001

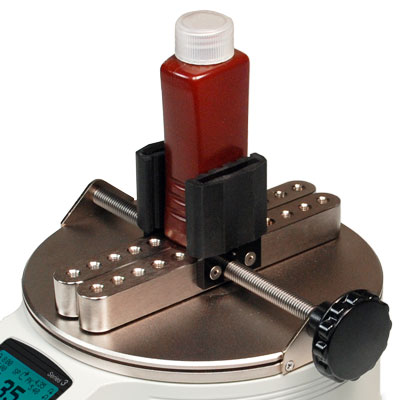

Flat jaws for CAP-TT01, pair
$75.00
CT002

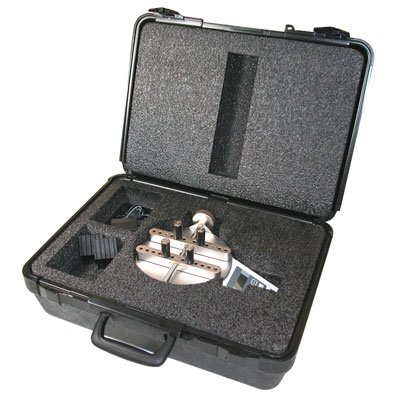

Carrying case for CAP-TT01
$195.00
CT003

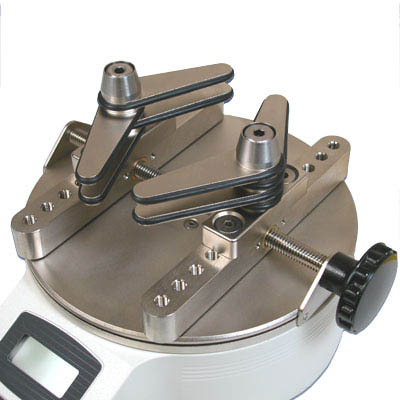

Set of Adjustable jaws for CAP-TT01
$350.00
CT004
Set of 4 posts, 1.25" (Standard set included with TT01)
$150.00

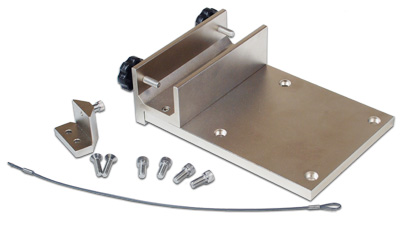

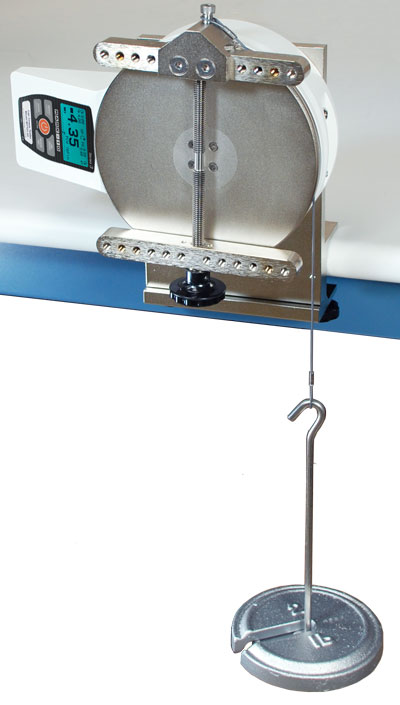

Calibration kit for CAP-TT01, CAP-T and CAP-T, weights not included
$650.00
MESUR gauge Load & Travel Analysis Software
$495.00
08-1026
Spare rechargeable battery
$20.00
NISTCAL-10PT
Upgrade Calibration Cert with 10 Data Points
$75.00
CT004
Set of 4 posts, 1.25" (Standard set included with TT01)
$150.00
CT005
Set of 4 posts, 2.5"
$175.00
CT006
Set of 4 posts, 4"
$200.00
CT007
Kit of 4 posts of each length (12 total)
$400.00
AC1030
AC adapter, with USA Plug
$40.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
