DTL-100i 1/4" Digital Torque Wrench

DTL-100i Digital Torque Wrench
Click images to enlarge.
Capacity: 106 in-lb / 8.85 lb-ft / 12 N-m / 122.4 kg-cm

The new Check-Line DTL-100i Digital Torque Wrench is designed for precise measurement and application of torque in industrial, automotive, aerospace and many other applications. Its small size and ratcheting head are ideal for use in areas with limited access. It measures and applies torque in both CW and CCW directions and displays in Real-Time or Peak Mode. Measurement units are user selectable (Lb-in, N-m, ft-lb or Kg-cm).

The DTL-100i features a programmable target set point that indicates the desired torque value with a red and green LEDs and audible beep.

dtl-100i display

Features

  • Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable)
  • CW and CCW operation
  • Peak or Real-Time (track) mode (User Selectable)
  • Programmable Target Set-point with audible and LED indicators
    At 90% of Target, Green LED illuminates with slow audible beep
    At 100% of Target, Green & Red LEDs illuminate with continuous beep

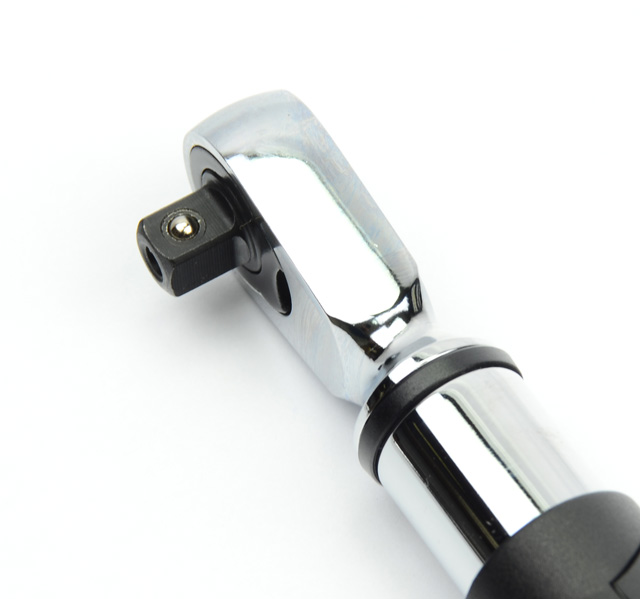

  • Ratcheting Head
  • Includes Calibration Certificate (Click for sample)
  • CE Certified

Torque Rangejavascript:void(0)

ModelMeasuring RangeResolution
DTL-100i5.3 - 106.2 Lb-in
0.6 - 12.00 Nm
0.44 - 8.85 Lb-ft
6.1 - 122.4 Kg-cm
0.1 Lb-in
0.01 Lb-ft
0.01 Nm
0.1 Kg-cm
Accuracy: CW ±2% / CCW ±3% of indicated from 20 - 100% of capacity

Related Products

DTF Digital Torque Wrench
Click image for more info
DTF
Digital Torque Wrench with 1/4" Female Hex Drive
Digital Torque Wrench DTW
Click image for more info
DTW
Digital Torque Wrench
- CW and CCW operation
- Buzzer and LED indicator for the pre-settable target torque
TSD Digital Torque Screwdriver
Click image for more info
TSD
Digital Torque Screwdriver
- Clockwise & Counter Clockwise Torque Measurement
- 9 Programmable Target Torque Setpoints
ETW digital torque wrench
Click image for more info
ETW
Digital Torque Wrench with Memory and Data Output
- Bi-Directional Accuracy better than 1% from 10%-100% of Capacity
- USB output & data transfer / analysis software
Dial Torque Wrench TSQ and TSF
Click image for more info
Dial Torque Wrench
- Made in the USA
- Includes calibration certificate

Complete Kit

The DTL-100i is supplied as a complete kit including the wrench, 1 AAA battery, instruction manual and calibration cert in a fitted plastic carrying case.
supplied in a fitted carrying case

Specifications

AccuracyCW ±2% / CCW ±3% of indicated from 20 - 100% of capacity
Operation ModePeak hold/ Track
Unit Selectionft-lb, in-lb, N-m, Kg-cm

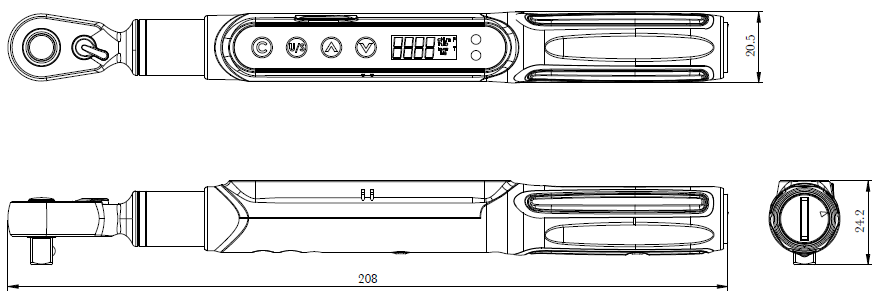

Length8 inches / 20 mm
Head TypeLever type Ratchet
Battery1 AAA
Battery Life12 Continuous Hours
1 Year Standby
Model Code in ManualDME2-012CN
Operating Temperature-10°C ~ 60°C
Zero FunctionTo zero the DTL-100i press the "C" key. The display will clear then it will return to the "target value" (preset)
Storage Temperature-20°C ~ 70°C
HumidityUp to 90% non-condensing
Warranty1 Year
