MTM Multi-Range Torque Tester AWS

Made in USA

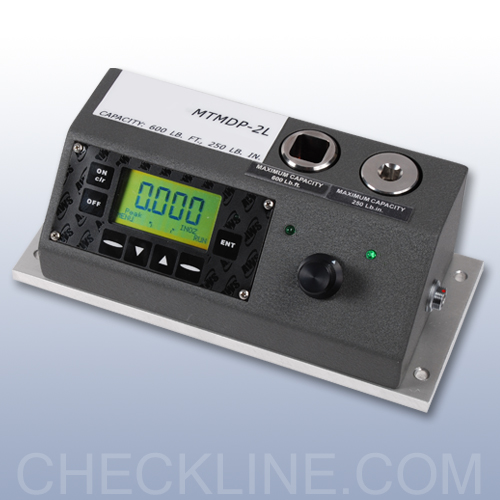

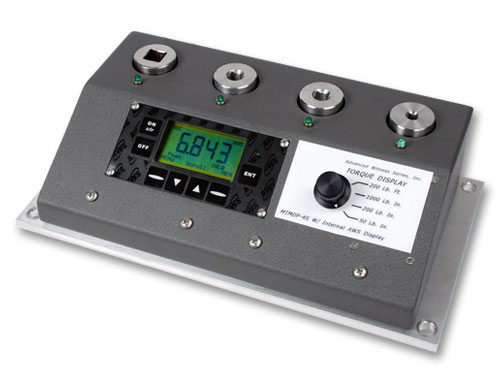

MTM Torque Torque Tester
Click images to enlarge.

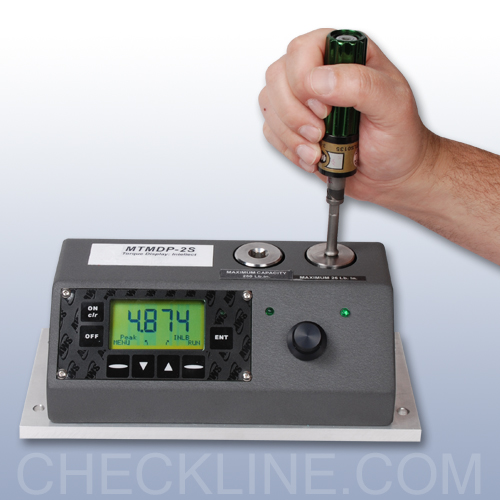

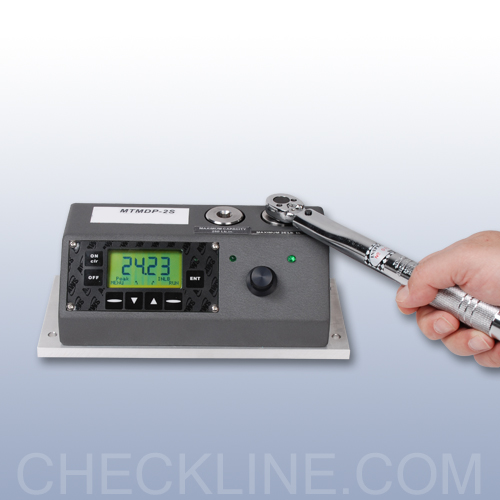

MTM torque testers are designed to provide a precise and economical way to measure and calibrate a wide range of torque tools including manual and powered screwdrivers and wrenches*. Historically, transducers had to be purchased individually and connected to a display via a switch box or a group of cables. With the MTM, up to 4 transducers can be integrated into one compact housing. An external transducer can be connected to further increase the measuring range (requires optional external input).

The small footprint also allows for a clean, well-organized workspace. This helps eliminate the endless searching for cables, adapters, and other accessories that may be needed.

Features such as independent CW and CCW calibration, multi-point linearization, metrology grade transducer shafts, and overload protection to 200% of full scale are standard. All of the above translate to a better product for you at an unbeatable price.

*Power tools require the use of a run-down-fixture
**Not for use with impact tools and torque multipliers

Features

  • Includes NIST Traceable calibration certificate with data for each transducer
  • Run-Down-Fixture (Joint Simulator) included with 1/4" and 3/8" transducers (1-10)
  • Selectable units of: Ft-lb, IN-lb, IN-oz, KGF-m, KGF-cm, GF-cm, CN-m, N-m
  • Available with 2, 3 or 4 torque transducers
  • Small footprint of the MTM allows for a clean, well-organized work space
  • 200% Overload protection
  • LED Indicator Shows Active Transducer
  • Connect external transducers with optional input jack
  • Replaceable shaft design. If one shaft is damaged, replace that shaft, not the entire unit.
  • Hi-Lo Limits for Go-NoGo testing of tools
  • Accuracy of ±0.5% of Indicated Value (within calibrated range)
  • For Testing According to ISO 6789:2017

Torque Ranges

Model Range Drive Size
1. ITIO-10*
1 - 10 ozf-in
0.1 - 0.6 lbf-in
0 - 0.1 lbf-ft
72 - 720 gf-cm
0.1 - 0.7 kgf-cm
0 - 0 kgf-m
0.7 - 7.1 N-cm
0 - 0.1 N-m
1/4"
2. ITIO-50
5 - 50 ozf-in
0.3 - 3.1 lbf-in
0 - 0.3 lbf-ft
360 - 3600.4 gf-cm
0.4 - 3.6 kgf-cm
0 - 0 kgf-m
3.5 - 35.3 N-cm
0 - 0.4 N-m
1/4"
3. ITIO-100
10 - 100 ozf-in
0.6 - 6.3 lbf-in
0.1 - 0.5 lbf-ft
720 - 7200.8 gf-cm
0.7 - 7.2 kgf-cm
0 - 0.1 kgf-m
7.1 - 70.6 N-cm
0.1 - 0.7 N-m
1/4"
4. ITI-10
16 - 160 ozf-in
1 - 10 lbf-in
0.1 - 0.8 lbf-ft
N/A
1.2 - 11.5 kgf-cm
0 - 0.1 kgf-m
11.2 - 112 N-cm
0.1 - 1.1 N-m
1/4"
5. ITI-25
40 - 400 ozf-in
2.5 - 25 lbf-in
0.2 - 2.1 lbf-ft
N/A
2.9 - 28.8 kgf-cm
0 - 0.3 kgf-m
28.2 - 282 N-cm
0.3 - 2.8 N-m
1/4"
6. ITI-50
80 - 800 ozf-in
5 - 50 lbf-in
0.4 - 4.2 lbf-ft
N/A
5.8 - 57.6 kgf-cm
0.1 - 0.6 kgf-m
56.4 - 564 N-cm
0.6 - 5.6 N-m
1/4"
7. ITI-100
160 - 1600 ozf-in
10 - 100 lbf-in
0.8 - 8.3 lbf-ft
N/A
11.5 - 115 kgf-cm
0.1 - 1.2 kgf-m
112 - 1129.8 N-cm
1.1 - 11.2 N-m
1/4"
8. ITI-250
400 - 4000 ozf-in
25 - 250 lbf-in
2.1 - 20.8 lbf-ft
N/A
28.8 - 288 kgf-cm
0.3 - 2.9 kgf-m
282 - 2824.6 N-cm
2.8 - 28.2 N-m
3/8"
9. ITI-500
800 - 8000 ozf-in
50 - 500 lbf-in
4.2 - 41.6 lbf-ft
N/A
57.6 - 576 kgf-cm
0.6 - 5.8 kgf-m
564 - 5649.2 N-cm
5.6 - 56.4 N-m
3/8"
10. ITI-1000
N/A
100 - 1000 lbf-in
8.3 - 83.3 lbf-ft
N/A
115 - 1152.1 kgf-cm
1.2 - 11.5 kgf-m
N/A
11.2 - 112 N-m
3/8"
11. ITF-100
N/A
120 - 1200 lbf-in
10 - 100 lbf-ft
N/A
138 - 1382.5 kgf-cm
1.4 - 13.8 kgf-m
N/A
13.5 - 135 N-m
1/2"
12. ITF-150
N/A
180 - 1800 lbf-in
15 - 150 lbf-ft
N/A
207 - 2073.8 kgf-cm
2.1 - 20.7 kgf-m
N/A
20.3 - 203 N-m
1/2"
13. ITF-250
N/A
300 - 3000 lbf-in
25 - 250 lbf-ft
N/A
345 - 3456.4 kgf-cm
3.5 - 34.5 kgf-m
N/A
33.8 - 338 N-m
1/2"
14. ITF-500
N/A
600 - 6000 lbf-in
50 - 500 lbf-ft
N/A
691 - 6912.7 kgf-cm
6.9 - 69.1 kgf-m
N/A
67.7 - 677 N-m
3/4"
15. ITF-600
N/A
720 - 7200 lbf-in
60 - 600 lbf-ft
N/A
829 - 8295.3 kgf-cm
8.3 - 82.9 kgf-m
N/A
81.3 - 813 N-m
3/4"
16. ITF-750
N/A
900 - 9000 lbf-in
75 - 750 lbf-ft
N/A
N/A
10.3 - 103 kgf-m
N/A
101 - 1016.9 N-m
3/4"

*ITIO-10 accuracy is +/-1% from 10-100% of capacity

Additional transducers can be attached via the optional external input port.

All 1/4" and 3/8" Drive transducers are supplied with run-down fixtures.

Don't see the range you need? Custom ranges are available, please call 800-645-4330 to discuss your application.

ER - Extended Range Option increases certified range to 5-100% (instead of 10-100%)

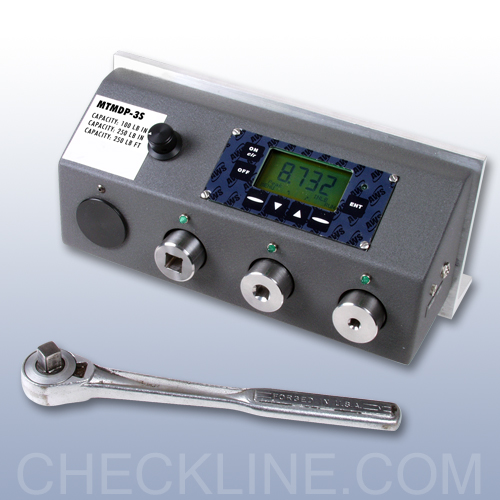

MTM Example Configuration

Example Configuration of MTMDP-3S

Example of MTMDP-3S with 3 transducers

This system has an overall range of:
1 - 1000 lb-in / 0.1 - 83 lb-ft / 0.1 - 112 Nm
using the following 3 transducers:

  • 4. ITI-10: 1 - 10 lb-in, 1/4” Drive
  • 7. ITI-100: 10 - 100 lb-in, 1/4” Drive
  • 10. ITI-1000: 100 - 1000 lb-in, 3/8” Drive

The part # for the above configuration would be MTMDP-3S-4-7-10

Torque Loader - Sold Seperately

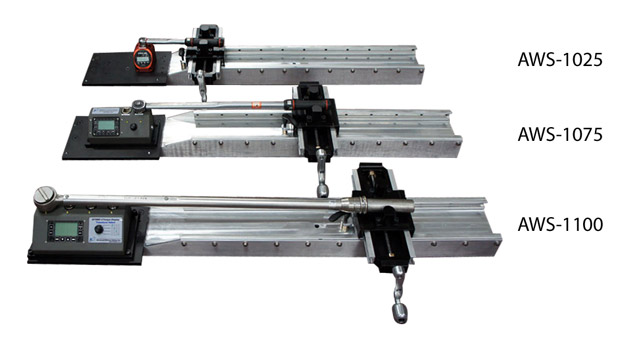

MTM with optional AWS-1000 Series Torque LoaderThe AWS-1000 series mechanical torque wrench loaders are designed for use with our IT Transducers, MTM and TT-QCM torque testers. These precision torque loaders allow operators to precisely test and calibrate torque wrenches up to 1000 lb-ft / 1350 Nm with measuring accuracy up to ± 0.25% of indicated readings, satisfying metrology lab requirements while providing the durability required for production environments.

An optional motor kit allows for automated testing, improving speed and repeatability.

Related Products

TT-3000 Torque Analyzer
Click image for more info
Torque Analyzer - AWS-3000
- ±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional
run-down-fixture
Click image for more info
RDF
Run Down Fixture - Joint Simulators for Torque Testers
- Threaded bolt and nut body for simulating bolted joint. On Standard, HD and HE models bolt is standard and easily replaceable from multiple sources
AWS-1025 Mechanical Torque Loader
Click image for more info
Torque Wrench Loader AWS-1000 Series
- Rugged Machined Aluminum Construction
- Heavy-duty precision gear box for easy load application
IT Torque Transducer
Click image for more info
Torque Transducer
- Ranges from 10 Oz.in. to 2,000 Lb.ft.
- Accuracy 0.5% of indicated between 10-100% of capacity
TTCA torque calibration arm
Click image for more info
Torque Arms, Calibration Arms, Torque Wheels, Calibration Wheel
torque drive adapter
Click image for more info
IA
Torque Drive Insert Adapters, Sleeve Reducers

Downloads

Specifications

Calibrated Range10-100% Full Scale, bi-directional (Standard)
Extended Range5-100% Full Scale, bi-directional (ER Option)
Accuracy±0.5% of indicated value (within calibrated range)
Resolution4 Active Digits
Overload Protection200% Full Scale bi-directional
Operating ModesTrack, Peak, 1st Peak
FilteringSelectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Memorydata storage of up to 999 readings
Data OutputRS-232
Display62 x 62mm backlit LCD
Alarm LimitsPanel Mounted LED for Visual Alarm Limits
PowerNiMH rechargeable batteries provide 8-10 hours continuous use
Weight6-12 lbs, depends on number of transducers and configuration
Operating Temp32 - 120 °F (0-50 °C)
Warranty1 Year
Calibration CertificateIncludes NIST Traceable calibration certificate with data for each transducer
Standard AccesoriesJoint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional AccessoriesJoint Simulators for 1/2", 3/4" & 1" Transducers, Extended Ranger "ER" Option

MTM Model Selection Guide

S Models Any transducer 1/4" or 3/8" Drive (up to 1000 lb-in / 112 Nm Capacity)

L Models Any transducer 1/2" Drive or larger (100 lb-ft / 135 Nm Capacity)

Buy Now

Item Description Price
Torque Tester with any 2 Transducers up to 1000 lbf-in / 112 Nm
$2,695.00
Torque Tester with any 2 Transducers up to 750 lbf-ft / 1015 Nm
$3,095.00
Torque Tester with any 3 Transducers up to 1000 lbf-in / 112 Nm
$3,495.00
Torque Tester with any 3 Transducers up to 750 lbf-ft / 1015 Nm
$3,695.00
Torque Tester with any 4 Transducers up to 1000 lbf-in / 112 Nm
$3,695.00
Torque Tester with any 4 Transducers up to 750 lbf-ft / 1015 Nm
$4,195.00
Common Configurations
MTMDP-2S-7-10
2 Channel Torque Tester with ITI-100 and ITI-1000
$2,695.00
MTMDP-3S-4-7-10
3 Channel Torque Tester with ITI-10, ITI-100 and ITI-1000
$3,495.00
MTMDP-3L-7-10-13
3 Channel Torque Tester with ITI-100, ITI-1000 and ITF-250
$3,695.00
MTMDP-4L-4-7-10-16
4 Channel Torque Tester with ITI-10, ITI-100, ITI-1000, and ITF-750
$4,195.00
MTMDP-4L-7-10-13-16
4 Channel Torque Tester with ITI-100, ITI-1000, ITF-250 and ITF-750
$4,195.00
Accessories
ER
Extended Range, increases certified range to 5-100% (instead of 10-100%) PER TRANSDUCER
$100.00
UPG-25
Upgrade Accuracy from ±0.5% to ±0.25% - PER TRANSDUCER
$100.00
MTM-EXT
Input for External Transducers, IT Sensors
$250.00
TTS-SOFT
Torque To Spreadsheet Basic Data Transfer Software, Includes Mini Plug to USB Cable
$165.00
Torque Tester Software, For Data Analysis and Collection, includes Mini Plug to USB Cable
$275.00
MTM-CC
Carrying Case for MTM Torque Tester
$205.00
ICBL-5000-L
Mil Spec Lemo to Lemo Connecting Cable, Torque Display to Torque Tester
$250.00

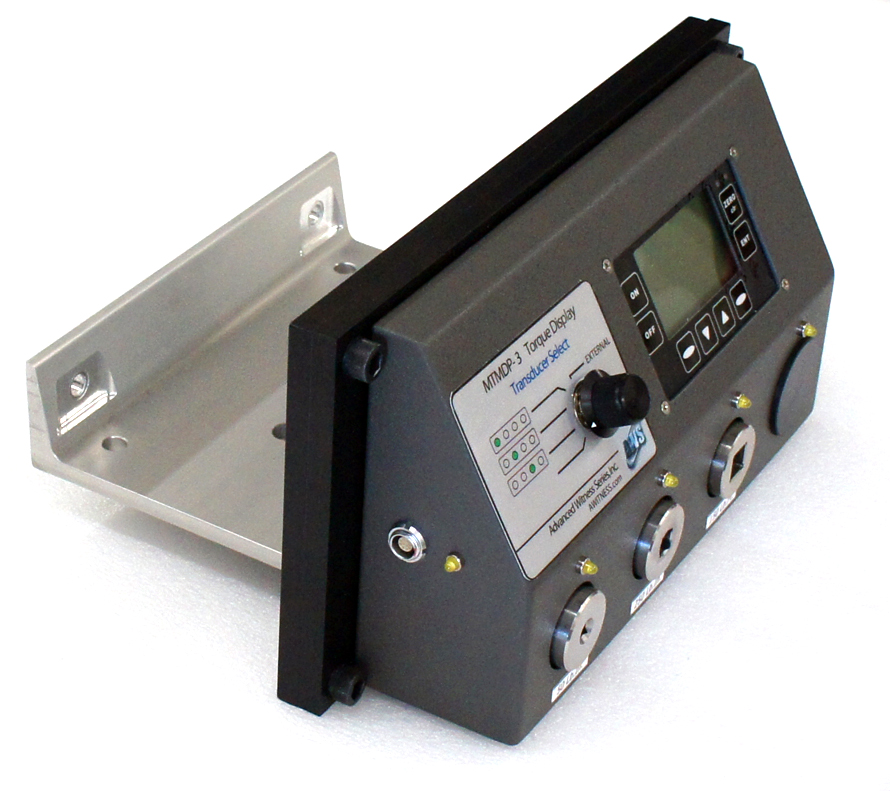

MTM-HB
