TSC-Series COMPACT Online Tension Sensor for Limited Access Space

Made in Germany

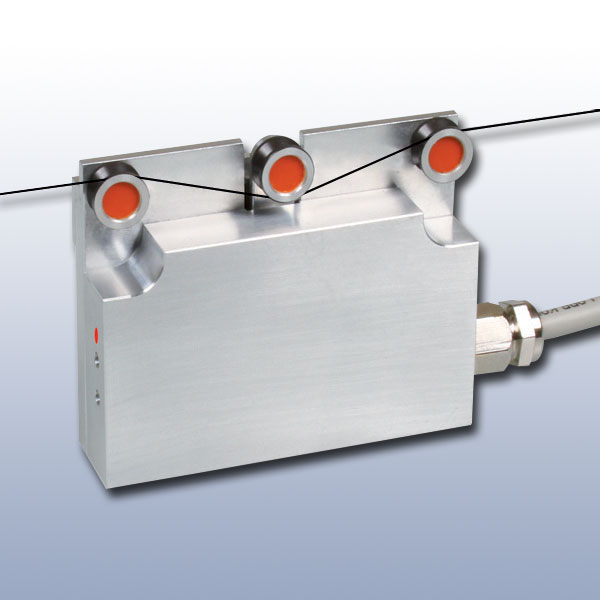

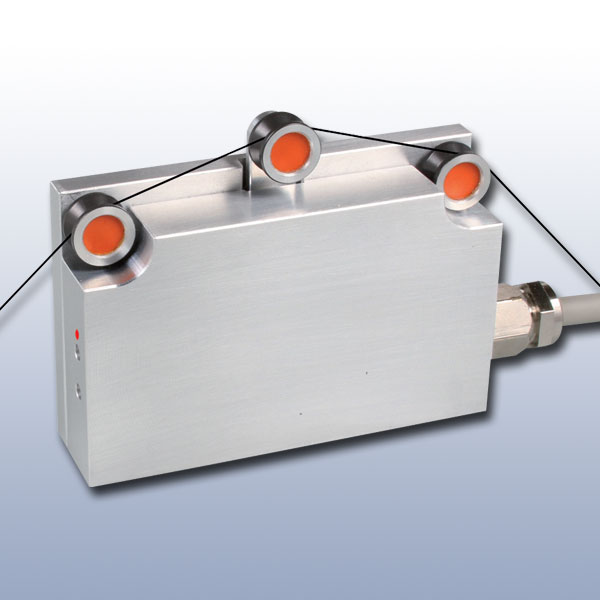

TSC-Series COMPACT Online Tension Sensor
Click images to enlarge.
Universal Tension Sensor for yarns, fibers, thin wires etc.
5 Tension Ranges from 0-50 g to 0-1000 g

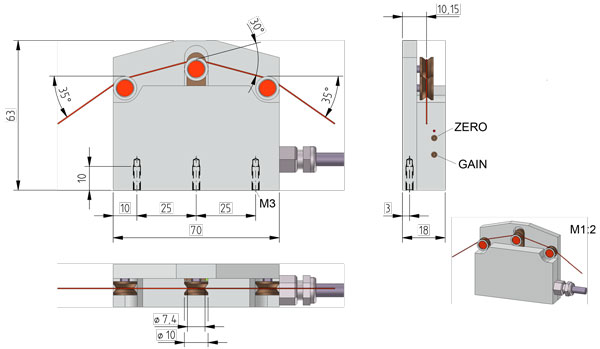

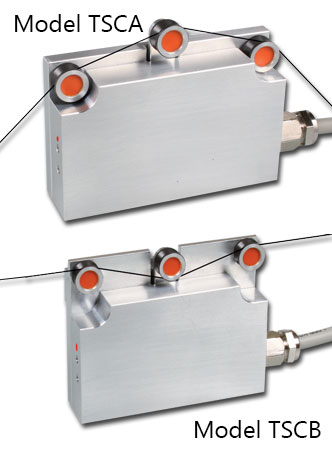

2 Alternative Material Paths
2 Alternative Roller Diameters
2 Supplied with V-Grooved Rollers

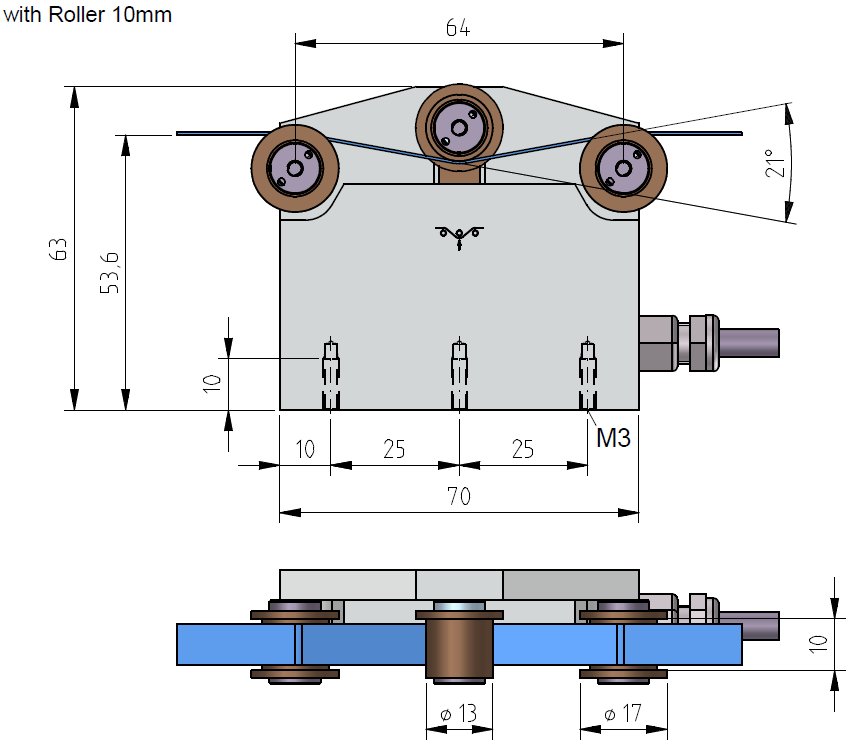

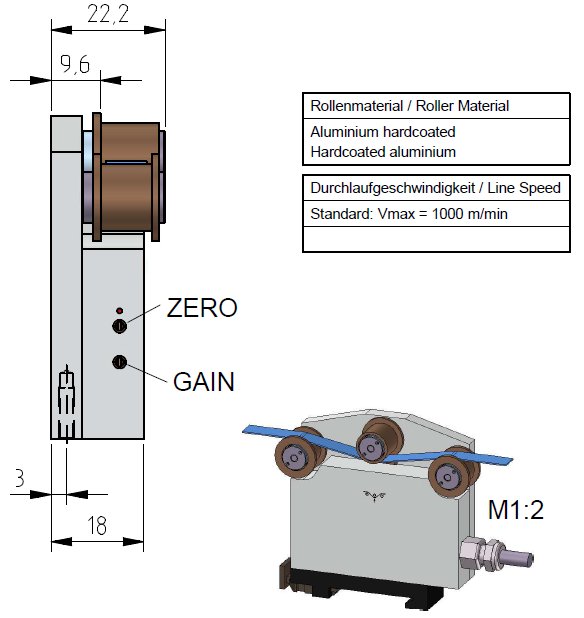

Can be supplied with 7 or 10mm Wide Ribbon Rollers, TSCB-Series

The new TSC Series is a purpose-built online tension sensor for continuous measurement of running line tensions of yarns, fibers, thin wires and similar process materials. The precision-machined housing is constructed allowing for installation of several sensors in close-proximity to one another when end-to-end spacing of the process material is limited. Multiple sensors can be mounted adjacent to another for fixed to a single rail for quick and easy mounting.. Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.

Can be using for process diagnostics, for continuously monitoring and recording of online tensions. The TSC Series Tension Sensor can also be used as part of a closed-loop control system with 3rd-Party controller.

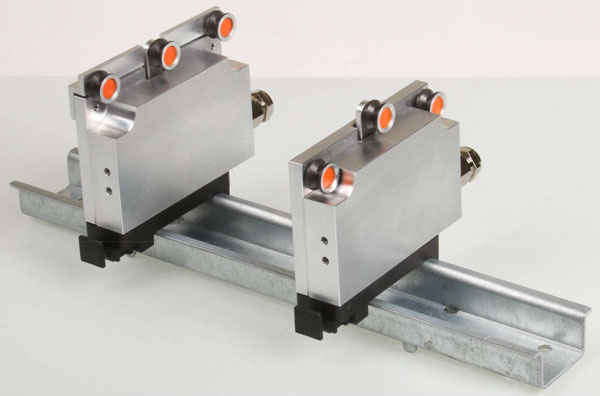

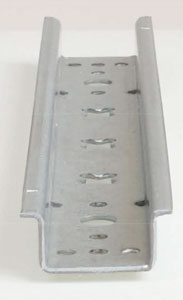

Mounting possibilities: Sensor can be mounted on a flat plate using the supplied thru holes on the underside of the housing body or fixed on the optional rail allowing for quick, easy installation and allows for multiple sensors mounted adjacent to one another with minimal spacing.

Features

  • Slim Sensor Housing allows for multiple sensors mounted adjacent to one another with minimal spacing
  • Strain Gauge-based sensor provides accuracy of 2% Full Scale or better. Sensor can be mounted in any orientation depending upon the material path.
  • Built-in Signal Conditioner provides 0-1 V DC Analog Output (0-10V or mv/V, optional) with Integrated Zero & Gain Pots on rear-side of sensor allowing for convenient calibration by the end-user for highest accuracy
  • Ball-Bearing mounted, Hardcoat Anodized Aluminum V-grooved guide rollers standard. Hardened Steel, Ceramic, flat cylindrical and U-Grooved roller options available
  • Can be used together with PD765 Digital Tension Indicator or with user-supplied electronics (requires 15-24 V DC regulated power).
  • 3-Roller design insures that the center sensor rollers has the same wrap angle at all times which allows the sensor to be mounted in any position on the line
  • Sensor can be mounted on a flat plate using the supplied thru holes on the underside of the housing body or fixed on the optional rail allowing for quick, easy installation
  • Includes 2 meter (6 ft) length integrated cable with open ends for connection to Tension Indicator or user-supplied electronics

Tension Ranges

ModelRangeMeasuring Head Width*Roller Diameter**

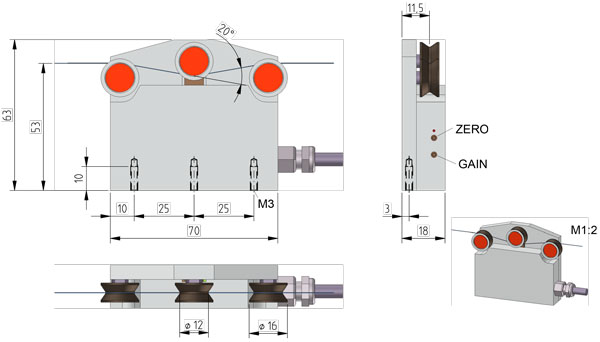

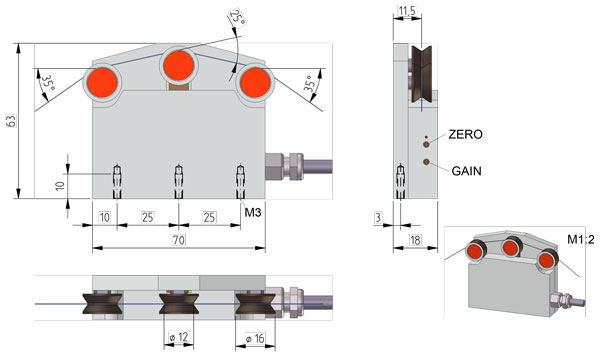

TSCA-ZD-500 - 50 g70 mm16 mm
TSCA-ZD-1000 - 100 g70 mm16 mm
TSCA-ZD-2000 - 200 g70 mm16 mm
TSCA-ZD-5000 - 500 g70 mm16 mm
TSCA-ZD-10000-1000 g70 mm16 mm

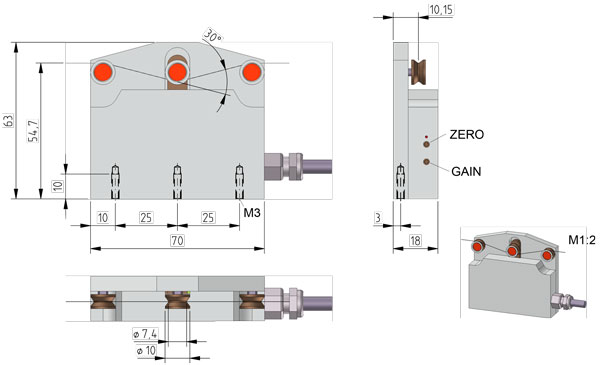

TSCA-ZF-500 - 50 g70 mm10 mm
TSCA-ZF-1000 - 100 g70 mm10 mm
TSCA-ZF-2000 - 200 g70 mm10 mm
TSCA-ZF-5000 - 500 g70 mm10 mm
TSCB-ZD-500 - 50 g70 mm16 mm
TSCB-ZD-1000 - 100 g70 mm16 mm
TSCB-ZD-2000 - 200 g70 mm16 mm
TSCB-ZD-5000 - 500 g70 mm16 mm
TSCB-ZD-10000 - 1000 g70 mm16 mm
TSCB-ZF-500 - 50 g70 mm10 mm
TSCB-ZF-1000 - 100 g70 mm10 mm
TSCB-ZF-2000 - 200 g70 mm10 mm
TSCB-ZF-5000 - 500 g70 mm10 mm
cN units also available
* Outside dimensions of the housing
** Outside dimensions of the roller

Guide Rollers

V-Groove Line Speed
Vmax...m/min
Roller Material
Standard "ZF" 900 Hard-coated aluminum
Code K "ZF" 2000 Hard-coated aluminum
Standard "ZD" 2000 Hard-coated aluminum
Code K "ZD" 3500 Hard-coated aluminum
Code H "ZD" 5000 Hard-coated aluminum

Output Signal Models

Standard 0 - 1 V DC (analog)
Option Code DC: 0 - 10 V DC
Option Code A10:Direct strain gauge output signal 2mV/V without amplifier

Specifications

Accuracy±2% full scale and ±1 digit
Overload protection100% of tension range
Measuring principleStrain gauge bridge
Measuring roller deflectionmax. 0.5 mm
Signal processinganalog
Output signalStandard: 0-1 V DC (analog)
Option: 0-10 V DC (Option "DC") or 2mV/V Direct Strain Gauge Output (Option "A10")
Option "A10" Output1 mV/V output, 5V DC power required (3-5V DC)
CableShielded cable (2 m) with open ends
Damping (fg)Standard (analog): 30 Hz
Temperature driftbetter ± 0.05 % FS/ °C
Temperature range10 - 45 °C
Air humidity85 % RH, max.
Power supply+ 15 ... 24 V DC, 21 mA (regulated);
HousingAluminium, with threaded mounting holes on underside (M3 Thread)
Housing dimensions70 x 55 x 17 mm (L x W x H)
Weight, netApprox. 100 g
Connection to PD765SIGNAL: Yellow (Sig+) to V+, Green (Sig-) to COM
DC-POWER:White (Exc+) to P2+, Brown (Gnd) to P2-
