TS2B Tension Sensor

Made in Germany
TS2B Tension Sensor
Click images to enlarge.
TS2 mounting drawingPrecision, Narrow Web/Tow Tension Sensor for measuring textile ribbons, films, foils, fiberglass and carbon fiber tows, etc
8 tension ranges from 0 - 100 g up to 0 - 20 Kg

Newly-designed tension sensor accurately measures the running tension of measuring textile ribbons, films, foils, fiberglass and carbon fiber tows and similar process material. It is fitted with 13 mm diameter flat, cylindrical rollers with 1 or 2 flanges with width of 7, 10, 15 or 20 mm. Standard rollers are hardcoated aluminum however carbon optimized "Orange Peel" Coating is optionally available. Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference.

Can be using for process diagnostics, for continuously monitoring and recording of online tensions. The TS2B Tension Sensor can also be used as part of a closed-loop control system with 3rd-Party controller.

Mounting possibilities: Sensor can be mounted on a flat plate using the supplied thru holes in the housing body or fixed using the holes in the front plate, inserted thru a round hole in machine frame or plate.

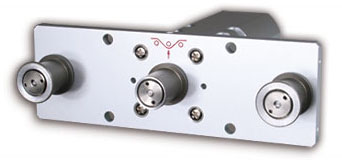

TS2B Tension Sensor wide bracket

Features

  • Strain Gauge-based sensor provides accuracy of 1% Full Scale or better. Sensor can be mounted in any orientation depending upon the material path
  • Built-in Signal Conditioner provides 0-1 V DC Analog Output with Integrated Zero & Gain Pots on rear-side of sensor allowing for convenient calibration by the end-user for highest accuracy
  • Optional output types include 0-10V DC, 4-20mA, RS-232, USB or WiFi
  • Fitted with 13 mm diameter flat, cylindrical rollers with 1 or 2 flanges with width of 7, 10, 15, 20 mm or 30mm. Standard rollers are hardcoated aluminum however carbon optimized "Orange Peel" Coating is optionally available
  • Cast Aluminum Housing is rugged and proves for easy installation using thru holes in housing body or front plate
  • Can be used together with PD765 Digital Tension Indicator or with user-supplied electronics (requires 15-24 V DC regulated power)
  • 3-Roller design insures that the center sensor rollers has the same wrap angle at all times which allows the sensor to be mounted in any position on the line
  • Outer roller spacing changes from 40 mm for ranges up to 1000g, 100 mm for ranges up to 10Kg and 200 mm for 20 Kg range
  • Custom-designs are possible along with special features such as air fitting to create positive internal pressure in the housing for protection against airborne chemicals or contaminants

Tension Ranges

ModelRangeMeasuring Head Width**Roller Width
TS2B-1000 - 100 g60 mm7 mm, 10 mm, 15 mm, 20 mm
TS2B-2000 - 200 g60 mm7 mm, 10 mm, 15 mm, 20 mm
TS2B-5000 - 500 g60 mm7 mm, 10 mm, 15 mm, 20 mm
TS2B-1K0 - 1000 g60 mm7 mm, 10 mm, 15 mm, 20 mm, 30 mm
TS2B-2K0 - 2000 g120 mm7 mm, 10 mm, 15 mm, 20 mm, 30 mm
TS2B-5K0 - 5 Kg120 mm7 mm, 10 mm, 15 mm, 20 mm, 30 mm
TS2B-10K0 - 10 Kg120 mm7 mm, 10 mm, 15 mm, 20 mm
TS2B-20K0 - 20 Kg220 mm7 mm, 10 mm, 15 mm, 20 mm
Other tensions ranges available on request.

** Outside dimensions of front plate

Important for your order: Please specify model and roller width!
Small dual-flanged outer guide rollers are standard. All 3 rollers can be equipped with one flange, if the material to be measured is wider than the rollers. Please request when you order.

Guide Rollers

Roller Width Line Speed
Vmax...m/min
Roller Material
7 mm 1000 Nickel-plated steel
10 mm 1000 Hardcoated aluminium
15 mm 1000 Hardcoated aluminium
20 mm 1000 Hardcoated aluminium

Output Signal Options

Standard 0 - 1 V DC (analog)
Option Code DC: 0 - 10 V DC
Option Code MA: 4 - 20 mA
Option Code 232: RS-232
Option Code USB: USB PC Output

Related Products

Click image for more info
Digital Tension Indicator
- Can be scaled to any engineering units desired with user-set decimal point.
- 4-20 mA analog output for recording and control purpose (No analog output provided on PD765-6R5-10)
- Requires 85-265V AC Power, provides regulated power for the tension sensor
Display Unit
Click image for more info
Display Unit
- User set limits (Min and Max alarms) with LED and Open Collector output for external signal unit
- Adjustable damping to reduce tension fluctuates
- Can store up to three (3) separate calibrations for 3 different materials
Click image for more info
Data Transfer & Analysis Program
- Data can be viewed and analyzed in TensionInspect or transferred to Excel
- Selectable sample rates and scalable trend graph "x" and "y" axis

Downloads

Specifications

Accuracy± 1.5% Full Scale and 1 digit or better
Overload Protection100% of tension range
Measuring PrincipleStrain guage bridge
Meas. Roller Defelction0.5 mm, max
Natural frequencyApprox. 500 Hz, depending on tension range
Output SignalStandard: 0 - 1 V DC (analog)
Option DC: 0 - 10 V DC
Option MA: 4-20 mA
Option 232: RS-232
Frequency Response30Hz (custom frequency response up to 300 Hz available as an option)
Temperature Range10 - 45 °C
Air Humidity85% RH, max
Power Required+15 ... 24 V DC, 50 mA (regulated)
Housing MaterialAluminum
Weight250 g - 280 g (depending upon roller width)
Cable (Optional)Straight Connector with 2 meter cable length (6 ft) with open ends on far side (order p/n TS2-CABLE-2M). Other cable lengths and 90-Degree Connector available, INQUIRE.
Connection to PD765SIGNAL:Grey (Sig+) to V+, Blue (Sig-) to COM
DC-POWER: White (Exc+) to P2+, Black/Brown (Exc-) to P2-
