High light output
Due to the use of 120 of the industry's latest high-performance LEDs, the LS-9-LED offers a powerful light intensity. The large, homogenous illumination surface delivers superb results even at difficult light conditions, making the LS-9-LED suitable for a very wide range of measurement, observation and inspection functions. It is especially suitable for demanding applications, such as those in the printing industry.
Superb image sharpness
With an adjustable flash duration from1-1000 μ seconds, you will easily find the best combination of light intensity and sharp images for every application.
Flexible adjustments to all applications

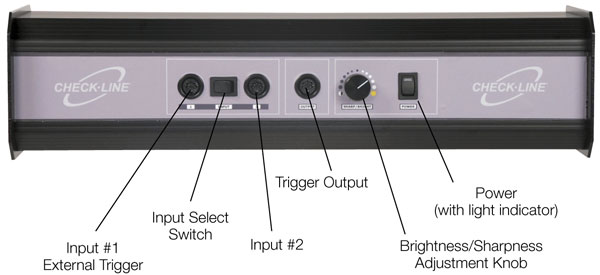

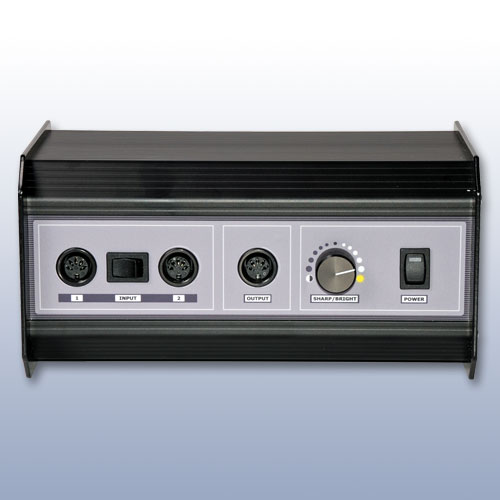

Alternatively, the stroboscope can be controlled directly by the trigger signal of your system without the need for additional control units or by various RT STROBE control devices. When using these trigger options simultaneously, you can easily alternate between the signal inputs by using the switch on the reverse side of the device.
Additional control options
LS-5-FCM - a simple and inexpensive unit for controlling flash frequency. You simply insert this small control unit into one of the sockets on the reverse side of the device.
LS-5-RCU - for adjusting the flash frequency, phase shift, delay time and trigger divider. This unit is connected to the stroboscope by cable and provides the convenience of remote control even if the stroboscope within your machine is difficult to access.
- LEDs provide lifetime use and never require replacement
- Extremely bright and uniform light distribution over an area of 300 x 500mm (12" x 20")

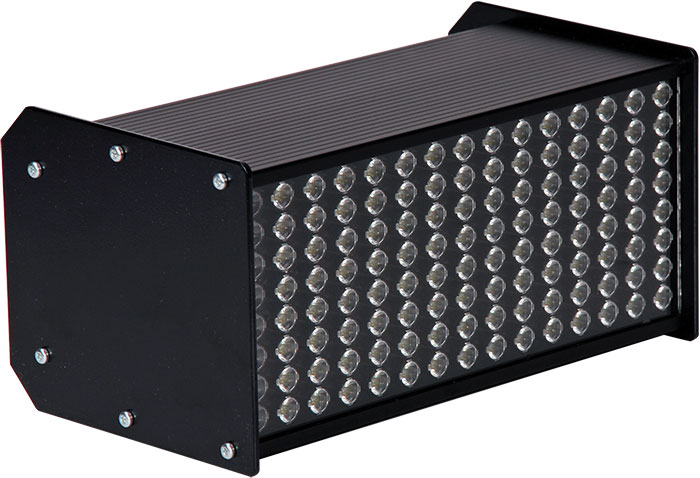

- Uses 120 of the newest generation LEDs in a 15 x 8 array providing 7500 Lux, peak
- For web widths > 500 mm (20"), Two (2) or more strobes can be connected in parallel
- Requires 24V DC Power (Not Included), An optional power adapter is available.
- Connection include two (2) trigger inputs and 1 trigger output. Power can be connected in either of these 3 locations
- Adjustable brightness and image sharpness permits operator to optimize strobe for each application
We offer a special configuration of the LS-9-LED Linear Stroboscope packaged in
440 mm width housing (17.3 inches) designed to provide a more

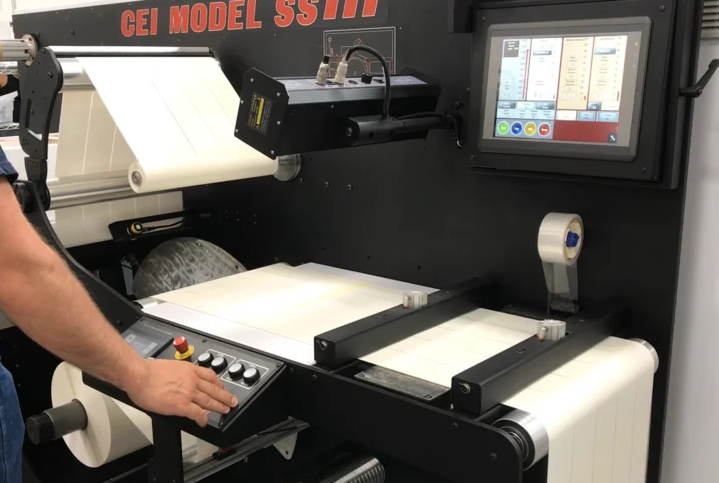

aesthetically-pleasing solution when the strobe is fixed-mounted on a machine
frame that is 18 inches or wider (460 mm+).

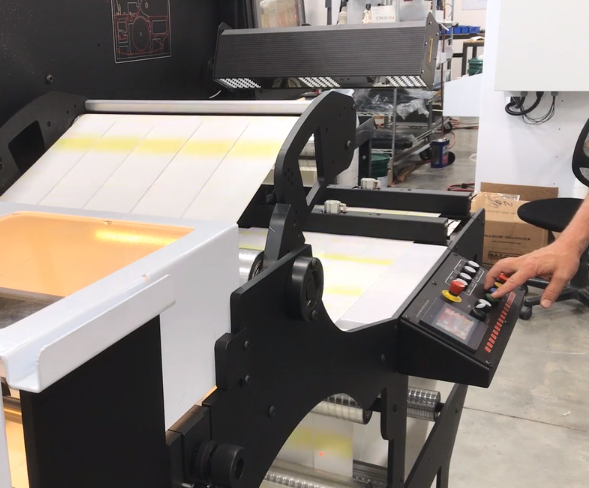

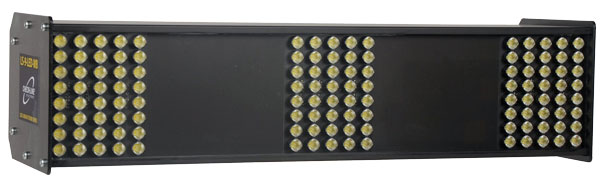

The 120 LEDs are spread in three (3) separate "clusters" each containing 40 LEDs, arranged in a 5x8 array. The position of each "cluster" is optimized to provide the optimal light uniformity over the entire illumination area with the same effective brightness as the standard version of the LS-9-LED (7500 Lux, peak). This model is popular with OEM Machine Manufacturers of Slitter/Rewinders and similar machines used in the label and printing industries.
|Model||LEDs||Array Size||Brightness (peak)||Housing Width|
|LS-3-LED||40||10 x 4||5000 Lux||150 mm
|LS-5-LED||80||10 x 8||6000 Lux||150 mm
|LS-9-LED||120||15 x 8||7500 Lux||230 mm
|LS-9-LED-WB||120||5 x 8 (3x)||7500 Lux||440 mm
|LS-18-LED||200||25 x 8||9000 Lux||440 mm
|LS-36-LED||480||60 x 8||14000 Lux||948 mm
|Frequency Range||0...120000 FPM (flashes per minute)|
|Power Required||24V DC (21.6….26.4VDC) / 0.6A (19.2 Watts)|
Universal AC power supply sold separately, pn LS-AC-WORLD
|External Trigger Input||3...30 V / max. 5 mA|
DIN 41524 5-pin standard plug
Uout = Uin, max. 200 mA
switchable trigger input
|Trigger Output||for connection to 2nd Strobe (Slave)|
|Illumination Intensity||7500 Lux, max (30 cm area at 12"@3°)|
|Light intensity/sharpness||adjustable with turning knob|
|Illumination intensity single flash||ca. 1 Mega-Lux/30cm / 12"|
|Illumination area||30x50 cm/12 x 20 inches|
|Flash color||ca. 5000...8.300 K|
|Dimensions||230x130x112 mm / 9,1x5,1x4,4|
|Ambient temperature||0°...40°C (32°...114°F)|
|Storage temperature||-25°C...70°C (-10°...125°F)|
|Humidity||max. 95% not condensing|
|Certifications||Certificate of CE conformity|
|Mounting Holes||Located on underside of housing:|
(1) 1/4 - 20UNC in center
(2) M5 Threaded Inserts (60 mm c:c) outer
|Manual Test Trigger||Pin1 (+24V)|
Jump Pin1 to Pin4
Momentarily Jump Pin3 to Pin5
9 Inch LED Inspection Stroboscope, Requires 24V power (Not included) A6-5200 / RT 5000 LED
LED Stroboscope in 18 Inch Wide-Body Housing, Requires 24V power

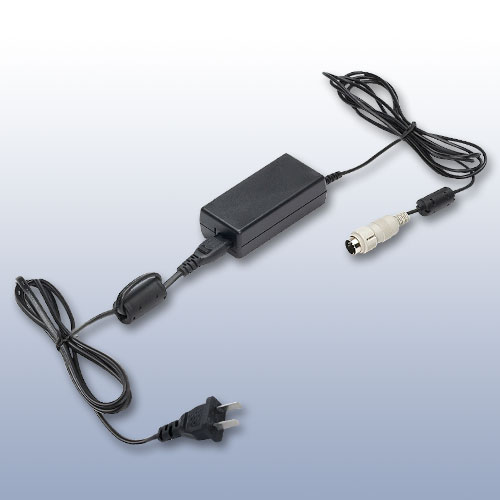

24V Power Supply for use with LS Strobes or LS-SCU, 100-265V AC. NOT REQUIRED IF 24V DC AVAILABLE
