DT-311A AC Powered Digital Stroboscope

Made in Japan

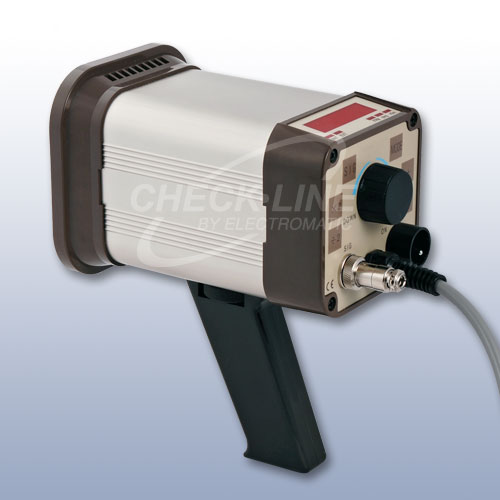

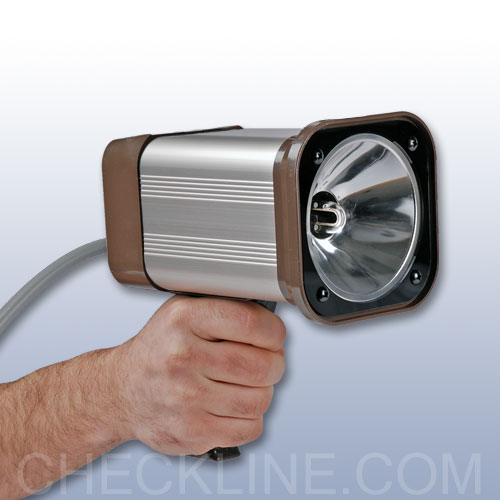

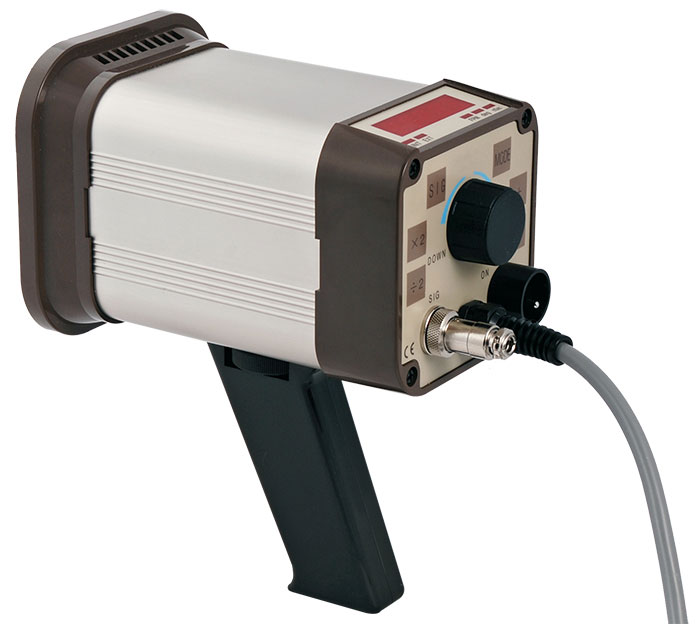

DT-311A Stroboscope
Click images to enlarge.
Flash Range: 40-35,000 RPM/FPM

The DT-311A Stroboscope is designed for process inspection and non-contact RPM measurement. Portable, highly stable and accurate, industrial-quality tools for non-contact RPM measurement, inspection and observation of moving parts by "freezing" or "slowing down" the action.

AC-Powered version for use hand-held or can be fixed-mounted using the supplied 1/4-20 Threaded insert or using the optional Articulating arm accessory (model SAS-DT300).

Other models offered with built-in (DT-315A) or external battery (DT-315AEB).

NSN 6680-01-500-8316 (DT-311A)

Features

  • Highest accuracy and most stable flash rate
  • Provides 12 V DC power for external sensors
  • Easy-to-read LED display
  • Accepts external trigger input and provides synchronizing pulse output

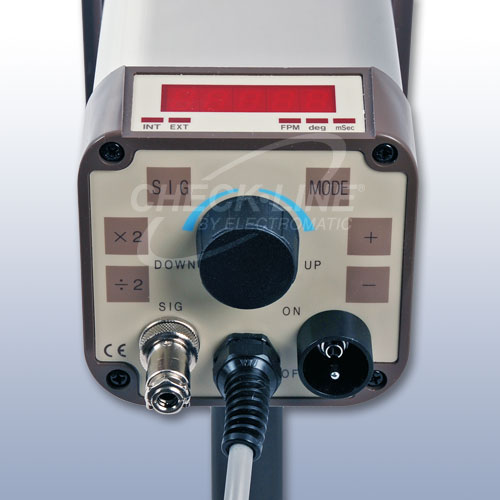

  • Easy-to-operate controls include flash rate adjustment, 2x, divide-2 and phase adjust
  • Phase shift for best view and flash photography
  • Detachable pistol-grip handle
  • Instant double and half-rate flash selection for error-free reading

Optional Carrying Case

DT-311A case (optional)Hard plastic carrying case with custom molded insert allows for safe storage and easy transportation. Provides storage space for the DT-311A, AC adapter, and accessories.

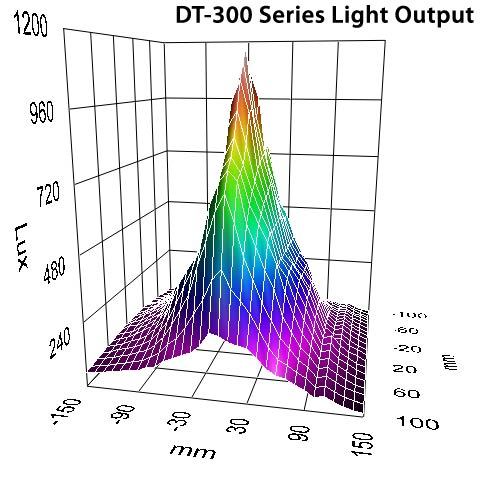

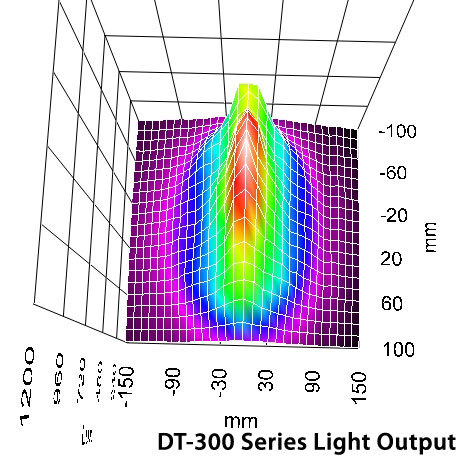

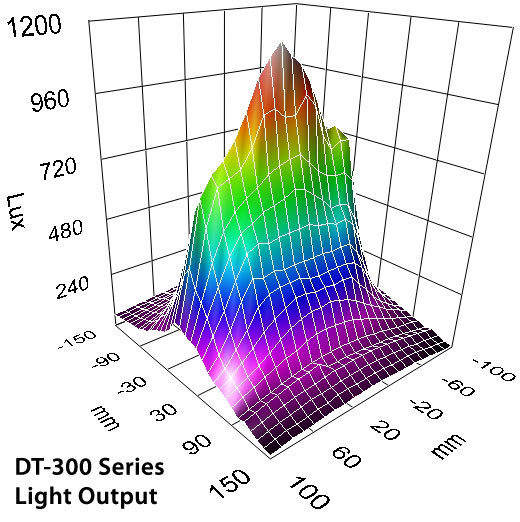

Light Output (LUX) vs Distance

light output
at 30 cm Distance, 6000 flashes/min (FPM)

Related Products

SG-300 Protective Rubber Caps for 300 Series Stroboscopes
Click image for more info
Protective Rubber Caps for 300 Series Stroboscopes
DT-TRI-HD Tripod for Tachometers and Stroboscopes
Click image for more info
Tripod for Tachometers and Stroboscopes
SAS-DT300 Articulating Stroboscope Swing Arm
Click image for more info
Articulating Stroboscope Swing Arm
311FH Flash tube for 300 Series Stroboscopes
Click image for more info
Flash tube
Click image for more info
High-Intensity LED Stroboscope (18 LEDs)
- Extraordinary durability with extruded aluminum, NEMA 4X (IP65) construction
- Bright LED display and simple controls aid in user operation
DT-315A Stroboscope
Click image for more info
Battery Powered Digital Stroboscope
- Highest accuracy and most stable flash rate
- Accepts external trigger input and provides synchronizing pulse output

Specifications

Flash Range40-35,000 FPM
AccuracyInternal Mode: ±0.01% of reading
External Mode: ±0.01% or ± 1 digit
Resolution0.1 FPM: 40.0 - 4,999.9 FPM
0.2 FPM: 5,000 - 7,999.8 FPM
0.5 FPM: 8,000 - 9,999.5 FPM
1 FPM: 10,000 - 35,000 FPM
Drift±0.01% per °C
Update TimeInternal Mode: 0.2 seconds
External Mode: ±0.01% or ± 1 digit
Input SignalLO level: 0-0.4 VDC
HI level: 2.5 - 12 VDC -- or open collector (npn)
pulse width 50us min
Output SignalSynchronous, 400 ┬Ás pulse, 0 to approx. ± 12 V DC 1000 ohms impedance
Display & RateDivide or multiply by 2, selectable
Operating Temperature32-104 °F (0-40 °C)
Display5 digits, 10 mm high, red LED
FlashtubeXenon, 10 W maximum
Flash Duration10-30 µs
Sensor Power Supply12 VDC ± 0.5V (50ma)
Power Requirements115 V or 230 V AC (specify), 50/60 Hz, 30 VA
Weight2.6 lbs. (1.2 kg)
Dimensions4.7 x 4.7 x7.2" (120 x 120 x 183mm)
Warranty2 Years
EXTERNAL MODE ONLY
Phase Shift0 - 359° with 1° resolution or
0 - 333 ms from 200 - 3,000 FPM
Input Impedance10,000 ohms
