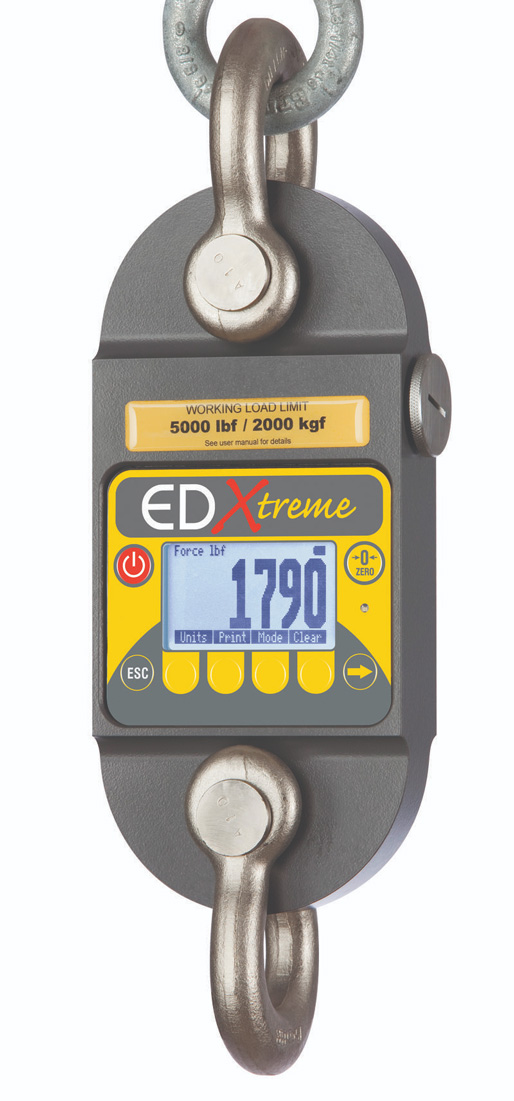

EDxtreme Digital Digital Dynamometer

Made in USA
dillon Edxtreme dynamometer
Click images to enlarge.
The EDxtreme exemplifies the trademark precision and rugged construction of Dillon dynanometers. Its highly refined design draws on the inherent strengths of premium-grade materials to achieve a 5:1 minimum factor of safety.

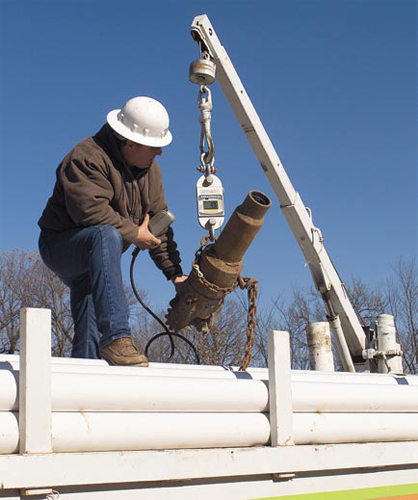

While the EDxtreme may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDxtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single locations - it is the definition of application versatility.

Xtreme Engineering

Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillon's experience shines through. The engineers assigned to the EDxtreme drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.

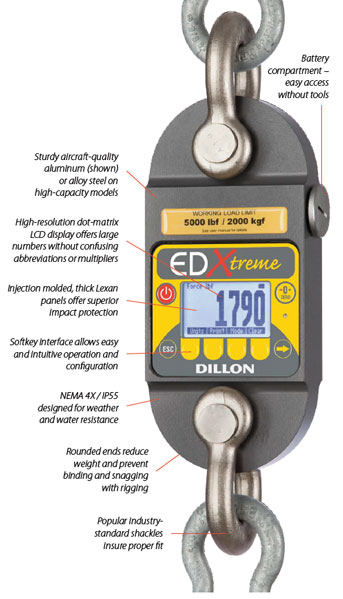

  • Superior strength and corrosion resistance - High capacity models are constructed of electroless nickel-plated aircraft-quality alloy steel. Lower capacity models are anodized aircraft-quality aluminum
  • 5:1 factor of safety - This measure of strength and safety is maintained at all capacities. Computer modeling confirms the low stress and long product life that is inherent in the EDxtreme design.

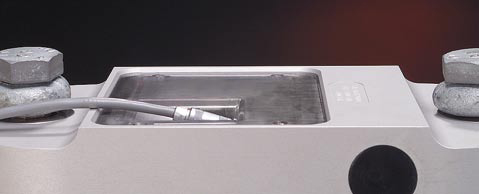

  • Retained hardware - Allows permanent attachment of centering spacers, which eliminates fumbling during high capacity rigging.
  • NEMA 4X/IP55 - The EDxtreme is clearly the choice for reliability in any environment - in-plant or out on the job site.
Xtreme Accuracy: 0.1%

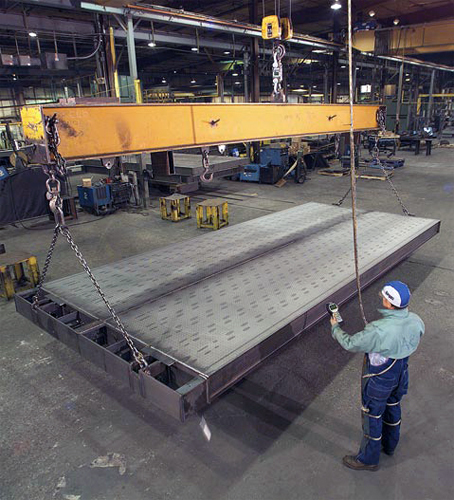

High resolution and accurate repeatable readings are essential to proper weighing. The higher standards set for the EDxtreme meant taking the time to ensure that material characteristics, load element design and strain gage meshed perfectly. The result of that effort is a typical accuracy of 0.1% of full scale capacity. The enhanced resolution mode of 1 part in 5000 provides the level of readability needed for refined weighing.

Xtreme Ease

  • Exclusive SOFTKEY interface -Dillon has eliminated confusing menus for faster setup and simple operation. IN addition to lbf, kgf and Newtons, programmable functions can correct for gravitational variations and allow the use of custom units of measurements.
  • Wide-angle LCD -Provides improved readability over a wider viewing angle and is available with back lighting for low light conditions.
  • Battery operation -The EDxtreme is powered by two standard C-cell batteries. Batteries are easily accessible for fast replacement.

NIST Traceable - The EDxtreme comes with a NIST traceable calibration certificate.

Features

  • Capacities from 2,500-550,000lb (1,000-250,000kg)
  • 0.1% accuracy
  • Broadest range of capacities and resolutions are certain to fit your needs
  • Largest safety factor for overload protection and long life
  • High strength case resists heavy blows
  • Generous shackle openings mate with most hooks and hardware
  • High specification materials on all load components. Heat treated to tight tolerances

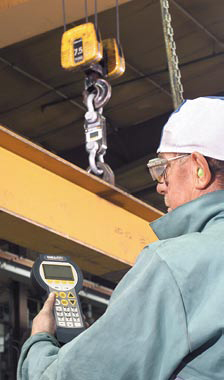

  • Optional Radio-ready option connects EDX to the EDX-COMM-II Remote Indicator (Standard on 50T and higher models)
  • NIST Traceable Certificate Included
  • 2 Year Warranty
  • CE Certified

Force Ranges

ModelCapacityStd.
Res.*
Enh.
Res.*
Body Construction
EDx-1T2,500 lbf
1,000 kgf
10,000 N
2
1
10
0.5
0.2
2
Aircraft quality
2024 Aluminum
700% overload max.
EDx-2T5,000 lbf
2,000 kgf
20,000 N
5
2
20
1
0.5
5
Aircraft quality
2024 Aluminum
700% overload max.
EDx-5T10,000 lbf
5,000 kgf
50,000 N
10
5
50
2
1
10
Aircraft quality
2024 Aluminum
700% overload max.
EDx-10T25,000 lbf
10,000 kgf
100,000 N
20
10
100
5
2
20
Aircraft quality
E4340 Alloy Steel
500% overload max.
EDx-25T55,000 lbf
25,000 kgf
250,000 N
50
20
200
10
5
50
Aircraft quality
E4340 Alloy Steel
500% overload max.
EDx-50T100,000 lbf
50,000 kgf
500,000 N
100
50
500
20
10
100
Aircraft quality
E4340 Alloy Steel
500% overload max.
EDx-75T160,000 lbf
75,000 kgf
100
50
50
20
Aircraft quality
E4340 Alloy Steel
400% overload max.
EDx-100T220,000 lbf
100,000 kgf
200
100
50
20
Aircraft quality
E4340 Alloy Steel
400% overload max.
EDx-150T330,000 lbf
150,000 kgf
200
100
100
50
Aircraft quality
E4340 Alloy Steel
400% overload max.
EDx-250T550,000 lbf
250,000 kgf
500
200
200
50
Aircraft quality
E4340 Alloy Steel
400% overload max.
*Std. Res. = Standard Resolution
*Enh. Res. = Enhanced Resolution

Related Products

EDXtreme Communicator Remote Display
Click image for more info
Remote Communicator for EDXtreme AWT05-506447
data force software for dillon products
Click image for more info
Data Force Software Dillon - DISCONTINUED
Dynamometer with Shackles
Click image for more info
Dillon AP Dynamometer
- Accuracy: ± 0.5% of full scale capacity for precise data.
- Broadest range of capacities and resolutions are certain to fit your needs
EDjunior Digital Dynamometer
Click image for more info
Dillon Digital Dynamometer
- Capacities from 2,500-25,000lb (1,000-10,000kg)
- 0.2% accuracy
Radiolink Plus Wireless Dynamometer
Click image for more info
Wireless Dynamometer Tension Loadcell - Straightpoint RLP
- 2.4 GHz Wireless with Industry Leading Range (700 meters / 2300 feet)

Specifications

EnclosureDesigned to NEMA4X/IP55
Suitable for continuous outdoor use.
Accuracy0.1% of capacity up to EDx-50T
0.3% of capacity for EDx-75T and above
Repeatability.1% of capacity up to EDx-50T
0.3% of capacity for EDx-75T and above
Proof load150% of capacity up to EDx-75T. 110% of capacity EDx-100T and above.
Safe Overload200% of capacity
Body ProtectionAluminum capacities are anodized. Alloy steel capacities are elctroless-nickel plated.
BearingsUnmatched repeatability attained by needle bearings in shackle pin holes up to EDx-5T. Shackle pin acts as inner race.
ShacklesForged industry standadrd anchor shackles. Models up to EDx-5T use precision machined shackle pin. Higher capacities use bar stock pin.
Display128 x 64 dot-graphic LCD display shows up to 6 digits 1.0" (26 mm) high plus annunciators and softkeys. Digits are .11 inches (3 mm) thick for unmatched readability.
Display update rate2 times per second
Peak Capture Rate10/100/1,000 Hz
RS-232 communicationPrint or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
CalibrationTraceable to the NIST. Certificate included with curve of readings. Passes only with threee consecutive confirming runs, with all points in specification.
Battery lifeStand alone EDXtreme with no radio and no backlight lasts up to 400+ hours. 150 hours continuous with Radio Link System. Use with two C-Cell alkaline batteries. (When using backlight, battery life will be reduced, depending on intensity.)
Operating Temperature-4 F to 158 F (-20 to 70 C)
Calibration CertificateNIST Certified Certificate Included
Warranty2 Years
Radio Specifications
FCC CertifiedFor unlicensed low power devices. No radio licensing or permits required for normal operation.* (In the US and Canada. Check local ordinances in other countries.)
FrequencyISM 2.4 GHz frequency band operates between 2.4 to 2.4835 GHz
Output Level10 mW (10 dBm)
Display Update Rate1 time per second
Number of Links Remote Can ControlUp to 15 addresses
Configuration AddressAutomatic and configurable
AntennaIntegral antenna
RangeOpen-air range up to 600 feet, line-of-sight. Indoor range dependent upon environment with 300 feet common. Low power radio systems are dependent upon interference levels from other radio systems and environmental conditions. Radio devices are not suitable for all applications

Downloads

Buy Now

Item Description Price
EDx-1T EDxtreme Digital Dynamometer with two shackles - 2,500 lbf
$1,725.00
EDx-1T EDxtreme Digital Dynamometer radio ready with two shackles - 2,500 lbs
$2,448.00
EDx-2T EDxtreme Digital Dynamometer with two shackles - 5,000 lbf
$1,947.00
EDx-2T EDxtreme Digital Dynamometer radio ready with two shackles - 5,000 lbs
$2,656.00
EDx-5T EDxtreme Digital Dynamometer with two shackles - 10,000 lbf
$2,300.00
EDx-5T EDxtreme Digital Dynamometer radio ready with two shackles - 10,000 lbf
$3,030.00
EDx-10T EDxtreme Digital Dynamometer with two shackles - 25,000 lbf
$2,937.00
EDx-10T EDxtreme Digital Dynamometer radio ready with two shackles - 25,000 lbf
$3,664.00
EDx-25T EDxtreme Digital Dynamometer with two shackles - 50,000 lbf
$3,664.00
EDx-25T EDxtreme Digital Dynamometer radio ready with two shackles - 55,000 lbf
$4,386.00
EDx-50T EDxtreme Digital Dynamometer radio ready with two shackles - 100,000 lbf
$7,047.00
EDx-75T EDxtreme Digital Dynamometer radio ready with two shackles - 160,000 lbf
$12,882.00
EDx-100T EDxtreme Digital Dynamometer radio ready with two shackles - 220,000 lbf
$17,667.00
EDx-150T EDxtreme Digital Dynamometer with two shackles & Radio Output- 330,000 lbf
$26,911.00
EDx-250T EDxtreme Digital Dynamometer radio ready with two shackles - 550,000 lbf
$43,065.00
