Data Force Data Force Software Dillon - DISCONTINUED

Made in USA
data force software for dillon products
Click images to enlarge.
DISCONTINUED

Compatible with: EDXtreme & CommunicatorFI-521 Force Indicator

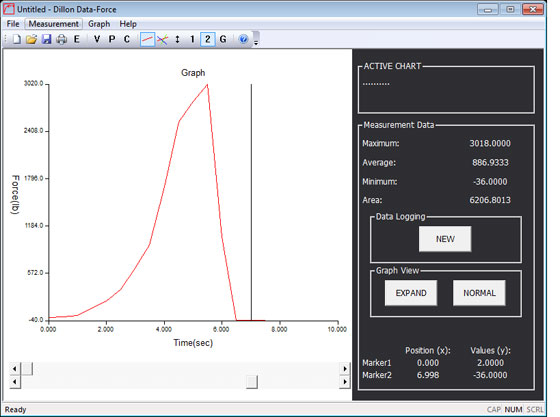

Data Force Windows based software delivers the full potential of Dillon Digital Force instruments by providing real-time graphing software.

Data Force enables a PC to communicate with Dillon digital instruments via the instruments' standard bi-directional RS-232 interface. The PC functions as a virtual chart recorder.

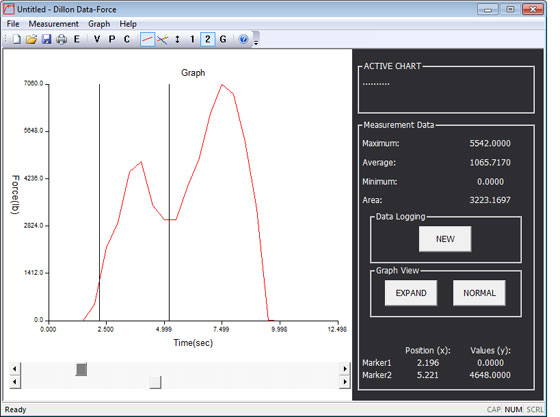

During a test, Data Force records force data at a rate of up to 200Hz (200 times per second). When the test has finished, operators can define a range of data by dragging two sliders, and, within that range, the software calculates average, maximum, minimum and area under the plotted curve.

Operators can re-scale and relabel graph axis and add graph titles. The software will save user-defined preferences for repeat testing. It will plot a series of similar tests on the same graph.

Features

  • Force vs time graph (real time)
  • Start/stop triggers
  • Auto-ranging
  • Zooming/re-scaling
  • verlaying the test traces
  • Printout of tabular data

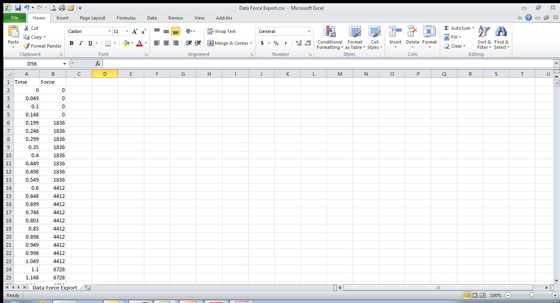

  • Data export to spreadsheets

Related Products

cable tension meter
Click image for more info
Cable Tension Meter Quick-Check
- Stores calibrations for up to 20 unique wire sizes and types up to 1 inch max. (25 mm)
EDXtreme Communicator Remote Display
Click image for more info
Remote Communicator for EDXtreme AWT05-506447
dillon Edxtreme dynamometer
Click image for more info
Digital Digital Dynamometer
- Capacities from 2,500-550,000lb (1,000-250,000kg)
- 0.1% accuracy
FI-521 LED Load Cell Indicator
Click image for more info
FI-521 LED Load Cell Indicator

Specifications

Baud Rate300 to 921,600 baud
Data acquisition rate0.01 to 200Hz (load points per second)
Measuring Unitslb, oz, kN, N, mN, kg, g
Compatible Operating SystemsWindows XP, 7, 8 & 10
SecurityRequires USB Dongle for operation

Downloads

Buy Now

Item Description Price
Data Force Software with USB Dongle - DISCONTINUED - Please contact us for pricing and availability.
$
Accessories
36057-0022MTS
Cable, computer serial cable with 9-pin D connector, 12-ft (3.6 m)
$150.00
USB-RS232-ADAP
RS232 to USB Adapter
$35.00
AWT05-505714
Adaptor RS-232 to USB
$90.00
47355-0028
10-ft serial cable, bare wire to 9-pin D style female for FI-521 Indicator
$115.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
