EDjunior Dillon Digital Dynamometer

Made in USA

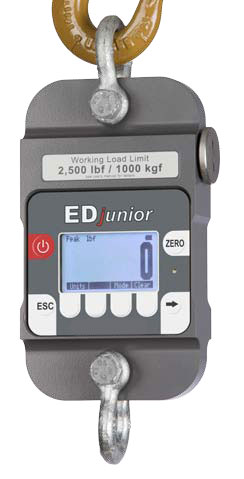

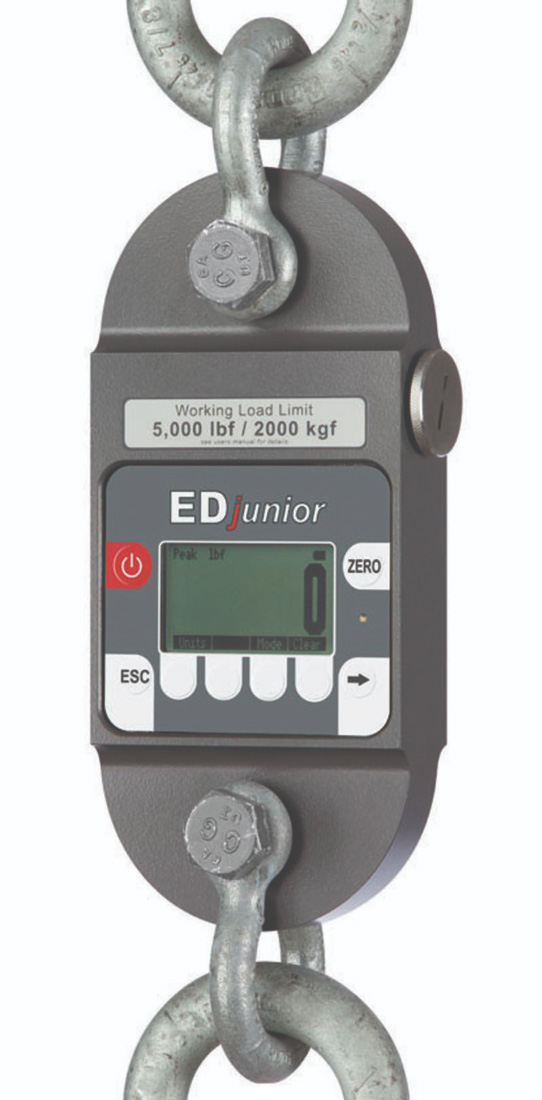

Dillon edjunior Dynamometer
Click images to enlarge.
Our EDjunior dynamometer is designed to measure inline force / tension in a wide range of industrial applications. The backlit displays shows real-time and peak forces in lbf, kgf and Newtons measuring units.

Readings are displayed with a resolution of 1 part in 1000 to ensure the level of readability required for critical lifting applications.

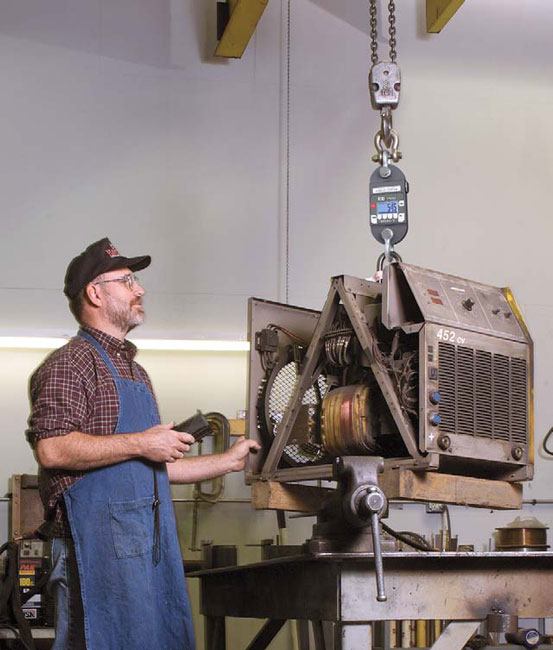

Heavy cumbersome tools make tough jobs even harder. Through the use of aircraft quality materials, we have made the EDjunior an easy-to-position, highly mobile instrument with exceptional strength. It offer an impressive factor of safety at all capacities.

Power is supplied by two C-cell batteries that are easily accessible through a side loading port. Battery replacement, however, is a rare event. With the EDjunior's low power consumption, typical battery life is over 400 hours.

With its NEMA6P/IP68 design, the EDjunior is at home in virtually any environment and ideally-suited to exterior job-site applications as well as in-plant use. The housing is fully dustproof as well as protected against continuous immersion in water.

NIST Traceable The EDjr comes with a NIST traceable calibration certificate.

Features

  • NIST Traceable Certificate Included
  • Capacities from 2,500-25,000lb (1,000-10,000kg)
  • 0.2% accuracy
  • Largest safety factor for overload protection and long life
  • Includes High strength case resists heavy blows
  • NEMA6P/IP68 rated dustproof as well as protected against continuous immersion in water.
  • Generous shackle openings mate with most hooks and hardware
  • CE Certified
  • 2 Year Warranty
  • Made in the USA

Force Ranges

ModelCapacityResolutionBody Construction
EDjr-1T
AWT05-506317 / 36190-0038
2,500 lbf
1,000 kgf
10,000 N
2
1
10
Aircraft quality
2024 Aluminum
700% overload max.
EDjr-2T
AWT05-506318 / 36190-0046
5,000 lbf
2,000 kgf
20,000 N
5
2
20
Aircraft quality
2024 Aluminum
700% overload max.
EDjr-5T
AWT05-506319 / 36190-0053
10,000 lbf
5,000 kgf
50,000 N
10
5
50
Aircraft quality
2024 Aluminum
700% overload max.
EDjr-10T
AWT05-506320 / 36190-0103
25,000 lbf
10,000 kgf
100,000 N
20
10
100
Aircraft quality
E4340 Alloy Steel
500% overload max.

Related Products

dillon Edxtreme dynamometer
Click image for more info
Digital Dynamometer
- Capacities from 2,500-550,000lb (1,000-250,000kg)
- 0.1% accuracy
Dynamometer with Shackles
Click image for more info
Dillon AP Dynamometer
- Accuracy: ± 0.5% of full scale capacity for precise data.
- Broadest range of capacities and resolutions are certain to fit your needs

Specifications

EnclosureDesigned to NEMA 6P/IP68
Suitable for continuous outdoor use.
Accuracy0.2% of capacity
Repeatability0.2% of capacity
Proof load150% of capacity
Safe Overload200% of capacity
Display128 x 64 dot-graphic LCD display shows all digits 1.0" (26 mm) high plus annunciators and softkeys.
Display update rate2 times per second
Peak Hold Sampling Rate10 times per second typical
CalibrationTraceable to the NIST. Calibration card included.
Battery life425 hours typical use with two C-cell alkaline batteries.
BacklightConfigurable Using backlight will consume more battery power, reducing battery life.
Operating Temperature-4° F to 158° F (-20° to 70° C)
Included with instrumentCarrying Case, Batteries, manual and calibration card
CE ApprovedYes
Warranty2 Years
OverloadRecorded at 120% with date and time stamp

Complete Kit

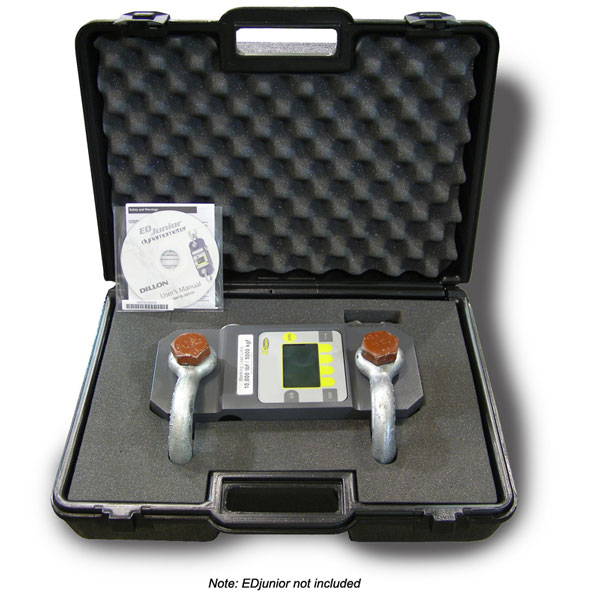

The EDjunior Dynamometer is supplied as a complete kit with Carrying Case, Batteries, manual and calibration card
