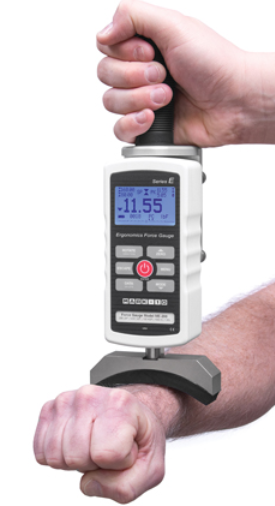

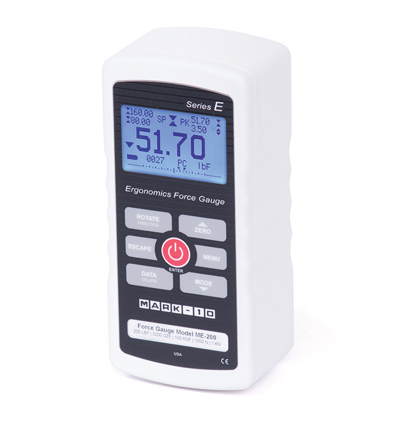

Series-E Ergonomics Force Gauge

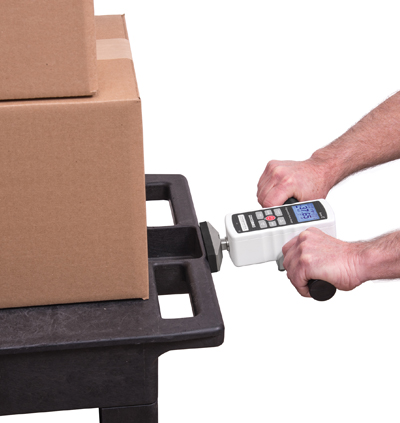

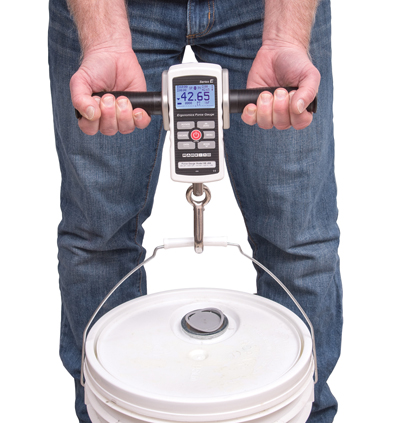

Series E push / pull force gauges make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs.

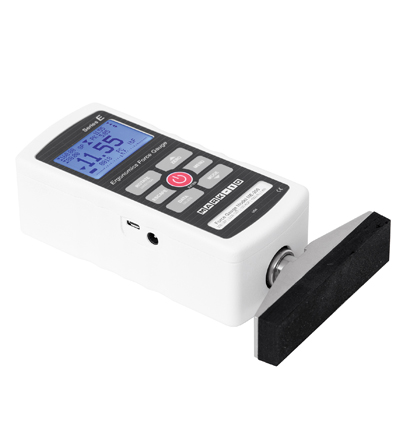

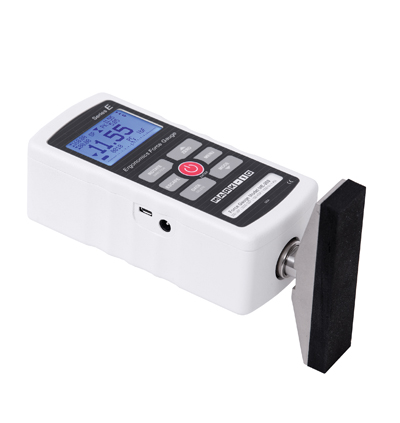

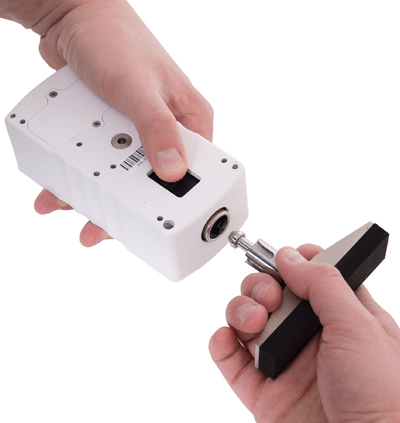

Attachments click and lock into place via innovative Click-Lock™ technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.

Features

  • Measure real time and peak push and pull forces
  • Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
  • Click-Lock™ accessory mounting technology
  • USB data output
  • High / low limit indicators, for pass / fail and minimum force testing
  • Averaging mode calculates average force over a period of time
  • 5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR™ Lite data collection software.
  • Statistical calculations for saved data points

Ranges (Capacity / Resolution)

ModellbFozFkgFgFNkN
ME-100100
0.002
1600
0.5
50
0.01
50000
10
500
0.1
-
ME-200200
0.05
3200
1
100
0.02
-1000
0.2
1
0.0002
ME-500500
0.1
8000
2
250
0.2
-2500
0.5
2.5
0.0005

Complete Kits

Description
EKE-100-1Advanced ergonomics kit, 100 lbF / 500 N
EKE-200-1Advanced ergonomics kit, 200 lbF / 1,000 N
EKE-500-1Advanced ergonomics kit, 500 lbF / 2,500 N
EKE-100-2Professional ergonomics kit, 100 lbF / 500 N
EKE-200-2Professional ergonomics kit, 200 lbF / 1,000 N
EKE-500-2Professional ergonomics kit, 500 lbF / 2,500 N

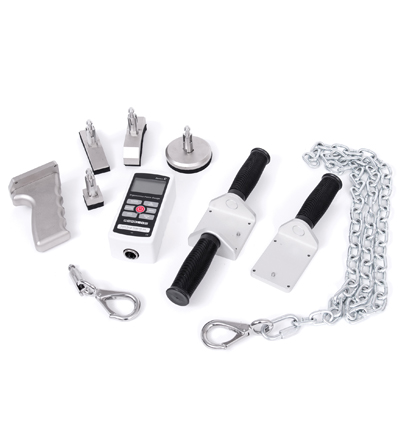

Accessories

Model Description Advanced Kit1 Professional Kit1
Series E force gauges are rugged and accurate, available in three measuring ranges. ME-100
ME-200
ME-500
Ergonomics force gauge

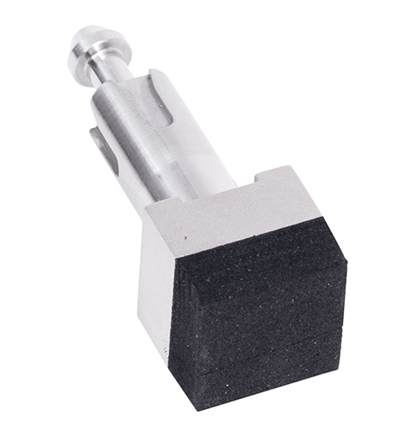

Square Pad E1002 - Pad dimensions: 1.0 x 1.0 x 0.5 in. [25 x 25 x 13 mm] E1002 Padded attachment, square

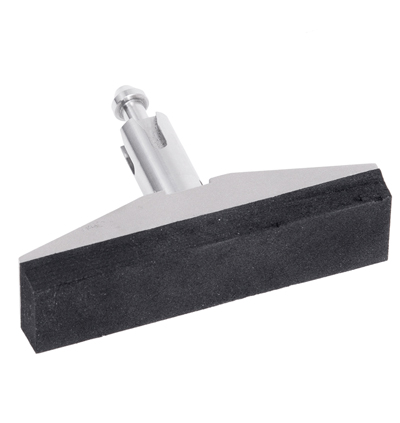

Rectangular Pad  E1003 - Pad dimensions: 4.0 x 1.0 x 0.5 in. [102 x 25 x 13 mm]  E1003 Padded attachment, rectangular

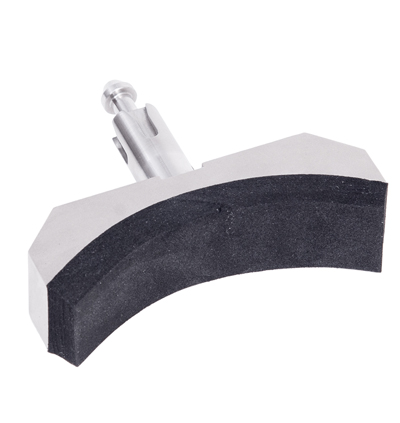

Curved Pad  E1004 - Pad dimensions: 1.0 in. [25 mm] deep / 3.2 in. [81 mm] radius / 0.5 in. [13 mm] thick E1004 Padded attachment, curved

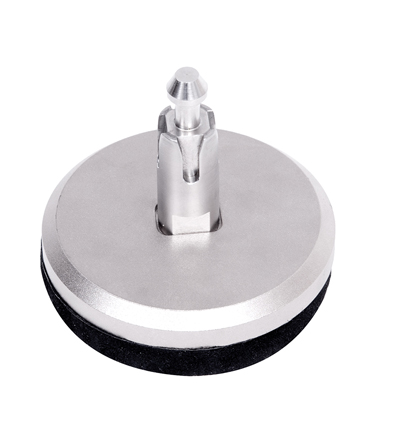

Circular Pad E1005 - Pad dimensions: 3.0 in. [76 mm] dia., 0.5 in. [13 mm] thick E1005 Padded attachment, circular

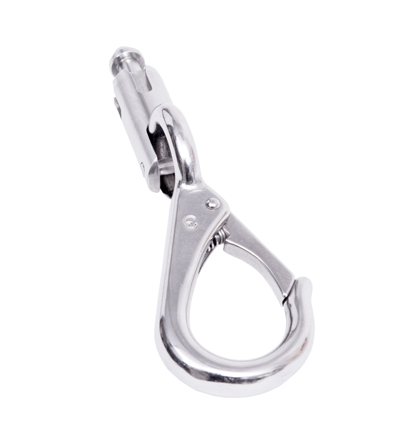

Clasp Hook  E1006 - Snap clasp, for added safety. Swiveling action ensures proper alignment E1006 Hook

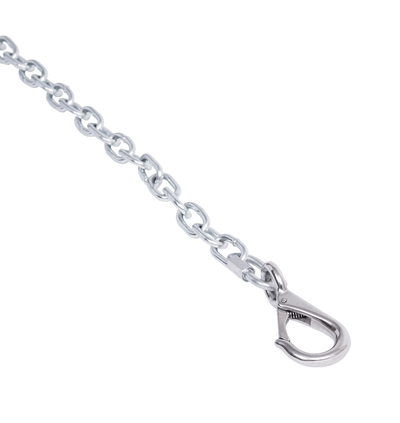

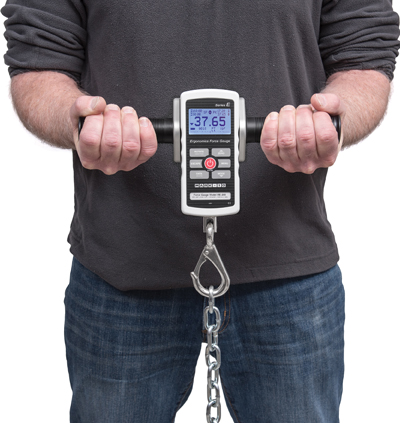

Chain / Hook Assembly  E1007 - Includes E1006 hook and chain. Chain length: 5 ft (1.5 m) E1007 Chain / hook assembly

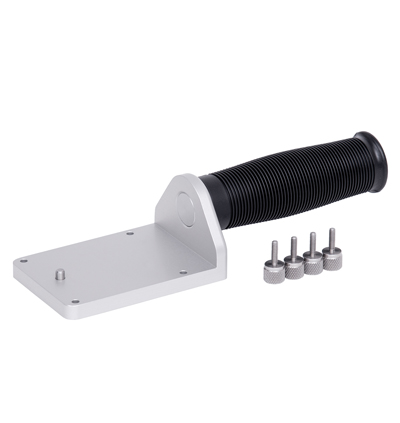

Single Handle Grip  E1008 - Ergonomic rubber-padded handle provides a secure grip. Attaches to force gauge via included thumb screws. E1008 Single handle grip

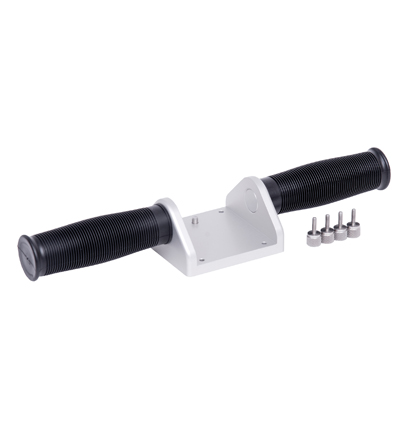

Double Handle Grip  E1009 - Ergonomic rubber-padded handles provides a secure grip. Attaches to force gauge via included thumb screws. E1009 Double handle grip

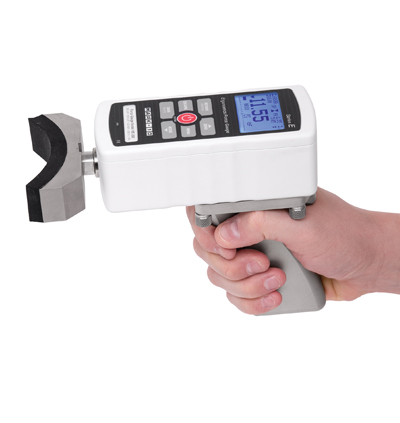

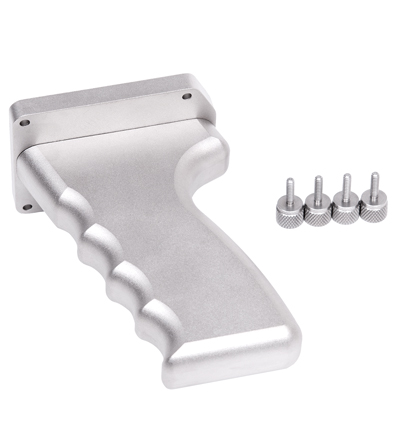

Pistol Grip  E1010 - Ergonomic design for a secure grip. Attaches to force gauge via included thumb screws. E1010 Pistol grip

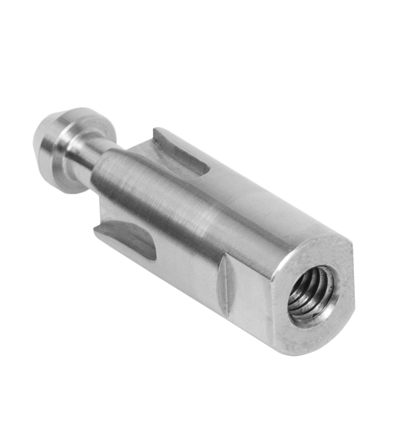

Standard Grip Adapter  E1011 - Adapts other grips via 5/16-18F thread. E1011 Grip adapter

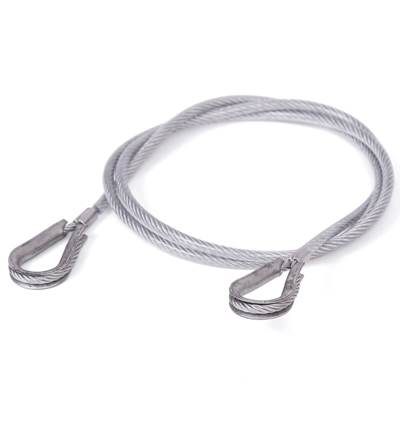

Looped Cable E1012 - Stainless steel, 43 E1012 Looped cable2

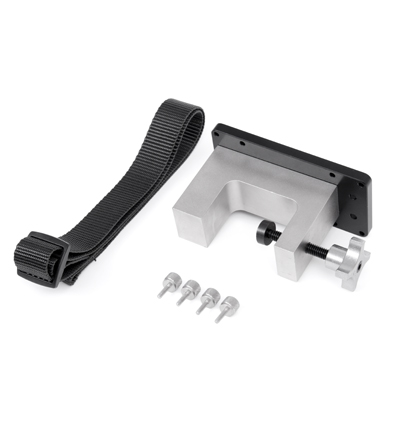

Myometer Kit E1013 - For strength testing. Mounts the force gauge to a table, in vertical and horizontal orientations. Includes tabletop mounting kit, adjustable strap, and gauge mounting screws. Requires E1006 hook. E1013 Myometer kit3

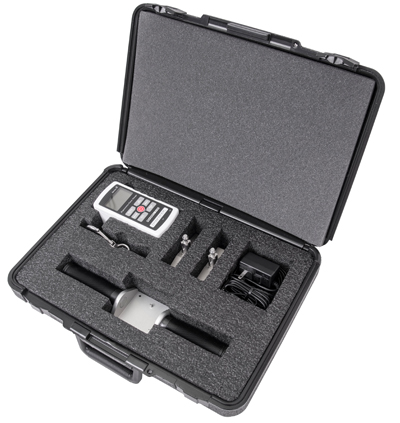

E1000 - Small Carrying Case, for Basic Kits. E1000 Carrying case, small

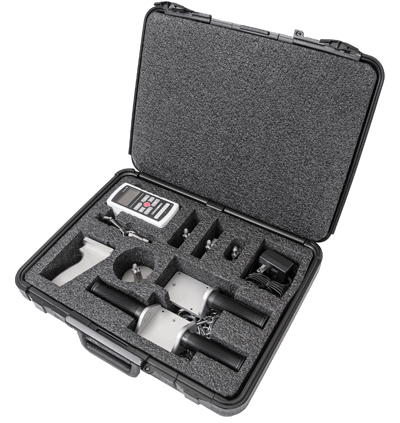

E1001 - Large Carrying Case, for Advanced Kits. E1001 Carrying case, large

1. Kits include a force gauge with 110V AC adapter. Add suffix 'E' for Euro plug, 'U' for UK plug, or 'A' for Australian plug. Ex: EKE-100-1E
2. Does not fit into carrying cases.
3. Does not fit into carrying cases. Requires E1006 hook.

Dimensions

Series E Dimensional Drawing
Dimensions in IN[MM]

Specifications

Accuracy:±0.2% of Full Scale
Sampling rate:7,000 Hz
Power:AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life:Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units:lbF, ozF, gF, kgF, N, kN (depending on model)
USB Output:Configurable up to 115,200 baud
Safe overload:200% of full scale (display shows "OVER" at 110% and above)
Weight:1.7 lb (0.8 kg)
Included itemsCarrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR™Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration with data
Warranty:3 years

Downloads

Buy Now

Item Description Price
Gauges
Series E ergonomics force gauge 100 lbF / 500 N - GAUGE ONLY
$995.00
Series E ergonomics force gauge 200 lbF / 1,000 N - GAUGE ONLY
$995.00
Series E ergonomics force gauge 500 lbF / 2,500 N - GAUGE ONLY
$995.00
Complete Kits
Series E ergonomics force gauge advanced complete kit 100 lbF / 500 N
$1,395.00
Series E ergonomics force gauge professional complete kit 100 lbF / 500 N
$1,895.00
Series E ergonomics force gauge advanced complete kit 200 lbF / 1,000 N
$1,395.00
Series E ergonomics force gauge professional complete kit 200 lbF / 1,000 N
$1,895.00
Series E ergonomics force gauge advanced complete kit 500 lbF / 2,500 N
$1,395.00
Series E ergonomics force gauge professional complete kit 500 lbF / 2,500 N
$1,895.00
Accessories
E1000
Small Carrying Case
$175.00
E1001
Large Carrying Case
$250.00
E1002
Padded attachment, square
$75.00
E1003
Padded attachment, rectangular
$85.00
E1004
Padded attachment, curved
$95.00
E1005
Padded attachment, circular
$120.00
E1006
Clasp Hook
$110.00
E1007
Chain / hook assembly - Includes E1006 hook
$100.00
E1008
Single handle grip
$100.00
E1009
Double handle grip
$150.00
E1010
Pistol grip
$250.00
E1011
Grip adapter - 5/16-18F thread
$50.00
E1012
Looped cable
$45.00
E1013
Myometer accessory (Requires E1006 hook)
$275.00
