EKM5 Myometer Kit

Made in USA

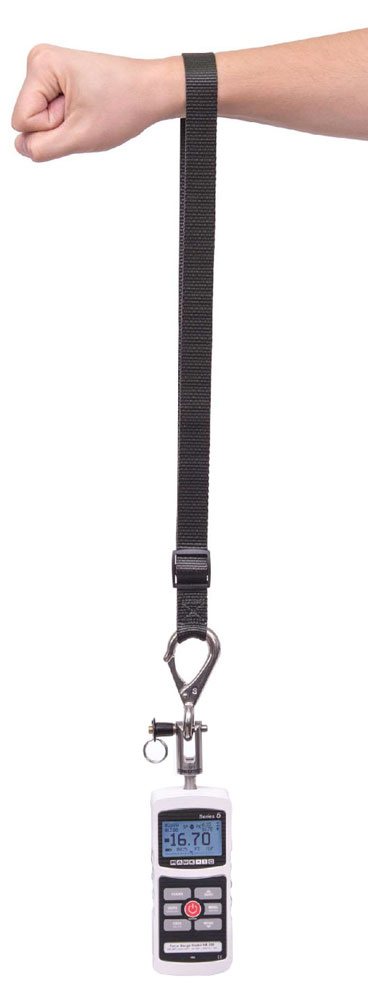

EKM5 Myometer for evaluating shoulder function and isometric muscle strength
Click images to enlarge.
The Model EKM5-200 Myometer Kit facilitates a wide range of strength assessments and ergonomics studies. Featuring a Series 5 force gauge with 200 lbF (1,000 N) range, tabletop mount, strap, and accessories, this kit is ideal for ergonomists and other professionals.

Features

  • Measures real time, average, and peak pull and push forces
  • 200 lbF (1,000 N) force capacity
  • Accuracy of ±0.1% of full scale
  • Sampling rate of 7,000 Hz
  • USB, RS-232, and analog outputs
  • High / low limit indicators, for pass / fail and minimum force testing
  • 1,000-point data memory with statistical calculations. Data may be bulk downloaded to included MESUR® Lite data collection software.
  • Force gauge is compatible with other Mark-10 grips and attachments

Display Indicators

Display Overview for M5 Force Gauge

Specifications

Accuracy±0.1% of full scale
Sampling rate7,000 Hz
PowerBacklight on: up to 7 hours of continuous use
Backlight off:
up to 24 hours of continuous use
Battery lifeBacklight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Capacity x Resolution200 x 0.05 lbF
3200 x 1 ozF
100 x 0.02 kgF
1000 x 0.2 N
1 x 0.0002 kN
OutputsUSB / RS-232: Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices
Analog: ±1 VDC, ±0.25% of full scale at capacity
General purpose: Three open drain outputs, one input
Set points: Three open drain lines
Safe overload200% of full scale (display shows "OVER" at 110% and above)
Warranty3 years (see individual statement for further details)

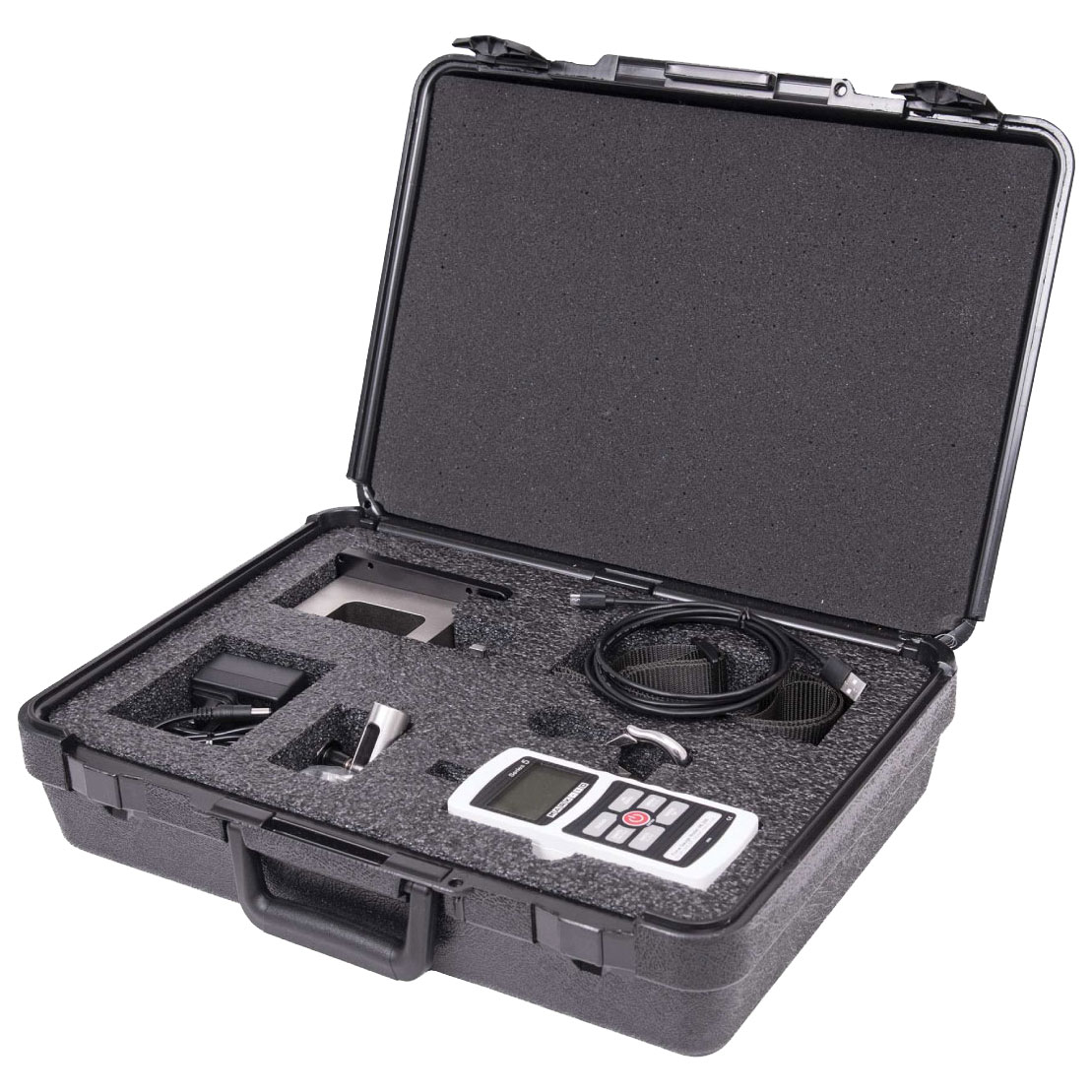

Complete Kit

  • M5-200 advanced force gauge
  • Carrying case

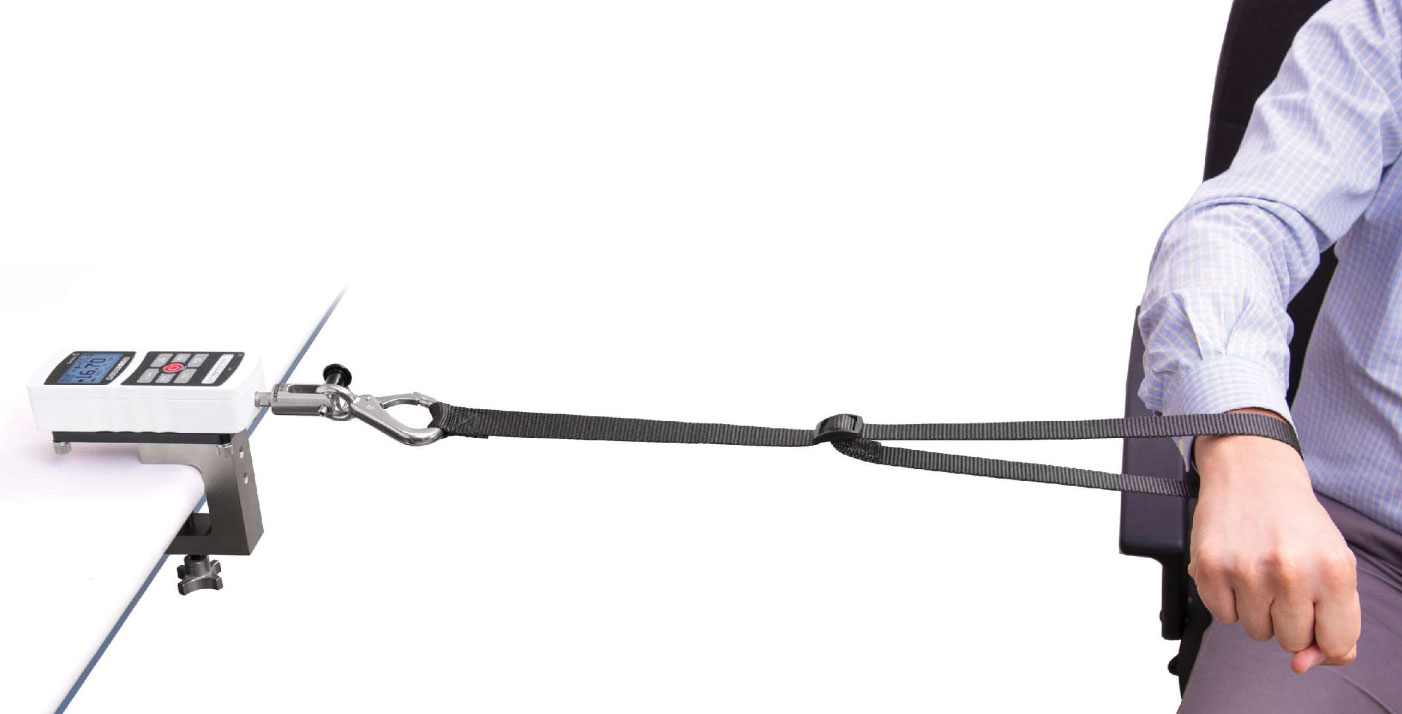

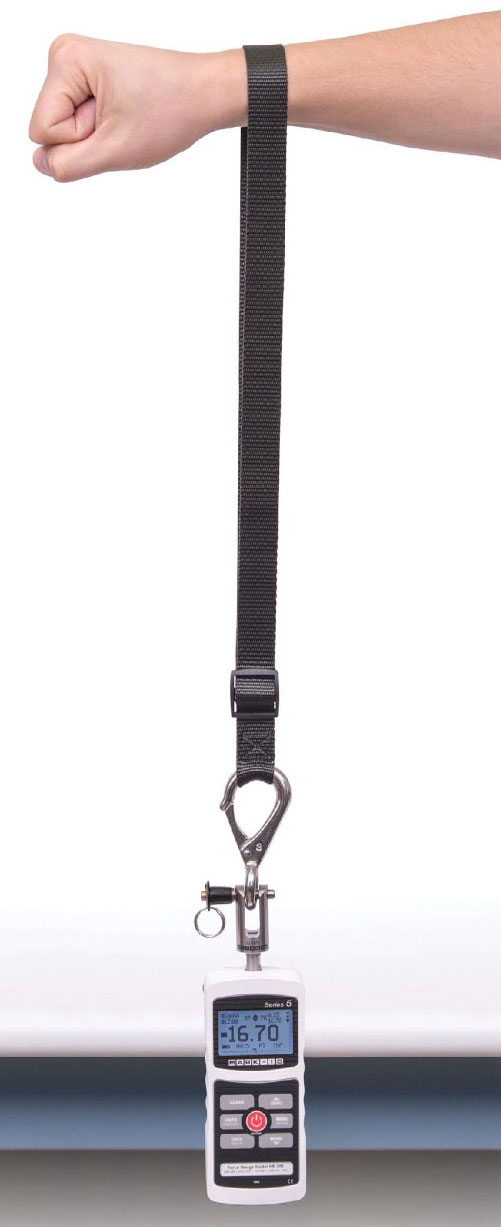

  • Tabletop mounting kit for force gauge, for vertical or horizontal orientations
  • Adjustable length looped strap
  • Clevis and clasp hook attachments
  • AC adapter/charger
  • MESUR® Lite data collection software
  • USB cable
  • NIST-traceable certificate of calibration with data

Downloads

Related Products

Click image for more info

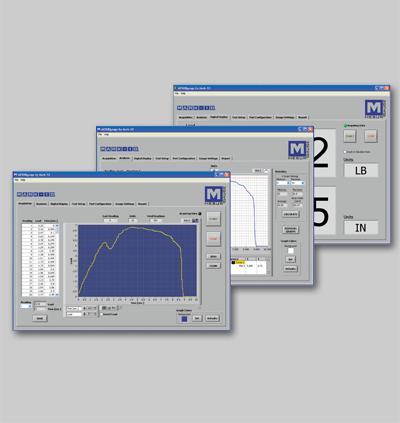

MESURgauge / MESURgauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, ESM750,ESM750S, ESM1500, and ESM1500S motorized test stands, coordinating motion control and data collection with just one click

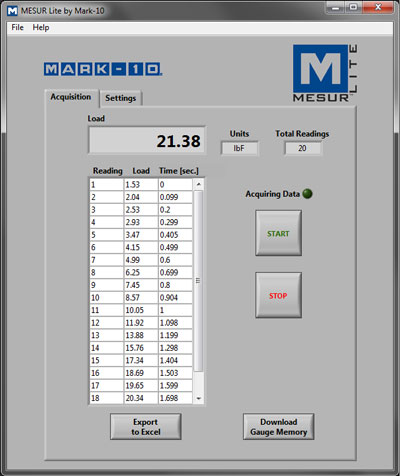

Mesur Lite Force Gauge Data Collection Software
Click image for more info
Basic Force Gauge Data Acquisition Software
Series E Ergonomic Force Gauge
Click image for more info
Ergonomics Force Gauge
- Measure real time and peak push and pull forces
- Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
M5 Digital Force Gauge
Click image for more info
Advanced Digital Force Gauge - Model M5
- High-speed 7,000 Hz peak sampling rate
- 1,000-point data memory with statistics and outputs

Buy Now

Item Description Price
Myometer kit, 200 lb / 1000 N Capacity
$1,495.00
Accessories
Mesurgauge Load & Travel Analysis Software
$495.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
