EK3 Ergonomic Testing Kit

Made in USA
EK3 Ergonomic Testing Kit
Click images to enlarge.

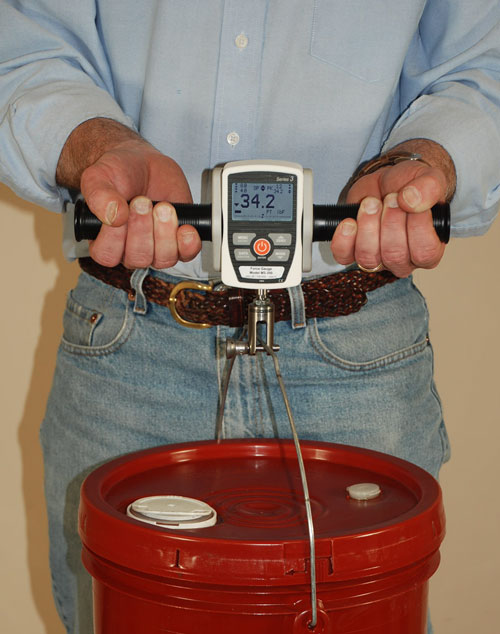

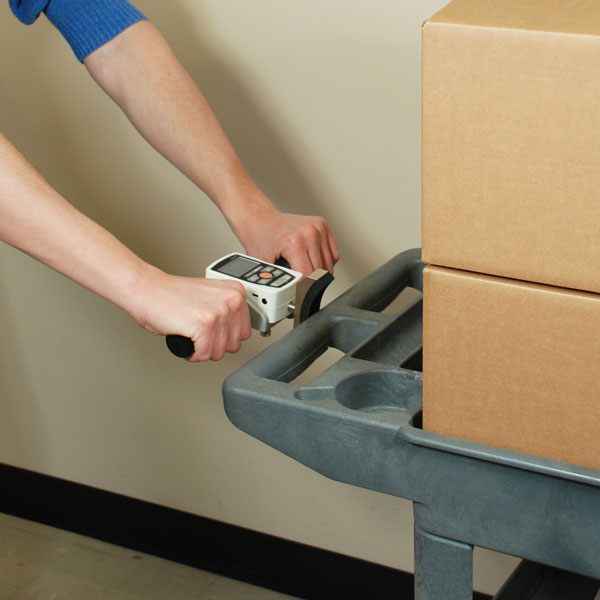

Test push/pull muscle strength and functional task requirements up to 500 lb

These kits make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, physical therapy, and ergonomic studies. These kits present the ergonomist and other professionals with a simple and economical testing solution.

The kit includes a force gauge with data output, MESURTM Lite data collection software, and a USB cable.

The kits are available in capacities of 100 lbF, 200 lbF and 500 lbF.

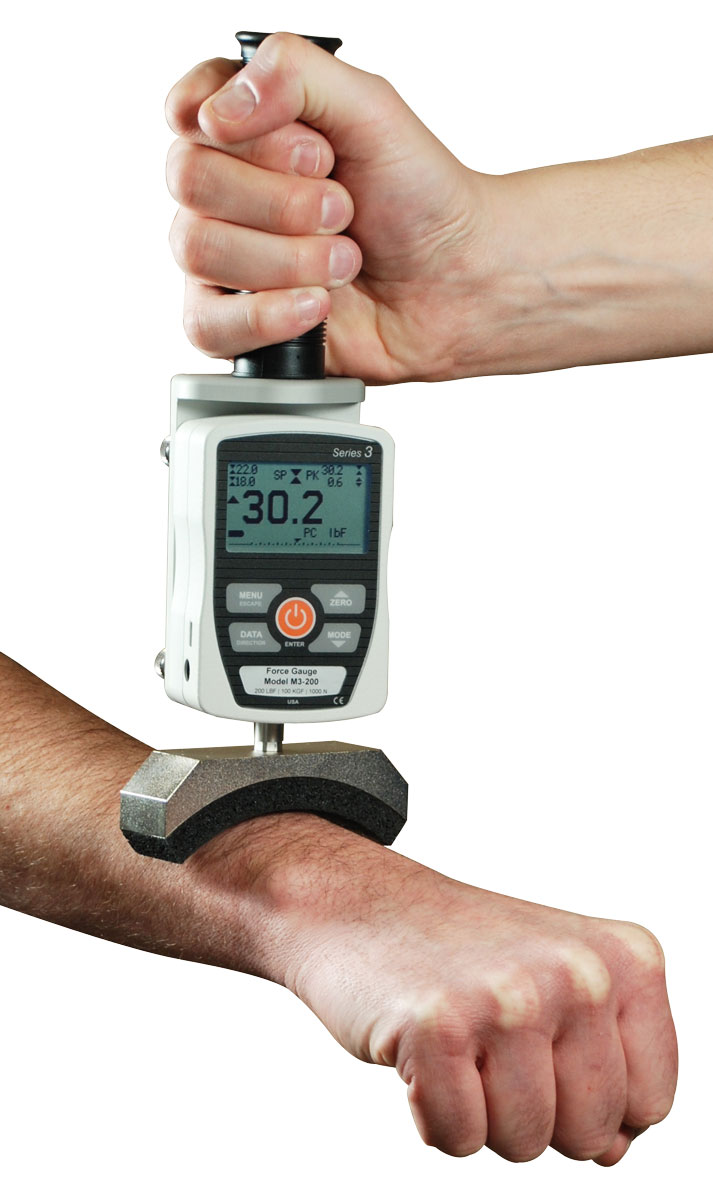

Ergonomics Force Tester

Features

  • Accuracy of 0.3% Full Scale
  • High-speed 2,000 Hz sampling rate
  • Large backlit graphic display
  • Includes NIST Traceable Calibration Cert
  • 3 Year Warranty
  • Supplied with Flat, curved, and square padded attachments mount directly to the force gauge for conducting strength analysis
  • USB Output supplied with data transfer cable and MeasureGauge Lite Software
  • Programmable set points with pass/fail indicators
  • Peak readings and set points always displayed
  • 3 selectable units of measurement (Lbs, Kg or N)
  • Spring-loaded Clevis-Grip pin locks into place for added safety in pull tests

Force Ranges - Capacity / Resolution

ModelLbKgN
EK3-100100 / 0.150 / 0.05500 / 0.5
EK3-200200 / 0.2100 / 0.11000 / 1
EK3-500500 / 0.5250 / 0.22500 / 2

Related Products

Click image for more info
MESURgauge / MESURgauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, and ESM1500 motorized test stands, coordinating motion control and data collection with just one click

Complete Kit

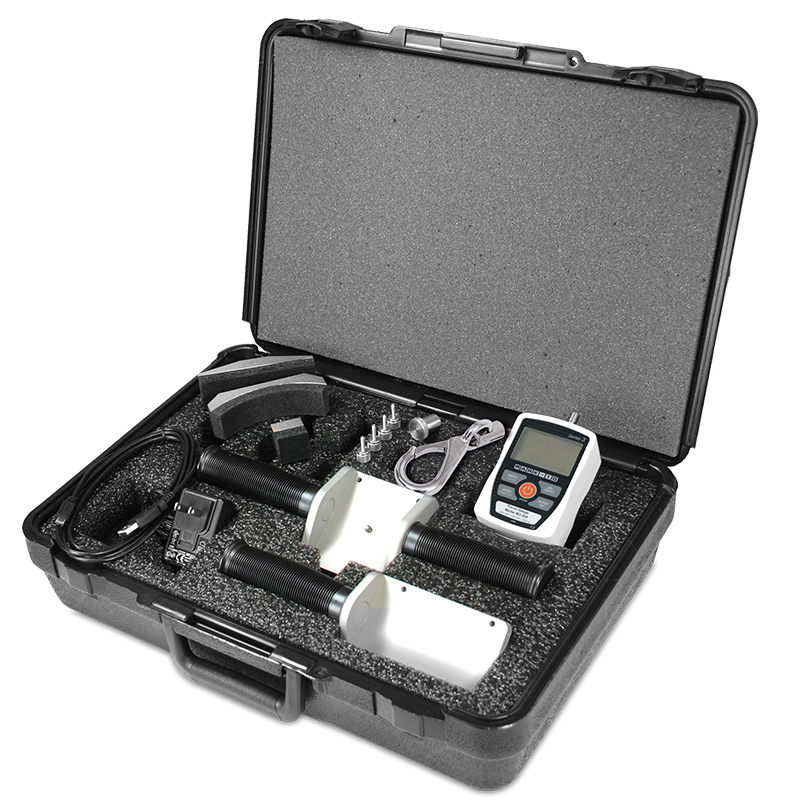

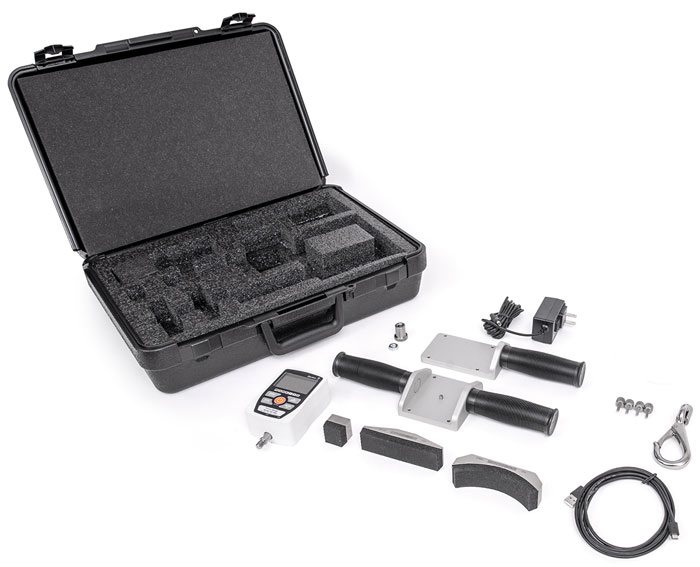

The EK3 Kit Includes:
  • Series 3 digital force gauge
  • MESURâ„¢ Lite software
  • USB cable
  • Double and single Non-slip rubber handles
  • Padded attachments (Flat, curved, and square)
  • Snap hook
  • Flat head
  • AC adapter
  • user's manual
  • NIST-traceable certificate of calibration.
  • Fitted Carrying Case

Downloads

Buy Now

Item Description Price
Physical Therapy / Strength testing kit 100 lb capacity
$855.00
Physical Therapy / Strength testing kit 200 lb capacity
$955.00
Physical Therapy / Strength testing kit 500 lb capacity
$955.00
Accessories
Mesurgauge Load & Travel Analysis Software
$495.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
