TE General Purpose Tension Sensor

Made in Germany
TE General Purpose Tension Sensor
Click images to enlarge.
10 Tension Ranges
0-50 g up to 0-50.0 Kg

Accurately measure the running line tensions of yarns, fibers, wires, and similar filaments. Compact size for easy installation. Mounting holes in front plate

Built-in signal conditioning with ZERO and SPAN pots provide a high-level, analog output to minimize the chance for signal interference. Outer roller spacing increases with higher tension ranges.

Same as Schmidt TS1 Tension Sensor

Features

  • Precision strain gauge sensing for highest accuracy and repeatability
  • 0-1 V DC output, proportional to tension (0-10 V DC or 4-20 mA Output optional)
  • Ball-bearing mounted rollers ar fabricated from Hardcoated Aluminum
  • Optional rollers are available in chrome-plated steel, hardened steel, plastic and ceramic
  • Frequency response of 100 Hz (or higher upon request)
  • Optional 10ft. connecting cable, TE-CABLE-CN is recommended. Longer lengths are available.

Tension Ranges

ModelRange
TE-500-50.0 g
TE-1000-100.0 g
TE-2000-200 g
TE-5000-500 g
TE-1K0-1000 g
TE-2K0-2000 g
TE-5K0-5.00 Kg
TE-10K0-10.0 Kg
TE-20K0-20.0 Kg
TE-50K0-50.0 Kg

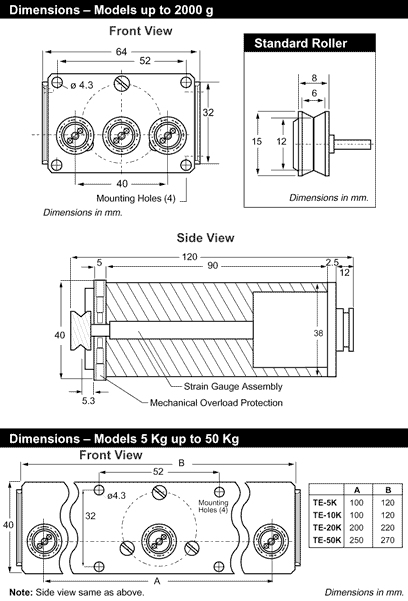

Dimensions


Related Products

SC-PM Tension Sensor Indicator
Click image for more info
SC-PM
Tension Indicator with Color Display
- User set limits (Min and Max alarms) with Visual Indicator with Open Collector output
- Adjustable damping to reduce tension fluctuates
SC4-PM Panel mount digital display unit
Click image for more info
SC4-PM
Panel mount digital display unit
- Suitable for connecting a maximum of 4 tension sensors (can be different ranges)
- User set Min and Max limits with open collector output
SCD-1 Tension Indicator
Click image for more info
SCD-1
Display Unit
- Adjustable damping for output signal and display for easier reading if tension fluctuates
- Menu for configurating the device (alarm limits, damping, units, tension range, adjustment graph)
Click image for more info
Roller Guide
Available Rollers for Hand-Held Tension Meters
Click image for more info
Tension Inspect
Data Transfer & Analysis Program
- Data can be viewed and analyzed in TensionInspect or transferred to Excel
- Selectable sample rates up to 200 Hz and scalable trend graph "x" and "y" axis

Specifications

Accuracy± 1.5% FS or better
Sensor Excitation+15…24 V DC, 21 mA regulated
Code MA: max. 50 mA regulated
Code A10: max. +5 V DC, max. 20 mA regulated
Middle Roller Deflection0.5mm (maximum)
Sensor Output0-1 V DC (standard)
0-10 V DC or 4-20mA (optional)
proportional to tension
Option "A10" Strain Gauge Output0.6 +/- 0.12 mV / V, 5V DC (max) power required (3-5V DC)
Frequency Response30Hz (custom frequency response up to 300 Hz available as an option)
Overload Rating150% FS
Housing MaterialAluminum
Operating Temp.40 to 105° F (5-40° C)
Spacing of Outer Rollers40, 100, 150, 200 & 20mm, see dimensions above
Roller shell MaterialHardcoated Aluminum(Standard)
Hardened Steel (ST)
Chrome-plated Steel (CH)
Hard-coat Aluminum (AL)
Plastic (PL)
Ceramic (CE)
Maximum Linear Speed1000 m/min (Standard)
3000 m/min (K)
5000 m/min (U)
Output (Optional)linearized, app. 500 Hz
Digital: RS 232 (9600,8,N,1)

Downloads

PDF Data Sheet
PDF File
Tension Sensors Manual
PDF File

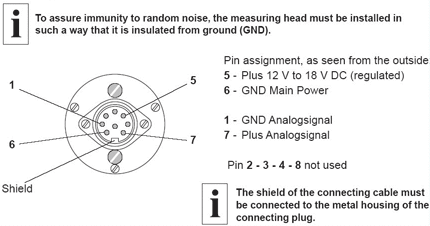

Pinouts
