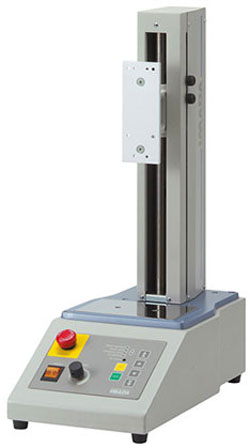

MX-110 Motorized Vertical Test Stand

Click images to enlarge.
Capacity: 110lbs / 50Kg / 490N

The new MX-110 test stand offers consistent and reliable testing. The combination of a screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range.

Connect the MX-110 test stand with a Z Series force gauge and enable force controlled testing. Force control can automatically stop testing when the force value reaches the high setpoint programmed on the Z Series force gauge, or maintain the force between the Z Series High and Low setpoints. Force control is ideal for fatigue or non-destructive testing.

The MX-110 accepts any of the standard range force gauges. Quick switch and Emergency Stop features are also included.

*FORCE GAUGE NOT INCLUDED
Designed to work with the Z2 & ZP force gauges.

Features

  • One stand for both compression (push) and tension (pull) tests
  • Force Controlled operation with ZTA force gauges
  • 4 speed ranges:
    0.4 – 11.5 in/min
    0.08 ~ 2.3 in/min ("-O")
    0.8 - 23.0 in/min ("-F")
    1.6 - 47.0 in/min ("-WF")
  • Jog, Single Cycle, Continuous Cycle, Force Control
  • Maximum clearance 9" (with extender 14")

Dimensions

Related Products

SW-1 Software for force and torque
Click image for more info
Data Acquisition Software for Force Gauges & Torque Gauges
- Full SPC and graphing capabilities
- Automates your data collection
- Provides a running log of all measurements along with a chart of the data as well as statistical information
Click image for more info
Data Input Button
- Send data to the PC spread sheet with the touch of a button
- Select different acquisition rates
- Zero the gauge
DST Digital Force Gauge
Click image for more info
DST
Digital Force Gauge
- Backlit LCD display with user-friendly menus
- 30,000/sec sampling rate
- USB and RS-232C output
Click image for more info
Z2
Digital Force Gauge
- Output signals (RS 232 C, analog and Mitutoyo Digimatic)
Imada HV-110 Test Stand
Click image for more info
Manual Hand-Wheel Force Test Stand
- Hand wheel design provides a high degree of precise control
- Optional digital distance meter
Click image for more info
Lexan Safety Shield
- Helps protect personnel from injury by containing debris during testing
Click image for more info

Ordering Guide

Model Speed Range Distance Meter
MX-110 0.4 – 11.5 in/min
(10 - 292 mm/min)
No
MX-110-F 0.8 - 23.0 in/min
(18 - 584 mm/min)
No
MX-110-WF 1.5 - 47.0 in/min
(38 - 1194 mm/min)
No
MX-110S 0.4 – 11.5 in/min
(10 - 292 mm/min)
Yes
MX-110S-MS 0.7 - 23.0 in/min
(18 - 584 mm/min)
Yes
MX-110S-HS 1.5 - 47.0 in/min
(38 - 1194 mm/min)
Yes

Specifications

Capacity110lbs / 50Kg
Travel RateRefer to Ordering Guide above
DimensionsRefer to Dimensions above
Compatible Gauges Z2, ZP and DS2
Warranty2 years
*NoteOptional Distance Meter Max Sampling Rate Output - 2 Samples Per Second

Buy Now

Item Description Price
Motorized Test Stand, Capacity: 110 lb / 50 Kg / 500N, Speed: 0.4 – 11.5 in/min
$3,058.00
Motorized Test Stand, Capacity: 80 lb / 36 Kg / 360N, Speed: 0.8 - 23.0 in/min
$3,058.00
Motorized Test Stand, Capacity: 40 lb / 18 Kg / 180N, Speed: 1.6 - 47.0 in/min
$3,058.00
MX-110S Motorized Test Stand w/Distance Meter
$3,817.00
MX-110S-MS Motorized Test Stand w/Distance Meter
$4,389.00
MX-110S-HS Motorized Test Stand w/Distance Meter
$4,389.00
Accessories
CB-501
Force Control Cable
$93.50
CB-504
Combination Force Control / Dataouput Cable
$181.50
Lexan Safety Shield
$295.00
AP005
5 inch extension plate
$50.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
