F105 - 100 lb / 0.5 kN - Vertical
F305 - 300 lb / 1.3 kN - Vertical
F505 - 500 lb / 2.2 kN - Vertical

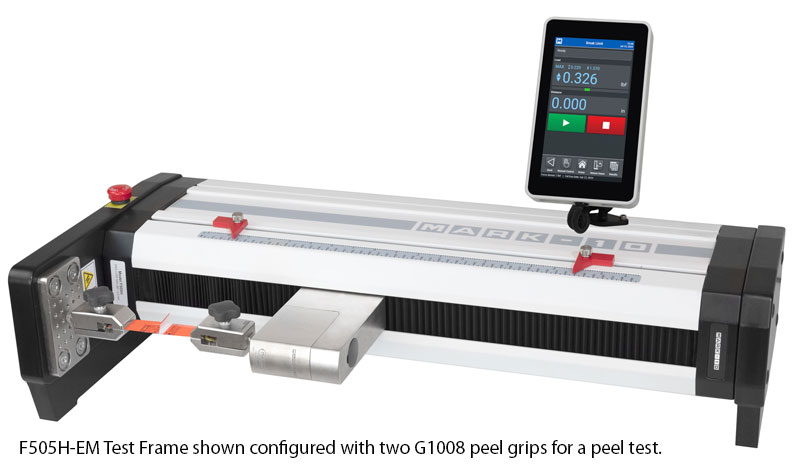

F505H - 500 lb / 2.2 kN - Horizontal
Load Cell and Grips Sold Separately

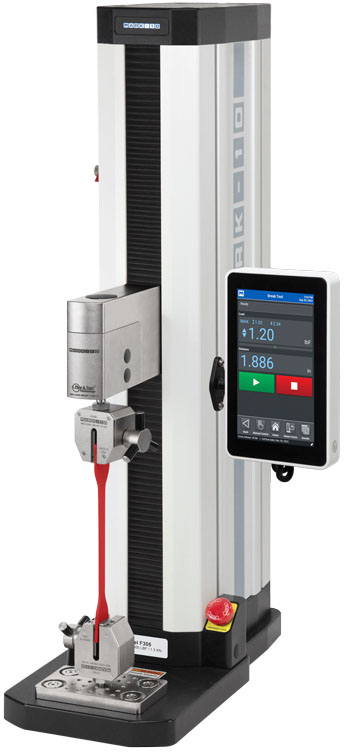

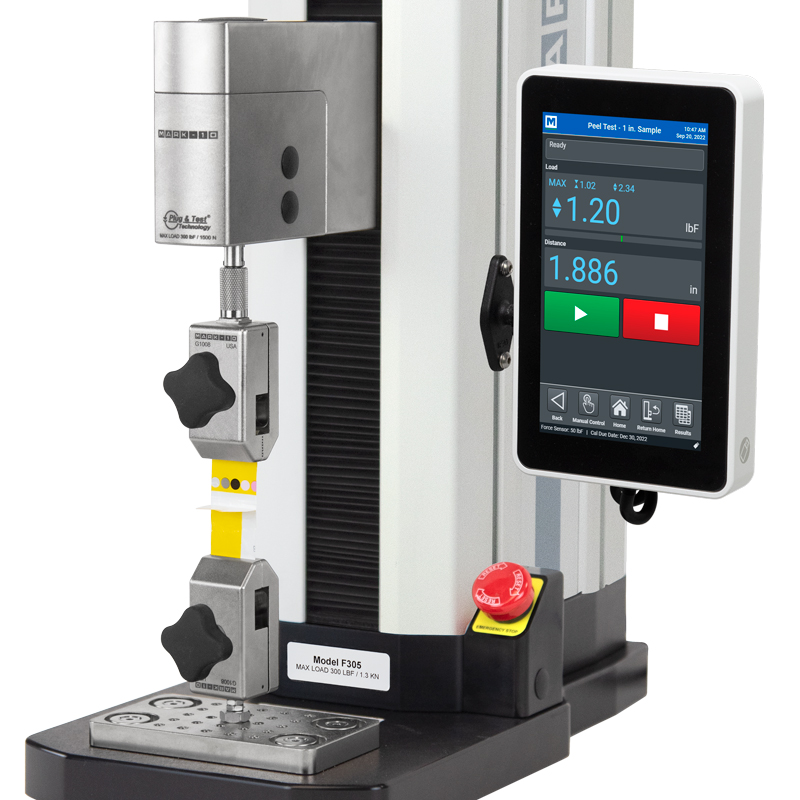

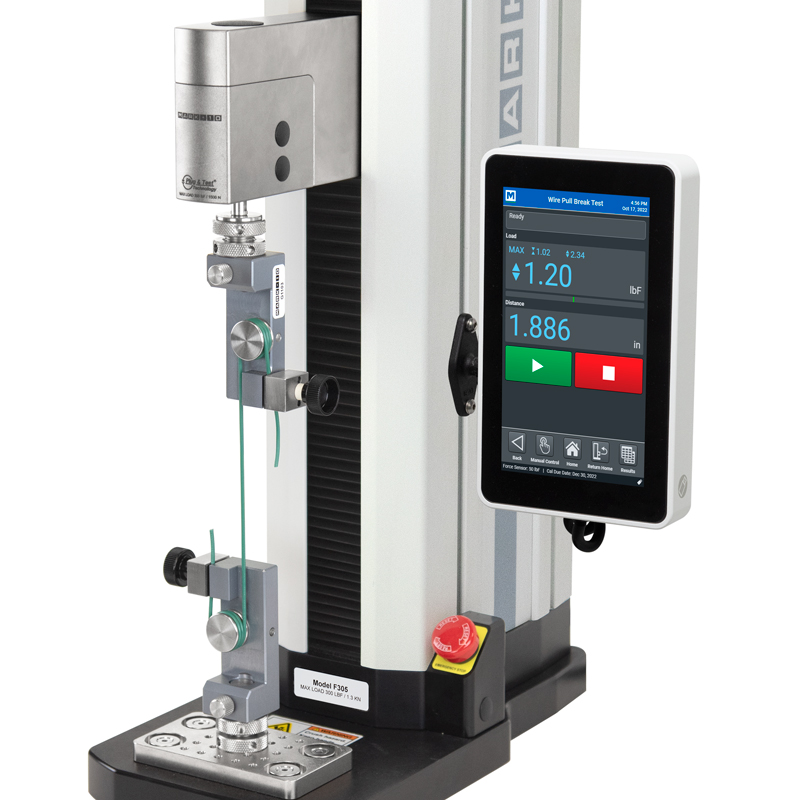

Series F test frames with EasyMESUR® are engineered to perform a wide range of tension and compression tests, including break testing, cycling, limit testing to a load or distance, load holding, average force testing, and more.
Set up and run tests, export results, and create a report via the integrated, easy-to-use touchscreen interface – no PC or force gauge required. For unique needs, run the tester from a PC with your own custom application utilizing EasyMESUR®’s serial command library.
Sample setup and fine positioning are a breeze with available FollowMe® force-based positioning - using your hand as your guide, push and pull on the force gauge or load cell to move the crosshead at a variable rate of speed.
Engineered around a modular function platform, the EasyMESUR® run screen can be arranged with large, simple controls – or configured for more advanced applications with a selection of optional functions, including distance measurement, graphing, cycling, and more. Purchase functions and packages at time of order or enable them in the field via activation codes. All testers are shipped in a 160-hour evaluation mode, in which all functions are available.
Generous travel, clearance, and depth dimensions accommodate samples of various shapes and properties. Modular mechanical design accommodates single- and double-column extensions for oversized specimens.
Select from vertical or horizontal orientations, along with a broad range of force sensor capacities and an expansive array of grips and fixtures.
| F105-EM | F305-EM | F505-EM | F505H-EM | |
|---|---|---|---|---|
| Load capacity*: | 100 lbF [0.5 kN] |
300 lbF [1.3 kN] |
500 lbF [2.2 kN] |
|
| Maximum travel: | 18.0 in [457 mm] |
|||
| Standard speed range: | 0.5 – 13 in/min [13 – 330 mm/min] |
|||
| Optional speed range: | 0.02 – 45 in/min [0.5 – 1,100 mm/min] |
|||
| Load accuracy (% of full scale) |
|
|||
| Load sampling rate: | 5,000 Hz | |||
| Data acquisition rate: | 100 Hz | |||
| Speed accuracy: | ±0.2% of setting, virtually no variation with load | |||
| Position accuracy: | ±0.006 in [0.15 mm], at any load or position | |||
| Distance resolution: | 0.001 in [0.02 mm] | |||
| Limit switch repeatability: | ±0.001 in [0.03 mm] | |||
| Overload protection: | Motor stops at 120% of full scale of the force sensor | |||
| Power: | Universal input 100-240 VAC, 50/60 Hz, 120W | |||
| Fuse type: | 1.2 A, 250V, 3AG, SLO BLO | |||
| Weight (test frame only): | 60 lb [27 kg] |
70 lb [32 kg] |
||
| Shipping weight: | 75 lb [34 kg] |
85 lb [39 kg] |
||
| Environmental conditions: |
|
|||
| Conformance: | CE, UKCA | |||
| Warranty: | 3 years [see individual statement for further details] | |||
The EasyMESUR® integrated control panel centralizes test setup, test frame control, and data collection into one convenient place. Use the 7” touchscreen to create and run a wide range of tests, including:
- Test to a load
- Test to a sample break
- Test to a distance
- Load holding
- Cycle testing
- Average force testing
View data in graphical format or results tables. Save or export data as needed, or generate a report.
What's your point of view?
Run a test via the Standard, Graph, or Results views, and switch views as needed. Pass / Fail indicator easily identifies problematic samples.
Standard View
View large-format load and distance values, with pass/fail status.
Graph View
View a graph of load vs. distance or time, with pass/fail status.
Results View
View results for each run, with corresponding statistics for the results.
Test setup is easy as 1-2-3
Basic tests
Select a test type, and EasyMESUR® will guide you through the setup.
Load Limit
Distance Limit
Break Limit
Load Hold
Cycle
Averaging
1. Basic Test Settings
- Test direction
- Speed
- Test-specific parameters
- Data save preferences
2. Results Settings
- Select results
- Enable and configure pass/fail limits
- Set data collection rate
- Set auto-return to home
3. Graph Settings
- Single-point vs. continuous graphing
- Set force vs. time or vs. distance
- Graphing start threshold
Robust data acquisition and management
Blazingly fast
Force sensor sampling rate of 5,000 Hz yields accurate peak measurements even in quick-duration events. EasyMESUR® collects load and travel data at up to 100 Hz, and allows up to 100,000 data points per run.
Customizable reporting
Print or create a PDF report, including results, statistics, graph, system and user information, and comments.
Create report templates to save with future reports.
Save or export data
Automatically or manually save individual runs and results to a USB drive or file location of your choice. File names are automatically generated with the test name and time stamp, for quick searchability.
Results sets and data from individual runs may also be exported as .csv files.
Intelligent manual control
Manually control the test frame to obtain quick force and distance results, or manually position the crosshead prior to a test. Select from several actuation methods, including momentary (button-hold), maintained (button release) motion, jog mode with three distance presets, and FollowMe® force-based positioning.
Push and pull on the force sensor to move the crosshead. Apply greater load to achieve faster motion. FollowMe® is responsive enough for quick positioning as well as fine adjustments.

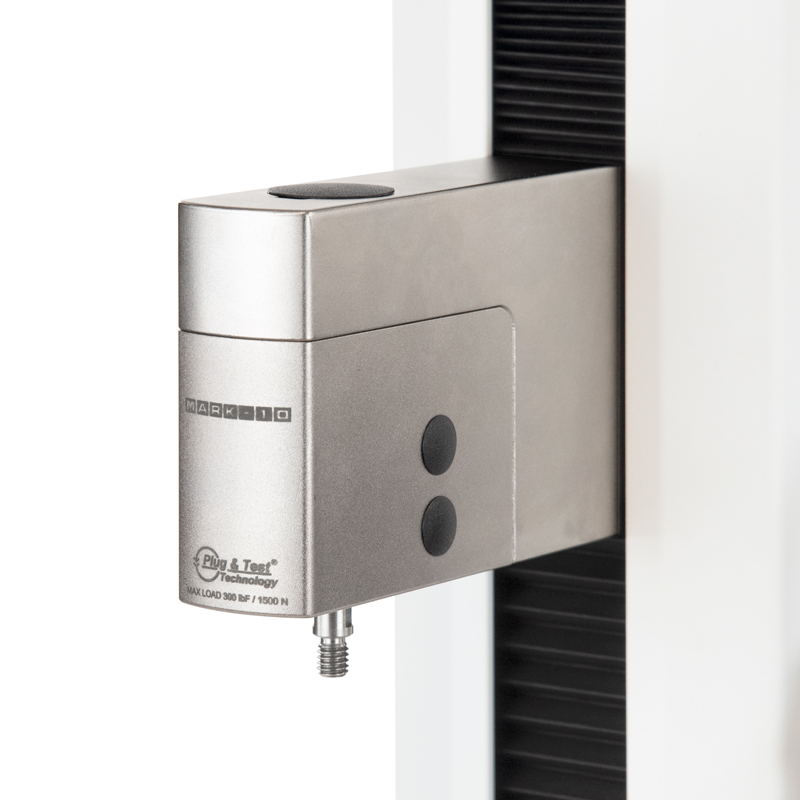

Calibrate force sensors on the test frame or off-site
Calibrate force sensors in one of two ways:
Test frame
EasyMESUR® provides an integrated utility, with an intuitive step-by-step wizard. Manual controls allow the technician to use the test frame to apply tension and compression forces.
Off-site
Conveniently remove the force sensors for off-site calibration with a Mark-10 Model M7I or M5I indicator (requires optional AC1083 adapter).
Secure user access
Control user access to sensitive areas, such as test editing and calibration, via password.
| Maximum travel | 18.0 in / 457 mm |
| Standard speed range | 0.5 – 13 in/min - 13 – 330 mm/min |
| Optional speed range | 0.02 – 45 in/min - 0.5 – 1,100 mm/min |
| Load accuracy | Test frame: ±0.1%* |
| Load sampling rate | 5,000 Hz |
| Data acquisition rate | 100 Hz |
| Speed accuracy | ±0.2% of setting, virtually no variation with load |
| Position accuracy | ±0.006 in / 0.15 mm, at any load or position |
| Distance resolution | 0.001 in / 0.02 mm |
| Limit switch repeatability | ±0.001 in / 0.03 mm |
| Power | Universal input 100-240 VAC, 50/60 Hz, 120W |
| Weight (test frame only) | 60 lb / 27 kg - F105-EM / F305-EM / F505-EM 70 lb / 32 kg - F505H-EM |
| Shipping weight | 75 lb / 34 kg - F105-EM / F305-EM / F505-EM 85 lb / 39 kg - F505H-EM |
| Warranty | 3 Years |
| Dimensions | Refer to PDF brochure (in downloads section) |
- F305: limited to 200 lbF [1 kN] above 24 in [610 mm]/min
- F505 / F505H: limited to 300 lbF [1.3 kN] above 24 in [610 mm]/min
See PDF Brochure for additional specifications
| Item | Description | Price | ||
|---|---|---|---|---|
Force Test frame with EasyMESUR® control panel, vertical, 100 lbF / 0.5 kN Capacity | $3,325.00 | |||
Force Test frame with EasyMESUR® control panel, vertical, 300 lbF / 1.3 kN Capacity | $3,610.00 | |||
Force Test frame with EasyMESUR® control panel, vertical, 500 lbF / 2.2 kN Capacity | $4,512.50 | |||
Force Test frame with EasyMESUR® control panel, HORIZONTAL, 500 lbF / 2.2 kN Capacity | $5,082.50 | |||
| Accessories | ||||
| Optional Functions | ||||
EMF001-1 | Distance Measurement Option for EasyMESUR Test Frame | $1,258.75 | ||
EMF002-1 | Distance Limits Option for EasyMESUR Test Frame | $351.50 | ||
EMF003-1 | Preload Option for EasyMESUR Test Frame | $351.50 | ||
EMF004-1 | High Speed Extension Option for EasyMESUR Test Frame | $299.25 | ||
EMF005-1 | Low Speed Extension Option for EasyMESUR Test Frame | $299.25 | ||
EMF006-1 | Cycling Option for EasyMESUR Test Frame | $422.75 | ||
EMF007-1 | Break Detection Option for EasyMESUR Test Frame | $422.75 | ||
EMF008-1 | Load Holding Option for EasyMESUR Test Frame | $422.75 | ||
EMF009-1 | FollowMe Option for EasyMESUR Test Frame | $299.25 | ||
EMF010-1 | Graphing & Reporting Option for EasyMESUR Test Frame | $973.75 | ||
EMF011-1 | PC Control Option for EasyMESUR Test Frame | $1,496.25 | ||
EMF012-1 | Coefficient of Friction (COF) Measurement for EasyMESUR | $422.75 | ||
EMF013-1 | Spring Rate Measurement | $422.75 | ||
| Optional Function Packages | ||||
EMP001-1 | Distance Measurement Package (Distance Measurement EMF001-1, Distance Limits EMF002-1, Preload EMF003-1) | $1,847.75 | ||
EMP002-1 | Speed Extension Package (High Speed Extension EMF004-1, Low Speed Extension EMF005-1) | $570.00 | ||
EMP003-1 | Advanced Functionality Package (Cycling EMF006-1, Break Detection EMF007-1, Load Holding EMF008-1, FollowMe EMF009-1) | $1,496.25 | ||
EMP-COMP-1 | Complete Options Package (All functions) for EasyMESUR-LR Stands | $5,586.00 | ||
| Other Options | ||||
NIST-traceable certificate of calibration, distance and speed | $395.00 | |||
Safety Shield For Test Frames, 51.9" height | $3,619.50 | |||
Safety Shield For Test Frames, 34.4" height | $2,669.50 | |||
