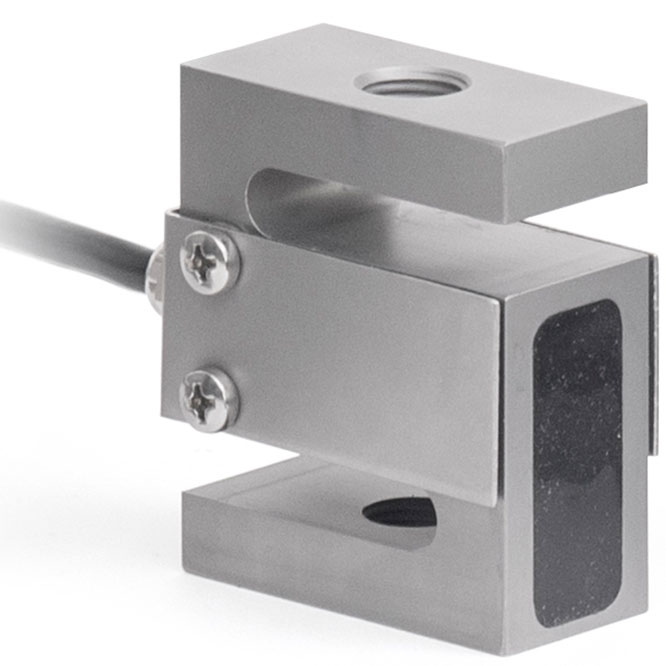

R07 S-Beam Force Sensor

Made in USA
R07 S-Beam Force Sensor
Click images to enlarge.

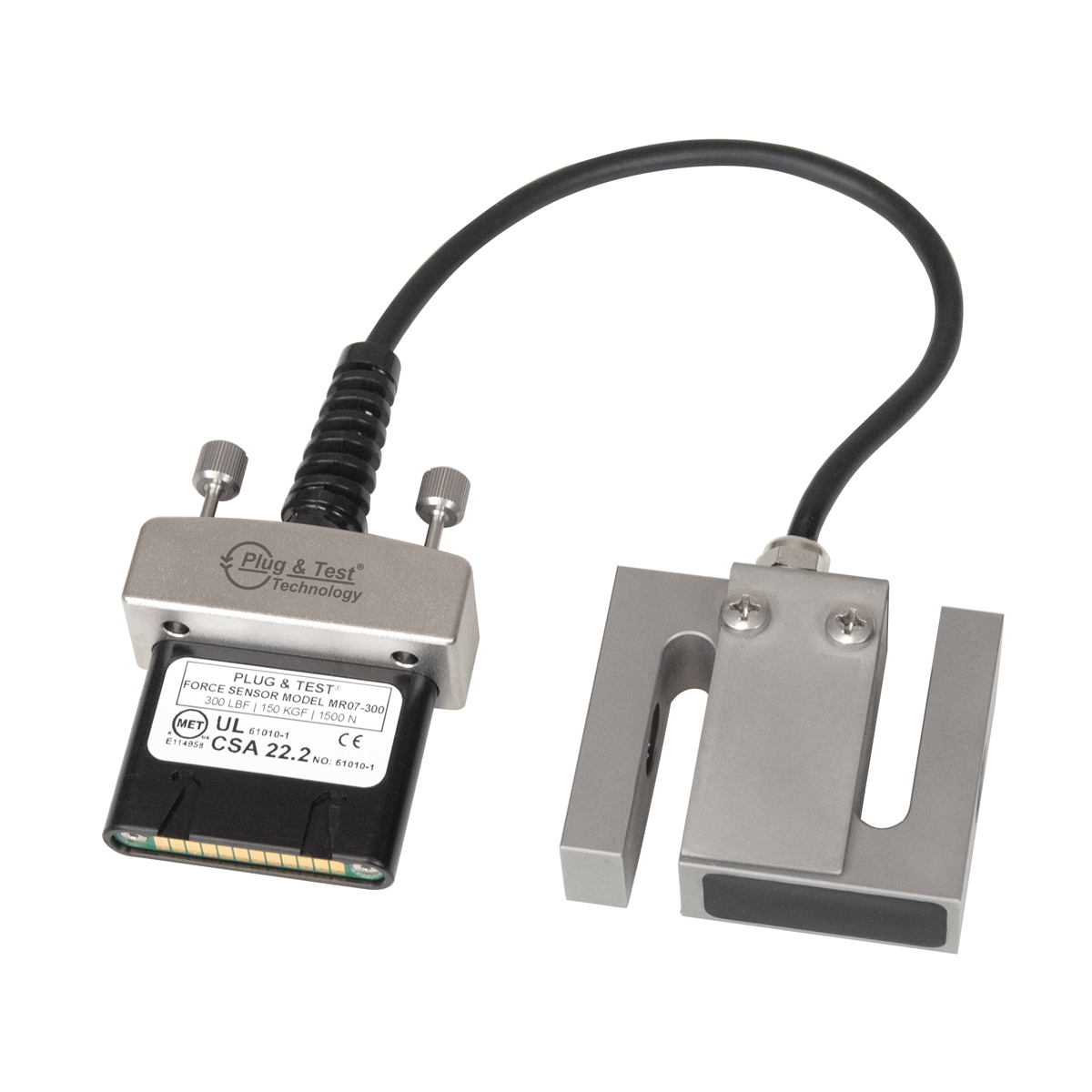

Series MR07 force sensors measure tension and compression forces, and are designed for Series F test frames. With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter: AC1083 required).

Ranges available from 50 to 1,500 lbF [250 N to 7.5 kN].

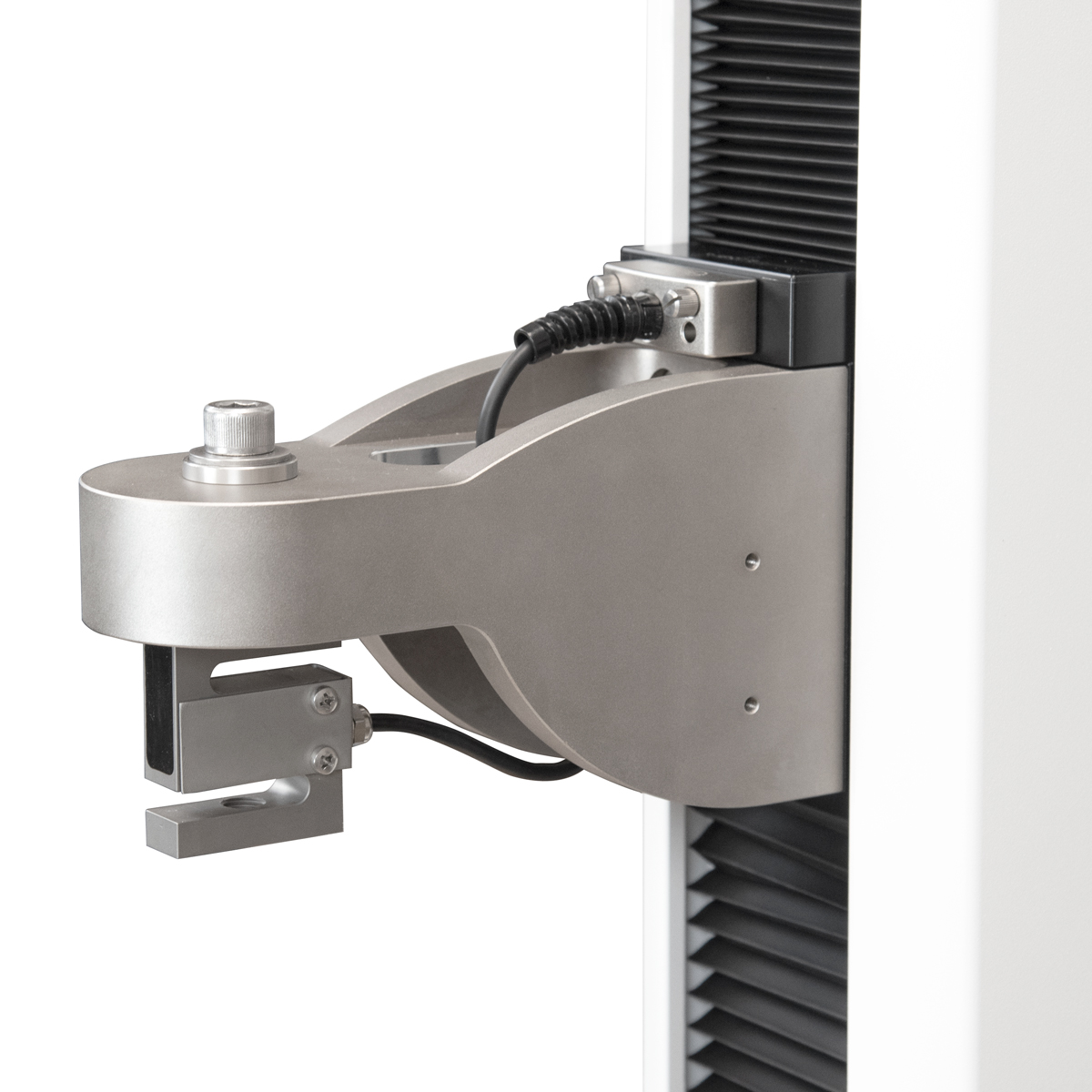

Compatible with Models F755, F755S, F1505, and F1505S test frames. Not compatible with Models F105, F305, F505, and F505H.

Features

  • NIST-traceable certificate of calibration included
  • Measure tension and compression force
  • Compatible with Models F755, F755S, F1505, and F1505S test frames
  • Warranty: 3 years

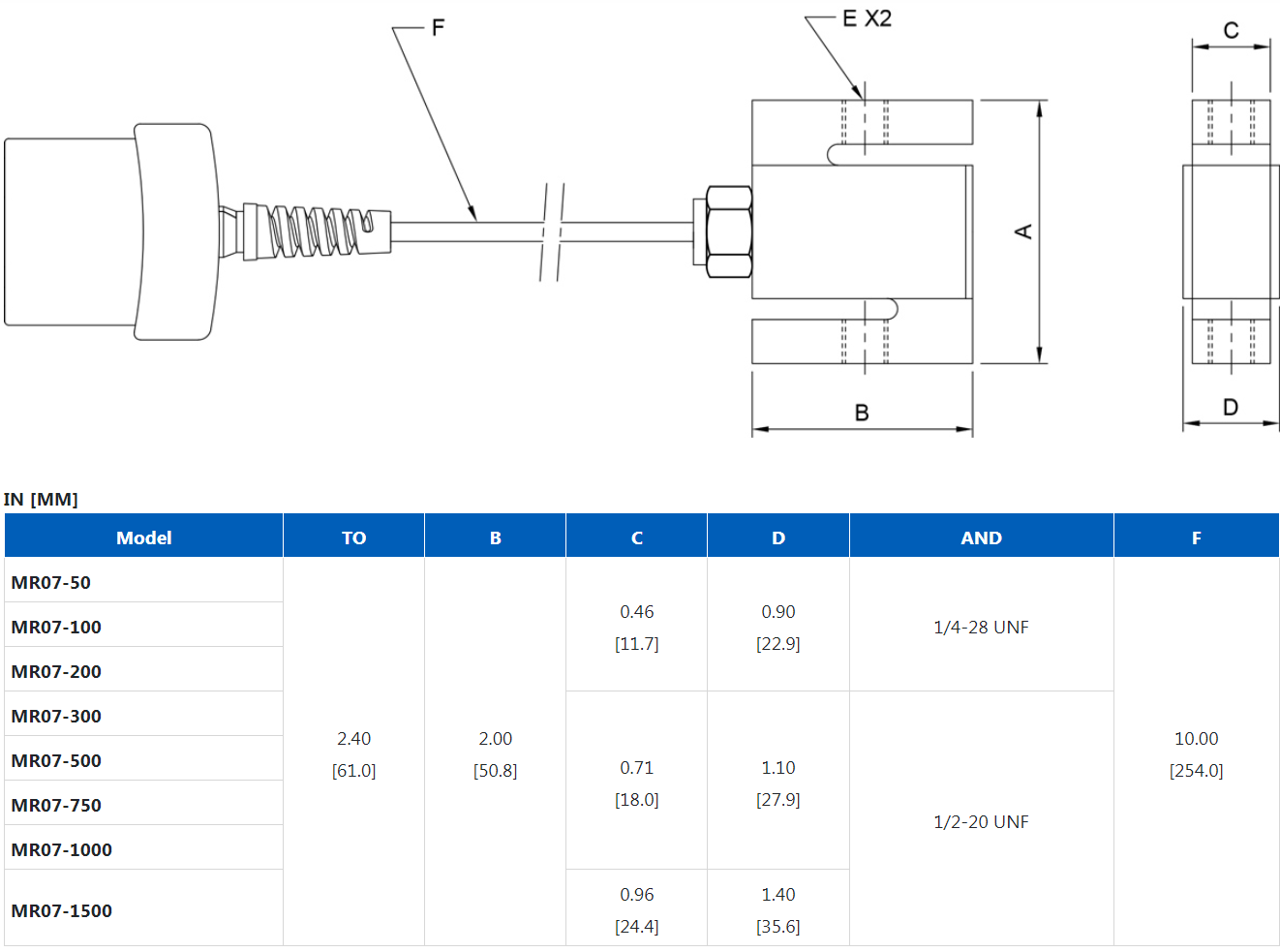

Dimensions


Related Products

EasyMESUR Test Frame
Click image for more info
EasyMESUR Tension and Compression Test Frame - Low Range
Mark-10 EasyMESUR Test Frame
Click image for more info
EasyMESUR Tension and Compression Test Frame - High Range
Mark-10 Series F Test Stand
Click image for more info
F105 / F305 / F505 / F505H IntelliMESUR Force Test Frame
Mark-10 Series F
Click image for more info
F755 / F755S / F1505 / F1505S Mark-10 IntelliMESUR Test Frame
Series FS05 Sensor
Click image for more info
Tension and Compression Force Sensors
- Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables
FS06 force sensor
Click image for more info
Force Sensors for F105, F305, F505, and F505H test frames
- Compatible with Model F105, F305, F505, and F505H test frames

Specifications

Accuracy± 0.15% of full scale ±1 digit + indicator
Safe Overload150% of full scale
WeightMR07-50 – MR07-200: 1 lbs [0.5 kg]
MR07-300 – MR07-1000: 2 lbs [0.9 kg]
MR07-1500: 3 lbs [1.4 kg]
Warranty3 Years

Downloads

Buy Now

Item Description Price
Force sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N
$800.00
Force sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N
$800.00
Force sensor, 200 lbF / 3200 ozF / 100 kgF / 1000 N / 1 kN
$800.00
Force sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN
$800.00
MR07-500
Force sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN
$800.00
Force sensor, 750 lbF / 12000 ozF / 375 kgF / 3750 N / 3.75 kN
$800.00
Force sensor,1000lbf / 16000ozf, 500kgF, 5000N / 5Kn
$800.00
Force sensor, 1500 lbF / 24000 ozF / 750 kgF / 7500 N / 7.5 kN
$800.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
* Add suffix “-1” for shortened cable, for use on the ESM1500LC test stand. Ex: MR01-1000-1.

“-1” sensors include hardware for mounting to the ESM1500LC's crosshead.
