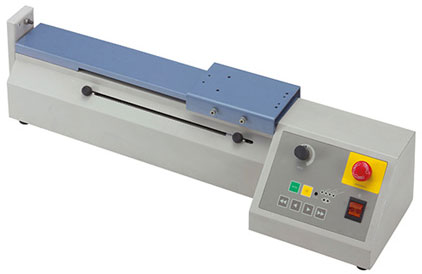

MH-275 Motorized Horizontal Test Stand

Click images to enlarge.
2 Models Available
MH-275 - With Auto Cycle & Force Control
MH-275-S - With Auto Cycle, Force Control & Distance Meter

The new MH-275 motorized test stand is designed for tension, compression, and friction testing. Combination of screw system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range. Speed control, quick return and emergency stop are standard features.

The MH-275 accepts the DPS, Z2 & ZP force gauges, additional models require the AP-002 adapter plate.

High/Low Setpoint Force Control
When the force value reaches the Low setpoint, force control is activated to hold the tension or compression force between the High and Low setpoints programmed on the Imada Z Series force gauge. Use the optional digital timer to program the duration of the hold, up to 100 minutes in 1second increments. Ideal for non-destructive testing.

High Setpoint Force Control
When the force value reaches the Low setpoint, speed is reduced to the test speed set by the Speed Adjust Knob, and when the tension or compression force value reaches the High setpoint programmed on the Imada Z Series force gauge, the test stops. Ideal for creep testing.

Speed control, quick return and emergency stop are standard features. The MH-275 accepts any of the standard range Imada force gauges. Optional timer and digital distance meter available.

*FORCE GAUGE NOT INCLUDED
Designed to work with the DPS, Z2 & ZP force gauges.

Features

  • One stand for both compression (push) and tension (pull) tests
  • Jog, Single Cycle, Continuous Cycle(72 hour max.), Force Control
  • Digital Distance Meter Optional
  • No programming required
  • Combination of screw drive system and high performance brushless motor provides extremely smooth and powerful operation over the entire speed range.
  • Conditional Overload Prevention

Speed Ranges

Standard Speed 0.3 – 7 in/min
(10 - 292 mm/min)
Low Speed 0.2 - 4.2 in/min
(18 - 584 mm/min)
High Speed 0.6 - 15.7 in/min
(38 - 1194 mm/min)

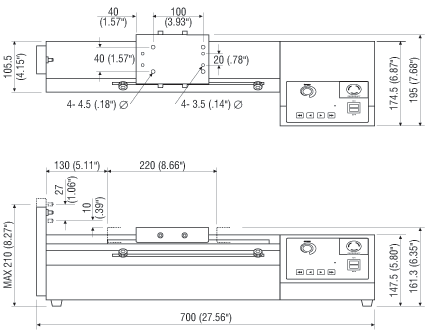

Dimensions

Related Products

Click image for more info
Z2
Digital Force Gauge
- Output signals (RS 232 C, analog and Mitutoyo Digimatic)
DST Digital Force Gauge
Click image for more info
DST
Digital Force Gauge
- Backlit LCD display with user-friendly menus
- 30,000/sec sampling rate
- USB and RS-232C output

Specifications

Capacity275 lbs / 125 Kg / 1250 N
Stroke11.2" / 285 mm
Travel RateRefer to Speed Ranges above
Weight31 lbs / 14 Kg
Compatible GaugesDS2, Z2 and ZP
Warranty2 years

Buy Now

Item Description Price
MH-275 Horizontal Test Stand with Auto Cycle & Force Control
$4,653.00
MH-275 Horizontal Test Stand with Auto Cycle & Force Control fitted with Distance Meter option
$5,500.00
Accessories
LS
Low Speed Option
$0.00
HS
Hardened Steel Rollers
$200.00
LED-SI
LED Speed Indicator
$400.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
