The DPS has been replaced by the DST Force Gauge
Click here to go to the DS2 Web Page

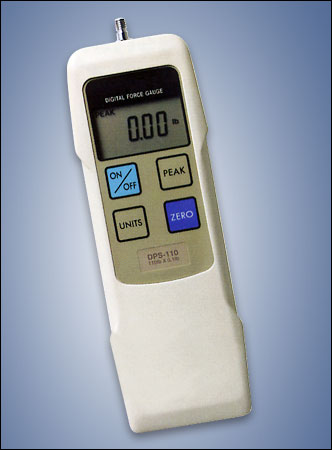

The DPS series represent the latest technology in an affordable, feature packed instrument. The rugged metal housing is ergonomically designed to fit your hand, yet durable enough to withstand harsh industrial environments. The easy to read display tells you at a glance the unit of force measurement (lb, kg, or Newtons), tension or compression, if you are in Peak Mode, and whether the built-in NiCad batteries are low. The standard outputs (RS-232C, Digimatic, and ±1VDC analog) allow you to capture data for permanent record. Choose the range or ranges that best suit your needs. All DPS gauges can be run on the internal NiCad batteries or the AC adapter/charger.
- Real time and peak mode (selectable)
- RS-232C, Digimatic and analog outputs
- 2 Year Warranty
- lb, kg, and Newton units are push-button selectable
- Ergonomic, heavy-duty metal construction
- Overload alarm, low battery display indicator
- Runs on internal NiCad batteries or AC adapter
- Overload capacity 200% F.S.
- Supplied with NIST-Traceable Calibration certificate
| Model | Capacity | Resolution |
|---|---|---|
| DPS-0.5 | 8.819 oz 250 g 2.452 N | 0.01 oz 0.1 g 0.001 N |
| DPS-1 | 17.64 oz 500 g 4.903 N | 0.01 oz 0.1 g 0.001 N |
| DPS-4 | 4.409 lb 2 KG 19.61 N | 0.001 lb 0.001 Kg 0.01 N |
| DPS-11 | 11.02 lb 5 Kg 49.03 N | 0.01 lb 0.001 kg 0.01 N |
| DPS-44 | 44.09 lb 20 Kg 196.1 N | 0.01 lb 0.01 kg 0.1 N |
| DPS-110 | 110.2 lb 50 Kg 490.3 N | 0.1 lb 0.01 kg 0.1 N |
| DPS-220 | 220.5 lb 100 Kg 980.6 N | 0.1 lb 0.1 kg 0.1 N |
Note:
Use an "R" suffix for reverse display units (for use on vertical test stands)
Use an "R" suffix for reverse display units (for use on vertical test stands)
All DPS gauges are sold as a complete in kit including gauge, hard plastic carrying case, attachments (flat head, conical, chisel, notched, small hook and extension rod) calibration certificate and AC adapter/charger.
| Accuracy: | ± 0.2% Full scale ± 1 digit |
| Selectable units | Pounds, Kilograms or Newtons |
| Display: | 4 digit, 12 mm high |
| Overload capacity: | 200% Full scale, display flashes beyond 105% full scale |
| Display Update | 20 times per second |
| Outputs | RS-232, Mitutoyo Digimatic and ±1 VDC analog output |
| Displacement at full scale capacity | 0.10 mm |
| Temperature range: | 5 - 45°C |
| Air humidity: | 85% RH, max. |
| Low battery indicator: | Display flashes when battery is low |
| Power supply: | Rechargeable NiCad battery pack or AC adapter |
| Housing dimension: | 215 x 65 x 51 mm (L x W x H) |
| Weight, net (gross) | approx. 430 g (1300 g) |
| Warranty | 2 Years |
| Item | Description | Price | ||
|---|---|---|---|---|
| Accessories | ||||
Data Acquistion Software for DS2, DPSH (CD-ROM) | $199.00 | |||
OH-1 | Double Sided Handle For Force Gauges up to 220 lbf / 100kg | $104.50 | ||
CB-203 | RS-232 Serial Output Cable | $93.50 | ||
