TSF High Capacity Test Stand

Made in USA

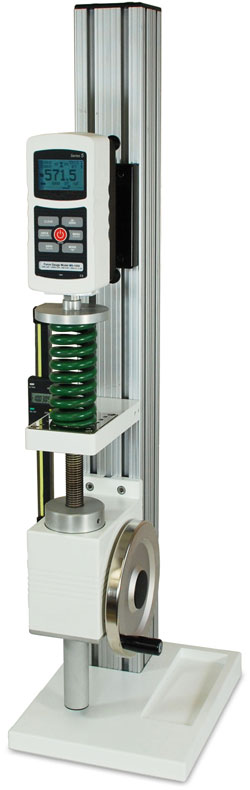

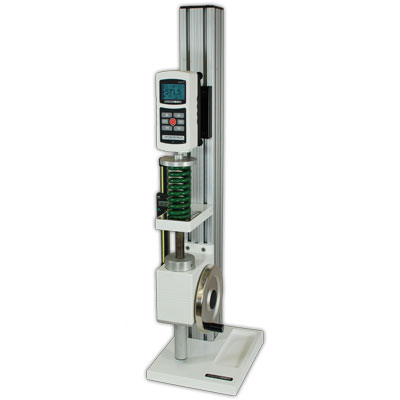

TSF Force Test Stand
Click images to enlarge.
The TSF Force Measurement Test Stand is ideal for spring testing, destructive testing, product integrity testing, and other applications requiring up to 1,000 lb (5,000 N) of push or pull force.

The stand features a large side mounted hand wheel requiring minimal user effort and a rigid 3” x 3” column. A removable steel loading surface with threaded holes for fixture and grip mounting adds flexibility for many testing applications, and a solid metal base contains a storage pocket and holes for bench mounting. Use the TSF with a M5-1000 digital force gauge to form a complete high capacity testing system.

*Show with optional equipment. Force Gauge, Digital Display and Grips are sold separately

Features

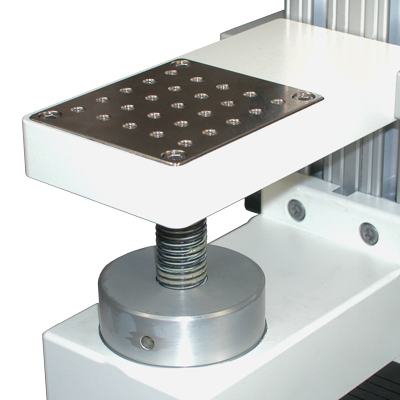

  • Loading table with 25 #10-32 UNF holes for fixture mounting
  • Smooth hand wheel operation

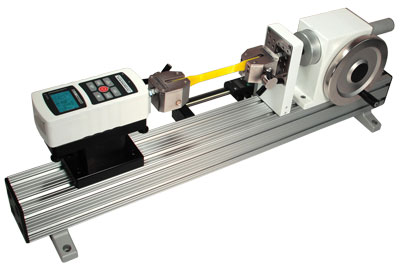

  • Available in vertical and horizontal orientations.

Related Products

M3 Digital Force Gauge
Click image for more info
Digital Force Gauge
- Includes traceable calibration certificate without data.
NIST traceable calibration certificate with data andISO-17025 certificate option is available
- High-speed 2,000 Hz sampling rate
Click image for more info
High Capacity Test Stand
- Precision Acme screw and nut
M5 Digital Force Gauge
Click image for more info
Advanced Digital Force Gauge - Model M5
- High-speed 7,000 Hz peak sampling rate
- 1,000-point data memory with statistics and outputs

PC Connection

Force gauges with data output include a USB cable, which can be connected directly to a PC. If the TSF001 digital travel display option is ordered and connection to a PC is desired, the following connection cables are required: Travel display (Mitutoyo) <=> 09-1066 cable, Mitutoyo <=> MRS100A converter, Mitutoyo to RS-232 <=> RSU100 converter, RS-232 to USB (optional)

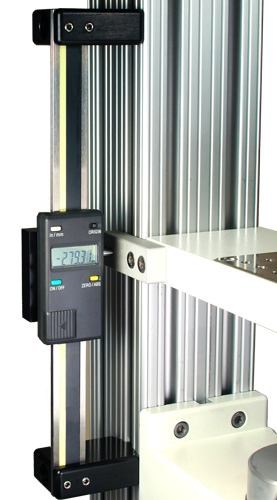

Optional Digital travel display

TSF Force Test Stand6" [150 mm] travel, 0.0005" [0.01 mm] resolution, SPC output for automated data collection. For output of travel data to a PC, the following items are required: 09-1066 cable and MRS100A communication adapter. Note: continuous data output rate is limited to 2 Hz.

Because load cell deflection and system deflection are present and not automatically compensated for, this equipment is recommended for applications requiring at least 0.2 in [5 mm] of travel distance.

What's in the box

items supplied with TSF

The TSF and TSFH test stands are shipped as shown at left, and include the following accessories:

(1) G1028 small hook
(1) G1038 medium hook
(1) G1035 large hook
(1) G1042 extra large hook
(1) G1009 compression plate, 2” dia.
(1) G1009-1 compression plate, 3” dia.
(2) #10-32 stud with jam nuts
(1) 1/2-20F adapter plate
(4) Thumb screw for force gauges with 0.12 - 500 lbF capacities
(4) Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
(1) Allen wrench set
(1) Resource CD
(1) Base (TSF)
(2) Mounting leg with hardware (TSFH)
(1) Additional column cap with hardware (TSFH)

Specifications

Capacity1,000lbs (4.5Kn)
Stroke4.00" (102 mm)
Travel Rate0.013" (0.34 mm)/wheel rev
DimensionsRefer to dimensions above
Weight25 lbs (11.4kg)
Compatible GaugesSeries 3, Series 5,
Warranty3 years

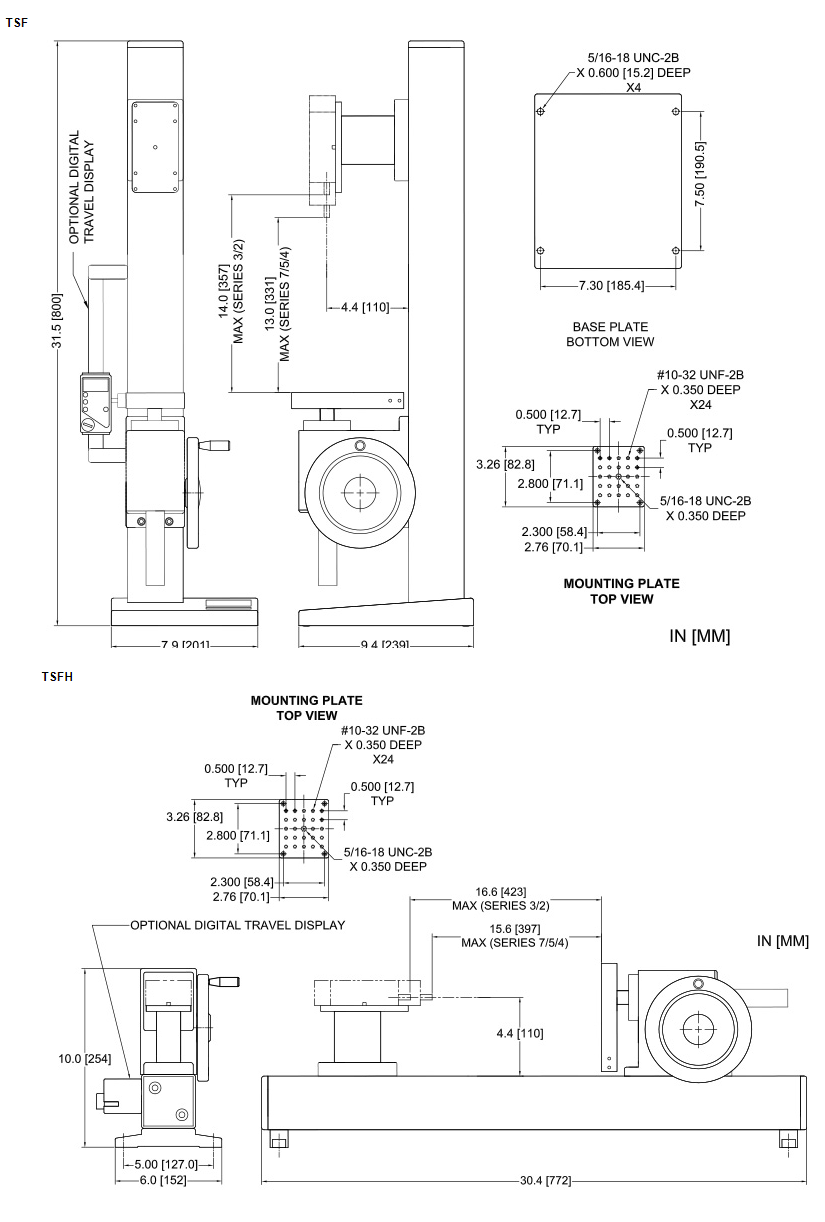

Dimensions

Standard Accessories

The TSF / TSFH is supplied with four hooks (small, medium, large, and extra large), 1/2-20F adapter plate, 2" and 3" compression plates, two couplers (#10-32 coupler and 5/16-18), and wrench set.

Downloads

Buy Now

Item Description Price
Vertical Manual Hand-Wheel Test Stand, 1000 lb / 500 kg / 5000 N Capacity
$2,375.00
Horizontal Manual Hand-Wheel Test Stand, 1000 lb / 500 kg / 5000 N Capacity
$2,375.00
Accessories
TSF001
Digital travel display for Series TSF stands, 6" / 150 mm
$890.00
TSF002
Horizontal/wall mounting kit for Series TSF and TST stands
$245.00
SP-2735-12
Column extension, 12 in. / 305 mm, TSF/TSFH
$270.00
SP-2735-24
Column extension, 24 in. / 610 mm, TSF/TSFH
$410.00
SP-2735-42
Column extension, 42 in. / 1065 mm, TSF/TS
$610.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
Unavailable
Column extension - $125.00 base + $10.00 per inch
