TSC1000 High Capacity Test Stand

Made in USA
TSC1000 Force Test Stand
Click images to enlarge.

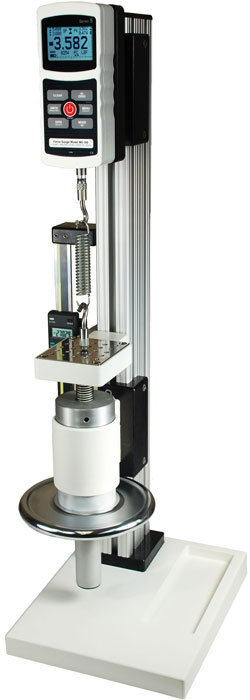

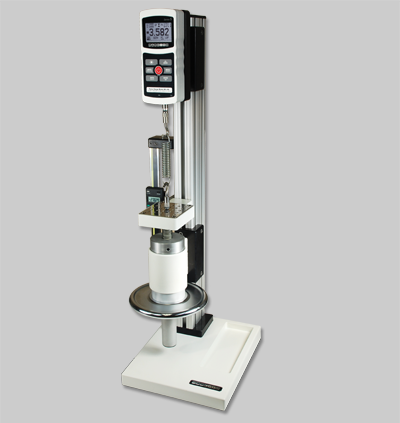

TSC1000 - Vertical

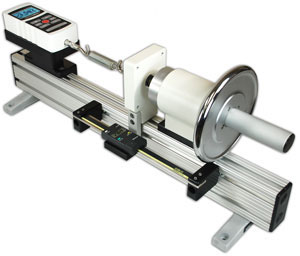

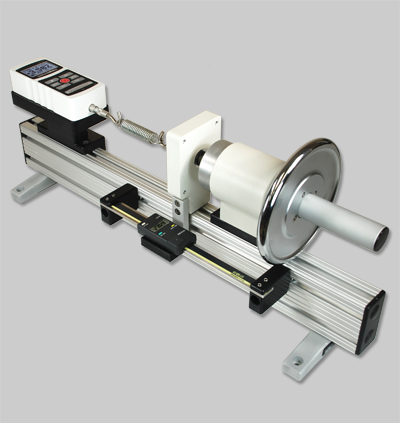

TSC1000H - Horizontal

The TSC1000 Force Measurement Test Stand is ruggedly built for testing up to 1,000 lb of compression or tension force.

TSC1000H Force Test StandA large hand wheel requires little effort, even at high loads, and a precision Acme screw and nut ensure smooth operation over time. The stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base contains a storage pocket and holes for bench mounting. Available in vertical and horizontal orientations.

Compatible with the following gauges, Series-3, Series-4, Series-5 *Show with optional equipment. Force Gauge, Digital Display and Grips are sold separately


  • Mounting holes for bench mounting

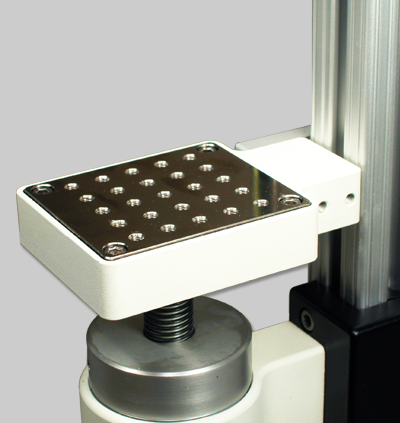

  • Loading table with 25 #10-32 UNF holes for fixture mounting
  • Precision Acme screw and nut

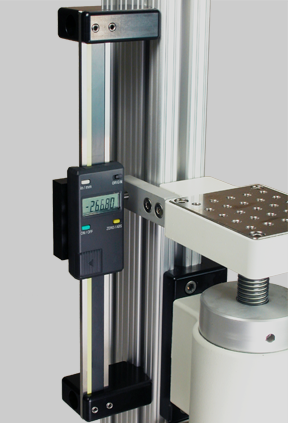

  • Optional digital travel display

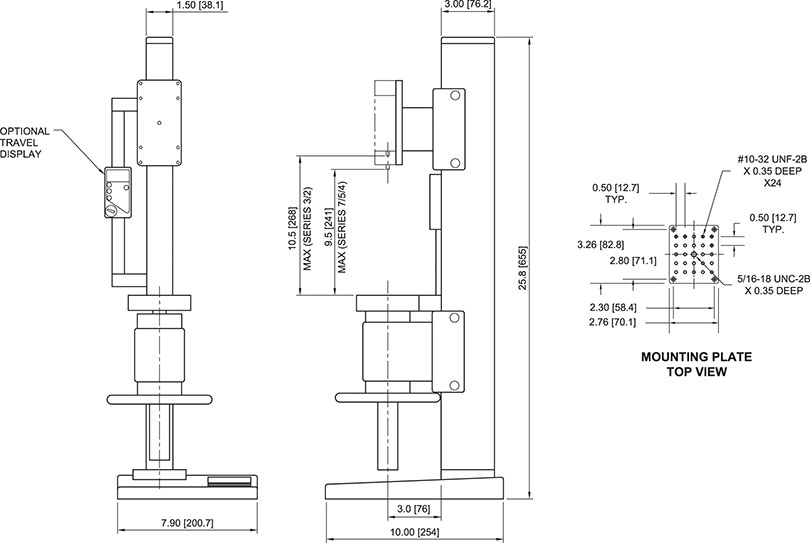

TSC1000H Force Test Stand dimensions

Related Products

M3 Digital Force Gauge
Click image for more info
Digital Force Gauge
- Includes traceable calibration certificate without data.
NIST traceable calibration certificate with data andISO-17025 certificate option is available
- High-speed 2,000 Hz sampling rate
M4 DIgital Force Gauge
Click image for more info
Digital Force Gauge with Output
- USB, RS-232, Mitutoyo, and analog outputs
- 3,000 Hz peak sampling rate
M5 Digital Force Gauge
Click image for more info
Advanced Digital Force Gauge - Model M5
- High-speed 7,000 Hz peak sampling rate
- 1,000-point data memory with statistics and outputs
TSF Force Test Stand
Click image for more info
High Capacity Test Stand
- Smooth hand wheel operation
- Available in vertical and horizontal orientations.

PC Connection

Force gauges with data output include a USB cable, which can be connected directly to a PC. If the TSC001 digital travel display option is ordered and connection to a PC is desired, the following connection cables are required: Travel display (Mitutoyo) <=> 09-1066 cable, Mitutoyo <=> MRS100A converter, Mitutoyo to RS-232 <=> RSU100 converter, RS-232 to USB (optional)

Optional Digital travel display

TSF Force Test Stand6" [150 mm] travel, 0.0005" [0.01 mm] resolution, SPC output for automated data collection. For output of travel data to a PC, the following items are required: 09-1066 cable and MRS100A communication adapter. Note: continuous data output rate is limited to 2 Hz.

Because load cell deflection and system deflection are present and not automatically compensated for, this equipment is recommended for applications requiring at least 0.2 in [5 mm] of travel distance.

What's in the Box?

tsc1000 included accessories The TSC1000 and TSC1000H test stands are shipped as shown at left, and include the following accessories:

(1) G1028 small hook
(1) G1038 medium hook
(1) G1009 compression plate, 2” dia.
(1) G1030 thread adapter, 5/16-18M to #10-32F
(1) G1044 adapter plate
(1) Allen wrench set
(2) #10-32 M/M stud with jam nuts
(4) Thumb screw for force gauges with 0.12 - 500 lbF capacities
(4) Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
(1) Resource CD
(1) Base (TSC1000)
(2) Mounting leg with hardware (TSC1000H)
(1) Additional column cap with hardware (TSC1000H)


Capacity1,000lbs (4.5Kn)
Stroke3.5" (89mm)
Travel Rate0.1" (2.54mm) per rev
Dimensions6"W x 8"D x 26"H (152mm x 203 mm x 660mm)
Weight25 lbs (11.4kg)
Compatible GaugesMG, BG and CG
Warranty3 years
