FGS-50S Manual Lever Test Stand

Made in Japan

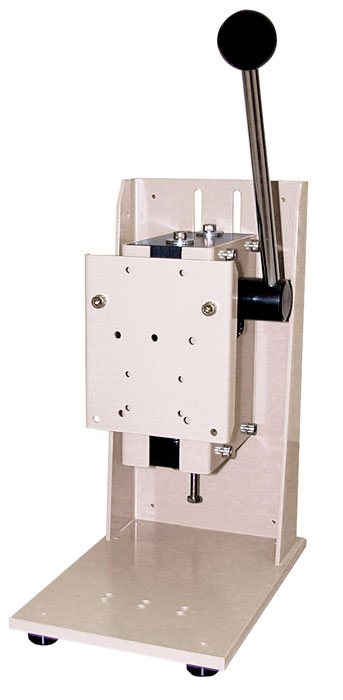

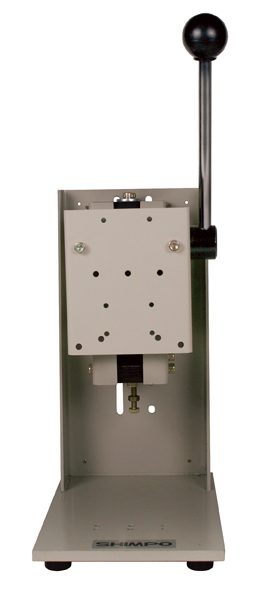

FGS-50S test stand
Click images to enlarge.

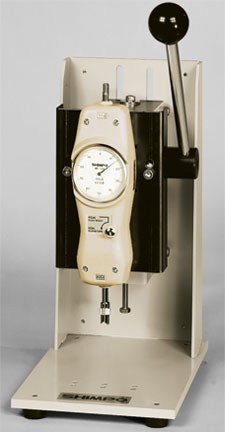

The FGS-50S manual lever test stand is designed to provide accurate and repeatable test results with the addition of a digital or mechanical force gauge. It's compact design is ideal for a wide range compression force testing applications up to 50 lbf / 22 Kg.

Formerly part number FGS-5S

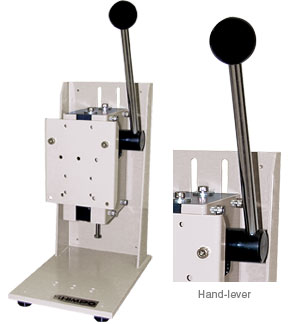

  • Manual lever operation for compression (push) measurements
  • Adjustable stroke with stop screws: max. 2" (50 mm)
  • Large platform base accepts special attachments
  • Max. capacity 50 lbs / 22 kg
  • Fixed position (clearance)in 3 steps: 40, 70, 100 mm
  • Sturdy all steel construction allows exceptional durability and extended life of the product

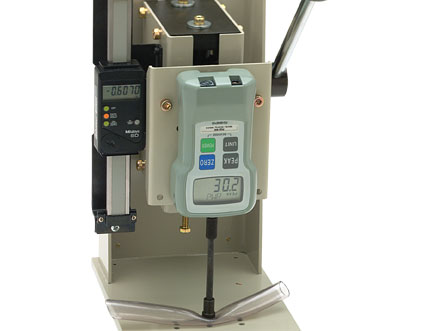

  • Optional digital length meter added to stand creates deflection measurement testing for applications such as spring rate testing


Capacity:50 lbf / 22 kg / 200 N
Stroke:1.97” (50 mm)

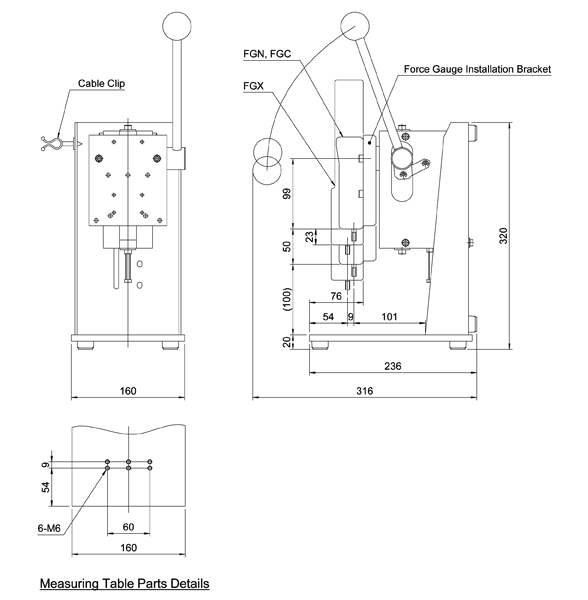

Dimensions:150 x 240 x 320 mm (L x W x H)
Weight22 lbsapprox. 25 lbs
Warranty1 year
