136-3P Carrier Rope Tension Meter

Made in Germany
carrier rope tension meter
Click images to enlarge.
The CHECK-LINE model 136-3P Tension Meter accurately measures tension on braided carrier ropes used in the paper making process.. even at speeds up to 3000 meters/min. Large, ball-bearing mounted rollers insure the ropes of different diameters run smoothly through the tension meter.

Special overload protection is provided to withstand the repetitive shock each time the splice in the continuous loop passes over the roller.

Tension ranges of 20, 30 and 50Kg are typical, however many other ranges are available.


  • Measures accurately on ropes of all diameters
  • Easy material threading - rollers all on one side
  • High overload capacity
  • Water-resistant design
  • Measurement is quick, easy and SAFE since the operator simply presses the 3 rollers on to the same side of the carrier rope.

Related Products

Click image for more info
Analog Tension Indicator with Built-In Amplifier
- Provides 0-1 VDC analog output for recording purposes
- Zero adjustment compensates for all measurement positions
- Three amplification settings are user-selected to provide maximum display resolution
Click image for more info
Digital Tension Indicator with Built-In Amplifier
- Convenient one-hand operation
- Tension values can scaled to a wide variety of engineering units
- Automatic zero setting and Hold function with slide-switch
- Averaging Mode (0.5 sec interval)
Click image for more info
Heavy Duty Tension Meter
- Unaffected by changes in material diameter and rigidity
- Tension ranges up to 10 kN / 1000 Kgf / 2200 lbf



Accuracy± 1.5% Full Scale or better
Tension Ranges (Kg)5, 6, 10, 20, 30, 40, 50, 60, 100, 200, 300 & 500 Kg

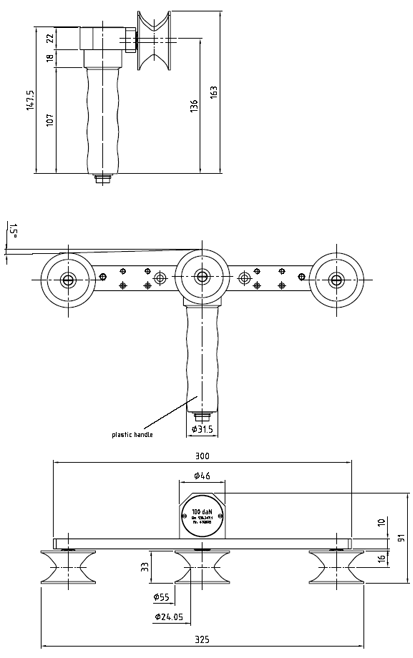

Outer Roller Spacing (c:c)200, 300, 400 or 500 mm
Material Deflection1.5 degrees
Guide Rollers30 mm Dia., V-grooved
Roller MaterialAluminum / Steel
Overload Protection200% +


Ordering Guide

1 1363-200LB300ZS
Hand-held Tension Sensor (0-200lbs),
with splash proof protection
2 D-485-SP
Digital Tension Indicator (0-200lbs).
Calibrated to display lbs or other units.
3 136-3-CC
Aluminum Carrying Case for Tension Sensor, Indicator & Cables. Includes fitted foam inserts with lockable latches & handle.
