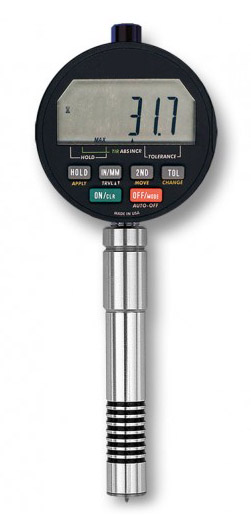

RX-DD Digital Durometer

Made in USA
RX-DD Digital Durometer
Click images to enlarge.
Available Scales: A, AO, B, C, D, DO, E, M, O, OO, OOO (Asker, ISO, DIN & JIS Scales also available, inquire)

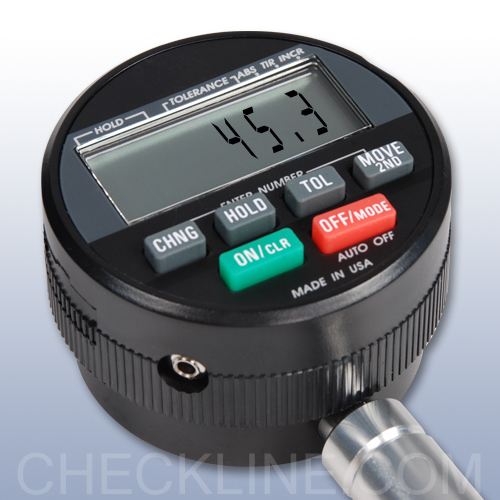

The new Check-Line RX-DD is a precision Digital Durometer ideal for laboratory use. It features a large direct drive LCD display, RS232 data ports for computer compatibility, a locking feature to prevent accidental erasure of tolerances, automatic shutoff, low battery warning, and accessories such as MTI and SPC type printers, audio attachments and software.

Type M Durometers require test stand OS-3 per ASTM D2240.

Features

  • Includes NIST-Traceable Calibration Certificate
  • High and low buttons for setting tolerance limits
  • One year warranty
  • Holds Peak reading until reset
  • 0.1 Unit Resolution
  • Supplied in custom fit carrying case
  • Conforms to ASTM D-2240

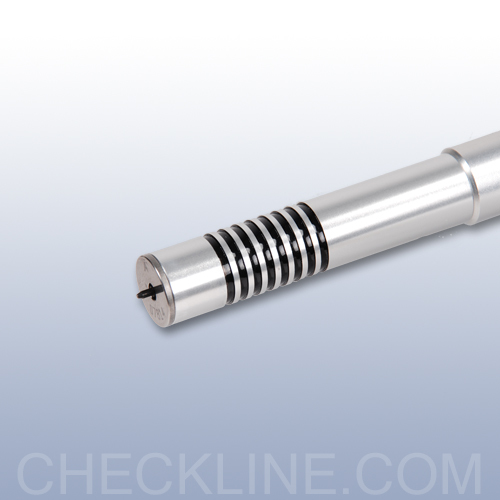

  • Optional Removable Stainless Steel Barrel for Medical and Food Applications
  • Minimum Sample Thickness -Type A = 6 mm (1/4")
    -Type M = 1.25 mm (0.050")

Related Products

RX-DD-MS Multi-Scale Durometer
Click image for more info
Digital Multi-Scale Durometer
- Digital Multi-Scale Durometer allows user to measure in a variety of scales with one guage.
Click image for more info
Test Function Of Durometers
- Enables user to perform a quick check for proper durometer operation
Click image for more info
"Big Foot" Durometer Foot Adapter
Click image for more info
Durometer Load Weight for Types A, B, O, OO & OOO
Click image for more info
Remote Readout Data Collection App
- Intuitive Android App
- Simultaneous Connection of Up to Four Devices (Durometer, Indicator, Caliper, Micrometer)

Durometer Test Stands

AD-100 Durometer mounting in optional test stand We offer a complete line of durometer test stands. The stand, when used in conjunction with a Durometer, eliminates operator error sometimes associated with hand-held durometer testing. Our stands feature a load weight for the proper testing pressure as noted in ASTM D2240, and a quick-lock column for easy adjustment. Click here for more info on Durometer Test Stands.

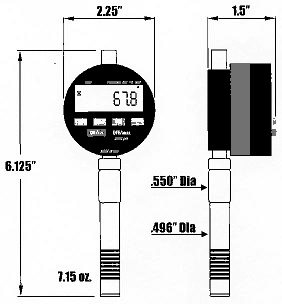

Dimensions


Complete Kit

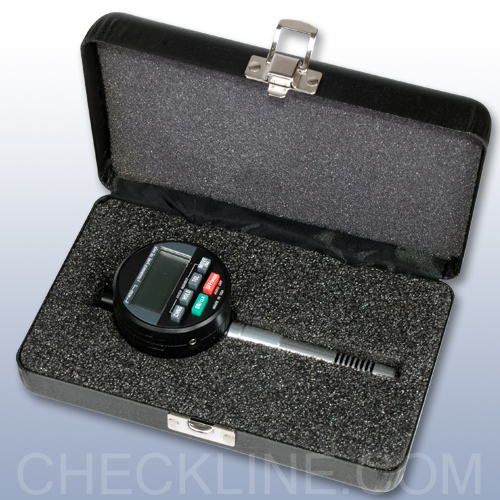

The RX-DD is supplied as a complete kit including the durometer, 115V AC adapter & instruction manual in a foam-fitted metal carrying case.
RX-DD Digital Durometer kit

Specifications

Measruing Range0 - 100 Units
Resolution0.1 Units
Accuracy*±1 durometer unit (A,B,C,D,E,O,DO)
±2 durometer units (OO,OOO)
±4 durometer units (M)
Tolerance± 0.5 at "100" and -0 +1 at "0"
Dimensions2.25" x 6.125"
Weight7.15 oz.

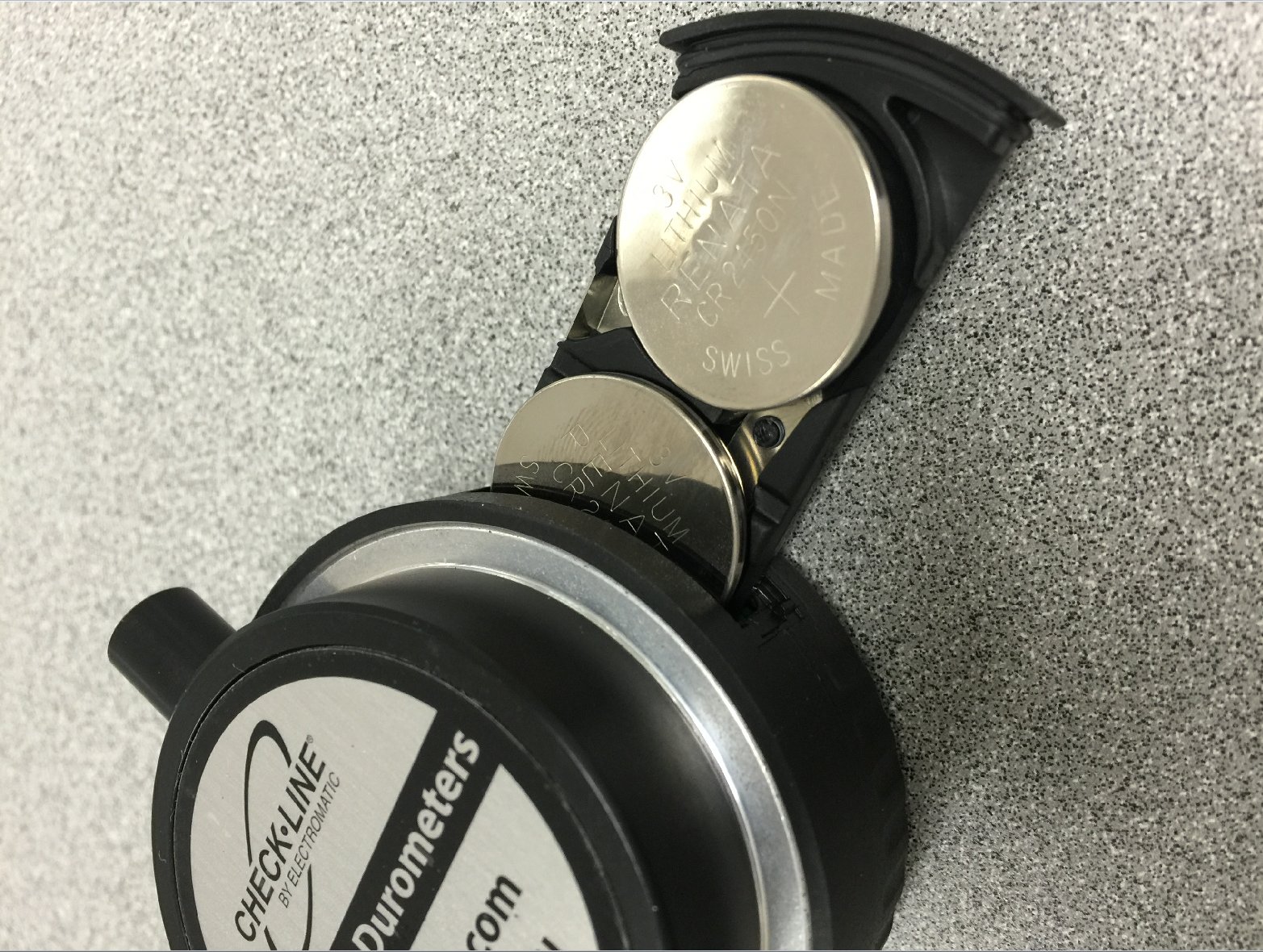

Power Supply(2) 3V CR-2450 Batteries
115V AC Adapter Included. 230V AC Adapter Optional
Warranty1 year
Mounting Thread5/16-40
* Noteper ASTM D 2240-05, Sect 9.3: It is accepted that durometer readings below 20 or above 90 are not considered reliable. It is suggested that readings in these ranges be omitted.
DD-DB1 - "Smart" USB Cable
The DD-DB1 "Smart" USB cable connects the durometer to a computer. The output of the SmartCable Keyboard is a standard USB 2.0 keyboard signal. Connecting the SmartCable Keyboard with its built-in keyboard wedge to a computer will allow the SmartCable to be identified as a keyboard device that can send data to any Microsoft Windows application - no software wedge required. The SmartCable Keyboard will make the gauge readings appear as if they were typed in using a standard keyboard - eliminates data collection errors. If you want to collect data into a Microsoft Excel spreadsheet, simply select the cell where you want the data to appear.

Downloads

Buy Now

Check the items you would like to purchase then click "Buy Now"
  Item Description Price
Type A Digital Durometer for Soft rubber, plastics and elastomers (DD-4-A)
$995.00
Type D Digital Durometer for Hard rubber and plastics (DD-4-D)
$995.00
Type B DIgital Durometer for Harder elastomers and plastics. Use above 93 A scale. (DD-4-B)
$1,040.00
Type C Digital Durometer for Medium hard elastomers and plastics (DD-4-C)
$1,040.00

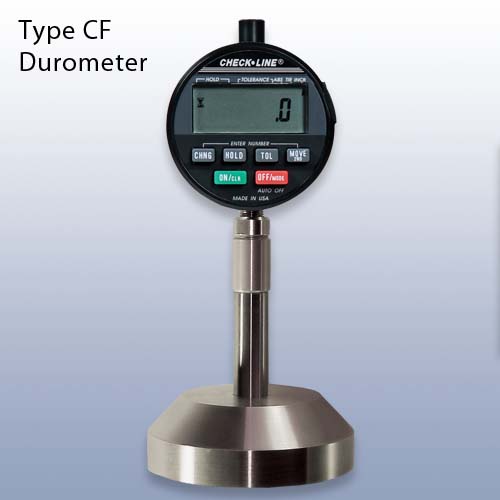

Type CF Digital Durometer for Seat Foam Hardness (DD-4-CF)
$1,495.00
Type DO Digital Durometer for Dense granular material and textile windings (DD-4-DO)
$1,040.00
Type O Digital Durometer for soft elastomers below 20 A scale (DD-4-O)
$1,040.00
Type OO Digital Durometer for Light foams, sponge rubber gels and animal tissue (DD-4-OO)
$1,040.00
Type OOO Digital Durometer for Ultra soft gels and sponge rubber (DD-4-OOO)
$1,295.00
Type M Digital Durometer for Rubber and other soft material as thin as .050" (DD-4-M)
$1,295.00

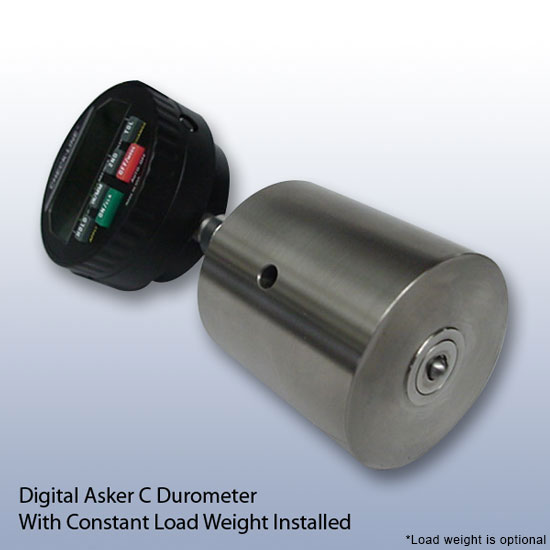

Asker C Digital Durometer with Stainless Steel Barrel normally used on sneaker foam
$1,395.00
Accessories
G11-0012
115V AC Adapter for RX-DD / DD-100 / MTG
$40.00
G11-0014
220V AC Adapter for RX-DD / DD-100 / MTG
$105.00
RSS
Upgrade to Removable Stainless Steel Barrel for Medical and Food Applications
(Must be specified at time of order, not suitable for use with RX-1600-M or RX-1600-OOO-S)
$200.00
DD-DB1
"Smart" USB Data Transfer Cable, Sends data to any Windows program with press of a button
$345.00
G13-0055
USB Data Transfer Cable from DD-100 or RX-DD Digital Durometers to a PC for transfer to a Wedge or Data Collection program purchased from a 3rd party
$95.00
DCLW-CC
Oversized Carrying Case for Durometer with Constant Load Weight Attached
$75.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
