Series-4 Digital Force Gauge with Output

Made in USA

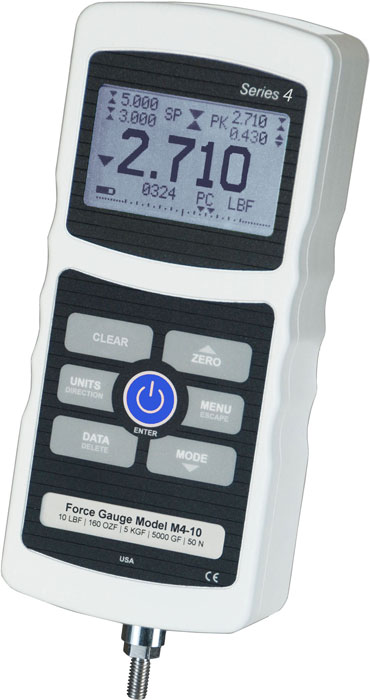

M4 DIgital Force Gauge
Click images to enlarge.
Measures Tension &
Compression Force
(Push / Pull)
11 Ranges up to 500 lbs

Series 4 digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). The gauges feature a sampling rate of 3,000 Hz, producing accurate results under a wide range of test conditions. Accuracy is ±0.2% of full scale ±1 digit, and resolution is 1/2000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 50 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

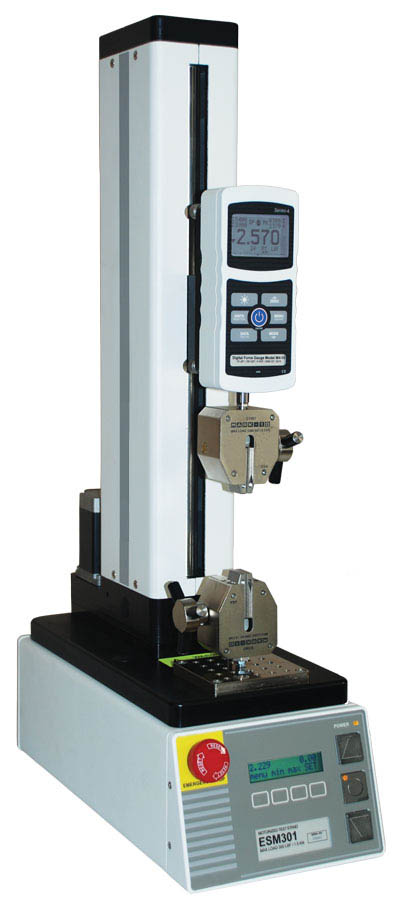

An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 4 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.

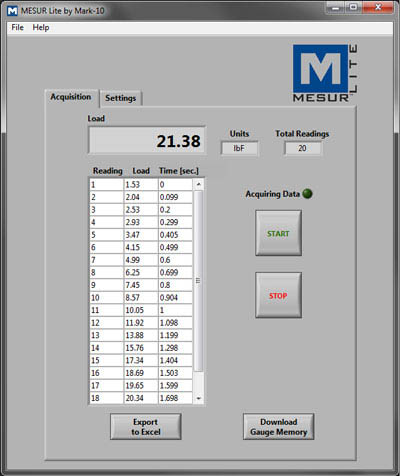

Series 4 gauges include MESUR Lite data acquisition software. MESUR Lite tabulates continuous or single point data from Series 5 and 4 gauges. Data saved in the gauge’s memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.

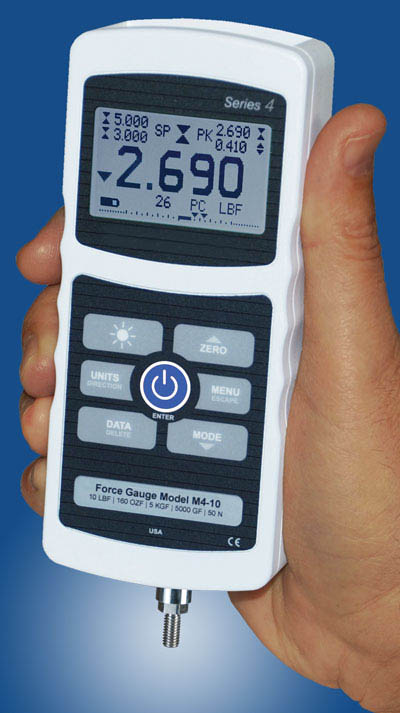

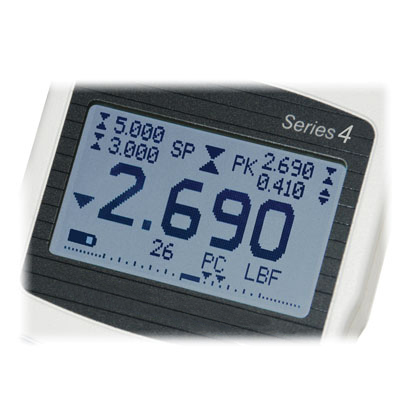

M4 force gauge display features
M5 reversible housing

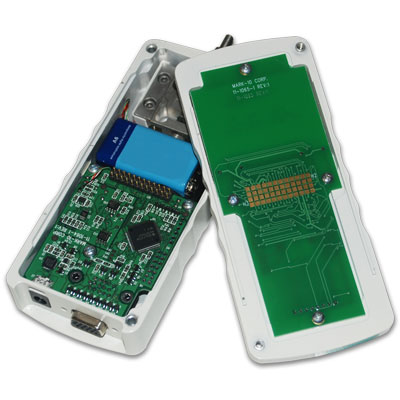

Features

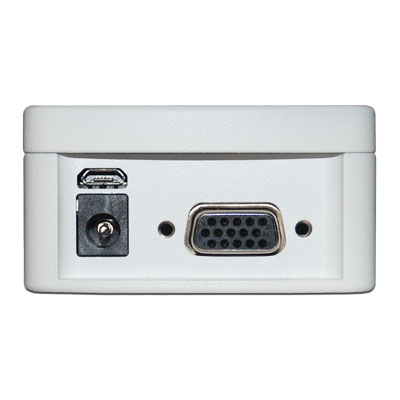

  • USB, RS-232, Mitutoyo, and analog outputs
  • 3,000 Hz peak sampling rate
  • Programmable set points with pass/fail audible and visual indicators
  • Large backlit graphic display
  • 50-point data memory with statistics and outputs
  • Live load bar graph with set point markers
  • Peak readings always displayed
  • Configurable audio alarms and key tones
  • Aluminum construction
  • Includes NIST Traceable Calibration Certificate
  • MESUR™ Lite data acquisition software is included (Requires optional Serial Cable)

Force Ranges - capacity/resolution

ModelLbOzKgGNkNmN
M4-0120.12
0.00005
2
0.001

50
0.02
0.5
0.0002

500
0.2
M4-0250.25
0.0001
4
0.002

100
0.05
1
0.0005

1000
0.5
M4-050.5
0.0002
8
0.01

250
0.1
2.5
0.001

2500
1
M4-22
0.001
32
0.02
1
0.0005
1000
0.5
10
0.005


M4-55
0.002
80
0.05
2.5
0.001
2500
1
25
0.01


M4-1010
0.005
160
0.1
5
0.002
5000
2
50
0.02


M4-2020
0.01
320
0.2
10
0.005
10000
5
100
0.05


M4-5050
0.02
800
0.5
25
0.01
25000
10
250
0.1


M4-100100
0.05
1600
1
50
0.02
50000
20
500
0.2


M4-200200
0.1
3200
2
100
0.05

1000
0.5
1
0.0005

M4-500500
0.2
8000
5
250
0.1

2500
1
2.5
0.001

Dimensions

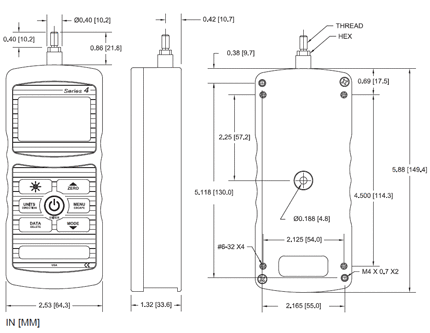

M4 force gauge dimensions
Thread Specs Thread Hex
M4-012 - M4-100 #10-32 5/16
M4-200 - M4-500 5/16-18 11/32

Included Accessories

M4-012 -M4-20 M4-50 -M4-100 M4-200 - M4-500
Extension Rods G1024 G1024 G1031
Cone G1026 G1026 G1033
Chisel G1025 G1025 G1032
V-Groove G1027 G1027 G1034
Flat G1029 G1029 G1036
Hook G1028 G1038 G1035
Coupling NA G1039 G1037

Special Attachments

Related Products

ESM303 Motorized Test Stand
Click image for more info
High Performance Motorized Test Stand, 300lb Capacity
- Adjustable Travel Speed, Standard - 0.5 - 13 in/min (13 - 330 mm/min), Optional - 0.02 - 45 in/min (0.5 - 1,100 mm/min)
- USB output of force vs. time or force vs. travel (with optional travel measurement)
ES30 test stand
Click image for more info
Precision Hand Wheel Test Stand
- 200lb Capacity
- Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting
- Removable base plate with 25 #10-32 threaded holes for fixture mounting
Click image for more info

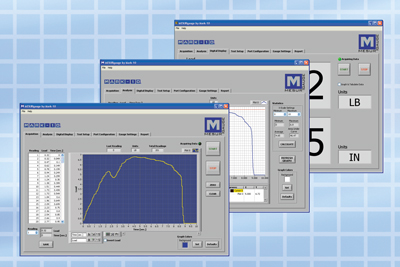

MESURgauge / MESURgauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, and ESM1500 motorized test stands, coordinating motion control and data collection with just one click
force gauge handles
Click image for more info
Single Handle & Double Handle Grips
AC1073 Inline Adapters for Force Gauges
Click image for more info
Inline Adapters for Force Gauges

Complete Kit

The Series 4 Force Gauge is supplied with a Carrying case, chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration with data

Specifications

Sampling Rate3,000 Hz
Accuracy±0.2% of Full Scale
PowerAC or rechargeable battery (NiMH). Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage.
Battery LifeBacklight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement UnitslbF,ozF,gF,kgF,N,kN,mN (depending on model)
OutputsUSB / RS-232: Fully configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatibile devices.
Analog: ±1 V
Configurable settingsDigital filters, outputs, automatic shutoff, default settings, key tones, audio alarms, calibration
Safe Overload150% of full scale (display shows "OVLD" at 110% and above)
Operating Temperature Range40 - 100°F, max. 96% humidity, non-condensating
Weight(gauge only)M4-012 - M4-100: 1.0 lb [0.45 kg]
M4-200 - M4-500: 1.2 lb [0.54 kg]
Included AccessoriesCarrying case, chisel, cone, V-groove, hook, flat, extension rod, AC adapter, battery, USB cable with driver, MESURgauge DEMO software, NIST-traceable certificate of calibration with data
Warrany3 years
