Series-3 Digital Force Gauge

Made in USA

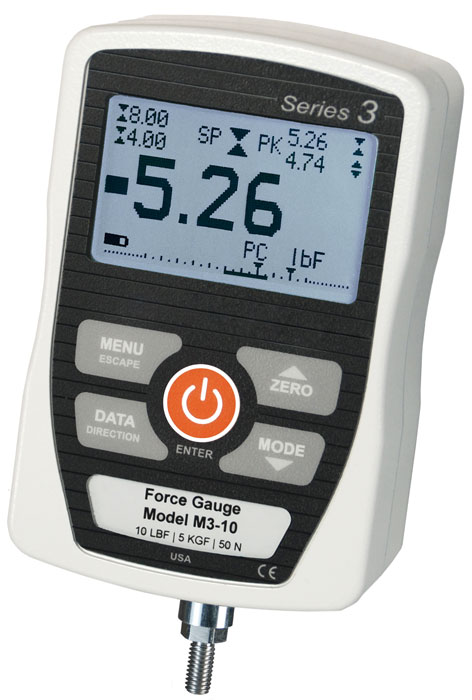

M3 Digital Force Gauge
Click images to enlarge.
The new Series 3 digital force gauges are designed for measuring tension and compression (push & pull) force testing in numerous applications from 0.12 lbF to 500 lbF (0.5 N to 2500 N). The gauges feature a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. Continuous USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

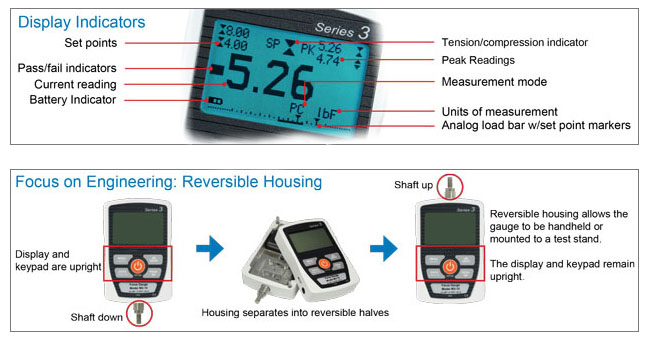

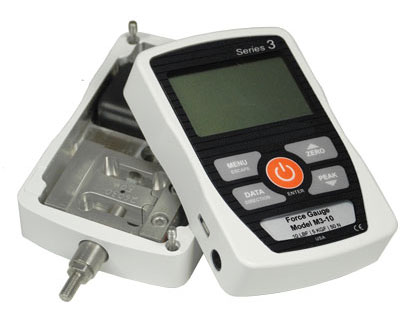

An ergonomic, reversible aluminum housing allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 3 digital force gauges are directly compatible with a wide range of test stands, grips, and software.

The gauges include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Features

  • High-speed 2,000 Hz sampling rate
  • Includes NIST Traceable Calibration Cert
  • 3 Year Warranty

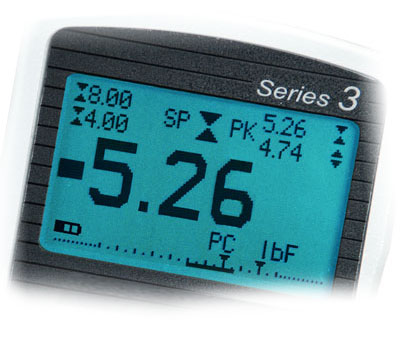

  • Large backlit graphic display

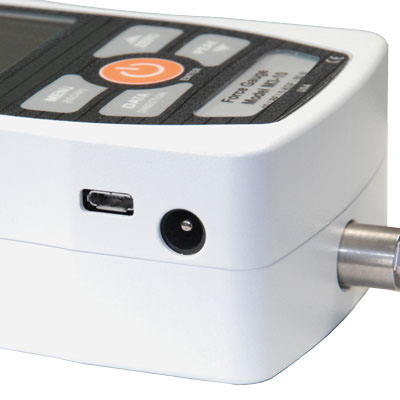

  • Continuous USB Output
  • Programmable set points with pass/fail audible and visual indicators
  • Peak readings and set points always displayed
  • Configurable audio alarms and key tones
  • 3 selectable units of measurement

Force Ranges - Capacity / Resolution

Model Lb Kg G N
M3-012 0.12
0.0001

50
0.05
0.5
0.0005
M3-025 0.25
0.0002

100
0.1
1
0.001
M3-05 0.5
0.0005

250
0.2
2.5
0.002
M3-2 2
0.002
1
0.001

10
0.01
M3-5 5
0.005
2.5
0.002

25
0.02
M3-10 10
0.01
5
0.005

50
0.05
M3-20 20
0.02
10
0.01

100
0.1
M3-50 50
0.05
25
0.02

250
0.2
M3-100 100
0.1
50
0.05

500
0.5
M3-200 200
0.2
100
0.1

1000
1
M3-500 500
0.5
250
0.2

2500
2

Complete Kit

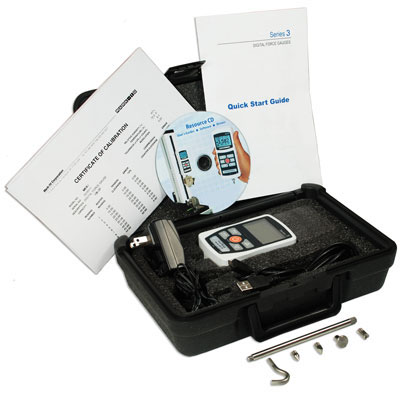

The Series 3 is supplied as a complete kit including the force gauge, carrying case, chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge)
M3 Force Gauge is supplied as a complete kit

Dimensions

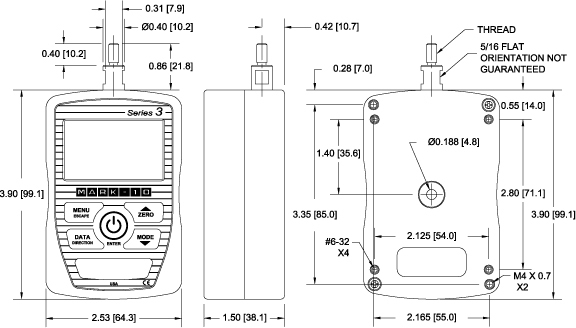

M3 force gauge dimensions
Thread
M3-012 - M3-100 #10-32 UNF
M3-200 - M3-500 5/16-18 UNC

Included Accessories

M3-012 -M3-20 M3-50 -M3-100 M3-200 - M3-500
Extension Rods G1024 G1024 G1031
Cone G1026 G1026 G1033
Chisel G1025 G1025 G1032
V-Groove G1027 G1027 G1034
Flat G1029 G1029 G1036
Hook G1028 G1038 G1035
Coupling NA G1039 G1037

Special Attachments

Related Products

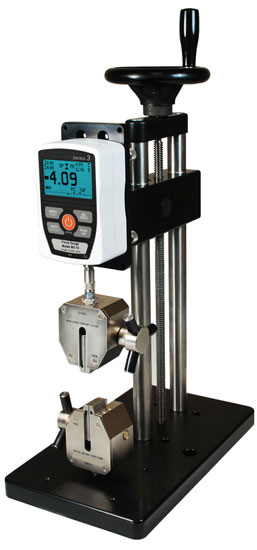

es20 force test stand
Click image for more info
Mechanical Test Stand
- Mounting holes for bench mounting
- Optional 1" [25.4mm] dial indicator travel kit
ES30 test stand
Click image for more info
Precision Hand Wheel Test Stand
- 200lb Capacity
- Modular design: base may be removed and the stand may be used as part of a larger system. It also provides for alternative mounting
- Removable base plate with 25 #10-32 threaded holes for fixture mounting
Click image for more info
Single Handle & Double Handle Grips
Mesur Lite Force Gauge Data Collection Software
Click image for more info
Basic Force Gauge Data Acquisition Software

Specifications

Accuracy:±0.3% of Full Scale
Sampling rate:2,000 Hz
Power:AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Battery Life:Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units:lbF, gF, kgF, N (depending on model)
USB Output:Continuous Output
Configurable Settings:Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe overload:150% of full scale (display shows "OVER" at 110% and above)
Operating Temperature Range40 - 100°F, max. 96% humidity, non-condensating
Weight:M3-012 - M3-100: 0.7 lb [0.33 kg]
M3-200 - M3-500: 0.9 lb [0.41 kg]
Warranty:3 years

Downloads

Buy Now

Check the items you would like to purchase then click "Buy Now"
  Item Description Price
Digital Force Gauge, 2 oz / 50 g / 0.5 N Capacity
$780.00
Digital Force Gauge, 0.25 lbs / 100 g / 1 N Capacity
$780.00
Digital Force Gauge, 0.5 lb / 250 g / 2.5 N Capacity
$780.00
Digital Force Gauge, 2 lb / 1 kg / 10 N Capacity
$630.00
Digital Force Gauge, 5 lbs / 2.5 kg / 25 N Capacity
$630.00
Digital Force Gauge, 10 lbs / 5 kg / 50 N Capacity
$630.00
Digital Force Gauge, 20 lbs / 10 kg / 100 N Capacity
$630.00
Digital Force Gauge, 50 lbs / 25 kg / 250 N Capacity
$630.00
Digital Force Gauge, 100 lbs / 50 kg / 500 N Capacity
$630.00
Digital Force Gauge, 200 lbs / 100 kg / 1000 N Capacity
$780.00
Digital Force Gauge, 500 lbs / 250 kg / 2500 N Capacity
$780.00
Accessories
NISTCAL-10PT
Upgrade Calibration Cert with 10 Data Points
$75.00
EU-PLUG
Euro type plug supplied in place of USA type plug
$0.00
Double handle grip for for Series 2/3/MG
$100.00
Single handle grip for for Series 2/3/MG
$85.00
08-1026
Spare rechargeable battery
$20.00
G1039
Coupler, #10-32F to #10-32F
$15.00
G1037
Coupler, #5/16-18F to #5/16-18F
$20.00
In stock
1 Week Lead Time (Estimated)
2-3 Week Lead Time (Estimated)
Lead Time Varies, Please contact us for availability.
