3000FX Series Coating Thickness Gauge

Made in Germany

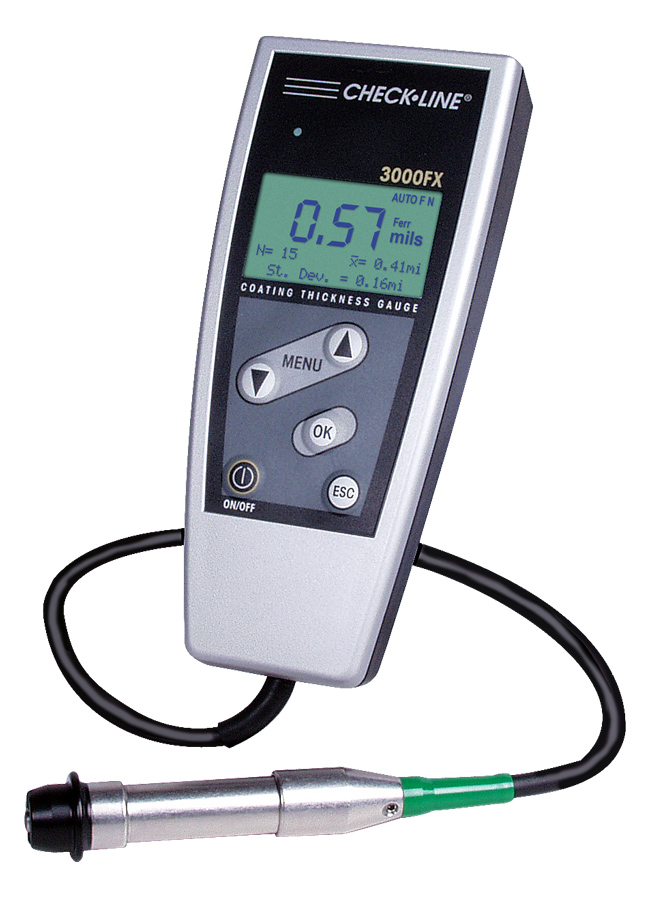

3000FX Coating Thickness Gauge
Click images to enlarge.
3 Models
DCF-3000FX
- Measures Coatings on Ferrous (steel, iron) Only
DCN-3000FX - Measures Coatings on Non-Ferrous (non-magnetic metal) Only
DCFN-3000FX - Combination Model, Measures Coatings on both Ferrous and Non-Ferrous metal

The Check-Line 3000FX Series coating thickness gauge is a powerful and precise coating thickness gauge designed for measurement of paint and non-magnetic coatings on steel and iron as well as paint and anodizing coatings on non-ferrous metals. All external probes are machined to ultra-high standards and utilize a unique, hard-metal probe tip which prevents probe wear.

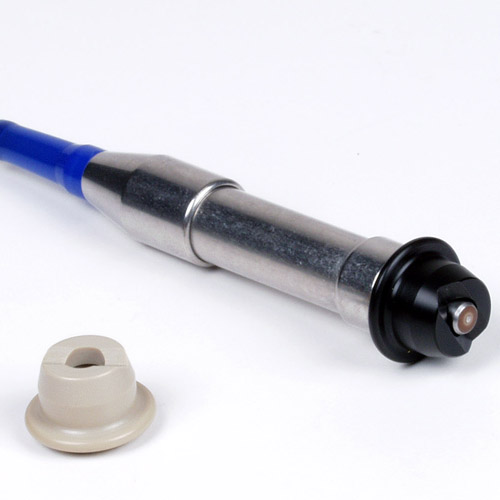

A v-notched footer provides a stable footing on small cylindrical parts, which can be removed to expose a "micro-probe" sensor perfect to measure on small surfaces and parts.

Where to use 3000FX Series?
Wherever coatings are applied – whether on visual and aesthetic grounds, to prevent corrosion protection, or for functional and mechanical reasons – the coating thickness represents an essential quality feature. The 3000FX Series is ideal for speedy, non-destructive and exceptionally precise coating thickness measurement.

Features

  • The 3000FX Series is a compact, lightweight coating thickness gauge for operators who require both innovative and user-friendly measuring techniques
  • The 3000FX Series ensures non-destructive coating thickness measurement on steel and non Ferrous metals
  • Data transfer to a printer or PC takes place via an infra-red interface
  • Up to 10 000 readings can be statistically evaluated: number of readings, mean value, standard deviation, minimum and maximum reading.
  • The 3000FX Series identifies the substrate and activates the appropriate measuring procedure.
  • Menu in a choice of three languages ensures ease of operation
  • The uniform contact pressure of the sensor is kept to a minimum, preventing scratches and indentations to sensitive surfaces.
  • Two optional high temperature footers for measuring on surfaces up to 150 °C/302 °F or up to 300 °C/572 °F
  • Traceable Certificate Included at no additional cost
  • 2 Year Warranty

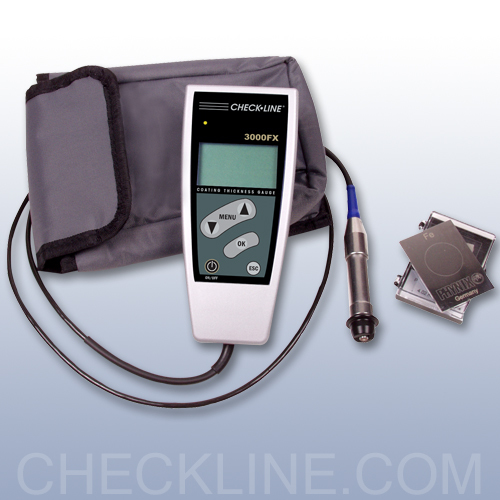

Complete Kit

The 3000FX Series is supplied as a complete kit with gauge, ferrous and or non-ferrous zero plate(model dependent), 2 calibration standards, 2 AA batteries, hard carrying case, instruction manual and calibration certificate.

Related Products

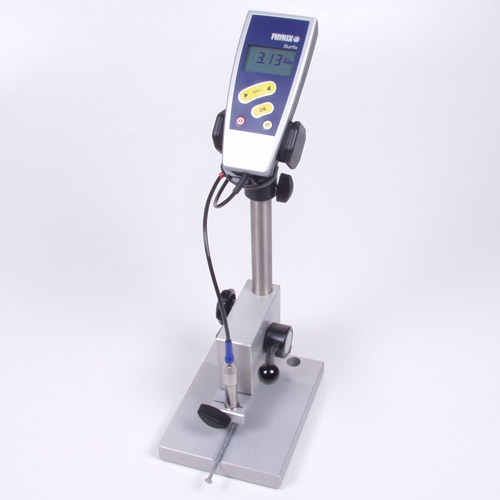

Coating Thickness Gauge Probe Stand
Click image for more info
Coating Thickness Gauge Probe Stand
- Spring loaded lever for fast & precise travel
- It's Compact size and light weight make it an Ideal test stand for all workplaces
Click image for more info
Infra-Red Printer for 3000 Series
- Infra-Red data transfer
- 16 lines/second print speed
Click image for more info
Shim Set for Coating Thickness Gauges
Certified Plastic Shims
Click image for more info
CPS
Certified Plastic Shims / Foils for Coating Thickness Gauge Calibration and Verifications

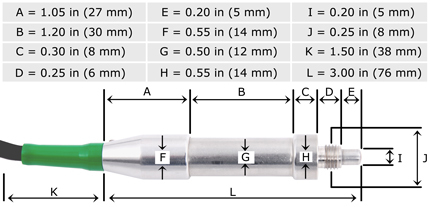

Dimensions

Measuring Limits

Minimum Radius for Convex Surfaces 0.12" (3 mm)
Minimum Radius for Concave Surfaces 0.2" (5 mm)
Minimum Headroom 4" (100 mm)
Minimum Sample Diameter 0.2" (5 mm)
Minimum Substrate Thickness - F 20 mils (0.5 mm)
Minimum Substrate Thickness - NFe 2 mils (50 um)

Resolution Table

Mils
0.00 - 9.99 mils 0.01 mils
10.00 - 24.98 mils 0.02 mils
25.00 - 49.95 mils 0.05 mils
50.0 - 60.0 mils 0.1 mils
Microns (µm)
0.0 - 99.9 µm 0.1 µm
100.0 - 249.8 µm 0.2 µm
250.0 - 499.5 µm 0.5 µm
500 - 1500 µm 1 µm

Specifications

Measuring principle:Magnetic induction principle (Ferrous)
Eddy-current principle (Non-Ferrous)
Range0 - 60.00 mils
0 - 1500 µm
Accuracy±0.04 mils / 1µm + 1% of reading
ResolutionRefer to RESOLUTION TABLE, above
Displayback-light, 4-digit alphanumeric, digit height 10mm
Minimum Measuring Area0.2" x 0.2" (5 mm x 5 mm)
Minimum Curvature Radiusconvex: 0.12" (3 mm), concave: 0.2" (5 mm)
Minimum Substrate ThicknessFerrous: 20 mils / 0.5 mm
Non-Ferrous: 2 mils / 50 µm
Calibrationfactory calibration, zero calibration, foil calibration, offset-function: addition or subtraction of a constant value
Memory80 readings
Statistics ProgramNumber of readings, mean value, standard deviation, maximum and minimum reading of max. 10,000 readings
Data OutputInfrared IrDA Standard
Operating Temp.32 °F - 122 °F / 0 °C - 50 °C
Surface Temp.5° F - 140° F / -15° C - 60° C (standard)
5° - 302° F / 15° - 150° C (w/3000-HTF)
5° - 572° F / 15° - 300° C (w/3000-HTF-300C)
Storage Temp.-4 °F to 140 °F / -20 °C to +60 °C
Power2 AA 1.5V
Dimensions5.6" x 2.5" x 1.2" (140 mm x 62 mm x 30 mm)
Weight7 oz (200 g) (gauge + probe)
Protection Class IP 52 (proof against dust and dripping water)
StandardsDIN, ISO, ASTM, BS
Warranty2 Years
Color CodingDCF =BLUE
DCN = YELLOW
DCFN = GREEN
Calibration CertificateIncluded

Downloads

Buy Now

Item Description Price
Precision Coating Thickness Gauge, Measures Coatings on Ferrous Metals up to 60 mils / 1500 Microns
$995.00
Precision Coating Thickness Gauge, Measures Coatings on Non-Ferrous Metals up to 60 mils / 1500 Microns
$995.00
Precision Coating Thickness Gauge, Measures Coatings on Ferrous and Non-Ferrous Metals up to 60 mils / 1500 Microns
$1,350.00
Accessories

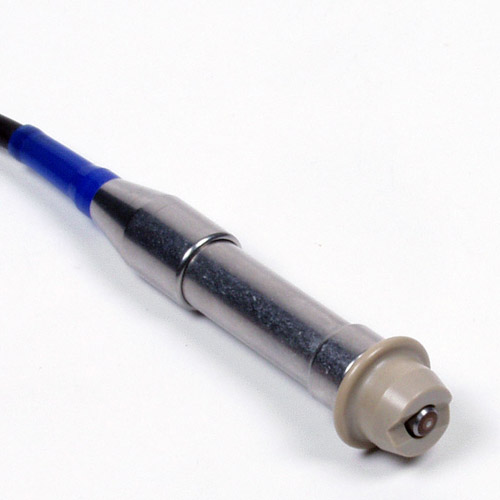

3000-HTF
High Temp Footer for 3000FX / 3000PRO. 300° F / 150° C Limit
$75.00

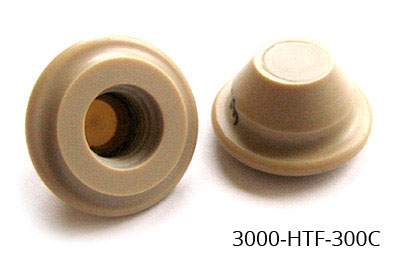

3000-HTF-300C
