CAP-T Cap Torque Tester / Closure Torque Tester

Click images to enlarge.
The CAP-T has been replaced by the new and improved CAP-TT01. Click here to view the CAP-TA Data Sheet

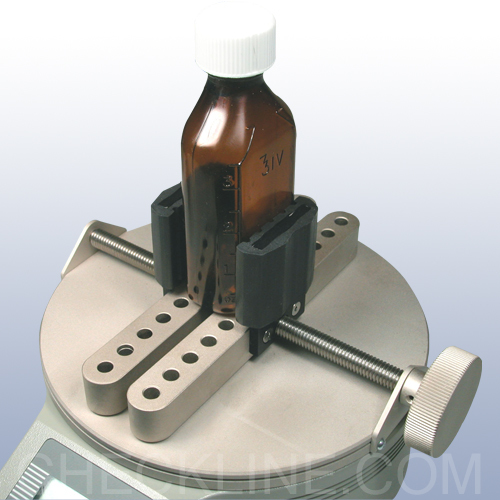

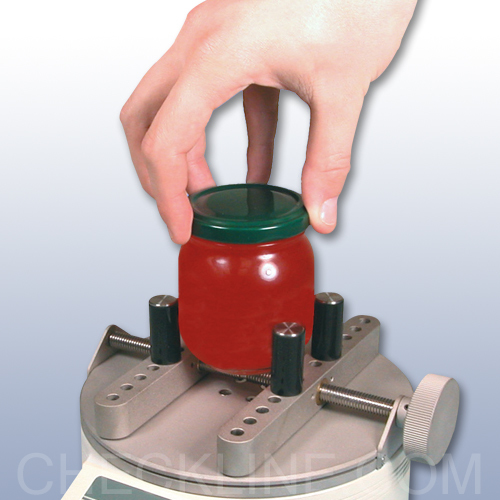

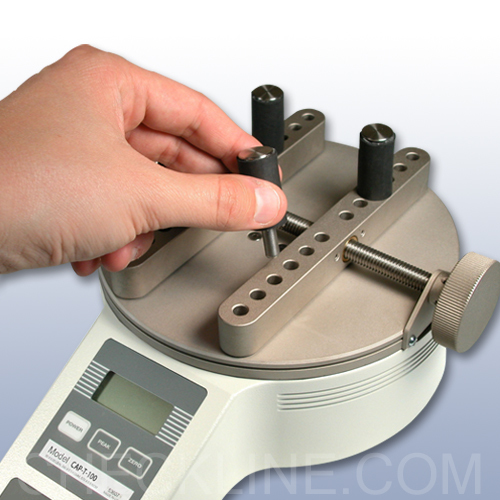

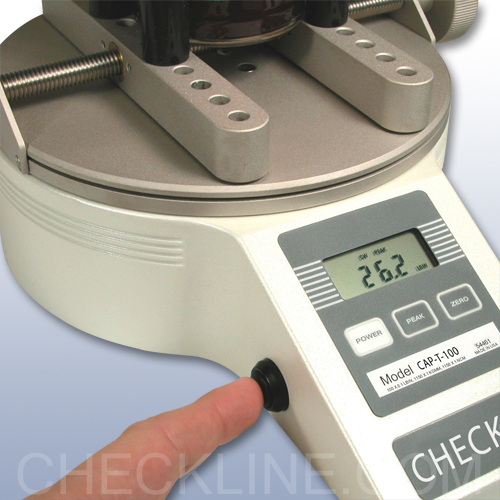

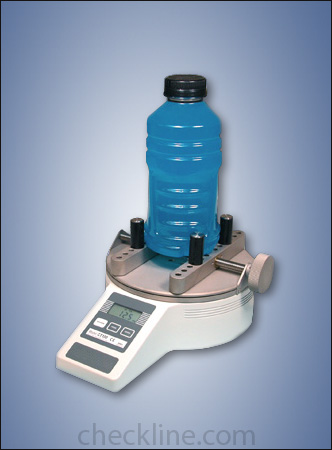

The new CAP-T Cap Torque Tester accurately measures twist-off and twist-on force. The CAP-T is an ideal tester for bottlers, food and beverage companies, and others who need to measure closure torque. The tester features a solid aluminum housing and rugged construction for many years of service in laboratory or production environments. Adjustable posts effectively grip a broad range of container shapes and sizes, while a set of optional jaws are available as an alternative gripping method. The CAP-T closure torque meter captures peak torque in both clockwise and counterclockwise directions for application and removal measurements.

The CAP-T-RS offers a data output button for easy transferring of the current reading to a PC or Printer for quality reporting.

Features

  • 3 Year Warranty
  • Accepts samples up to 7.5" (189.4 mm) dia.
  • Selectable units of measurement (lb-in, kg-mm, N-cm)
  • Real time and peak mode (selectable)
  • Includes NIST-Traceable Calibration Certificate
  • Both clockwise and counterclockwise operation
  • Battery or AC operation
  • Accuracy: ±0.5% of full scale ±1 digit
  • Outstanding Value
  • RS-232 and Digimatic Serial Outputs for connection to printer or PC available on CAP-T-xxRS model

Force Ranges

ModelCapacityResolution
CAP-T-1212 lb-in
140 kg-mm
135 N-cm
0.01 lb-in
0.1 kg-mm
0.1 N-cm
CAP-T-5050 lb-in
580 kg-mm
570 N-cm
0.05 lb-in
0.5 kg-mm
0.5 N-cm
CAP-T-100100 lb-in
1150 kg-mm
1150 N-cm
0.1 lb-in
1 kg-mm
1 N-cm

Typical Torque Values (LB-IN)

Cap dia.
in mm
Phenolic/ Urea
Cap On Glass
Phenolic/Urea
Cap on Plastic
PP/PE Cap
on Glass
PP/PE Cap
on Plastic
Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque
15 8 4 6 3 12 7 8 4
18 9 5 7 4 13 8 9 5
20 10 5 8 4 15 9 10 5
22 11 6 9 5 17 10 11 6
24 12 6 10 5 18 11 12 6
28 14 7 12 6 21 12 14 7
33 18 9 15 7 24 14 17 8
38 20 10 17 7 29 17 19 9
43 22 11 18 9 33 20 22 11
48 24 14 20 10 26 22 24 12
58 28 14 24 12 44 26 29 14
70 35 18 28 14 52 32 35 17
89 45 22 36 18 65 40 45 22
100 50 25 40 20 75 38 50 25

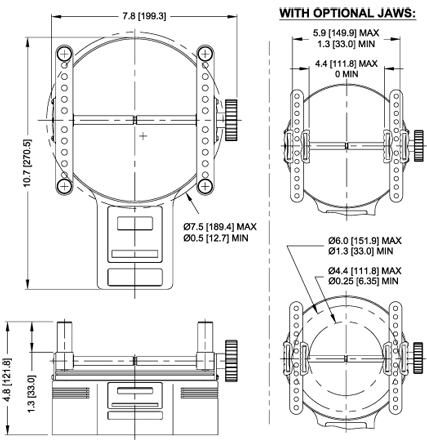

Dimensions

Related Products

Click image for more info
Cap Torque Tester
- Measures in real time or peak torque modes
- Data output via RS-232 and Mitutoyo
TNP Cap Torque Tester
Click image for more info
Digital Cap Torque Tester
- ±0.5% F.S. Accuracy
- USB interface including FREE Digitorq Software
Click image for more info
- Real time and peak mode (selectable)
Click image for more info
Mitutoyo SPC statistical processor/printer
Click image for more info
MESURgauge / MESURgauge Plus Load & Travel Analysis Software
- MESURgauge Plus starts and stops models ESM303, ESM303H, ESM750,ESM750S, ESM1500, and ESM1500S motorized test stands, coordinating motion control and data collection with just one click

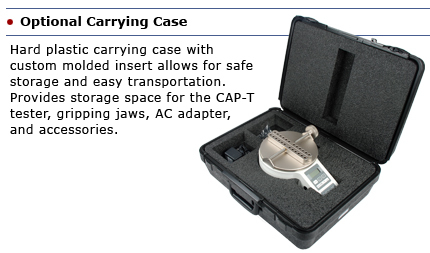

CAP-T-CC Carrying Case

Specifications

Accuracy± 0.5% of full scale, ±1 least significant digit
Max Sample Diameter7.5" (189.4 mm)
Sampling Rate30 readings per second
Display4 1/2 digit LCD with .3" high characters. Indicators for low battery, units and mode of operation
PowerNon-rechargeable 9V battery or AC operation with included adapter
Battery Life30 hours of continuous use, LO BAT indicator
Overload Protection150% or higher
Weight10 lbs (4.5 kg)
Warranty3 years
Calibration CertificateIncluded
Scope Of DeliveryCAP-T includes, tester, set of four - 1" gripping pegs, AC adapter, calibration certificate and instruction manual

Downloads
