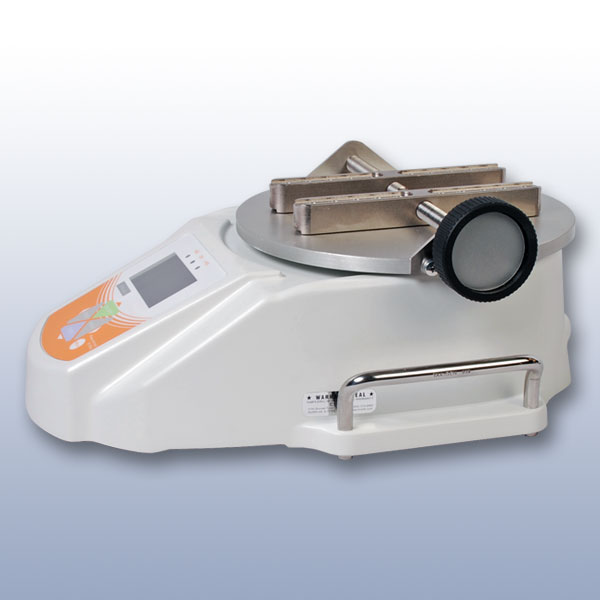

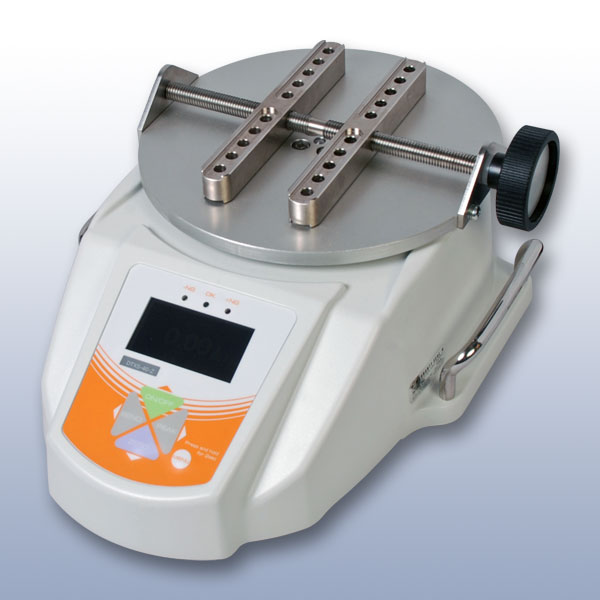

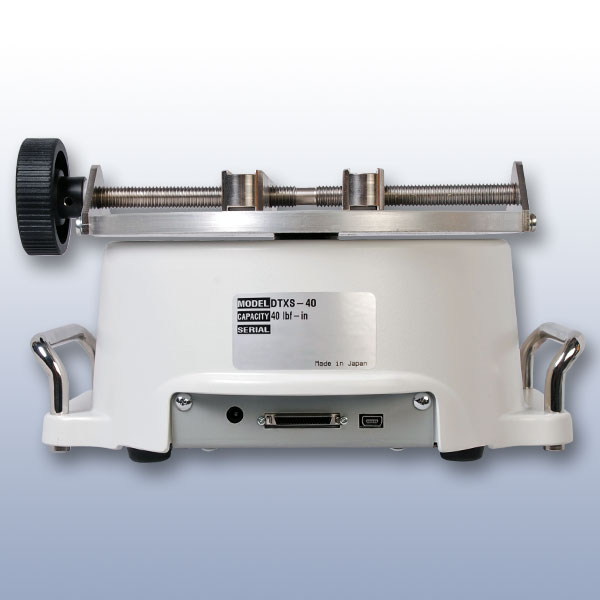

CAP-DTXS Digital Cap Torque Tester

Made in Japan

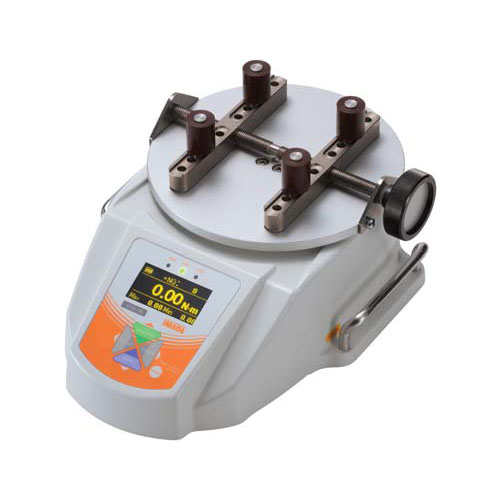

imada dtx cap torque tester
Click images to enlarge.
The CAP-DTXS is an easy-to-use, high-precision cap torque tester that features a large electroluminescent display that clearly indicates the real-time and peak torque. Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights indicate a value less than low setpoint, green lights between high and low, and red for over the high.

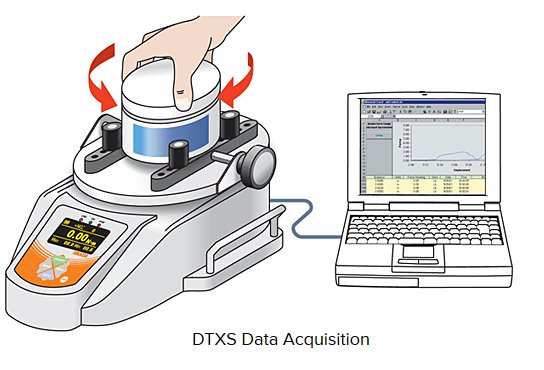

The CAP-DTXS is supplied with ZT Logger data acquisition software. It can download data from the tester memory or captures continuous data at 10 points/second. Zero the tester or capture data while at the computer. All tester programming can be set and saved from the software.

Optional Force Recorder data acquisition software is designed to process up to 2,000 data per second.

All CAP-DTXS cap torque testers include a 3 Point Calibration Certificate traceable to NIST. DTXS cap torque testers include AC adapter/charger and built-in Ni-MH rechargeable batteries, 1″ high standard pegs (optional long pegs and calibration kit available).

Features

  • Test cap loosening (CCW) and tightening (CW) torque
  • Selectable real time and peak modes
  • USB, RS-232, Digimatic and Analog outputs
  • Selectable units of lbf-in, kgf-cm, N-m, ozf-in, N-cm
  • 1000 data point memory capacity
  • Programmable high/low setpoints with color-coded LED indicators and audible signal
  • Overload and low battery indicators
  • 200% overload capacity
  • DTXS accommodates samples from 20 up to 160 mm (0.787" - 6.30")
  • Four rubber-coated 1 inch pegs are included with DTXS
  • Optional "Small Table" accommodates samples from 7 up to 50 mm (0.275" - 2")
  • Optional Peg sizes/material available
  • Include 3 Point Calibration Certificate traceable to NIST. ISO 17025 Calibration Certification optionally available
  • 2 Year Warranty

Torque Ranges - Capacity (Resolution)

Modellbf-inkgf-cmN-cmNmozf-in
CAP-DTXS-44.000 (0.001)5.000 (0.001)50.00 (0.01)
CAP-DTXS-1515.00 (0.01 lbf-in)20.00 (0.01 kgf-cm)200.0 (0.1 N-cm)2.000 (0.001 Nm)240.0 (0.1 ozf-in)
CAP-DTXS-4040.00 (0.01 lbf-in)50.00 (0.01 kgf-cm)500.0 (0.1 N-cm)5.000 (0.001 Nm)640.0 (0.1 ozf-in)
CAP-DTXS-8585.0 (0.1 lbf-in)100.0 (0.1 kgf-cm)1000 (1 N-cm)10.000 (0.01 Nm)1360 (1 ozf-in)

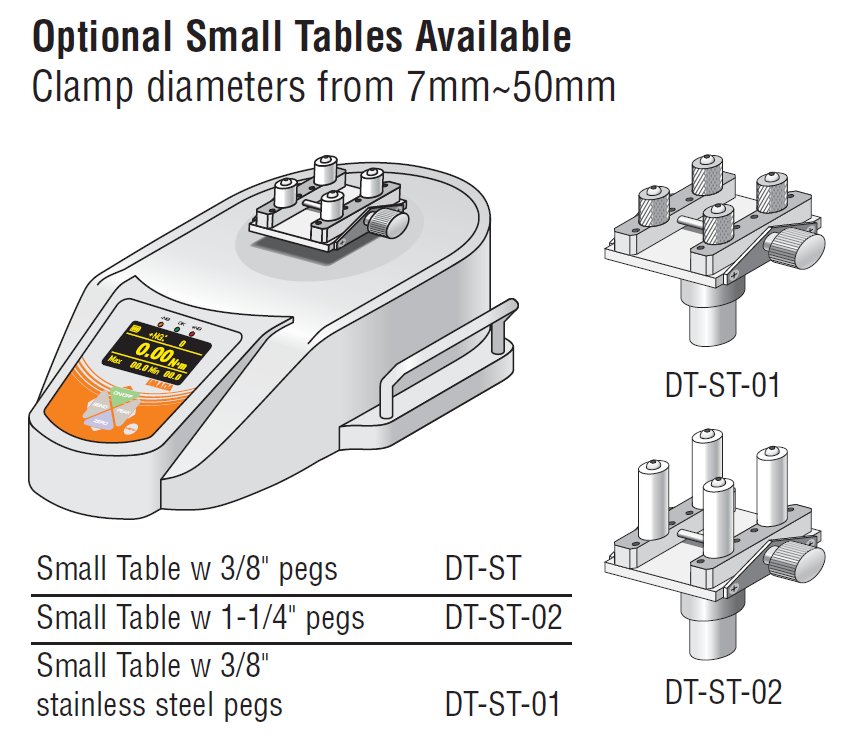

Optional Small Table

Clamps diameters from 7mm ~ 50mm

DT-ST DT-ST-01 DT-ST-02

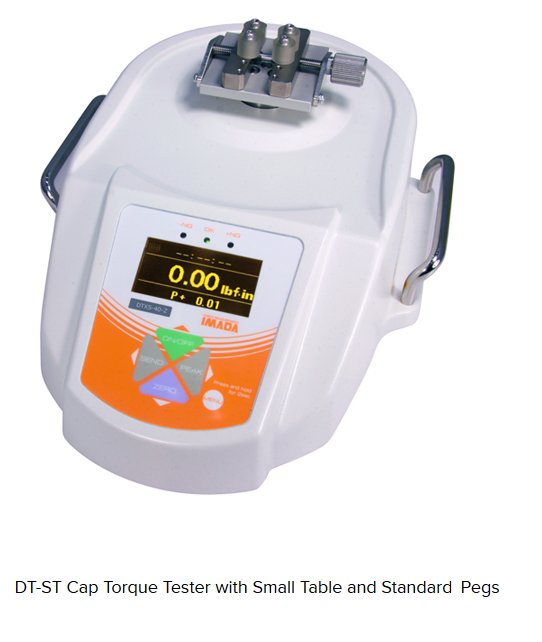

Small table with standard pegs.
Small table with standard pegs

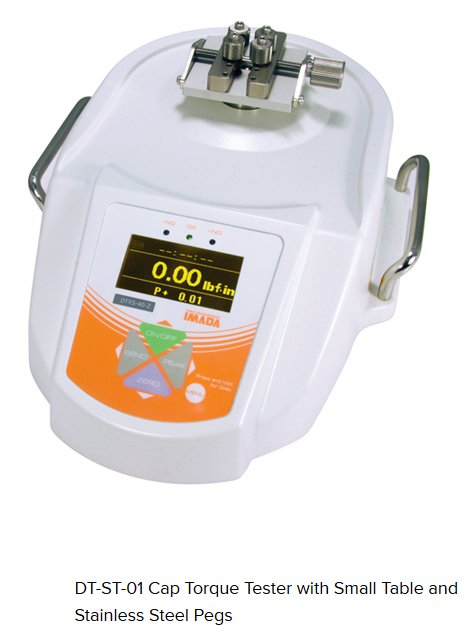

Small table with steel pegs.
Small table with steel pegs

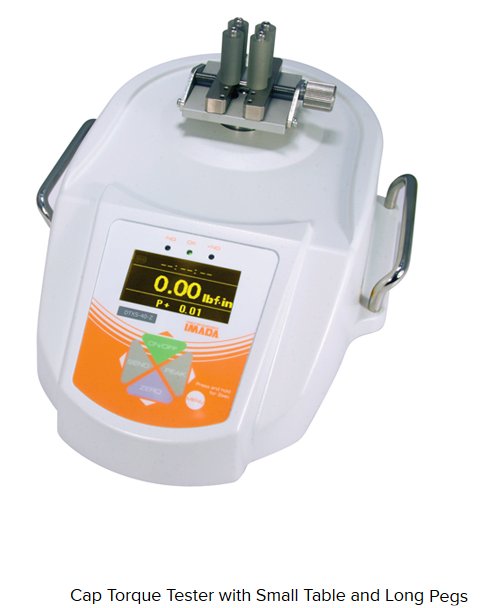

Small table with long pegs.
Small table with long pegs

Related Products

CAP-TT01 cap torque tester
Click image for more info
Cap Torque Tester
- First & second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures
TNP Cap Torque Tester
Click image for more info
Digital Cap Torque Tester
- ±0.5% F.S. Accuracy
- USB interface including FREE Digitorq Software
Imada sbk cap torque tester calibration wheel
Click image for more info
Calibration Fixture for DTX2 Cap Torque Tester

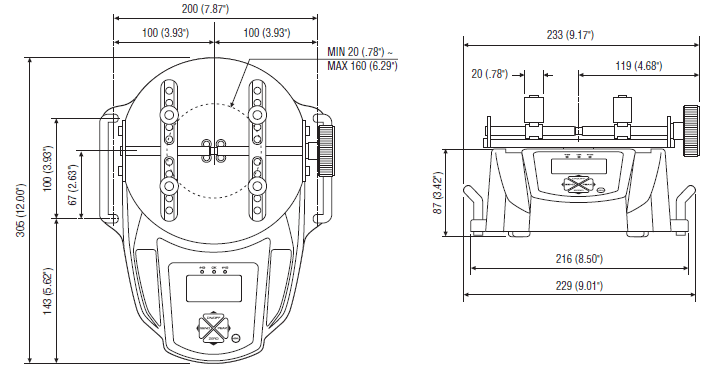

Dimensions

Specifications

Accuracy±0.5%F.S.±1digit
Unit of measurementlbf-in, kgf-cm, N-m, ozf-in, N-cm
Display4-digit
Display update10 times/ sec
Auto Zero Reset1.0 to 60 seconds (selectable)
Sampling rate2,000 samples/second (max) thru the USB port
Safe overload ratingApprox. 200%
Operating EnvironmentTemperature: 0-40 °C Humidity: 20 -80%RH
OutputOutputs USB, RS-232C, Digimatic and ± 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm
Overload warningApprox.110%F.S. (Warning message and alarm )
SensitivityMax, High, Medium, Low (selectable)
External connecting switchSEND (a point of contact holding), Zero reset, Peak, ON/OFF setting
Auto Power Off5, 10, minutes or OFF (selectable)
PowerBuilt-In Rechargeable Ni-MH battery pack or via AC-Adapter (100-240V AC)
Battery Lifeapprox. 8 hours (recharge time approx. 10 hours)
Battery IndicatorIndicates three charge states high, medium and low
Plug TypeUSA Blade Type (Select Euro Plug Adapter for use in 230V Countries)
WeightApprox. 10 Lbs/4.5kg (Including Standard table and Standard pins)
Warranty2-Years

Downloads

Buy Now

Item Description Price
DTXS-15 Digital Cap Torque Tester - 4 lbf-in capacity (with Small Table)
$2,051.50
DTXS-15 Digital Cap Torque Tester - 15 lbf-in capacity
$1,798.50
DTXS-40 Digital Cap Torque Tester - 40 lbf-in capacity
$1,798.50
DTXS-85 Digital Cap Torque Tester - 85 lbf-in capacity
$1,798.50
Accessories
ISO-17025
ISO-17025 Accredited Calibration with Certificate
$220.00
CB-108
Analog cable for DTXS
$93.50
CB-208
RS-232 Cable for DTXS
$93.50
CB-308
Digimatic Cable for DTXS
$93.50
TB-P
Set of four (4) 1 inch Rubber-Coated Pegs for DTXS
$137.50
TB-01P
Set of four (4) 1 inch Stainless Steel Pegs for DTXS
$242.00
TB-02P
Set of four (4) 2-3/4" Rubber-Coated Pegs for DTXS
$220.00
TB-04P
Set of four (4) 4 inch Rubber-Coated Pegs for DTXS
$220.00
DT-ST
Small Table for CAP-DTXS with 3/8 inch Rubber Coated Pegs
$580.00
DT-ST-01
Small Table for CAP-DTXS with 3/8 inch Stainless Steel Pegs
$580.00
DT-ST-02
Small Table for CAP-DTXS with 1-1/4 inch Rubber Coated Pegs
$620.00
ADW-6010
Spare / Replacement Power Adapter for ZT / HTGS / DTXS
$66.00
