TT-QC Torque Tool Tester - AWS-QC

Made in USA

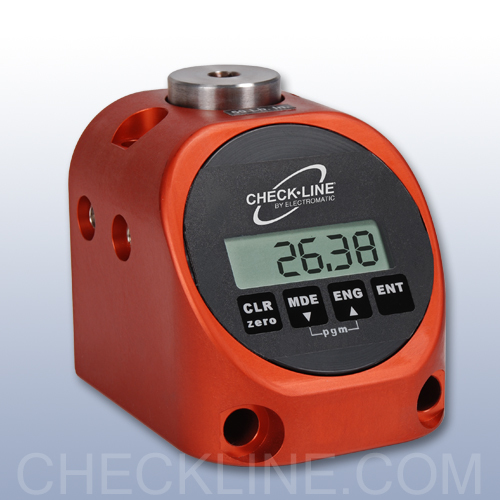

TT-QC Torque Tool Tester, AWS-QC, Aimco Torque Cube
Click images to enlarge.
Simple bench mount tester for quick tool verification

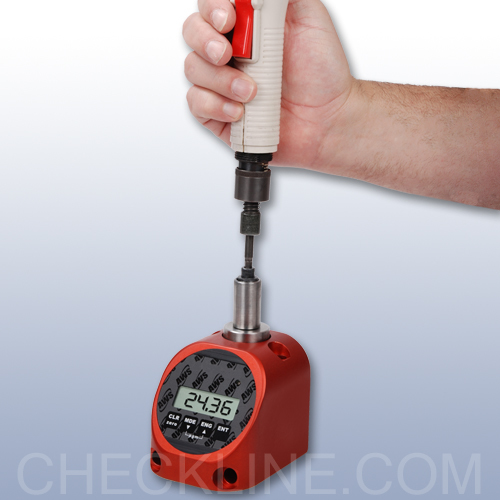

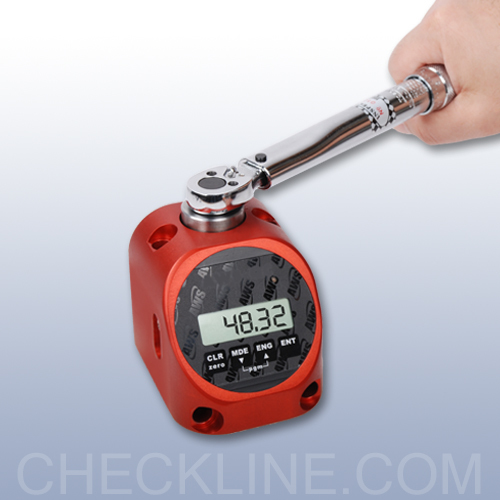

For testing click, dial, and digital wrenches, plus most power tools including impulse and electric drivers*.

Our smallest and lowest cost bench mount torque tester to date, the TT-QC Quick Check is perfect for quick equipment verification right at your workstation. Small and light enough to use anywhere, this unit can still be used alongside any metrology grade tester.

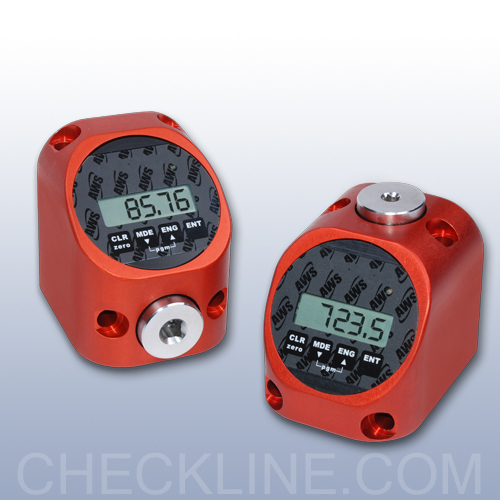

A unique rotating display and dual bolt pattern allow the tester to be used in both horizontal and vertical configurations. It is ideal for switching between pistol grip and inline tool checking.

The TT-QC takes just seconds to change test parameters and works in either one button or automatic modes of operation. Reliability and ease of use are enhanced with features such as; Sign Lock, Peak Blanking, Auto Clear.

*Power tools require the use of a run-down-fixture
**Not for use with impact tools or torque multipliers

Also known as the AWS-QC, Aimco Torque Cube

Features

  • Includes NIST-Traceable Calibration Certificate with data
  • Bidirectional accuracy of ± 1% of indicated reading
  • Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
  • 3 modes of operation: Track, Peak and 1st Peak
  • Rugged Aluminum Housing
  • NiMH rechargeable batteries provide 8-10 hours continuous use
  • RS-232 Data Output (requires optional cable / software)
  • For Testing According to ISO 6789:2017

TT-QC with Optional TWT-410 Torque Loader

Torque Ranges

Model Range Drive Size Run-Down Fixture
TT-QC-50z-1/4
5 - 50 ozf-in
0.31 - 3.12 lbf-in
0.02 - 0.26 lbf-ft
360 - 3600.39 gf-cm
0.36 - 3.6 kgf-cm
0 - 0.03 kgf-m
3.53 - 35.3 N-cm
0.03 - 0.35 N-m
1/4" Included
TT-QC-100z-1/4
10 - 100 ozf-in
0.62 - 6.25 lbf-in
0.05 - 0.52 lbf-ft
720 - 7200.779 gf-cm
0.72 - 7.2 kgf-cm
0 - 0.07 kgf-m
7.06 - 70.6 N-cm
0.07 - 0.7 N-m
1/4" Included
TT-QC-200z-1/4
20 - 200 ozf-in
1.25 - 12.5 lbf-in
0.1 - 1.04 lbf-ft
N/A
1.44 - 14.4 kgf-cm
0.01 - 0.14 kgf-m
14.1 - 141 N-cm
0.14 - 1.41 N-m
1/4" Included
TT-QC-10i-1/4
16 - 160 ozf-in
1 - 10 lbf-in
0.08 - 0.83 lbf-ft
N/A
1.15 - 11.5 kgf-cm
0.01 - 0.11 kgf-m
11.2 - 112 N-cm
0.11 - 1.12 N-m
1/4" Included
TT-QC-25i-1/4
40 - 400 ozf-in
2.5 - 25 lbf-in
0.2 - 2.08 lbf-ft
N/A
2.88 - 28.8 kgf-cm
0.02 - 0.28 kgf-m
28.2 - 282 N-cm
0.28 - 2.82 N-m
1/4" Included
TT-QC-50i-1/4
80 - 800 ozf-in
5 - 50 lbf-in
0.41 - 4.16 lbf-ft
N/A
5.76 - 57.6 kgf-cm
0.05 - 0.57 kgf-m
56.4 - 564 N-cm
0.56 - 5.64 N-m
1/4" Included
TT-QC-100i-1/4
160 - 1600 ozf-in
10 - 100 lbf-in
0.83 - 8.33 lbf-ft
N/A
11.5 - 115 kgf-cm
0.11 - 1.15 kgf-m
112 - 1129.848 N-cm
1.12 - 11.2 N-m
1/4" Included
TT-QC-150i-1/4
240 - 2400 ozf-in
15 - 150 lbf-in
1.25 - 12.5 lbf-ft
N/A
17.2 - 172 kgf-cm
0.17 - 1.72 kgf-m
169 - 1694.772 N-cm
1.69 - 16.9 N-m
1/4" Included
TT-QC-250i-3/8
400 - 4000 ozf-in
25 - 250 lbf-in
2.08 - 20.8 lbf-ft
N/A
28.8 - 288 kgf-cm
0.28 - 2.88 kgf-m
282 - 2824.621 N-cm
2.82 - 28.2 N-m
3/8" Included
TT-QC-500i-3/8
800 - 8000 ozf-in
50 - 500 lbf-in
4.16 - 41.6 lbf-ft
N/A
57.6 - 576 kgf-cm
0.57 - 5.76 kgf-m
564 - 5649.242 N-cm
5.64 - 56.4 N-m
3/8" Included
TT-QC-750i-3/8
N/A
75 - 750 lbf-in
6.25 - 62.5 lbf-ft
N/A
86.4 - 864 kgf-cm
0.86 - 8.64 kgf-m
847 - 8473.862 N-cm
8.47 - 84.7 N-m
3/8" Included
TT-QC-1000i-3/8
N/A
100 - 1000 lbf-in
8.33 - 83.3 lbf-ft
N/A
115 - 1152.125 kgf-cm
1.15 - 11.5 kgf-m
N/A
11.2 - 112 N-m
3/8" Included
TT-QC-100f-1/2
N/A
120 - 1200 lbf-in
10 - 100 lbf-ft
N/A
138 - 1382.55 kgf-cm
1.38 - 13.8 kgf-m
N/A
13.5 - 135 N-m
1/2" Optional
TT-QC-150f-1/2
N/A
180 - 1800 lbf-in
15 - 150 lbf-ft
N/A
207 - 2073.824 kgf-cm
2.07 - 20.7 kgf-m
N/A
20.3 - 203 N-m
1/2" Optional
TT-QC-250f-1/2
N/A
300 - 3000 lbf-in
25 - 250 lbf-ft
N/A
345 - 3456.374 kgf-cm
3.45 - 34.5 kgf-m
N/A
33.8 - 338 N-m
1/2" Optional
TT-QC-500f-3/4
N/A
600 - 6000 lbf-in
50 - 500 lbf-ft
N/A
691 - 6912.748 kgf-cm
6.91 - 69.1 kgf-m
N/A
67.7 - 677 N-m
3/4" Optional
TT-QC-600f-3/4
N/A
720 - 7200 lbf-in
60 - 600 lbf-ft
N/A
829 - 8295.298 kgf-cm
8.29 - 82.9 kgf-m
N/A
81.3 - 813 N-m
3/4" Optional

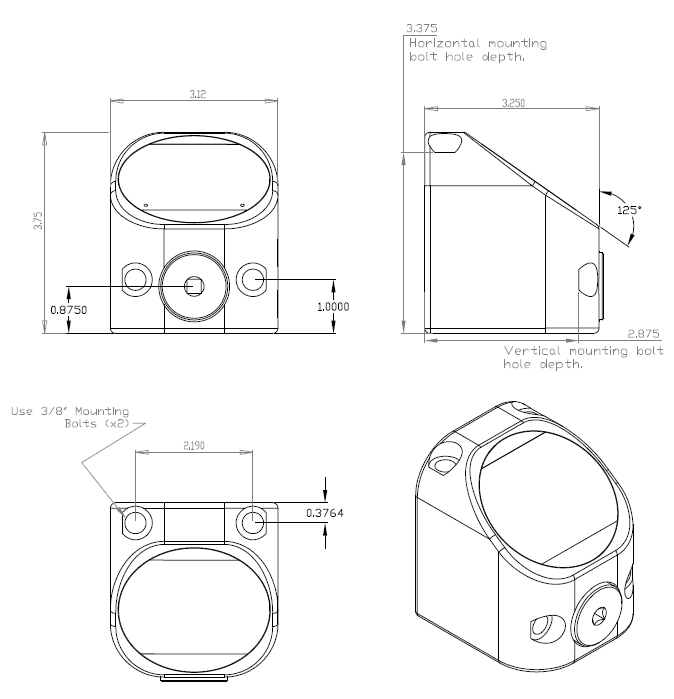

Dimensions

Related Products

Click image for more info

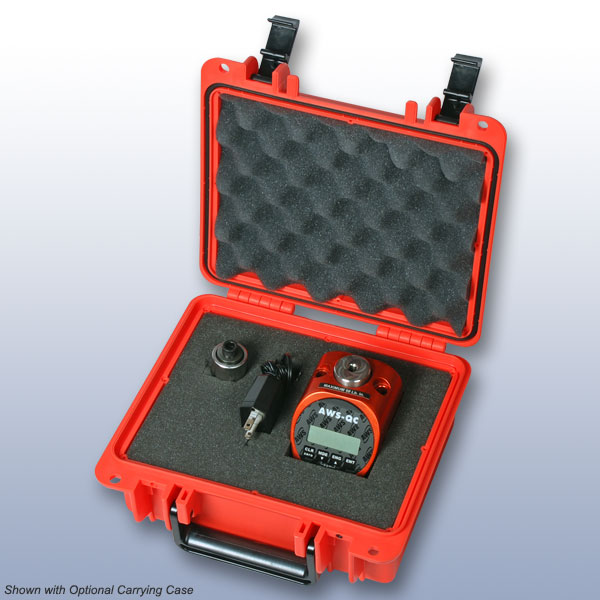

Waterproof Carrying Case
- Injection molded using an advanced patented light-weight high-strength plastic.
TWT-410 Torque Loader
Click image for more info
Mechanical Torque Wrench Loader
- Compatible with TT-QC and TT-QCM Torque Testers
TT-QCM Torque Tester
Click image for more info
Torque Wrench Tester
- ±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional
Inline Torque Tester ILTT
Click image for more info
Inline Torque Tester
- Bidirectional accuracy of ±1% of indicated reading
- 3 modes of operation: Track, Peak and 1st Peak
TTCA torque calibration arm
Click image for more info
Torque Arms, Calibration Arms, Torque Wheels, Calibration Wheel
run-down-fixture
Click image for more info
RDF
Run Down Fixture - Joint Simulators for Torque Testers
- Threaded bolt and nut body for simulating bolted joint. On Standard, HD and HE models bolt is standard and easily replaceable from multiple sources
Torque Drive Hex Adapters
Click image for more info
Torque Drive Hex Adapters
P-190 Printer
Click image for more info
Impact Dot Printer
TT-3000 Torque Analyzer
Click image for more info
Torque Analyzer - AWS-3000
- ±0.5% Accuracy of indicated reading from 10-100% of the capacity (Bidirectional), ±0.25% Optional
torque drive adapter
Click image for more info
IA
Torque Drive Insert Adapters, Sleeve Reducers

Specifications

Calibrated Range10-100% Full Scale, bi-directional
Accuracy±1% of Indicated Value (within calibrated range)
Resolution4 Active Digits
Overload Protection200% Full Scale bi-directional
Operating ModesTrack, Peak, 1st Peak
FilteringSelectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz
Data OutputRS-232
Alarm LimitsPanel Mounted LED for Visual Alarm Limits
PowerInternal NiMH battery, AC Adapter / Charger (included)
WeightAproximately 3lbs depending on transducer
Operating Temp32 - 120 °F (0-50 °C)
Warranty1 Year
Calibration CertificateIncludes NIST Traceable calibration certificate with data
Standard AccesoriesJoint Simulator for 1/4" & 3/8" drives, AC adapter/Charger
Optional AccessoriesJoint Simulators for 1/2", 3/4" & 1" Transducers
